Description
Product Specifications:
- Material: Housing made of PA66 (UL94V-0), contacts made of brass with tin plating.
- Color: Green, ensuring easy identification and integration into your projects.
- Electrical: Rated voltage up to 300V, rated current of 16A, and withstanding voltage of AC2000V/1Min.
- Temperature Range: Operating temperature from -40°C to 150°C, short-time temperature up to +250°C for 5 seconds.
- Insulation: High insulation resistance of >5000MΩ at DC500V.
Product Advantages:
- Our connectors are factory-direct, ensuring competitive pricing and high quality.
- They are designed for easy installation and reliable performance, reducing maintenance costs.
- Compliant with CQC certification, ensuring safety and reliability.
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services, ensuring your satisfaction with our products.

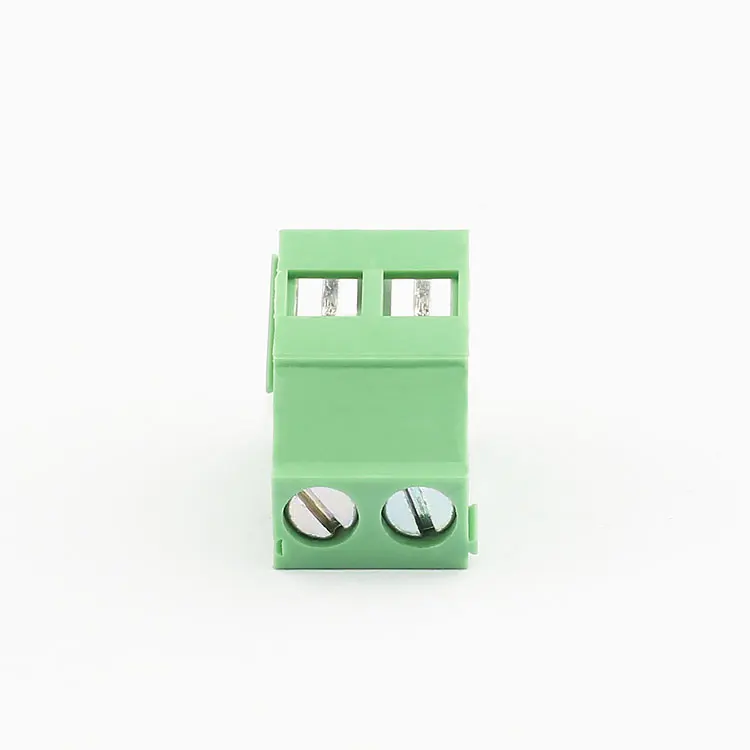

Choose our PA66 2-Pin PCB Connectors for your next project and experience the difference in quality and performance.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |
Why Choose Our PA66 2-Pin PCB Connectors?
Our PA66 2-Pin PCB Connectors are designed for high durability and reliability, making them ideal for a wide range of electronic applications. The PA66 housing ensures excellent heat resistance and flame retardancy, while the brass contacts with tin plating provide excellent conductivity and corrosion resistance.
What Are the Key Features?
Key features include a rated voltage of up to 300V, a rated current of 16A, and a withstanding voltage of AC2000V/1Min. The connectors also offer high insulation resistance of >5000MΩ at DC500V, ensuring safety and reliability in your projects.
How Do We Stand Out from Competitors?
As a factory supplier, we offer competitive pricing without compromising on quality. Our connectors are CQC certified, ensuring they meet the highest safety standards. Additionally, we provide comprehensive after-sales support, including technical assistance and warranty services, to ensure your satisfaction.
