Wholesale PA66 Pluggable 5.08mm Male Terminal Block Supplier

Categories: , Tags: , ,
200 - 4,999  pieces
$0.10

>= 5,000  pieces
$0.08
0 reviews

Wholesale PA66 Pluggable Terminal Blocks – Direct Factory Supplier

Clean All

Description

Introducing our high-quality PA66 Pluggable 5.08mm Male Terminal Block, a must-have for industrial and automotive applications. As a direct factory supplier, we offer wholesale pricing on this durable and reliable wire connector. Crafted with tin-plated copper contacts and housed in a robust PA66 plastic shell, this terminal block ensures excellent conductivity and longevity. With a pitch of 5.08mm, it accommodates 2 to 24 poles, supporting a maximum rating current of 16A and voltage of 300V AC. Operating temperatures range from -40℃ to +150℃, making it suitable for various harsh environments. Certified by CQC and UL, our terminal block guarantees safety and compliance. With a low contact resistance of 20mΩ, it ensures efficient electrical connections. Choose us for factory-direct pricing, reliable quality, and exceptional customer service.

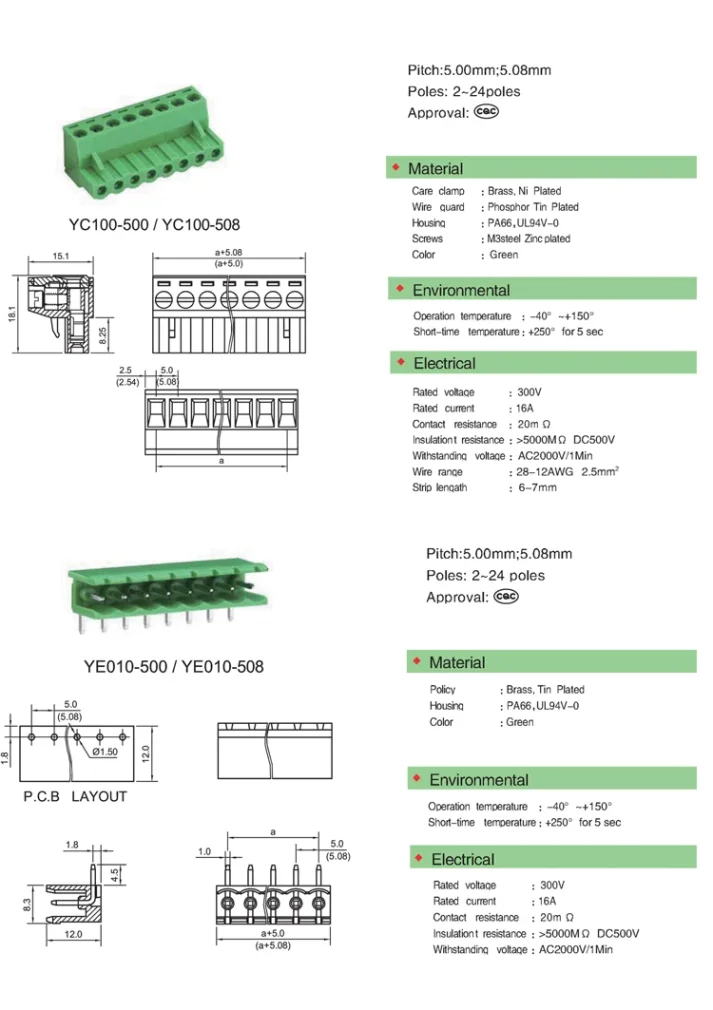

pitch
5.08mm
operation temperature
-40° to +150°
poles
2~24 poles
max.rating current & voltage
16A 300V AC
certificate
CQC UL
contact resistance
20MΩ

Electronic component product image for cross-border e-commerce


Why Choose Our PA66 Pluggable Terminal Block?

Our PA66 Pluggable Terminal Block stands out with its robust PA66 plastic housing and tin-plated copper contacts, ensuring durability and excellent conductivity. The push-in connection method simplifies installation, while the wide operating temperature range (-40℃ to +150℃) makes it suitable for various environments.

What Are the Key Specifications?

With a 5.08mm pitch and 2 to 24 poles, this terminal block supports a maximum rating current of 16A and voltage of 300V AC. Its low contact resistance of 20mΩ ensures efficient electrical connections, making it ideal for industrial and automotive applications.

Why Buy from Us as a Supplier?

As a direct factory supplier, we offer wholesale pricing without compromising on quality. Our terminal blocks are certified by CQC and UL, guaranteeing safety and compliance. Choose us for reliable products, competitive prices, and exceptional customer service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China
Application

Industrial, Automotive, wire connecting, spring terminal block
Number of Pole

Other, 2, 4, 6, 3, 1, 5
Contact Material

tin-plated copper
Connection Method

push-in connection
Max continuous amp

16A
Brand Name

Yong Xing
Model Number

YC100-508
Number of Contacts

1 – 20
Conductor Size

21 – 30 AWG
Type

Plug-in
Material

plastic terminal block
Color

Green terminal block
Operation temperature

-40℃~+150℃
Rated voltage

300V
Rated Current

16A
Housing

PA66.
Contact resistance

20mΩ
