Description
Product Specifications:
- Max. Rating Current & Voltage (Resistive Load): 3A 250V AC
- Contact Resistance: ≤50MΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- Electronic Life (cycles): Momentary: 50,000 | Alternate: 25,000
- Mechanical Life (cycles): Momentary: 200,000 | Alternate: 50,000
- Operating Temperature: -25°C to +55°C
- IP Code: IP40

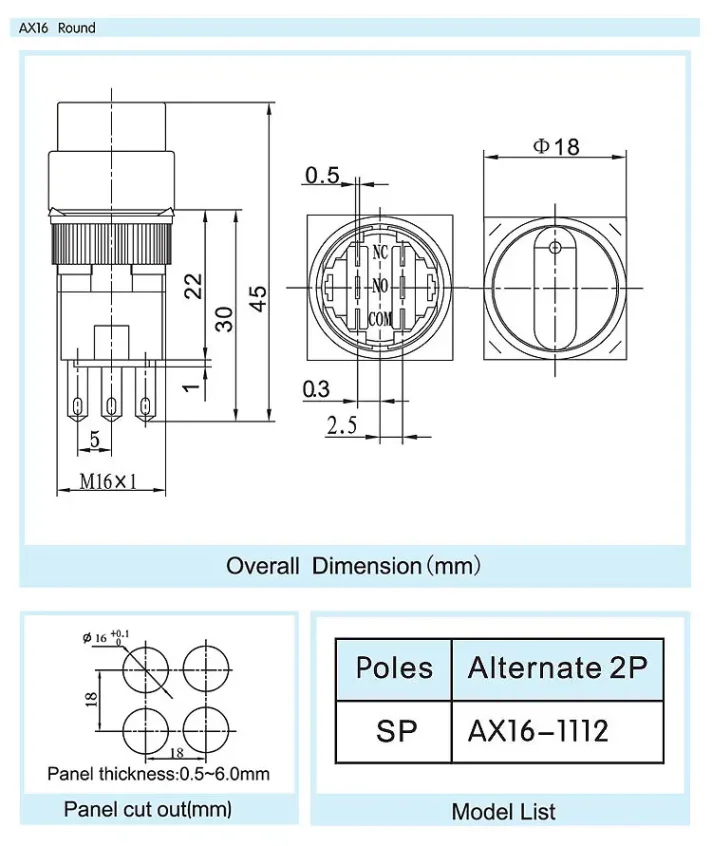

- Panel Cut Out: φ16mm
- Poles: SP (Single Pole)
- Operating Top Shape: Round
- Position: 2 Position
Product Advantages:
- Durable plastic construction ensures long-lasting performance.
- High rating current and voltage make it suitable for various applications.
- Excellent insulation and dielectric strength for safety.
- Long electronic and mechanical life for reliability.
- Easy to install with a φ16mm panel cut out.
Why Choose Us?
- We are a factory supplier, offering competitive wholesale prices.
- High-quality products with strict quality control.
- Fast shipping and excellent customer service.
- Customizable options available to meet your specific needs.
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |
| Panel cut out | φ16mm |
| Poles | SP(Single Pole) |
| Operating Top shape | Round |
| Position | 2 position |
Key Features and Benefits
Our PCB Mount Motorcycle Rotary Switch is designed for durability and reliability, making it an ideal choice for motorcycle handlebar controls. With a max. rating current of 3A and voltage of 250V AC, it can handle various applications with ease. The plastic construction ensures long-lasting performance, while the excellent insulation and dielectric strength provide safety and peace of mind.
Why Choose Our Rotary Switch?
As a factory supplier, we offer wholesale prices on this high-quality switch, making it a cost-effective solution for your motorcycle customization needs. Our strict quality control ensures that each switch meets the highest standards, and our fast shipping and excellent customer service make the purchasing process smooth and hassle-free.
Versatile Applications
This rotary switch is not only suitable for motorcycle handlebars but also finds applications in the electronic industry. Its 2-position design and round operating top shape make it versatile and easy to use. Whether you're a motorcycle enthusiast or an electronic industry professional, our PCB Mount Motorcycle Rotary Switch is the perfect choice for your custom control needs.
