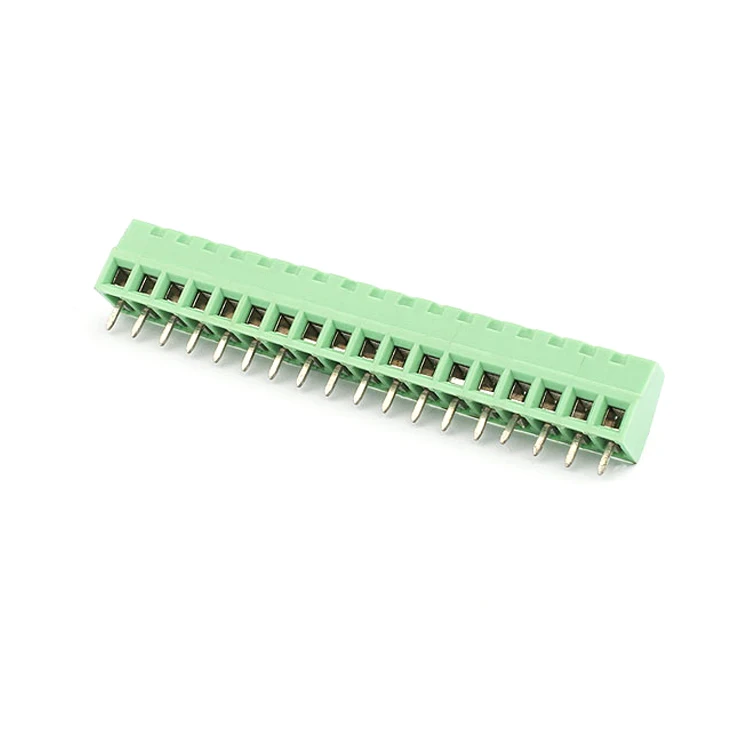

Wholesale Pluggable Screwless Terminal Block Connector | Factory Supplier

Categories: , Tags: , ,
100 - 9,999  pieces
$0.89

>= 10,000  pieces
$0.65
0 reviews

Wholesale pluggable screwless terminal block connector from factory supplier. High quality, competitive price.

Clean All

Description

Our Pluggable Screwless Terminal Block Connector, available from a factory supplier, is a high-quality product designed for industrial and automotive applications. With a nickel-plated copper contact material, it ensures excellent conductivity and durability. The connector supports a wide conductor size range from 28-14AWG and comes in various pole configurations (2-24 poles) and pitches (3.50mm, 3.81mm, 5.00mm, 5.08mm). It operates efficiently in temperatures ranging from -40°C to +150°C and can withstand short-time temperatures up to +250°C for 5 seconds. The insulation resistance is greater than 5000MΩ at DC500V, and it has a withstanding voltage of AC2000V/1Min. Certified by CQC and UL, our connector guarantees safety and reliability. As a factory supplier, we offer competitive wholesale prices and excellent after-sales service, making it an ideal choice for bulk purchases.
contact resistance
20MΩ
operation temperature
-40° to +150°
insulation resistance
＞5000MΩ DC500V
short-time temperature
+250° for 5 sec
withstanding voltage
AC2000V/1Min
certificate
CQC UL

Electronic component product image for cross-border e-commerce


Why Choose Our Pluggable Screwless Terminal Block Connector?

Our pluggable screwless terminal block connector stands out for its high conductivity, durability, and ease of use. The nickel-plated copper contact material ensures reliable electrical connections, while the screwless design simplifies installation and maintenance. With a wide temperature operating range and excellent insulation resistance, it's perfect for industrial and automotive applications.

What Are the Key Features?

Key features include support for various pole configurations and pitches, a wide conductor size range, and certification by CQC and UL. It also offers high withstanding voltage and short-time temperature resistance, ensuring safety and reliability in demanding environments.

Why Buy from Our Factory Supplier?

As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our products are of high quality and meet international standards. Choose us for your bulk purchasing needs and enjoy the benefits of direct factory pricing and reliable support.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China
Application

Industrial, Automotive, wire connecting, spring terminal block
Number of Pole

2, 4, 6, 1, 3, 5, Other
Contact Material

nickel-plated copper
Connection Method

push-in connection
Max continuous amp

16A
Brand Name

Yongxing
Model Number

YC101-500/508
Number of Contacts

2-24
Conductor Size

28-14AWG
Type

PCB
product type

male and female terminal block
another name

terminal block connector
pole

2-24
pitch

3.50mm,3.81mm,5.00mm,5.08mm, screwless terminal block
insulation resistance

>5000MΩ DC500V
Housing

PA66.UL94V-0
