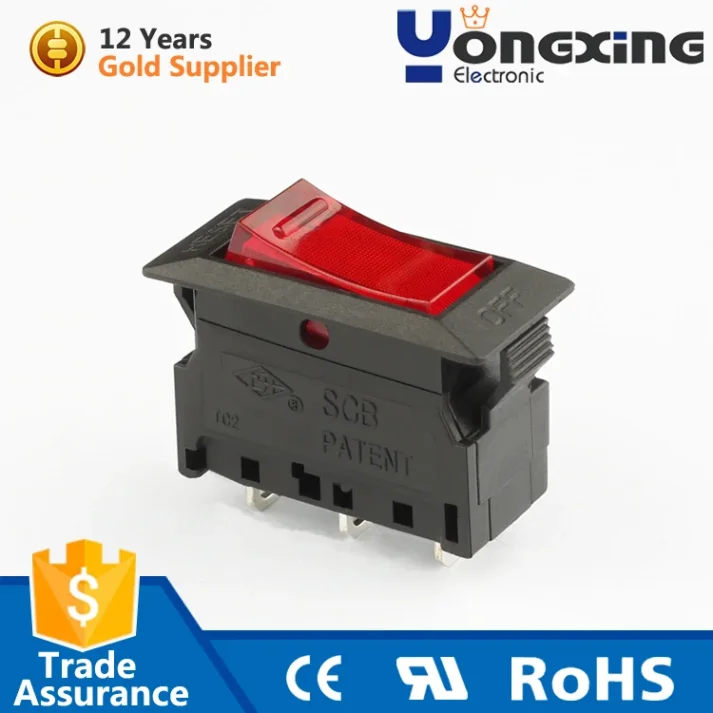

Wholesale Red Black Illuminated Overload Circuit Breaker Rocker Switch Supplier

$0.30 - $0.45
0 reviews

Wholesale Red Black Circuit Breaker Switch Supplier, High Quality & Reliable

Description

Our factory-direct Red Black Illuminated Overload Circuit Breaker Rocker Switch is a versatile and reliable solution for power switching and circuit protection needs. With a rating current of 5-15A and a rating voltage of AC 125V/220V, DC50V, it is suitable for a wide range of applications. The switch features a mechanical life of over 6000 cycles, ensuring durability and longevity. It also boasts an insulation resistance of ≥100MΩ at DC500V and a dielectric strength of AC 1500V for 1 minute, providing excellent safety performance. The switch is available in multiple housing colors including red, yellow, green, black, blue, orange, white, and gray, allowing for customization to match your specific requirements. As a supplier, we offer competitive wholesale prices and fast shipping from Shanghai port. Our switch is certified by CQC, CE, UL, and ROHS, ensuring compliance with international standards. Choose our switch for its high quality, reliability, and excellent after-sales service.
Function

Provides power switching and circubit

protection in a single unit

Rating Current 5-15A circuit breaker switch
Rating Voltage AC125V 220V DC50V
life(cycles) >6000
Insulation Resistance ≥100MΩ DC500V rocker switch
Certification

CQC , CE , UL , ROHS

Dielectric Strength AC 1500V1 min

Amibent temperature -10℃~60℃

Electronic component device for cross-border e-commerceElectronic device product for e-commerceElectronic element product for cross-border trade


Why Choose Our Red Black Illuminated Overload Circuit Breaker Rocker Switch?

Our switch combines power switching and circuit protection functions into one unit, providing a convenient and reliable solution for your electrical needs. With a rating current of 5-15A and a rating voltage of AC 125V/220V, DC50V, it is suitable for a wide range of applications, from household appliances to industrial machinery.

What Makes Our Switch Stand Out?

Our switch features a long mechanical life of over 6000 cycles, ensuring durability and longevity. It also has excellent insulation resistance and dielectric strength, providing superior safety performance. Additionally, the illuminated indicator makes it easy to identify the switch's status at a glance.

Can I Customize the Housing Color?

Yes, our switch is available in multiple housing colors including red, yellow, green, black, blue, orange, white, and gray. You can choose the color that best matches your application or personal preference.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

15A

Max. Voltage

AC 220V

Place of Origin

China

Brand Name

SK(Shangkai)

Model Number

SCB

Whether the smart

NO

Mechanical Life

>6000

Function

Provides power switching and circubit protection in a single unit

Certificate

CE UL CQC ROHS

Rating Current

5-15A rocker switch

Rating Voltage

AC 125V 220V DC50V

Insulation Resistance

≥100MΩ DC500V

Dielectric Strength

AC 1500V 1min

Amibent temperature

-10℃~60℃

Material

Plastic illuminated rocker switch

Housing color

Red,Yellow,Green,Black,Blue,Orange,White,Gray

Name

red black ce ul illuminated overload circuit breaker rocker switch

Packaging Details

electric red black 5A 15A DC 50V ce ul illuminated overload circuit breaker rocker switch of 1000 pieces in one standard export carton ,illuminated rocker switch

Port

Shanghai

Supply Ability

1000000 Piece/Pieces per Week of 50V ce ul illuminated overload circuit breaker rocker switch
