Description

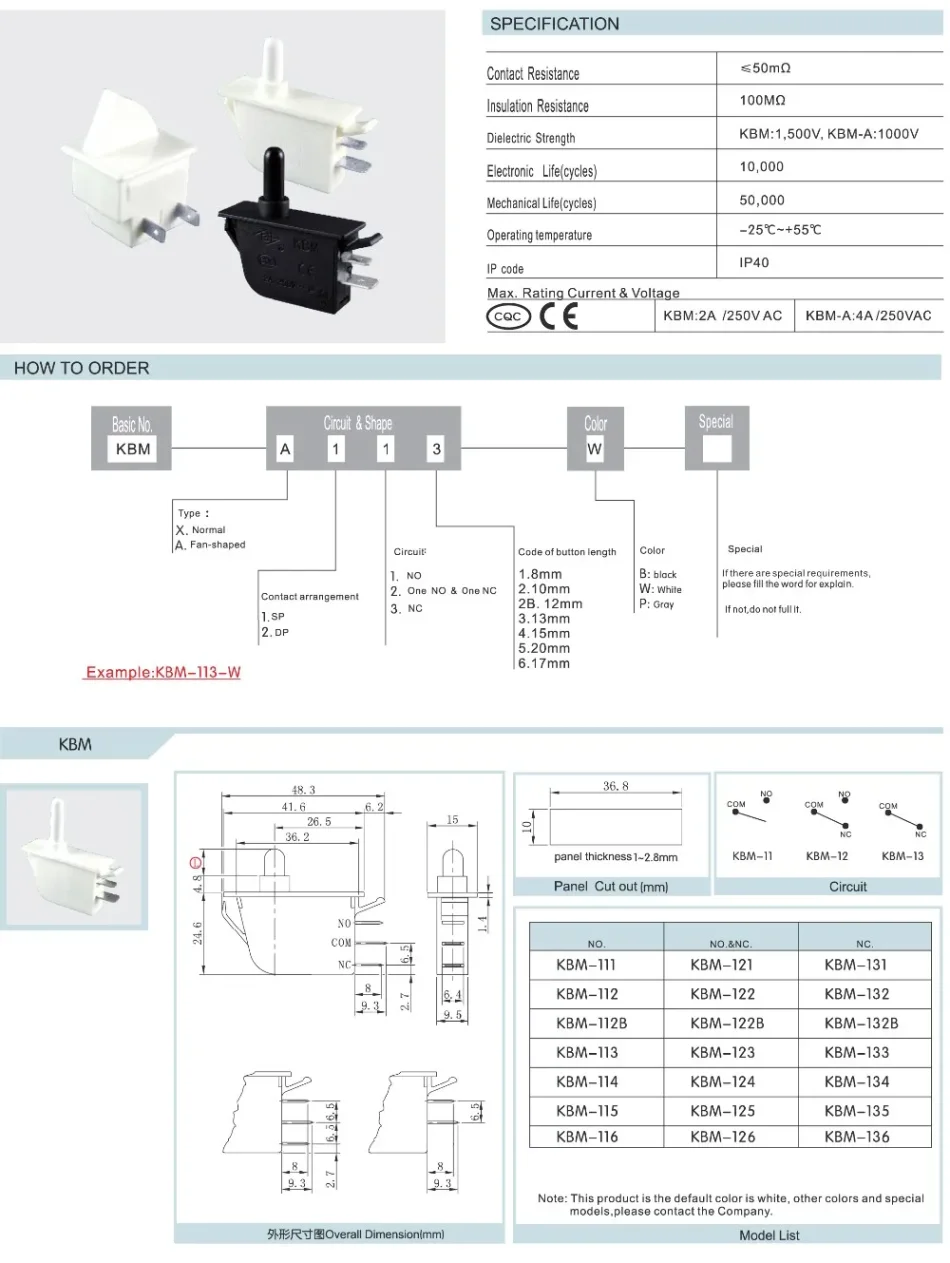

Product Specifications:
- Max. Current: 2A/4A
- Max. Voltage: 250V AC
- Switch Combination: 1NO1NC
- Electrical Life: 10,000 cycles
- Mechanical Life: 50,000 cycles
- Dielectric Strength: 1500V
- Insulation Resistance: 100M Min
- Contact Resistance: 50m Max
- Operating Temperature: -25℃~55℃

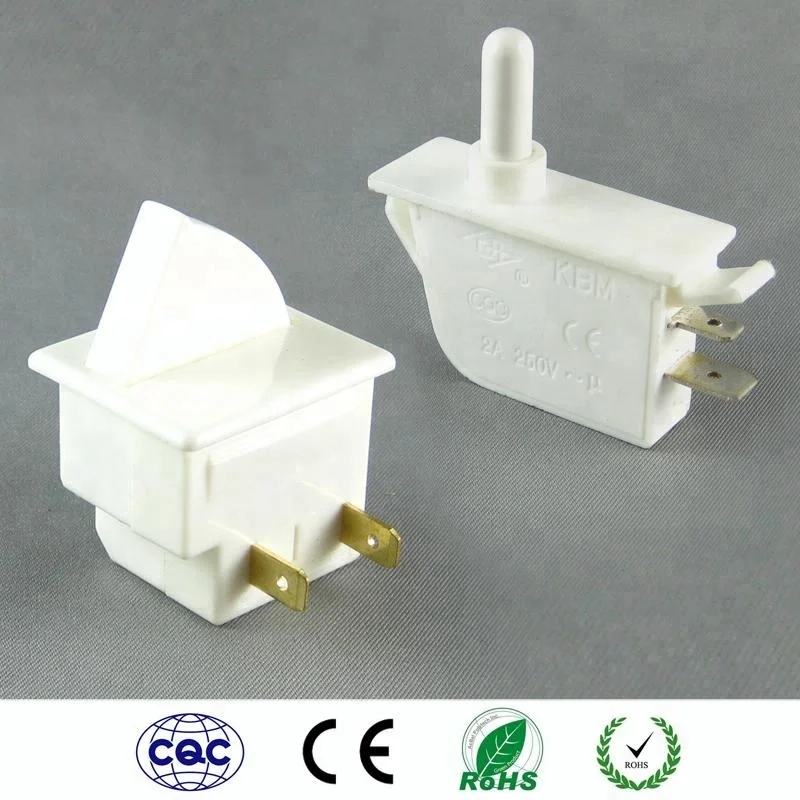

- Certification: CQC CE
- Protection Level: IP40
- Color: White (with options for black and grey)

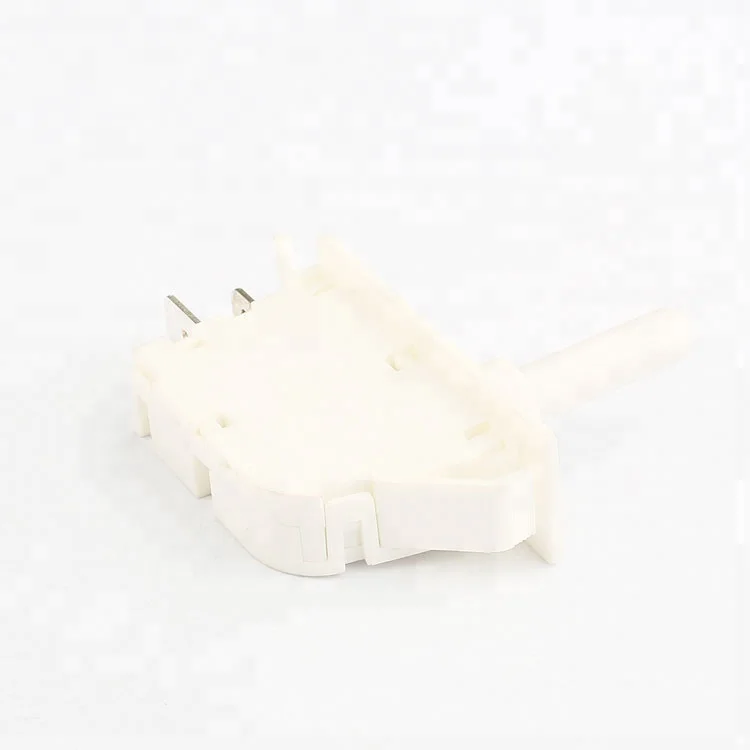

Our Refrigerator Door Switch stands out with its long electrical life, high dielectric strength, and excellent insulation resistance. It is designed to withstand the rigors of daily use in refrigerators, ensuring reliable performance.
As a supplier with our own plant and advanced experimental equipment, we have the capability to customize the switch to meet your unique requirements. With over 60 senior engineers and 5S/5m management standards in all workshops, we guarantee the highest quality products.
Choose our Refrigerator Door Switch for its durability, reliability, and customization options. Contact us today for wholesale pricing and to discuss your customization needs.
|

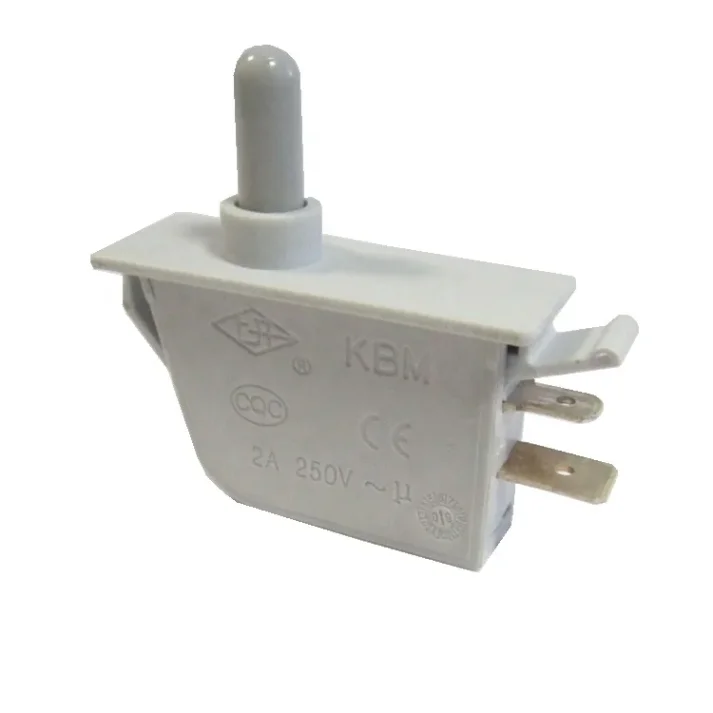

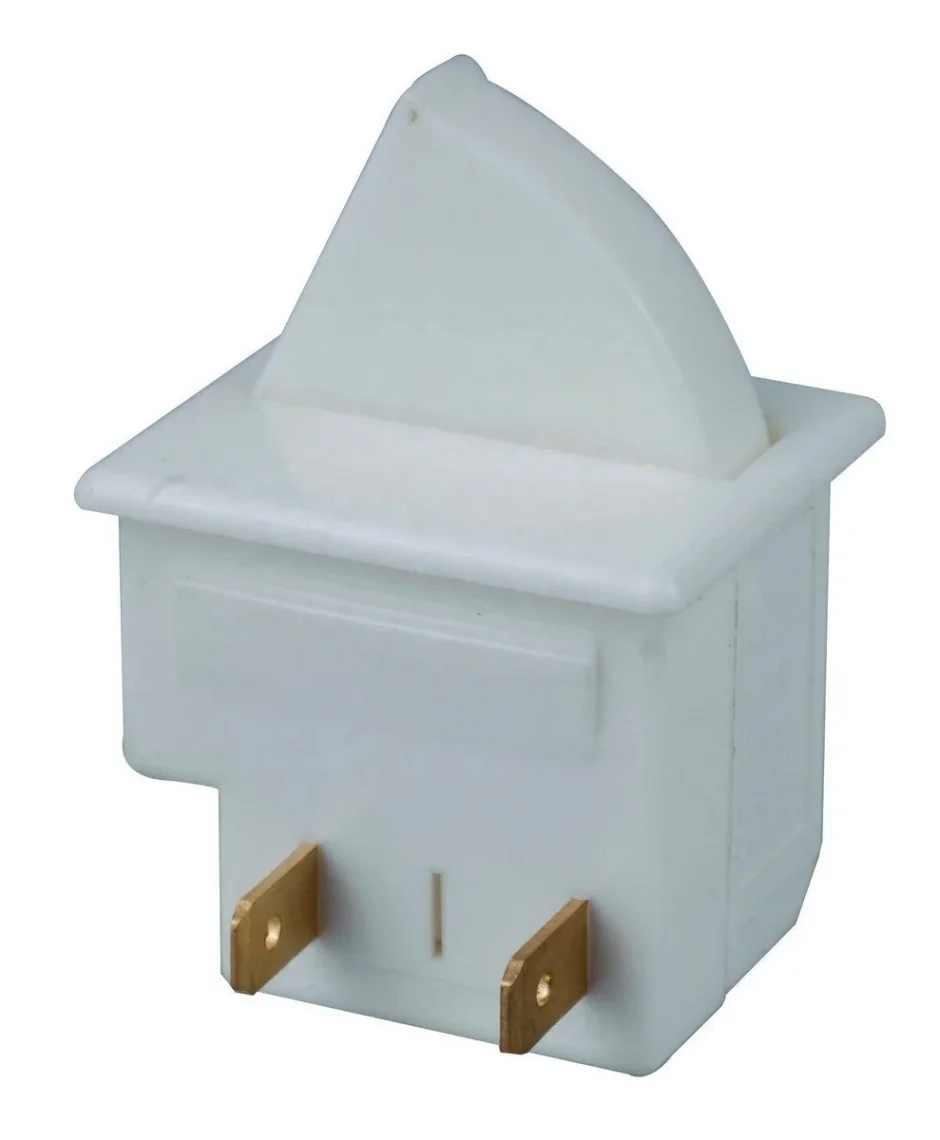

KBM-112W
|
||
|
Max.Rating Current&Voltage：
|
2A/4A 250VAC
|
|
|
Circuit：
|
Single poles
|
|
|
electronic life：
|
10000 times
|
|
|
Actuator color：
|
Black, white, grey
|
|
|
Housing color：
|
Black, white , grey
|
|
Key Features
Our Refrigerator Door Switch boasts a long electrical life of 10,000 cycles, ensuring reliable performance over time. With a high dielectric strength of 1500V and excellent insulation resistance, it guarantees safety and efficiency in refrigerator door applications.
Customization Options
As a factory-direct supplier, we offer customization options to meet your specific needs. Whether you require a different color, size, or functionality, our team of senior engineers can work with you to create the perfect switch for your application.
Why Choose Us
Choose us for our high-quality products, competitive wholesale pricing, and exceptional customer service. With our own plant and advanced equipment, we have the capability to deliver products quickly and efficiently. Contact us today to discuss your needs and place an order.
