Wholesale Refrigerator Door Switch – Direct from Factory Supplier

Description

Introducing our KBM Series Refrigerator Door Switches, a top-quality product from our factory in Shanghai, China. As a direct supplier, we offer wholesale prices on these switches, which are essential for controlling the light in refrigerators.

Our KBM-112W model boasts a maximum rating of 2A/4A at 250VAC, with a single pole circuit and an electronic life of 10,000 cycles. Available in black, white, and grey, these switches are not only functional but also aesthetically pleasing.

What sets our switches apart is our commitment to quality and customization. With over 60 senior engineers and advanced experimental equipment, we can customize the rocker switch to meet your specific requirements. Our workshops adhere to 5S and 5m management standards, ensuring consistent quality and efficiency.

Choose us for your refrigerator door switch needs and benefit from our factory-direct pricing, reliable quality, and exceptional customer service.

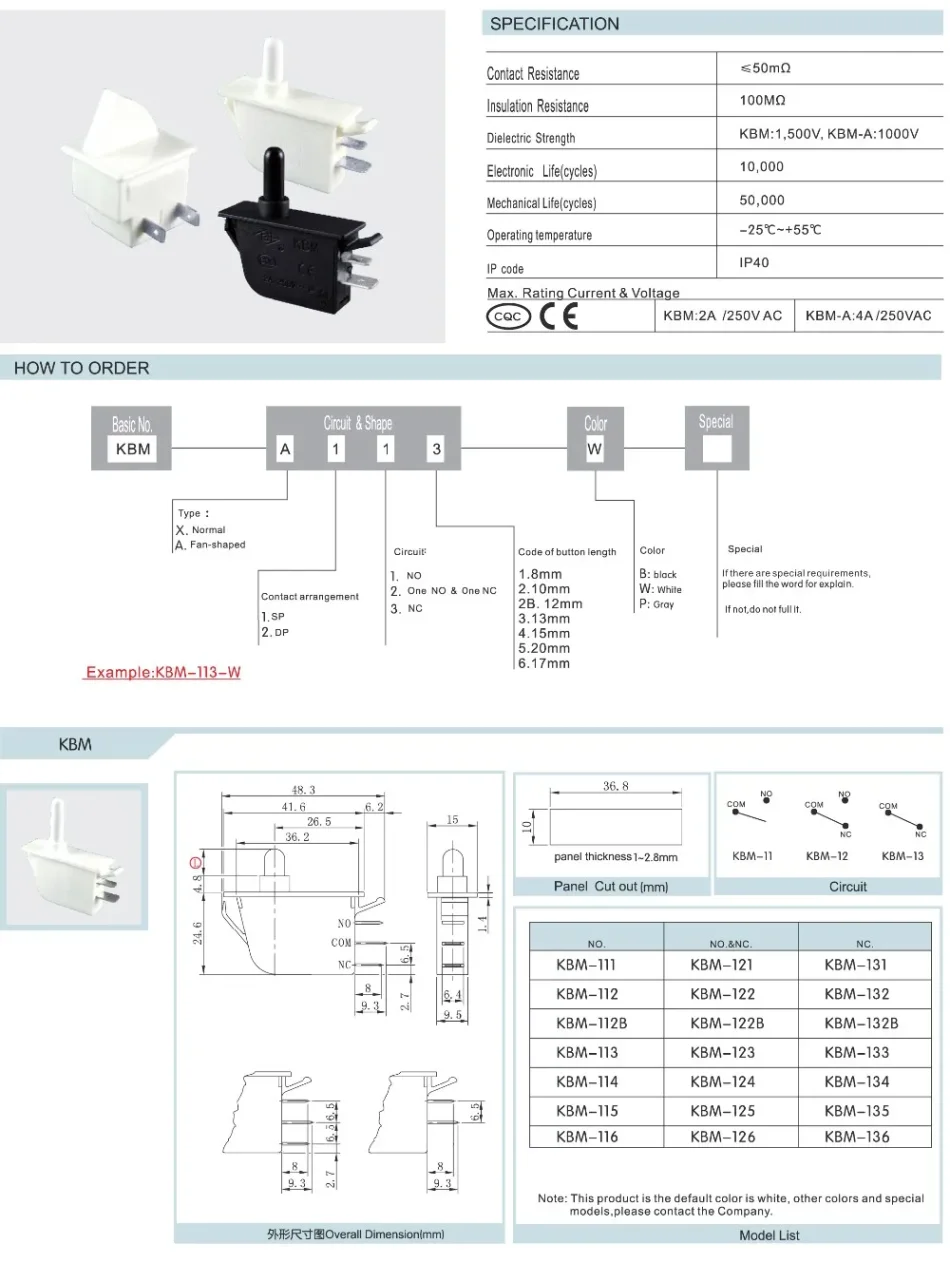

KBM-112W
Max.Rating Current&Voltage:
2A/4A 250VAC
Circuit:
Single poles
electronic life:
10000 times
Actuator color:
Black, white, grey
Housing color:
Black, white , grey

Electronic device accessory image for cross-border e-commerceElectronic gadget image for cross-border e-commerceElectronic component image for cross-border e-commerceElectronic product image for cross-border e-commerceElectronic item image for cross-border e-commerceElectronic device image for cross-border e-commerce


Key Features

Our refrigerator door switch is designed for durability and reliability, with a maximum rating of 2A/4A at 250VAC and an electronic life of 10,000 cycles. It's perfect for controlling the light in your refrigerator, ensuring it only turns on when the door is open.

Why Choose Us?

As a factory supplier, we offer wholesale prices without compromising on quality. Our switches are customizable to meet your specific needs, and we have the expertise and equipment to deliver on our promises. Choose us for reliable, high-quality refrigerator door switches.

Customization and Support

We understand that every project is unique. That's why we offer customization options for our refrigerator door switches. Whether you need a specific color, size, or functionality, we can work with you to create the perfect switch. Plus, our dedicated customer service team is always on hand to provide support and answer any questions you may have.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

2A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

KBM

LED

Other

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC

Color

Black

Contact Resistance

≤50mΩ door switch

Insulation Resistance

100MΩ door switch

Dielectronic Strength

1000V

Electronic life

10000 cycles

Mechanical life

50000 cycles

IP code

IP40

Operating temperature

-25℃~+55℃

Certification

CQC, CE, RoHS

Protection Level

IP40
