Wholesale Rocker Switch 16A 250V Factory Direct Supply

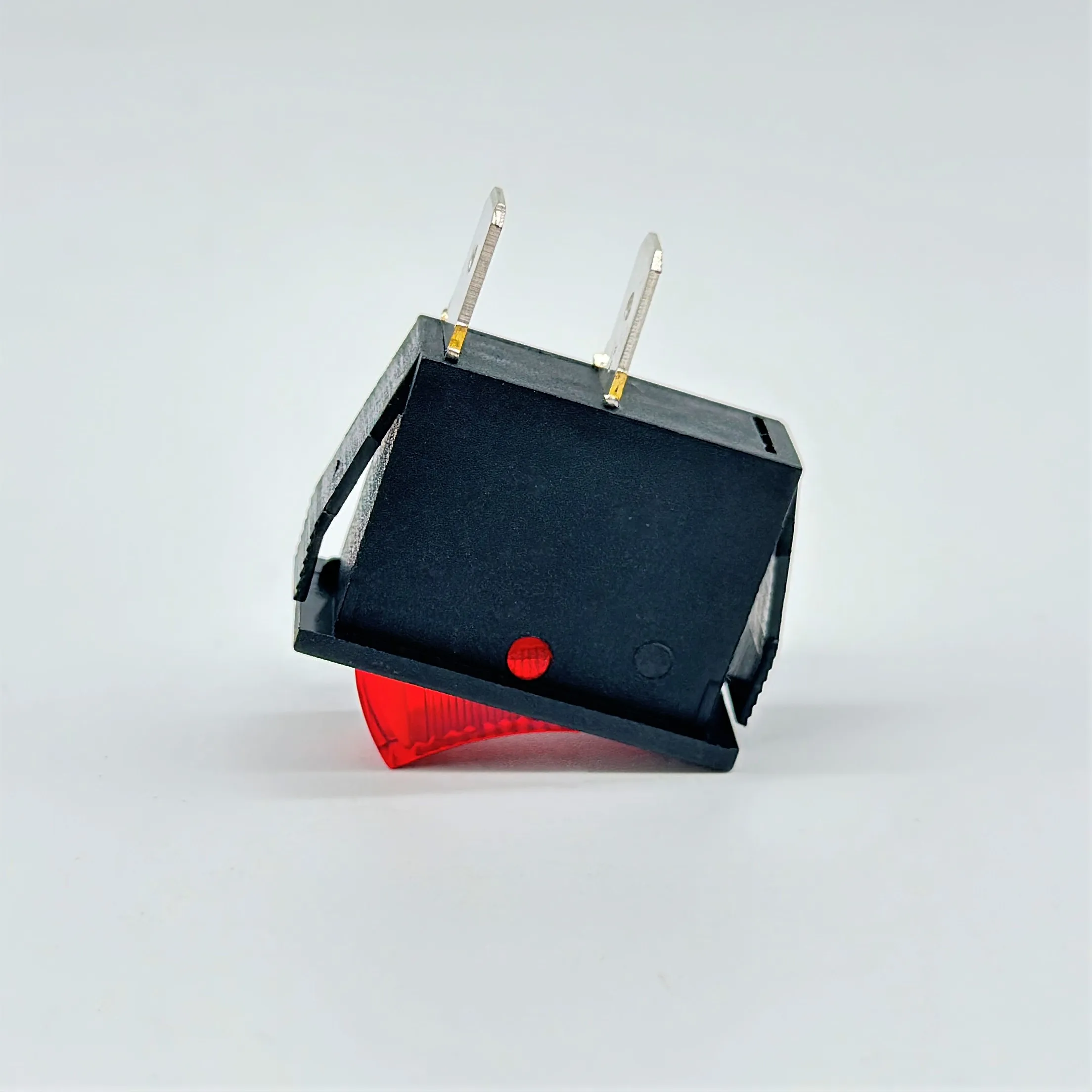

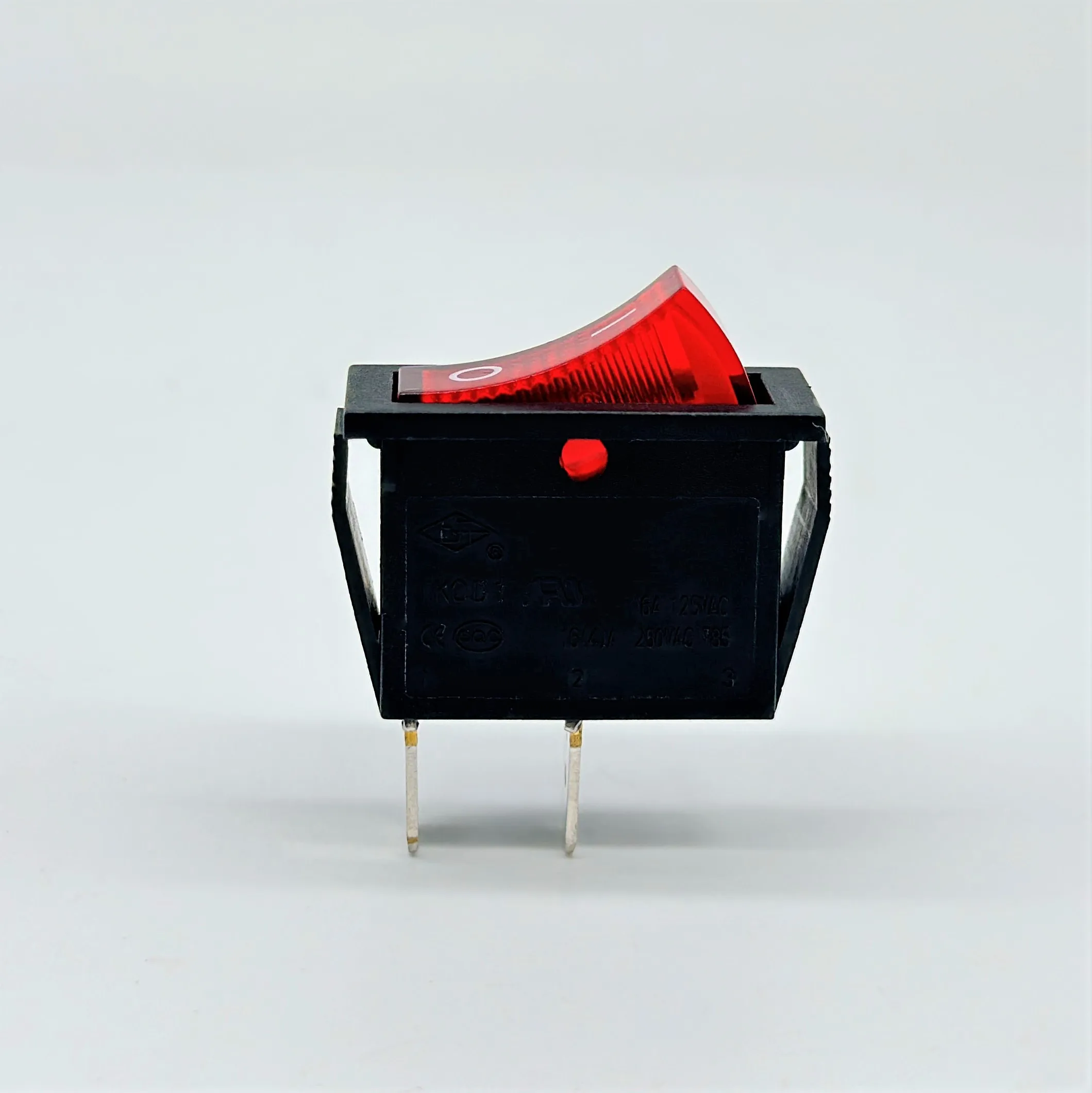

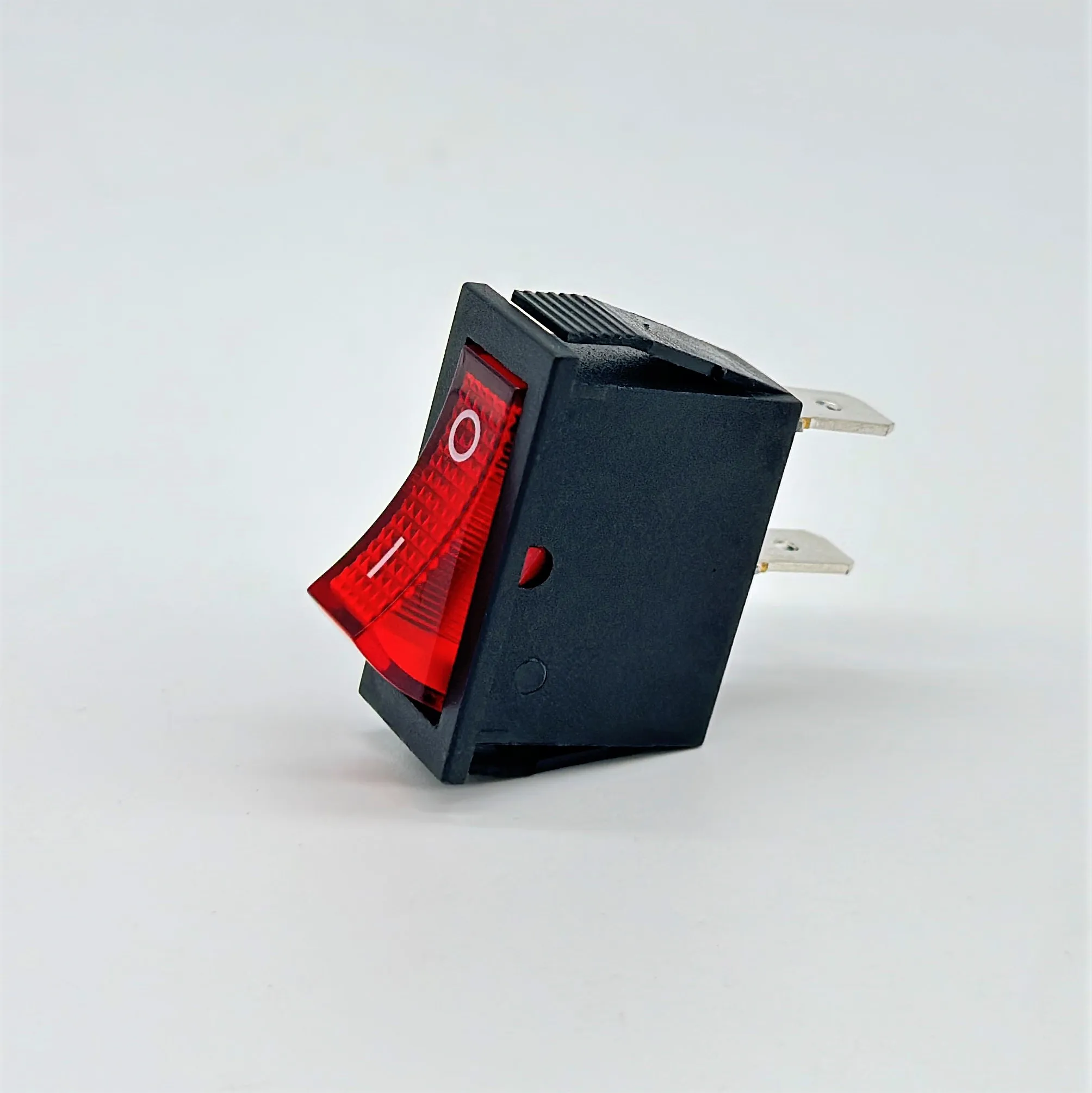

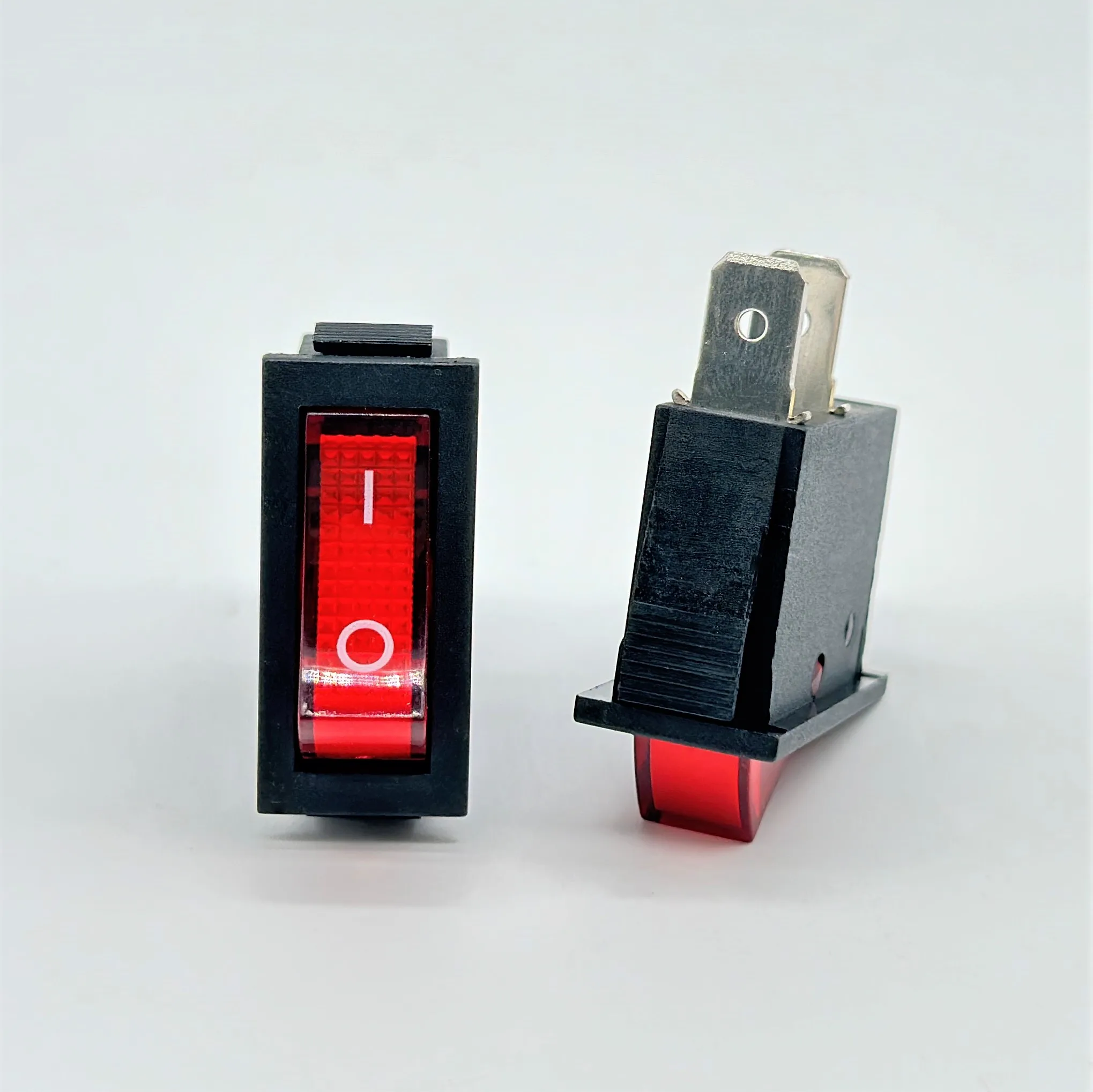

Our factory-direct Rocker Switch (Model: KCD1-11-CH2A-B-B-01) is a high-quality, wholesale-available electrical component designed for reliability and durability. Certified with CQC, CE, and ROHS, this switch ensures safety and compliance with international standards. With a maximum current of 16A and a maximum voltage of 250VAC, it’s suitable for a wide range of applications. The switch features a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, offering long-lasting performance. Its dielectric strength is 1,500VAC for 1 minute, ensuring electrical insulation under high voltage. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1,000MΩ, providing excellent electrical conductivity and safety. Operating at a temperature range of T85, it’s suitable for various environments. The SPST ON-OFF 2Pin circuit design, along with a 26*12.5mm panel cutout and 6.3×0.8mm standard terminals, makes installation straightforward. The black housing and black actuator, with white I/O markings, offer a sleek and professional look. Made from PA66 material, this switch is robust and resistant to wear and tear. As a direct supplier, we offer competitive wholesale prices and excellent after-sales service, ensuring customer satisfaction.
