Description
Key features include a dielectric resistance of 1500V, contact resistance of 50mΩ, and insulation resistance of 1000mΩ. The switch is available with black housing and button colors (selective), and you can choose from 3, 2, 4, or 6 PIN numbers. Lamp voltage options include 6V, 12V, 24V, 110V, and 220V. Certified by CQC, CE, UL, CB, and ENEC, our rocker switch meets the highest safety standards.
Our company operates with an independent plant, injection workshop, and advanced experimental equipment, staffed by over 60 senior engineers. All workshops adhere to 5S and 5M management standards, ensuring top-notch quality and efficiency. As a trusted supplier, we offer competitive wholesale prices and excellent customer service, making us the ideal choice for your rocker switch needs.
| max.rating cnrrent | 16A | dielectrice resistance | 1500V |
| max.rating voltage | 250V | electronic life | 10000cycles |
| contact resistance | 50mΩ | operating temperature | T55,T85,T125 |
| insulation resistance | 1000mΩ | certifications | CQC,CE,UL,CB,ENEC |
| housing color | black(selective) | button color | black(selective) |
| PIN number | 3 (selective2,3,4,6) | lamp voltage | 6V,12V,24V,110V,220V |
Why Choose Our Rocker Switch?

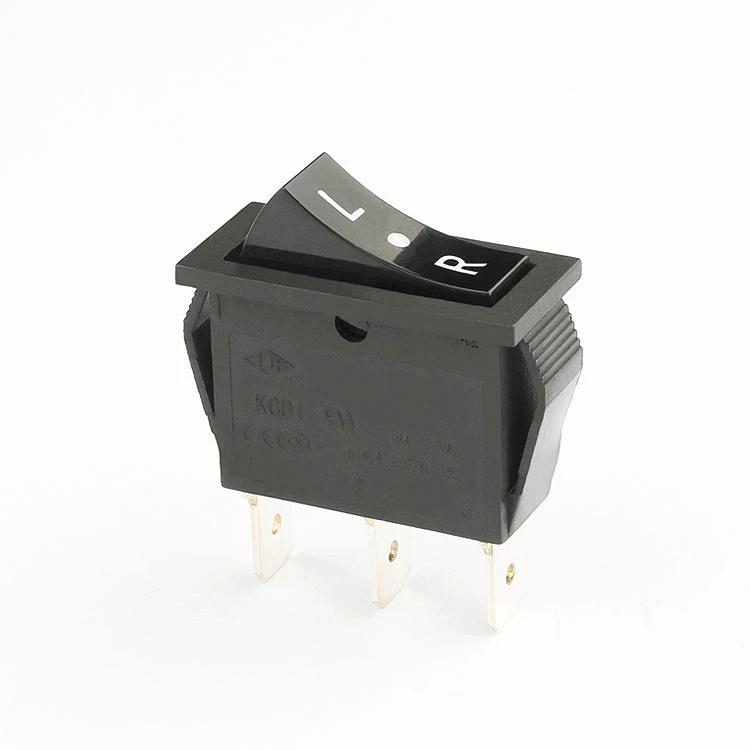

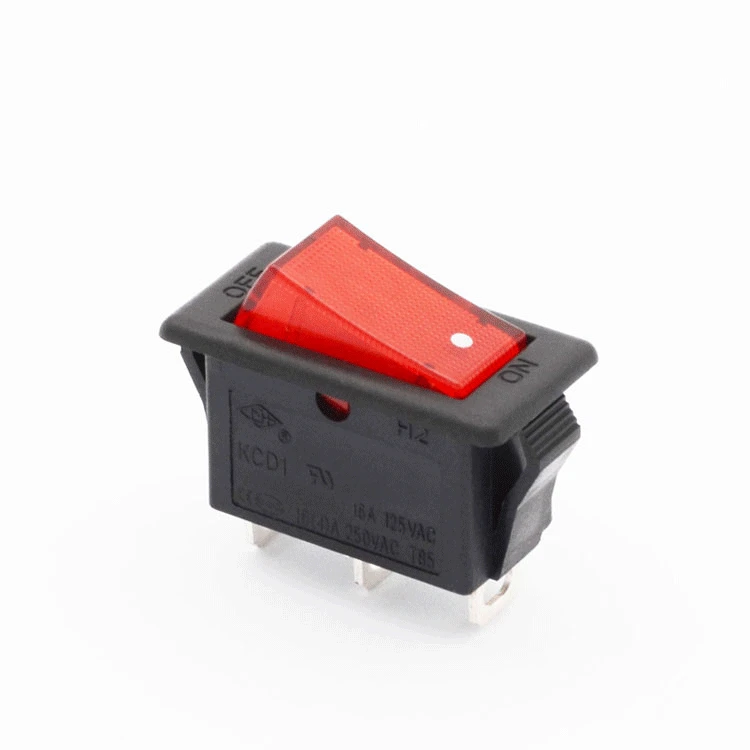

Our KCD1 Rocker Switch stands out with its high current and voltage ratings, ensuring reliable performance in demanding applications. With a long mechanical and electronic life, it outlasts many competitors, reducing maintenance costs and downtime.
Customizable Solutions
As a factory-direct supplier, we offer customizable solutions to meet your specific needs. Whether you require a different housing color, button color, or PIN configuration, we can accommodate your requests.
Competitive Wholesale Prices
We offer competitive wholesale prices, making our rocker switch an excellent choice for bulk purchases. With our high-quality products and excellent customer service, you can trust us to be your reliable supplier.
