Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW11-12-OAA-B
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40 IP65
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical life
|
50,000
|
|
Operating Temperature Range
|
-25℃~+125℃
|
|
Lever type
|
none
|
|
Certification
|
CQC ENEC
|
|
Protection Degree
|
IP40, IP65 is also available
|
|
Color
|
Black
|

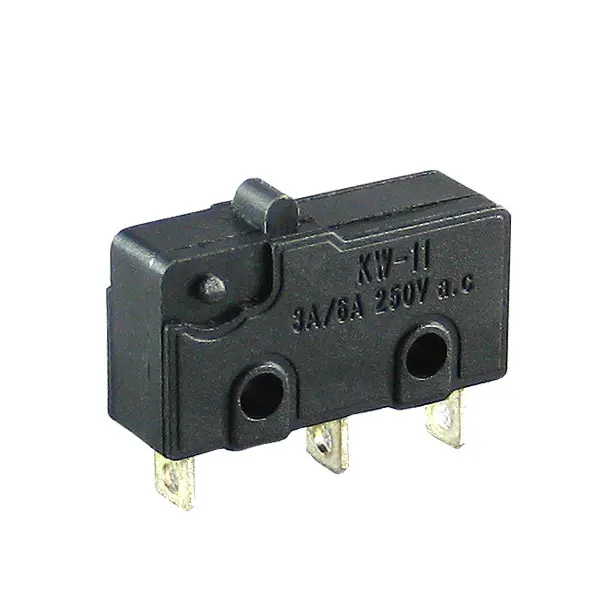

Why Choose Our SPDT 3-Pin Micro Switch?
Our SPDT 3-Pin Micro Switch is designed for high-performance applications, offering precise control and reliability. With a maximum current of 3A and a voltage rating of 250V AC, it's suitable for a wide range of industrial and consumer electronics. The switch's normally open/closed configuration provides flexibility in circuit design, while its low contact resistance ensures minimal power loss.
What Makes Our Micro Switch Stand Out?
Our micro switch stands out with its superior electrical performance, including high insulation resistance and a dielectric strength of 1500V. It's built to withstand harsh environments, with an operating temperature range of -25℃ to +125℃ and a protection level of IP40 (IP65 available). Additionally, its long electrical life of 50,000 cycles guarantees long-term reliability, reducing maintenance costs and downtime.
How Can We Benefit You as a Supplier?
As a factory direct supplier and wholesale expert, we offer competitive pricing and fast delivery times. Our micro switches are certified by CQC and ENEC, ensuring they meet international quality standards. Whether you're looking for a single unit or bulk orders, we can accommodate your needs. Choose us for your micro switch requirements and experience the difference in quality and service.
