Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11N-FB1B-B-R-01-12
|
|
Current Rating
|
6A 10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6V/12V/24V/110V/220V/others
|
|
Switch Function
|
On Off Illuminated Waterproof IP65
|

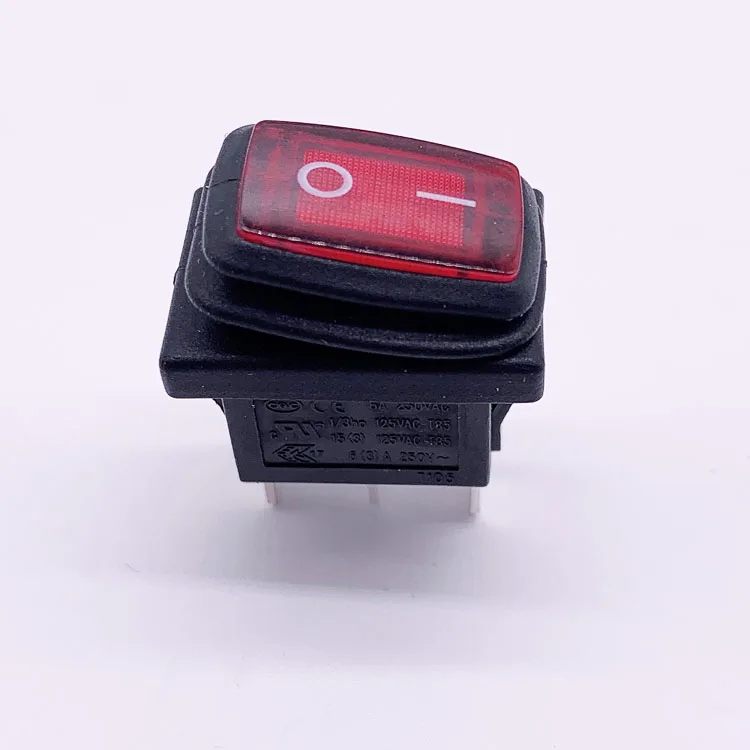

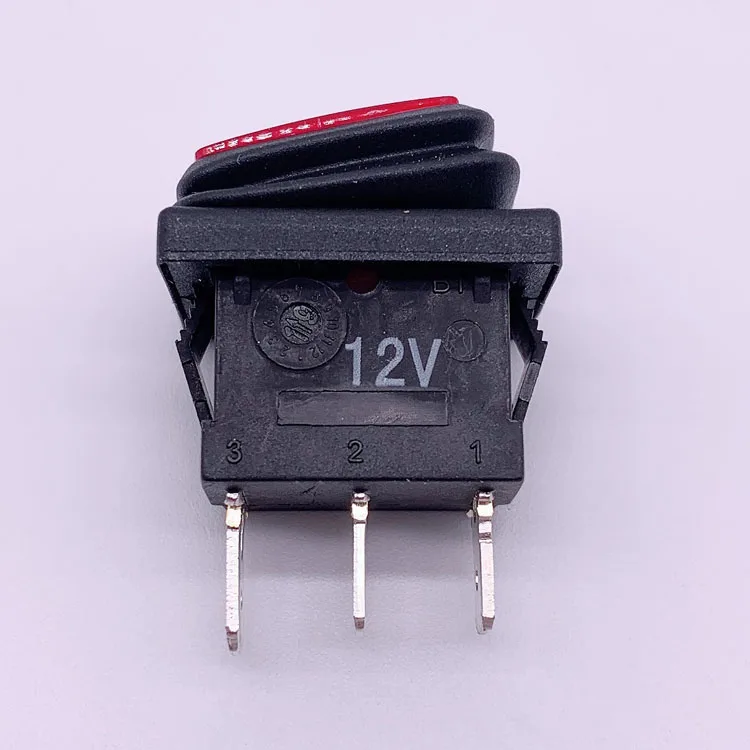

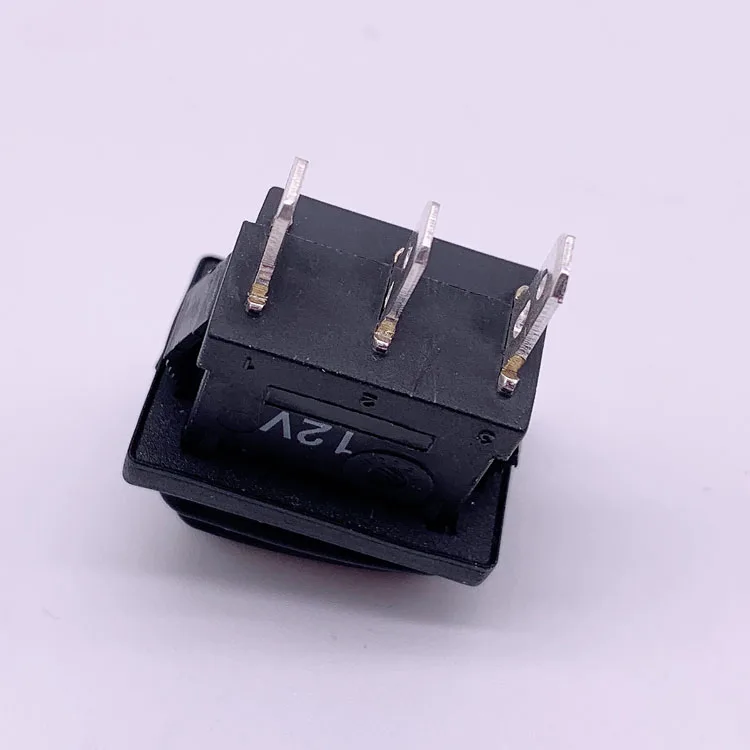

Why Choose Our SPST Panel Mount Illuminated Waterproof Rocker Switch?
Our SPST Panel Mount Illuminated Waterproof Rocker Switch stands out due to its robust construction, reliable performance, and versatile applications. As a factory direct supplier, we offer wholesale pricing, ensuring you get the best value for your money.
What Makes This Switch Unique?
This switch features an illuminated design, making it easy to locate and operate in low-light conditions. Its IP65 waterproof rating ensures it can withstand harsh outdoor or damp environments. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it offers exceptional durability and longevity.
What Are the Key Specifications?
Our switch has a current rating of 6A/10A and a voltage rating of 250V AC, ensuring reliable performance in various applications. It's available in various lamp voltages to suit your specific needs. The switch is also CB, ENEC17, and ROHS certified, guaranteeing compliance with international standards.
