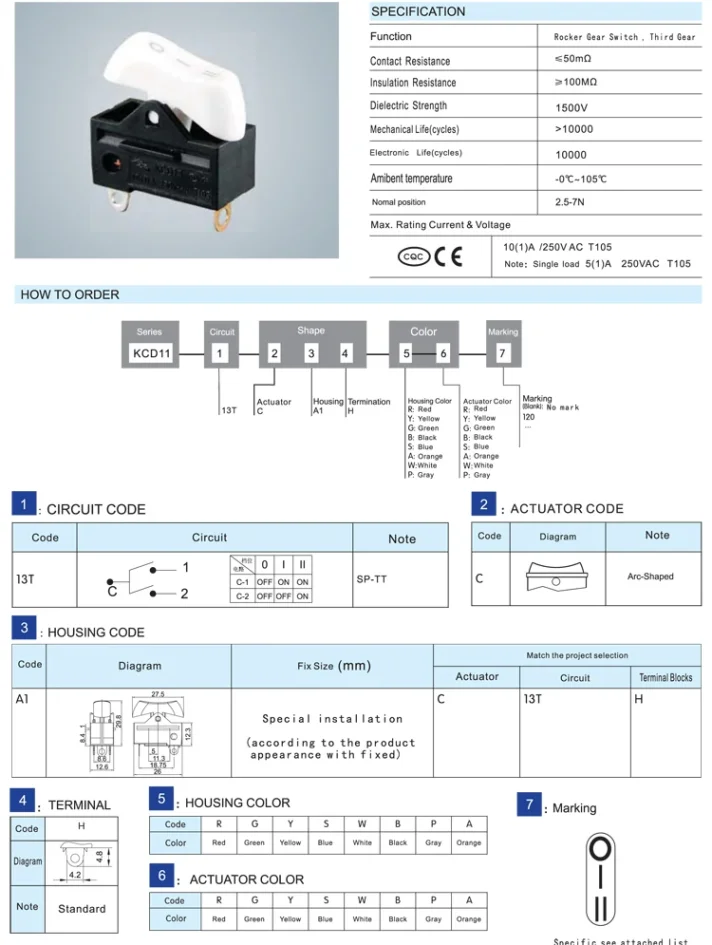

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD11-13T-CA1H-B-W-139
|
|
Current Rating
|
10A (single load:5A)
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPTT
|
|

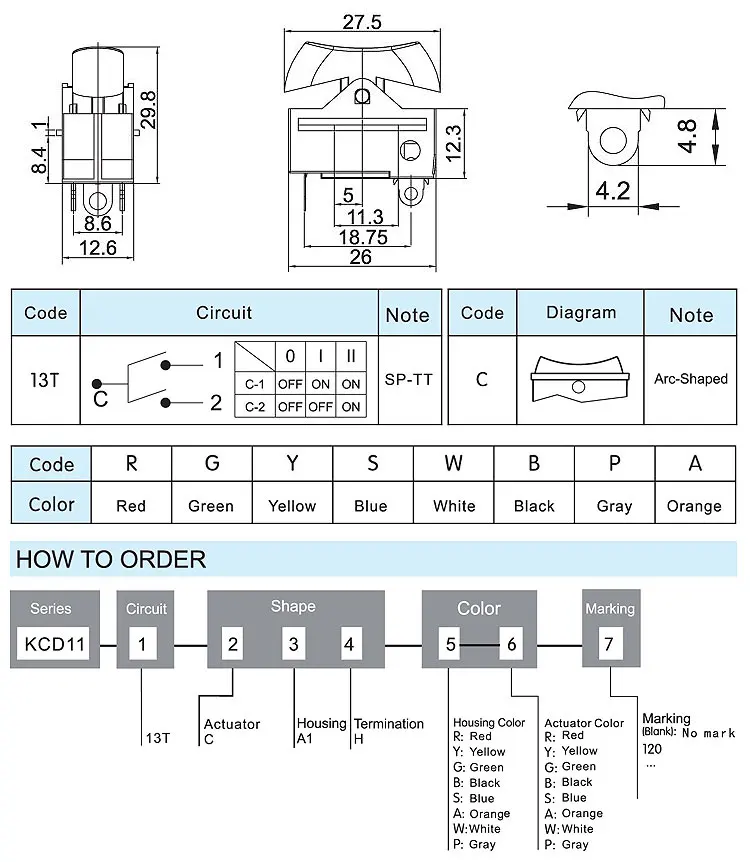

Dimension Code
|
A1
|
|
Contact Piece Code
|
H
|

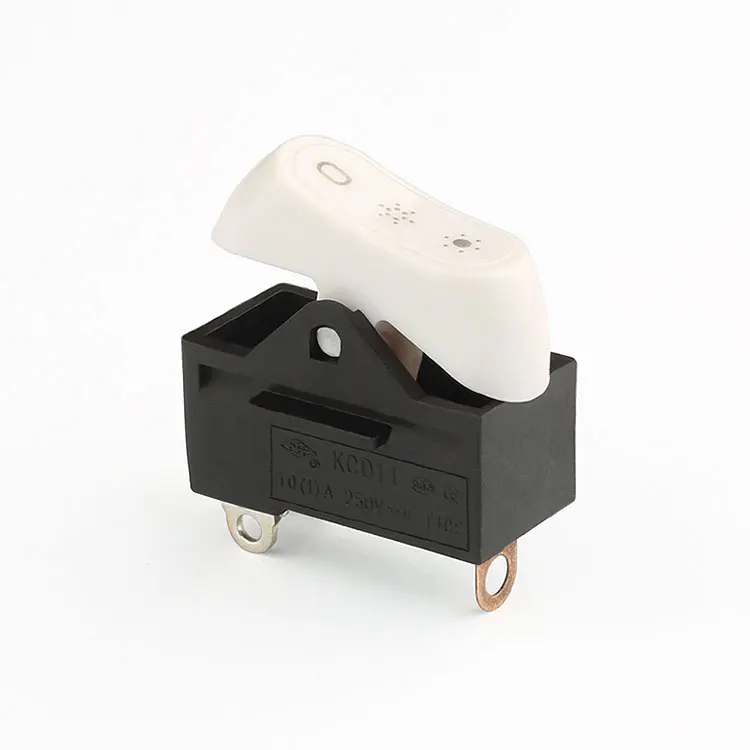

Why Choose Our SPTT 3-Pin Rocker Switch?
Our SPTT 3-Pin Rocker Switch is designed for durability and reliability, making it an ideal choice for industrial applications. With a 10A current rating and 250VAC voltage rating, it can handle demanding electrical loads with ease. The switch's long mechanical and electronic life ensures it will last longer than many competitors, reducing replacement costs and downtime.
What Makes Our Switch Stand Out?
Our switch is IP40 rated, offering protection against dust and small particles, which is crucial in industrial environments. It's also available in a variety of colors, allowing you to match it with your product's design. As a factory supplier, we offer bulk discounts and excellent after-sales service, ensuring you get the best value for your money.
Is Our Switch Certified?
Yes, our switch is CQC, CE, and ROHS certified, guaranteeing safety and compliance with international standards. You can trust that our switch will perform reliably and safely in your applications.
