Wholesale Square Full Illuminated Push Button Switch Supplier

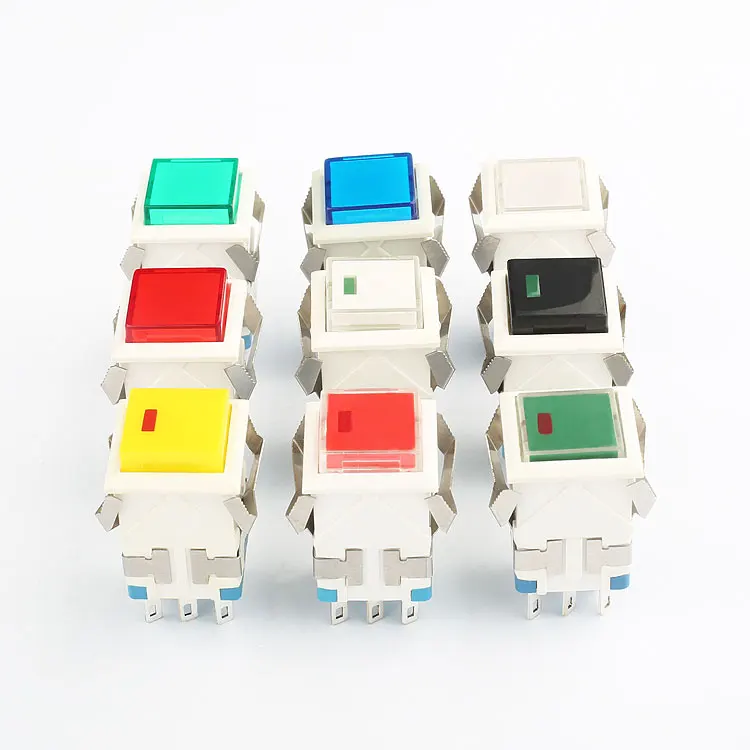

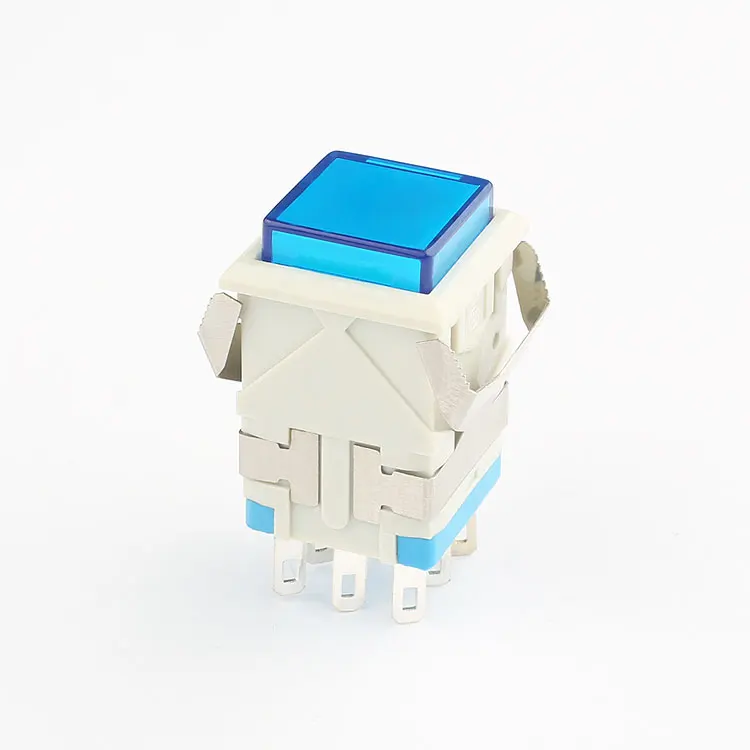

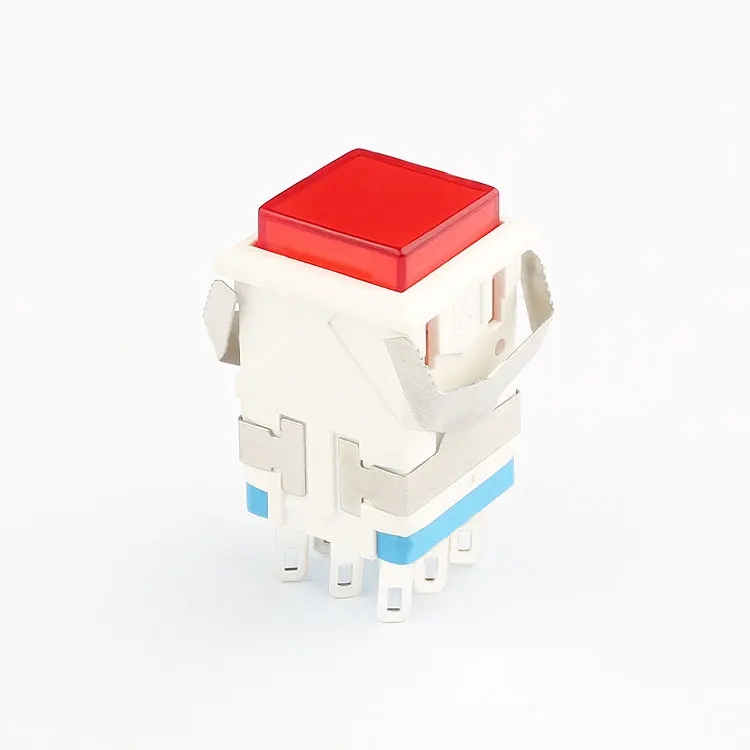

Introducing our premium Square Full Illuminated Push Button Switch, a high-quality product from Yongxing, a trusted factory and supplier in Shanghai, China. This mini push button switch, with model number KD2-B21L24-WS-S, is designed for both electronic and mechanical applications, offering exceptional performance and durability. Key specifications include a maximum current of 3A, maximum voltage of 250V AC, and a compact size of 17*17mm. The switch features a square head and pin terminal, with an IP40 rating for added protection. What sets our product apart is its full illumination with an LED light source, operating at 24V, making it ideal for use in electric appliances, home appliances, and industrial control systems. With a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, dielectric strength of 1500V, and an electrical life of 10,000 cycles, this switch ensures reliable operation under various conditions. Operating temperature ranges from -25℃ to +55℃, and it comes with CQC and CE certificates for quality assurance. As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Choose Yongxing for your push button switch needs and experience the difference in quality and service.
