Description
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

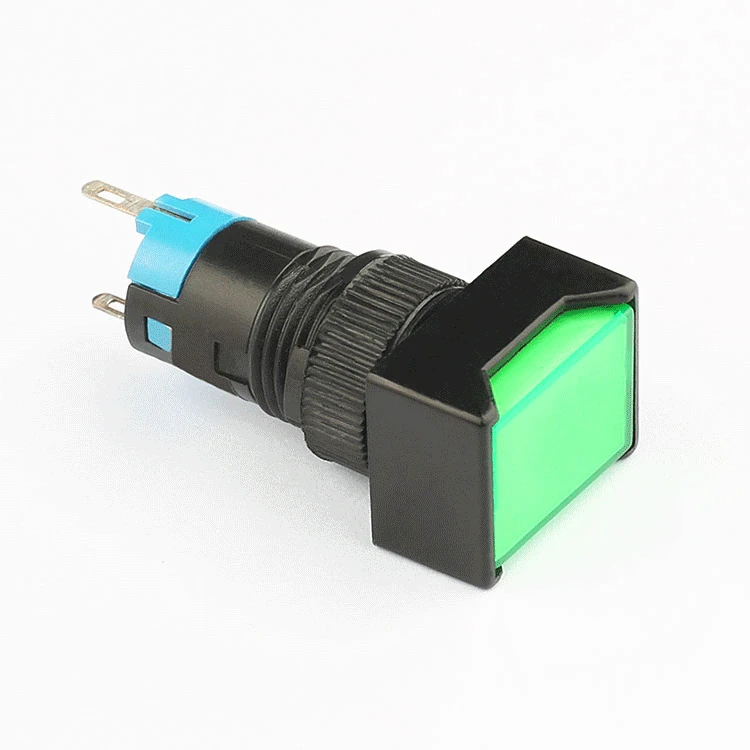

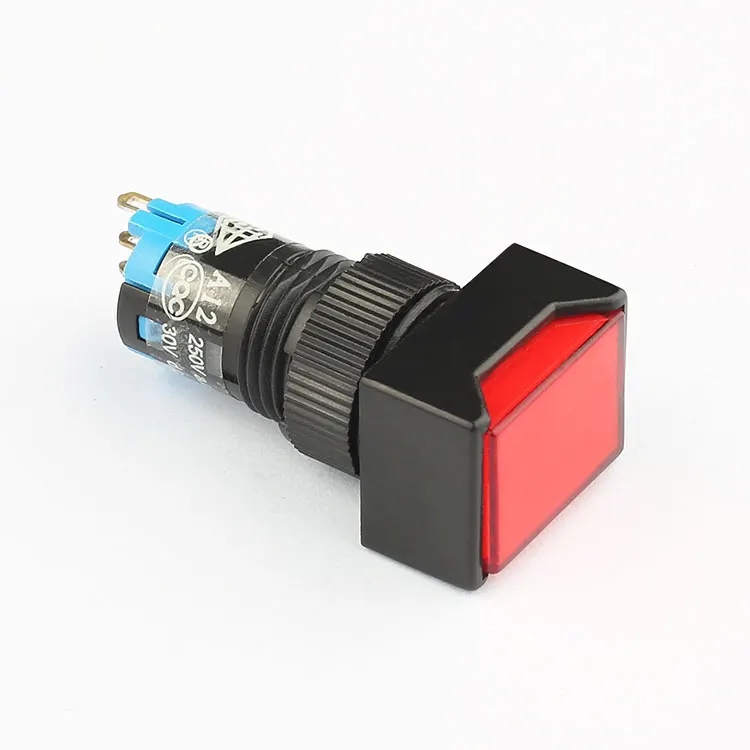

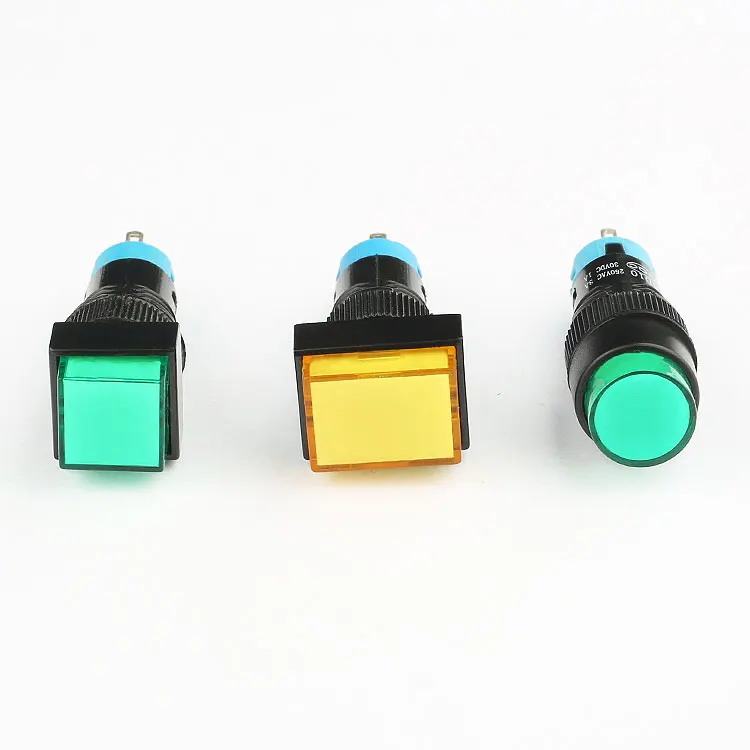

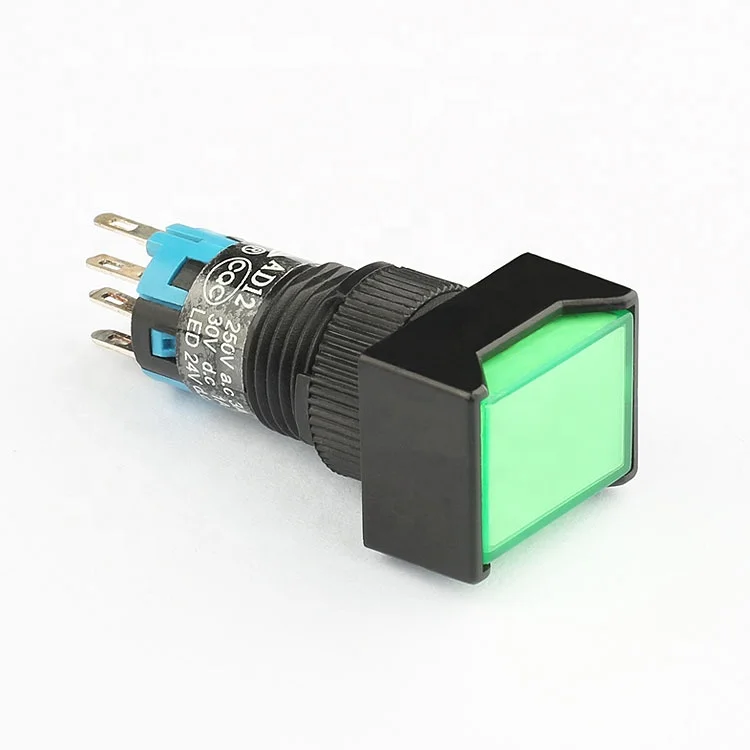

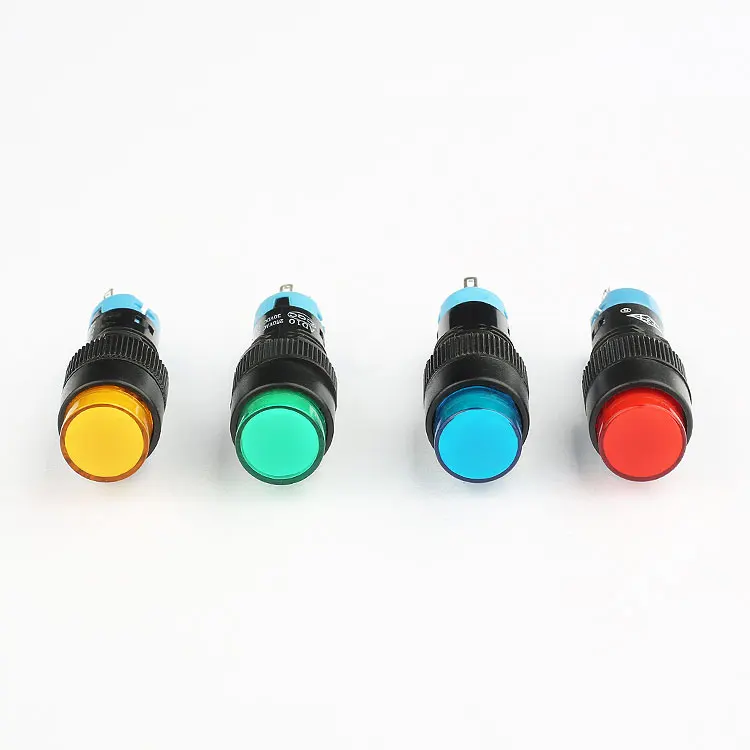

Why Choose Our Momentary Push Button Switch?
Our momentary push button switch stands out due to its high-quality construction, multiple configurations (1NO1NC, 2NO2NC), and LED indication in various colors. It's perfect for a wide range of applications, from industrial control to automotive and home appliances.
What Are the Key Features of Our Switch?
Key features include a maximum rating of 3A 250VAC, contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V. It's also CQC and CE certified, ensuring reliability and safety.
Why Buy from Us as a Wholesale Supplier?
As a direct factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our switches are manufactured with high-quality materials, ensuring longevity and performance. Choose us for your push button switch needs and experience the difference in quality and service.
