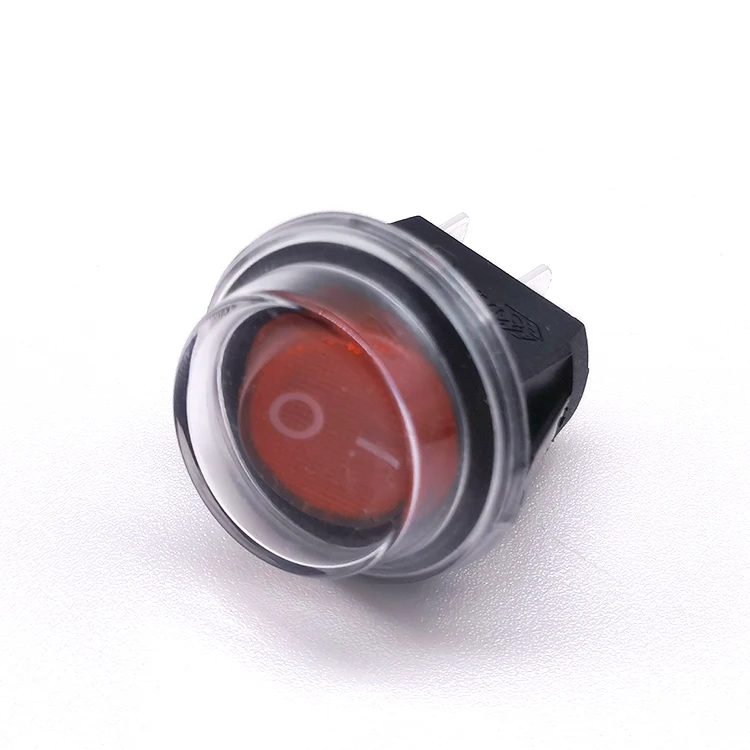

Yongxing KCD8 3-Pin Waterproof Rocker Switch – Factory Direct Supplier
Our KCD8 3-pin waterproof rocker switch is a high-quality, durable product designed for various applications. As a direct factory supplier, we offer wholesale pricing and ensure top-notch quality. This switch is perfect for electric fireplaces, marine equipment, and more.
Product Specifications:
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Dielectric Resistance: 1,500V AC, 1 min
- Electrical Life: 10,000 cycles
- Mechanical Life: 50,000-100,000 cycles
- Max. Rating Current & Voltage: 6A 250V AC
- Operating Temperature: Suitable for a wide range
- Certifications: CQC, CE, UL, CB, ENEC, ROHS
- Housing Color: Black
- LED Color Options: Amber, Orange-Red, Blue, Green
- Pins: 2-pin/3-pin
Product Advantages:
Our rocker switch stands out with its waterproof design, ensuring reliability in wet environments. The high mechanical and electrical life guarantees long-lasting performance. As a factory supplier, we offer competitive pricing and direct support, making us your ideal partner for bulk purchases.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our team is dedicated to ensuring your satisfaction with every purchase.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Key Features
Our waterproof rocker switch is designed to withstand harsh environments, making it ideal for outdoor and marine applications. The 3-pin design ensures secure connections, while the durable plastic housing and metal contacts guarantee reliability.
Why Choose Us?
As a factory supplier, we offer unbeatable pricing and direct support. Our products are certified to multiple international standards, ensuring quality and safety. With a long electrical and mechanical life, our switch provides excellent value for money.
Applications
Perfect for electric fireplaces, marine equipment, industrial controls, and more. The waterproof feature makes it suitable for any application where moisture is a concern.
