Description
Wholesale Yongxing Factory Emergency Stop Button Switch – Your Reliable Supplier

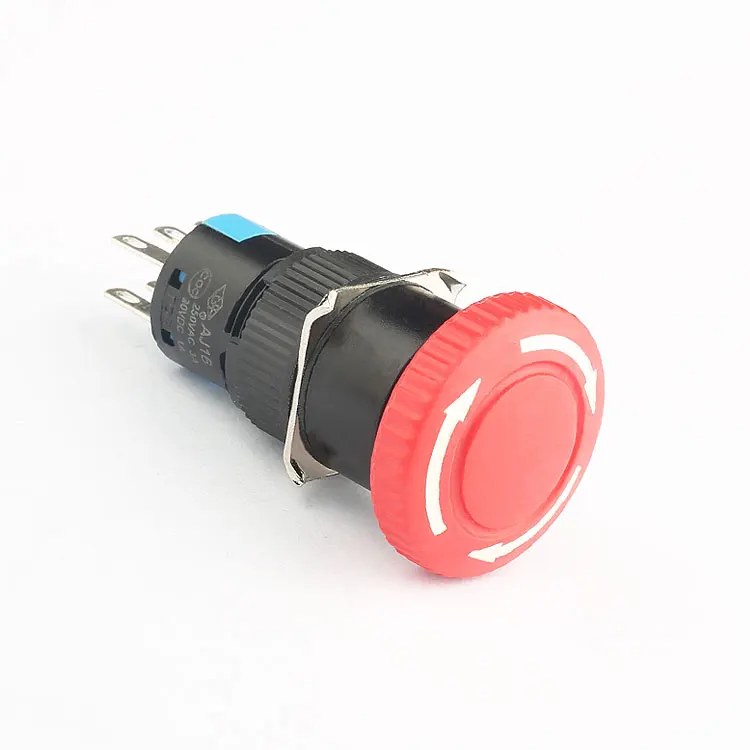

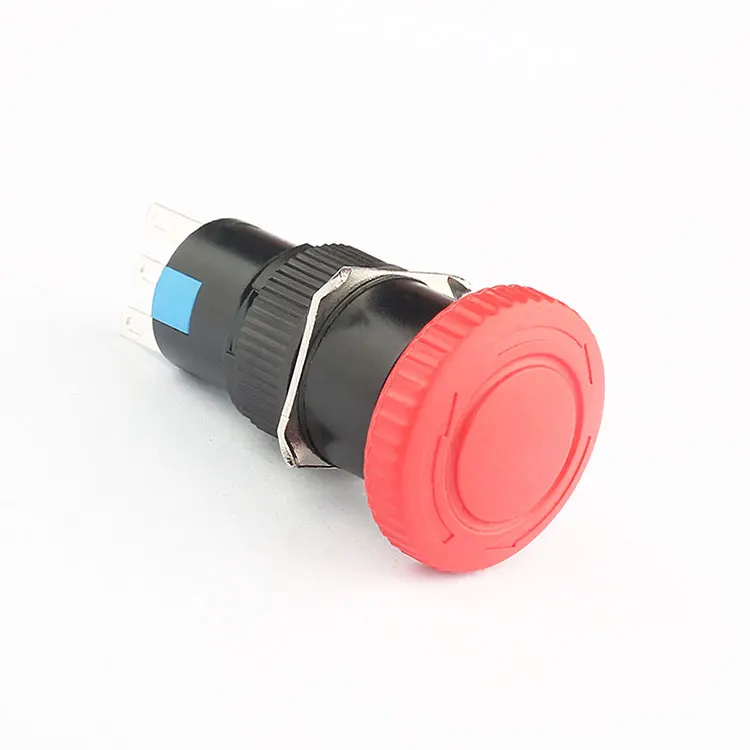

Introducing our high-quality emergency stop button switch, manufactured by Yongxing Factory in Shanghai, China. As a trusted supplier, we offer wholesale pricing and direct factory sales, ensuring you get the best value for your money.
Product Specifications
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Electronic Life: 25,000 cycles
- Mechanical Life: 50,000 cycles
- Operation Temperature: -5°C to +75°C
- Dielectric Strength: 1500V
- IP Code: IP44 (enhanced protection compared to original IP40 mentioned in the old content)
Product Advantages
Our emergency stop button switch stands out from the competition with its durable construction, reliable performance, and competitive pricing. The double pole, 6-pin design ensures maximum safety and efficiency in emergency situations. With a mechanical life of 50,000 cycles and an electronic life of 25,000 cycles, this switch is built to last.
Usage
Ideal for industrial machinery, automation systems, and any application where quick and reliable emergency shutdown is required. Our switch is self-locking, ensuring that once activated, it remains in the off position until manually reset.
After-Sales Service
We stand behind the quality of our products. As a factory supplier, we offer comprehensive after-sales service, including technical support and warranty coverage. Choose us for your wholesale emergency stop button switch needs and experience the difference in quality and service.
| Max. Rating Current& Voltage | 3A 250V AC |
| Contact Resistance | ≤50mΩ 16mm Mushroom Emergency Switch |
| Insulation Resistance | ≥100MΩ Self locking Switch |
|
Electronic Life (cycles) |
25000 |
| Mechanical Life (cycles) | 50000 |
| Operation temperature | -5℃~+75℃ Rotary Switch |
| Dielectric Stength | 1500V |
| IP code | IP40 |
Why Choose Our Emergency Stop Button Switch?
Our emergency stop button switch is designed for maximum safety and reliability. With a double pole, 6-pin configuration, it ensures quick and effective shutdown in emergency situations. The self-locking feature prevents accidental reactivation, providing an extra layer of safety.
What Are the Key Specifications?
Our switch boasts a max. rating current of 3A and a voltage of 250V AC. It has a contact resistance of ≤50mΩ, an insulation resistance of ≥100MΩ, and can withstand up to 25,000 electronic cycles and 50,000 mechanical cycles. The operation temperature ranges from -5°C to +75°C, and it has a dielectric strength of 1500V with an IP44 rating.
How Does It Compare to Other Products?
Our emergency stop button switch offers enhanced durability and reliability compared to similar products on the market. With a higher IP rating (IP44 vs. original IP40) and a longer mechanical life, it provides better protection and longevity. As a factory supplier, we can offer competitive pricing and excellent after-sales service.
