Description
Our rocker switch is designed for durability, boasting a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles. It’s rated for 16A current and 250V AC voltage, making it suitable for a wide range of applications including cars, electric equipment, and industrial settings. The switch is constructed with plastic material, ensuring a lightweight yet robust design.
What sets our switch apart is its comprehensive certifications including CQC, CE, CB, ENEC17, and ROHS, guaranteeing safety and compliance with international standards. The switch also offers excellent electrical performance with a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute.
Choose our Yongxing rocker switch for its reliability, performance, and competitive pricing. As a trusted supplier, we provide excellent after-sales service and support. Contact us today to place your wholesale order!
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD1-11N-CA5C-B-R-01-AC220
|
|
Current Rating
|
16A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50,000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST illuminated
|
|
Dimension Code
|
A5 28x11mm
|
|
Contact Piece Code
|
C 6.3X0.8X10mm standard
|
|
Lamp voltage
|
AC220V
|
Key Features

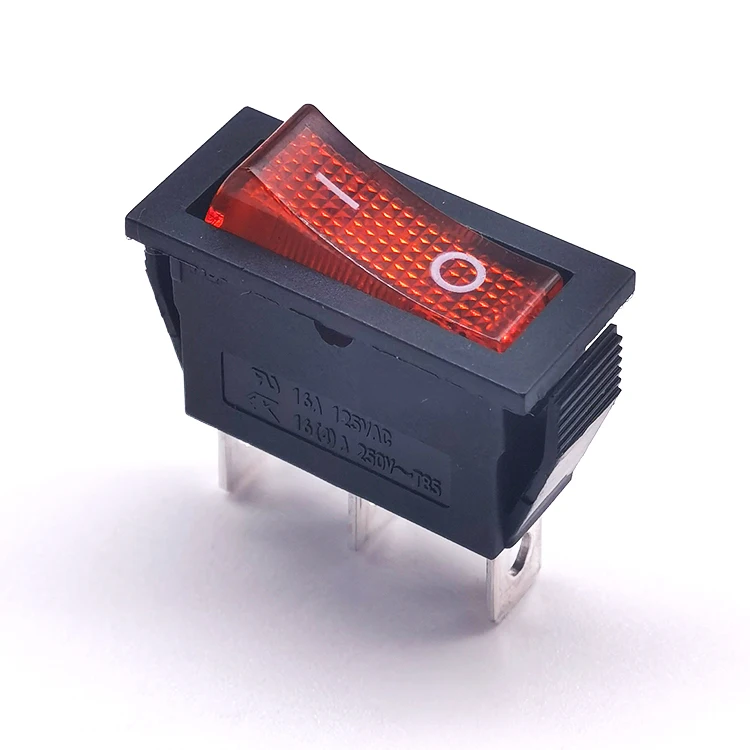

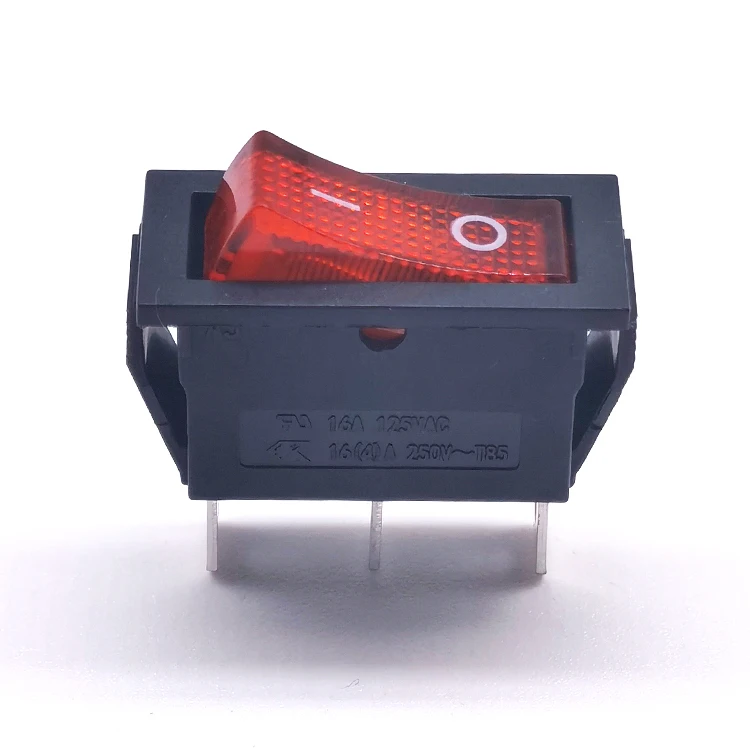

Our Yongxing KCD1 Series Rocker Switch is designed with a 16A current rating and 250V AC voltage, making it ideal for high-power applications. The switch features a compact 28x11mm dimension and 3 pins, ensuring easy installation and compatibility with various devices. The bright red illuminated ON/OFF indicator adds a touch of style and enhances visibility in low-light conditions.
Durability & Performance
With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, our rocker switch is built to last. It offers excellent electrical performance with low contact resistance, high insulation resistance, and strong dielectric strength. These features ensure reliable operation and longevity, even in demanding environments.
Why Choose Us?
As a factory direct supplier, we offer competitive wholesale pricing on our Yongxing rocker switches. Our products are certified by CQC, CE, CB, ENEC17, and ROHS, guaranteeing safety and compliance with international standards. We also provide excellent after-sales service and support, ensuring a hassle-free purchasing experience. Choose us for your switch needs and experience the difference in quality and service.
