Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-12-CA1A-W-G-01
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPDT ON-ON 3Pin
|
|
Panel cutout
|
28×11 mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|
White housing, green actuator
|
|
Marking
|
I O
|
|
Material
|
PA66
|

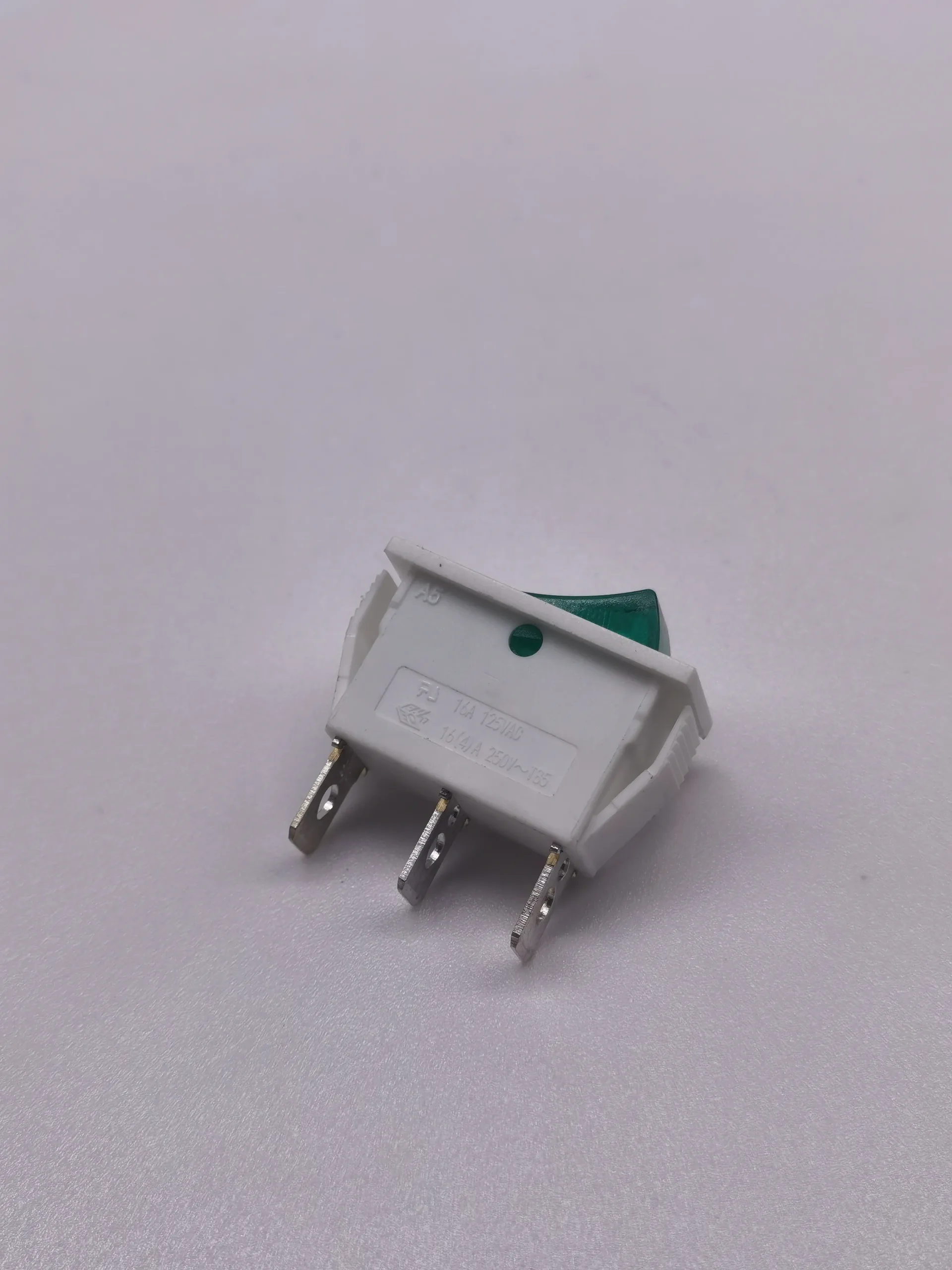

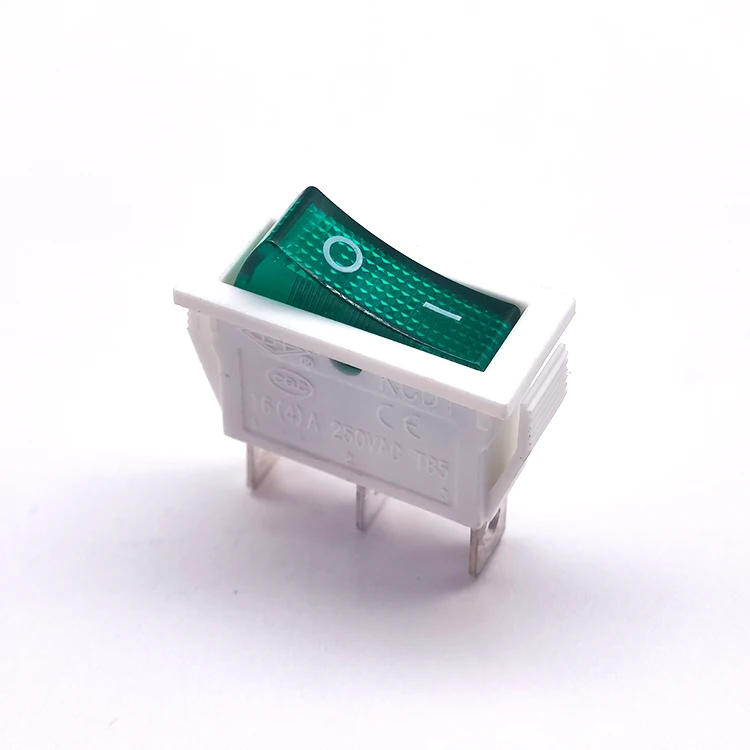

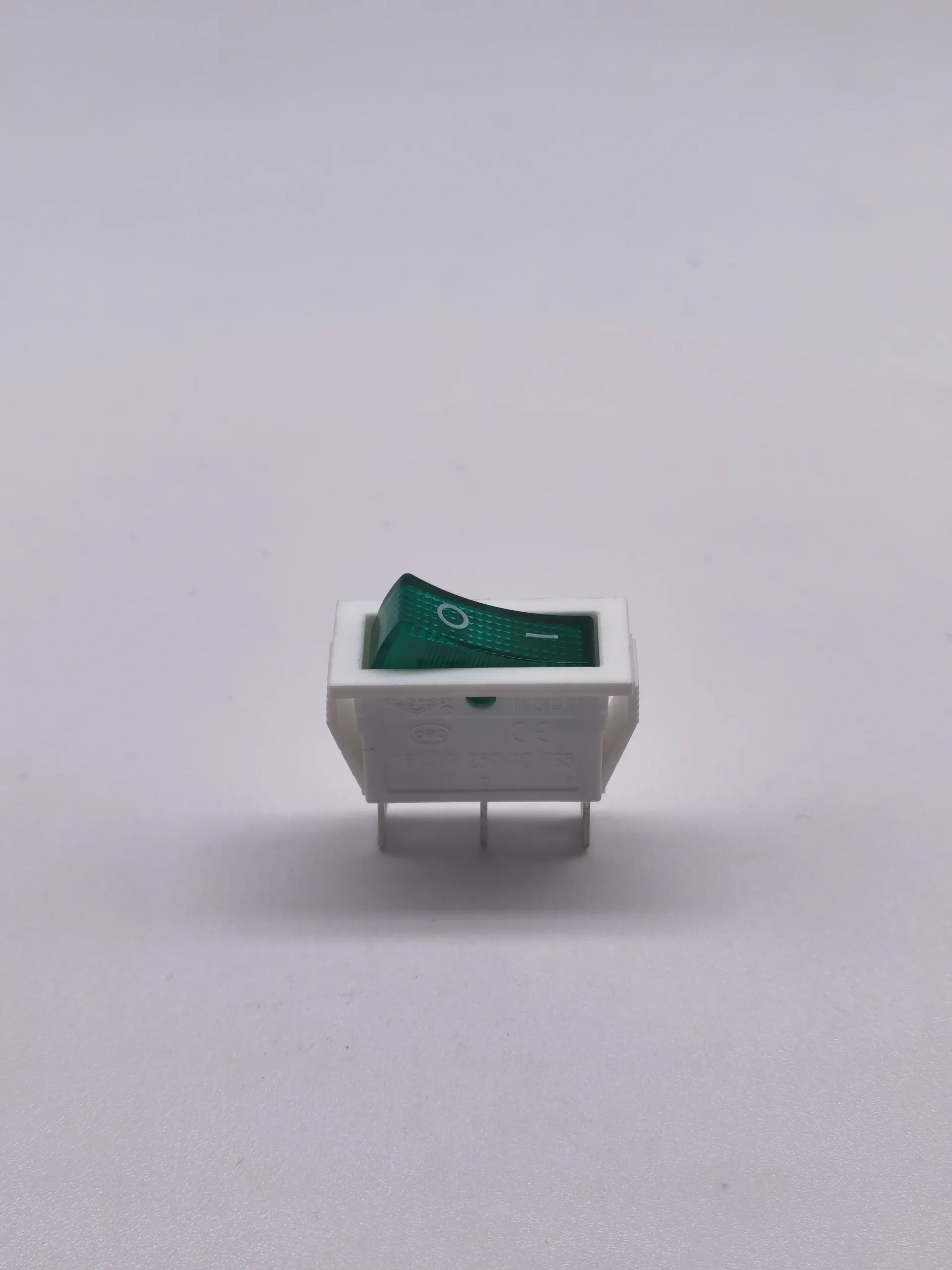

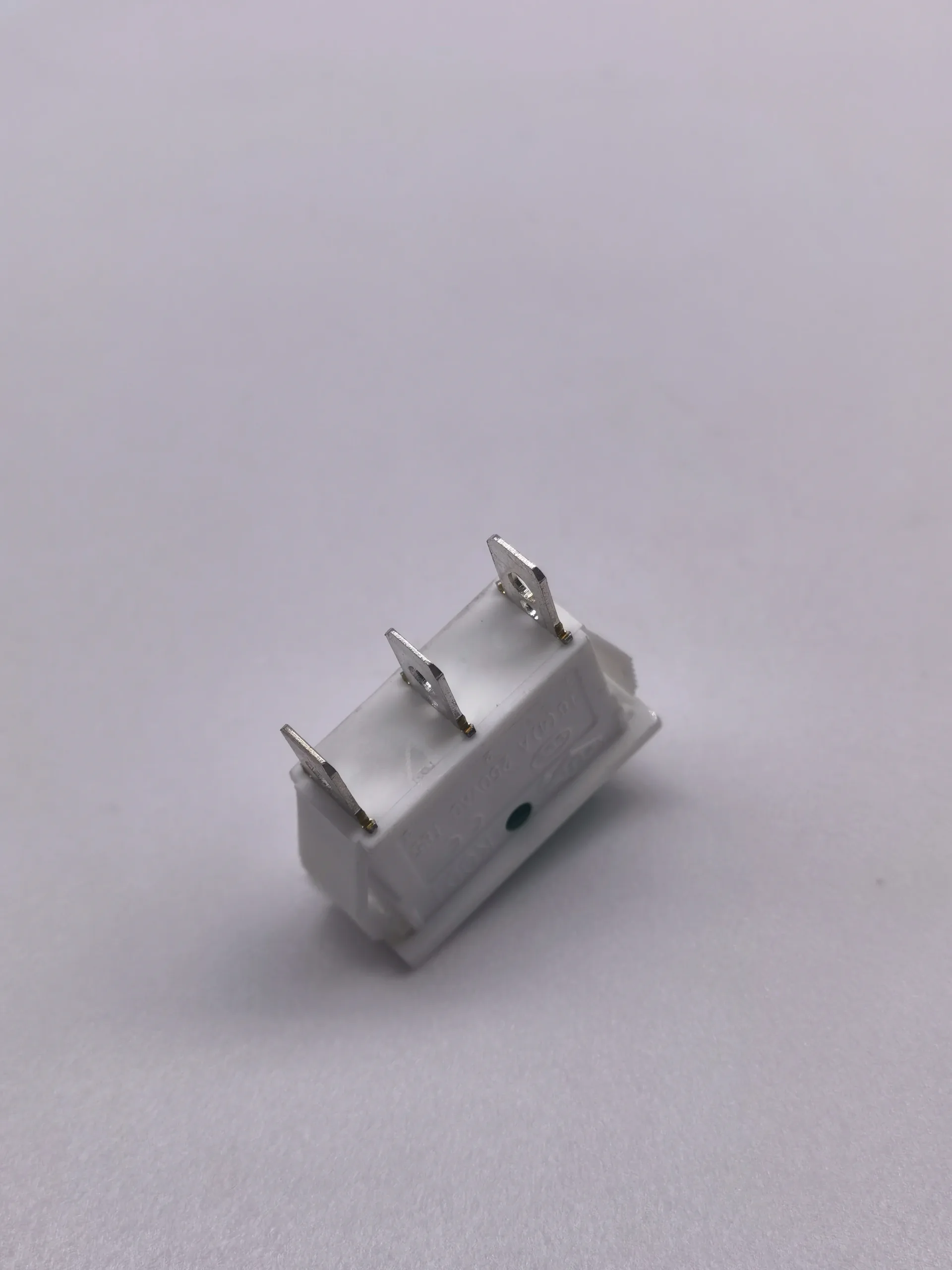

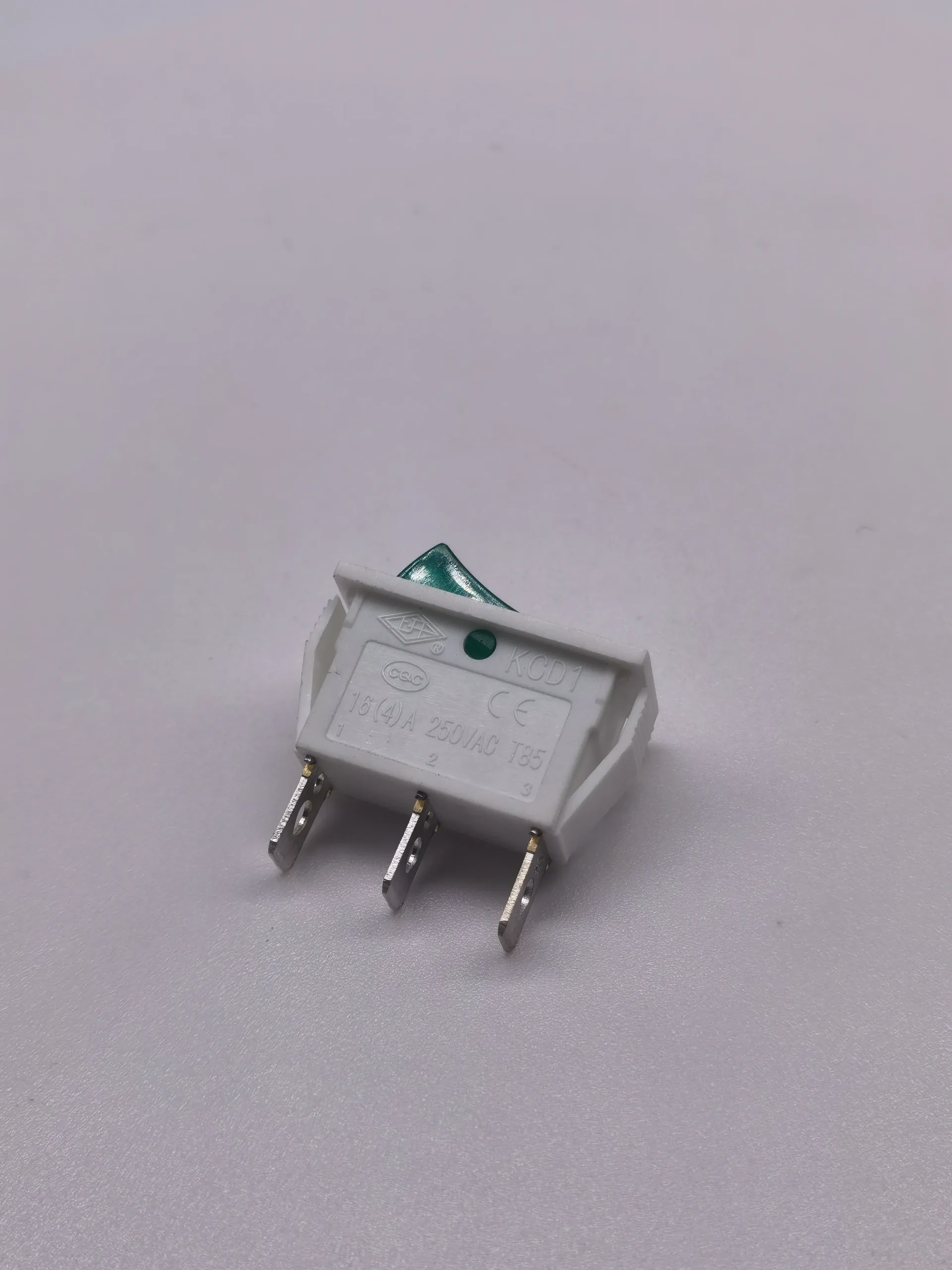

Why Choose Our Yongxing 16A Green Rocker Switch?
Our Yongxing 16A Green Rocker Switch stands out for its durability, reliability, and versatility. With a maximum current of 16A and a maximum voltage of 250VAC, it's designed to handle heavy-duty applications in cars, industrial machinery, and electric equipment. The switch features a long mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. Its high dielectric strength and low contact resistance further enhance its reliability.
What Are the Key Features of Our Switch?
Our switch boasts a durable white housing and a green actuator, making it both functional and visually appealing. It's certified with CQC, CE, and ROHS, ensuring compliance with international safety standards. The panel cutout size is 28x11 mm, and it comes with standard 6.3x0.8 mm terminals, making installation easy. Made from PA66 material, it offers excellent strength and heat resistance.
Why Buy from Us as a Factory Supplier?
As a factory-direct supplier and wholesaler, we offer competitive pricing and bulk order discounts. Our switches are manufactured to the highest standards, ensuring superior quality and performance. With an IP65/IP41 rating, our switch offers excellent protection against dust and water, making it suitable for various environments. Choose us for reliable, high-quality switches at unbeatable prices.
