Yongxing 16A Rocker Switch Factory Supplier for Medical Appliances

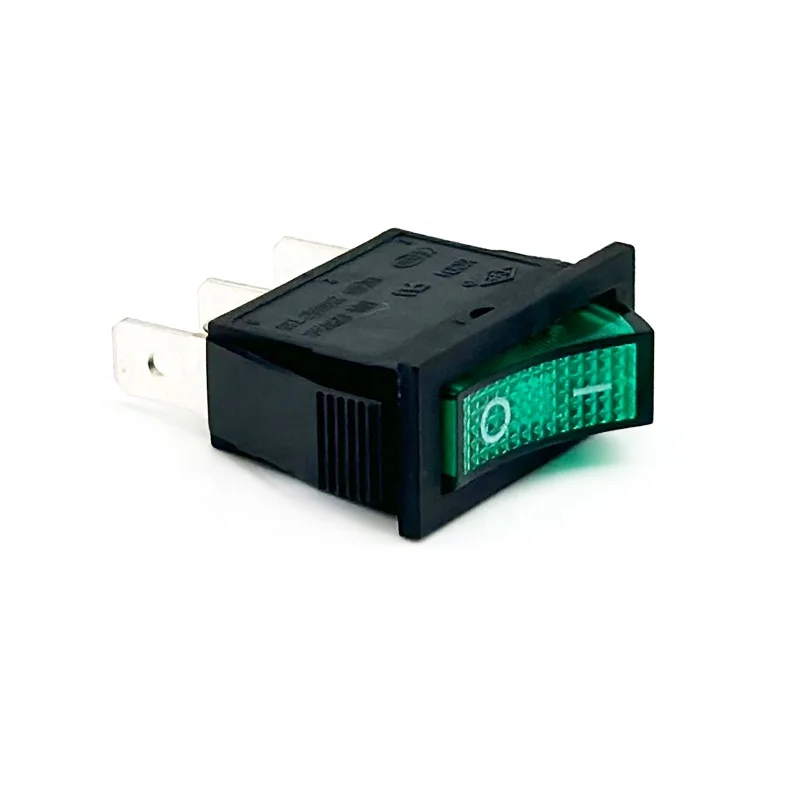

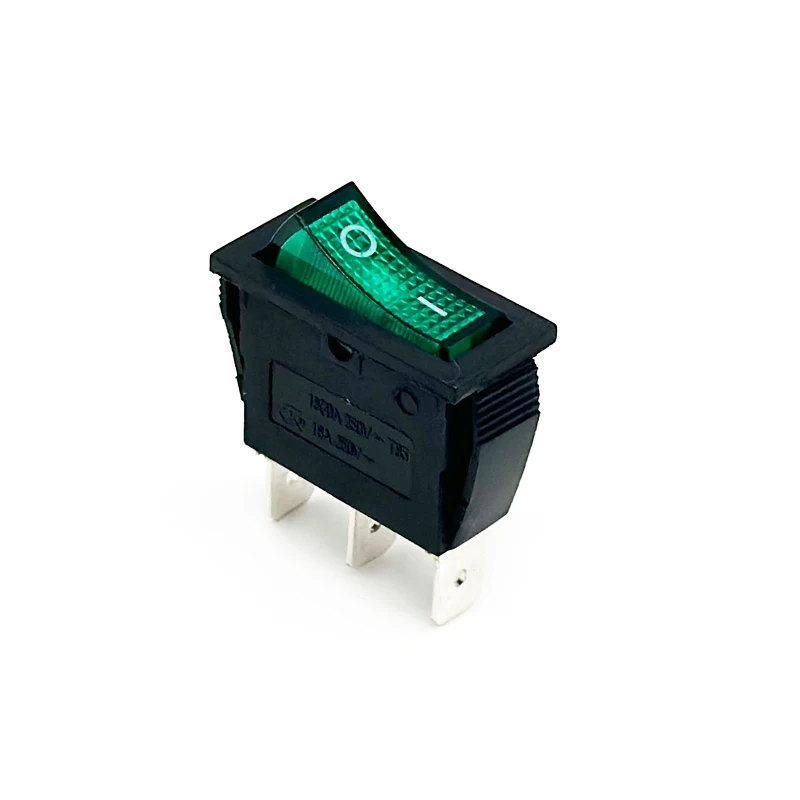

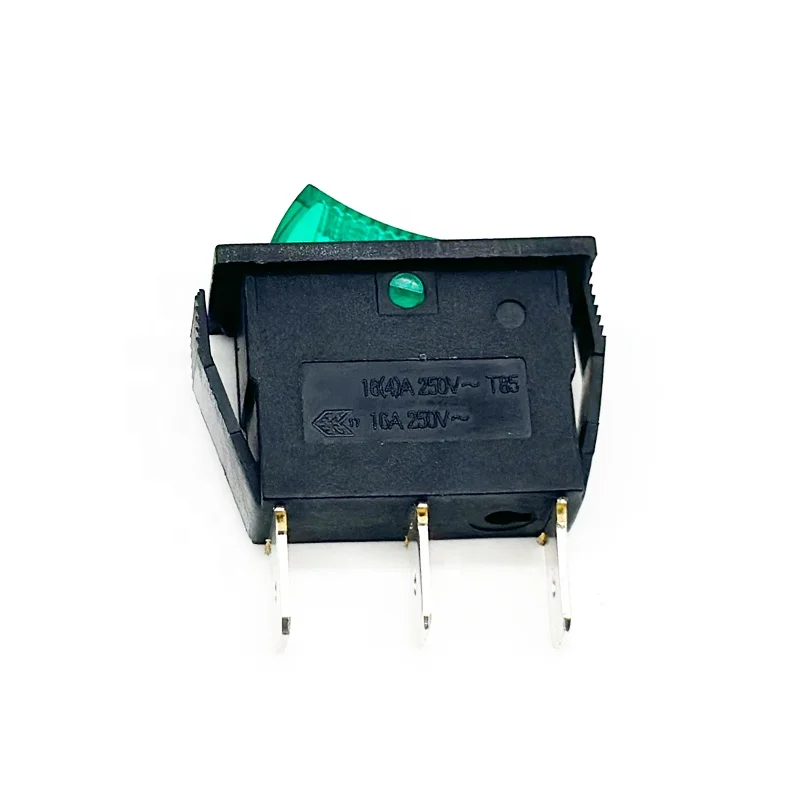

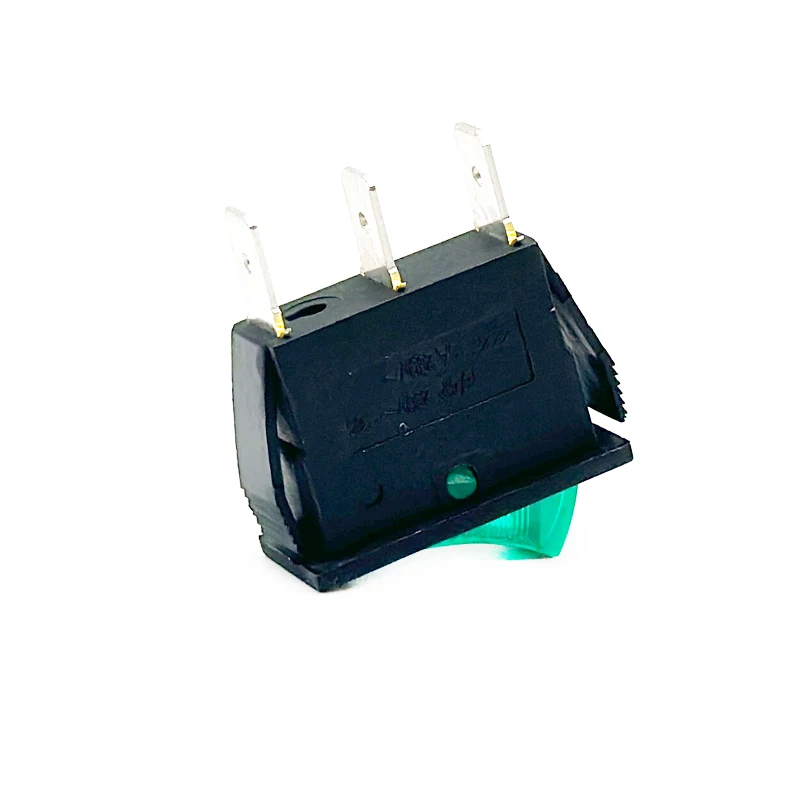

Introducing the Yongxing KCD Series 16A Rocker Switch, a top-tier choice for medical appliances. As a factory supplier, we offer this switch with CQC, CE, and ROHS certifications, ensuring quality and safety. With a maximum current of 16A and voltage of 250VAC, it’s built to handle demanding applications. The switch features a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, offering durability and reliability. Its dielectric strength of 1,500VAC for 1 minute and contact resistance ≤50mΩ guarantee excellent performance. The insulation resistance ≥1,000MΩ ensures safety, while the operating temperature of T85 makes it suitable for various environments. The switch has a SPST ON-OFF 2Pin circuit, a panel cutout of 28.4*10.7mm, and a 6.3×0.8 mm standard terminal. The white housing with a green actuator and white ON OFF marking adds a touch of style. Made from PA66 material, it’s robust and long-lasting. Choose us for wholesale purchases and benefit from our factory-direct pricing and excellent after-sales service.
