Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|

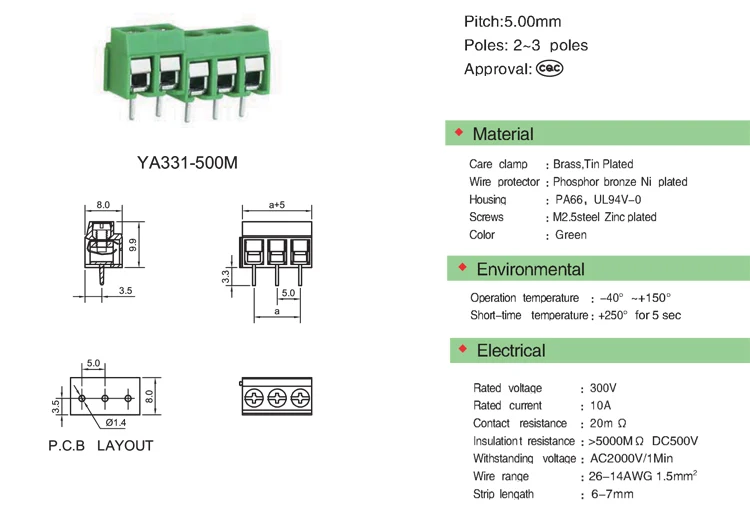

YA331-500M-2P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
10A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~3poles
|
|
Certificate
|
CQC
|

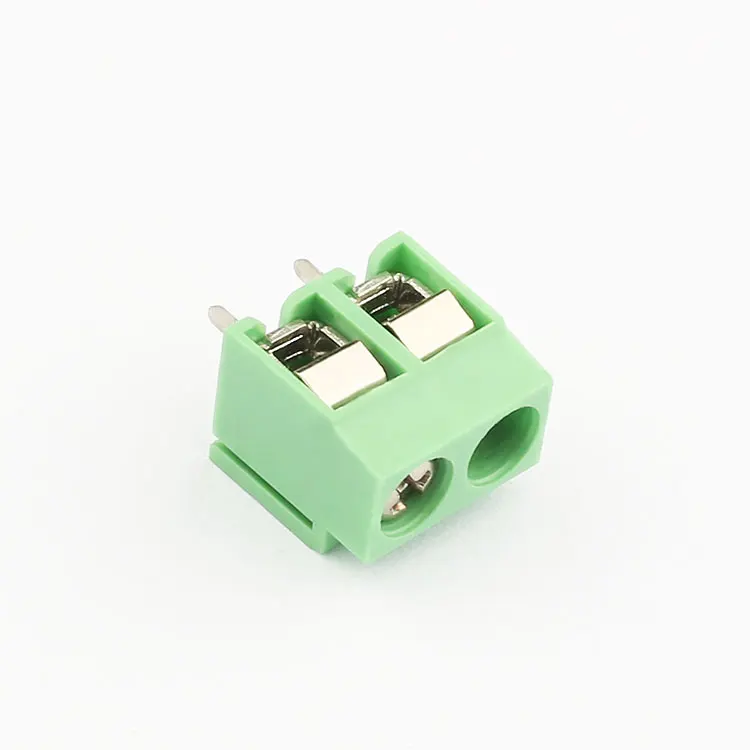

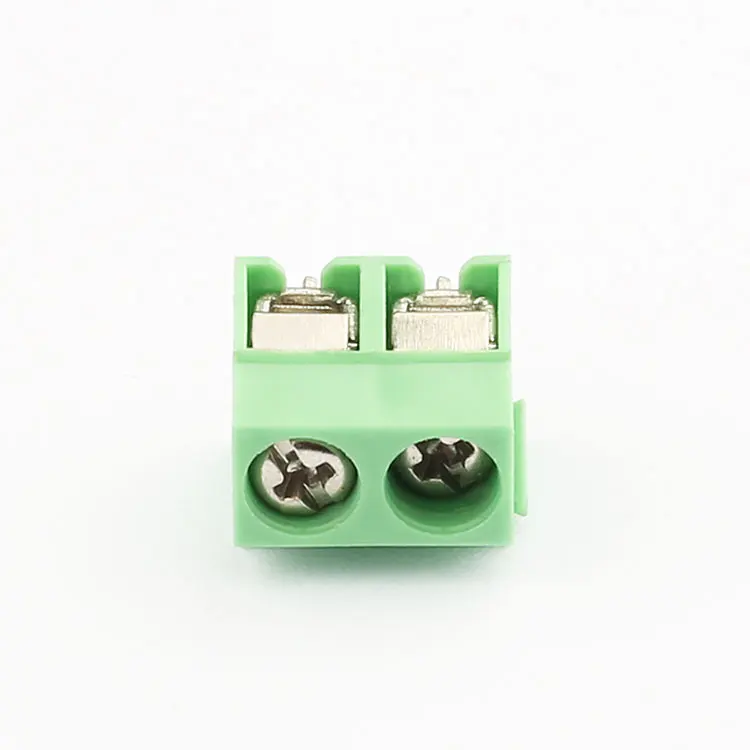

Why Choose Our Yongxing 5.00mm Screw Terminal Block?
Our Yongxing 5.00mm Screw Terminal Block stands out for its superior quality and reliability. Made from durable plastic with brass contacts and tin plating, it ensures excellent conductivity and resistance to corrosion. The robust design allows it to withstand high voltages and extreme temperatures, making it perfect for industrial and automotive applications.
What Are the Key Features?
Key features include a rated voltage of 300V, a rated current of 10A, and a contact resistance of just 20mΩ. It also boasts an insulation resistance exceeding 5000MΩ at DC500V and can withstand voltages up to AC2000V/Min. The terminal block operates efficiently in temperatures ranging from -40℃ to +150℃, ensuring reliable performance in any environment.
Why Buy from Us?
As a direct factory supplier, we offer competitive wholesale pricing and fast delivery. Our terminal blocks are CQC certified, meeting stringent quality standards. Whether you need a small quantity or a bulk order, we provide excellent service and support, making us your ideal partner for all your electrical connection needs.
