Yongxing 6A 250V Rotary Switch | Wholesale Factory Supplier

50 - 999  pieces
$0.49

1,000 - 1,999  pieces
$0.48

>= 2,000  pieces
$0.45

0 reviews

Wholesale Yongxing 6A 250V Rotary Switch from factory supplier. Ideal for home appliances.

Description

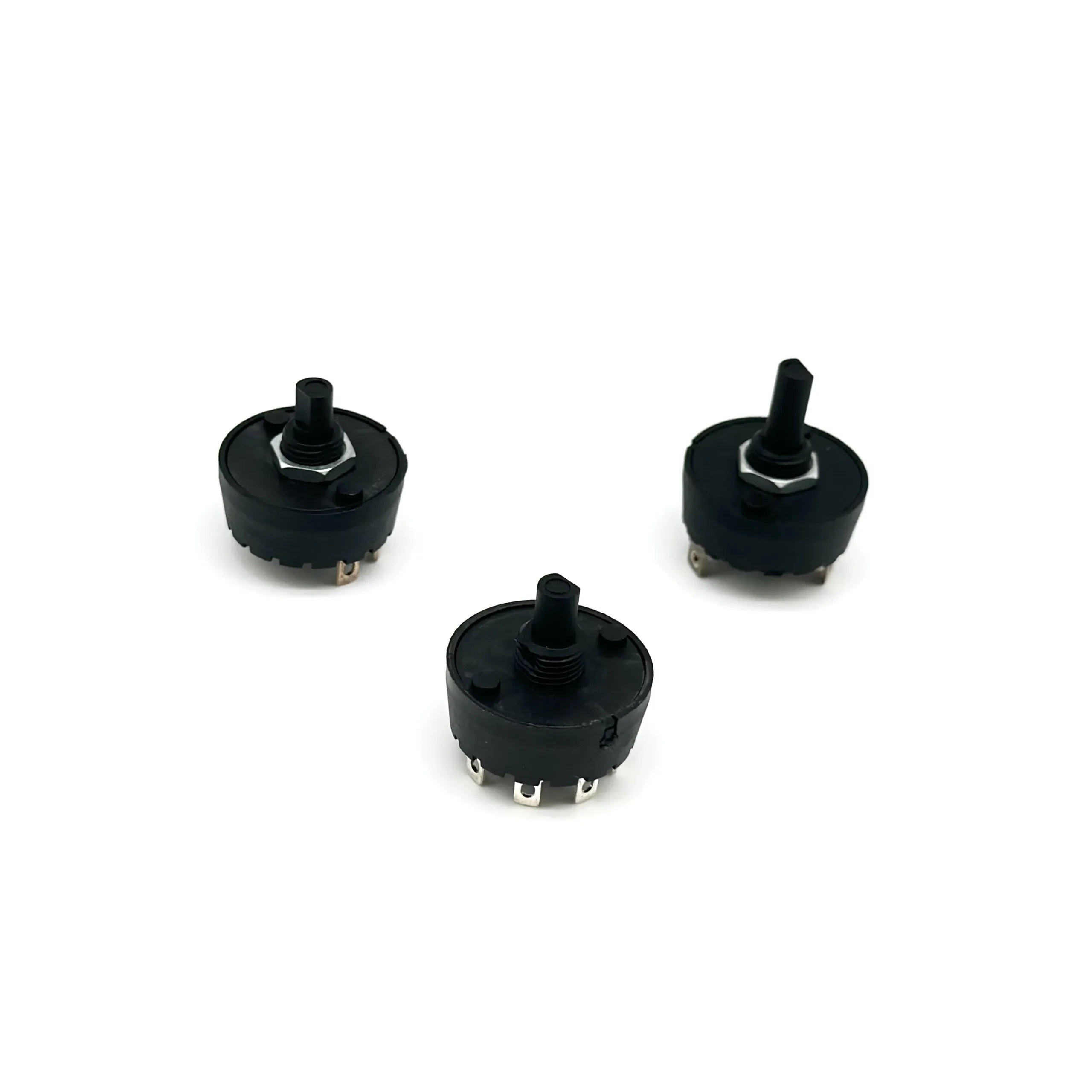

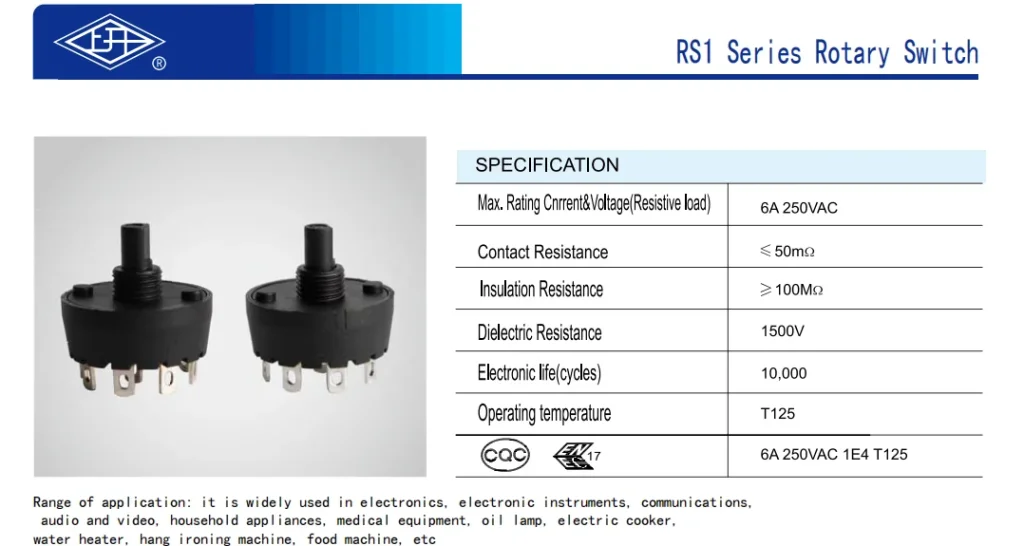

Introducing our high-quality Yongxing 6A 250V Rotary Switch, a must-have for home appliances and electric equipment. As a factory direct supplier, we offer wholesale prices on this reliable switch. With a maximum current of 6A and a maximum voltage of 250V, it’s designed to handle demanding applications. The switch features a 360° rotation range, a mechanical life of 50,000 times, and an electrical life of 10,000 times, ensuring long-lasting durability. It’s made of plastic, with pin terminals for easy installation, and boasts an IP65 rating for protection against dust and water. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, providing excellent electrical performance. Additionally, it has a dielectric strength of 1500V and an operating temperature of T125. Certified by CQC and ENEC, this switch meets the highest safety standards. Its black color adds a sleek touch to any device. Choose our factory-direct rotary switch for quality, reliability, and great value.

Electronic component product imageElectronic device product imageElectronic gadget product imageElectronic part product imageElectronic accessory product imageElectronic module product imageElectronic circuit product imageElectronic product image


Why Choose Our Yongxing Rotary Switch?

Our Yongxing 6A 250V Rotary Switch stands out for its high durability, with a mechanical life of 50,000 times and an electrical life of 10,000 times, ensuring reliable performance over time. The 360° rotation range provides flexibility in installation and use, while the IP65 rating offers protection against dust and water, making it suitable for various environments. Additionally, its excellent insulation properties and safe operation temperature of T125 ensure the safety of your devices.

What Are the Key Features of This Switch?

This switch features a maximum current of 6A and a maximum voltage of 250V, making it suitable for a wide range of applications. The pin terminals allow for easy installation, and the black color adds a sleek touch to any device. Certified by CQC and ENEC, it meets the highest safety standards, giving you peace of mind.

Why Buy from Us as a Factory Supplier?

As a factory direct supplier, we offer wholesale prices on our Yongxing Rotary Switch, ensuring you get the best value for your money. Our commitment to quality and reliability means you can trust our products to perform as expected. Choose us for your rotary switch needs and experience the difference in quality and service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

6A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

RS1-18S-ACH-BB

Application

Home Appliances, electric equipment

Material

plastic

Terminal Type

Pin terminal

Rotation Range

360°

Mechanical Life

50000 times

IP level

IP65

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life

10000 Times

Operating temperature

T125

Certification

CQC ENEC
