Yongxing AD10 Series Electronic Push Button Switch | Wholesale Supplier

50 - 999  pieces
$0.97

1,000 - 1,999  pieces
$0.95

>= 2,000  pieces
$0.92

0 reviews

Yongxing AD10 Series Switch | Wholesale Supplier | Factory-Direct Quality

Description

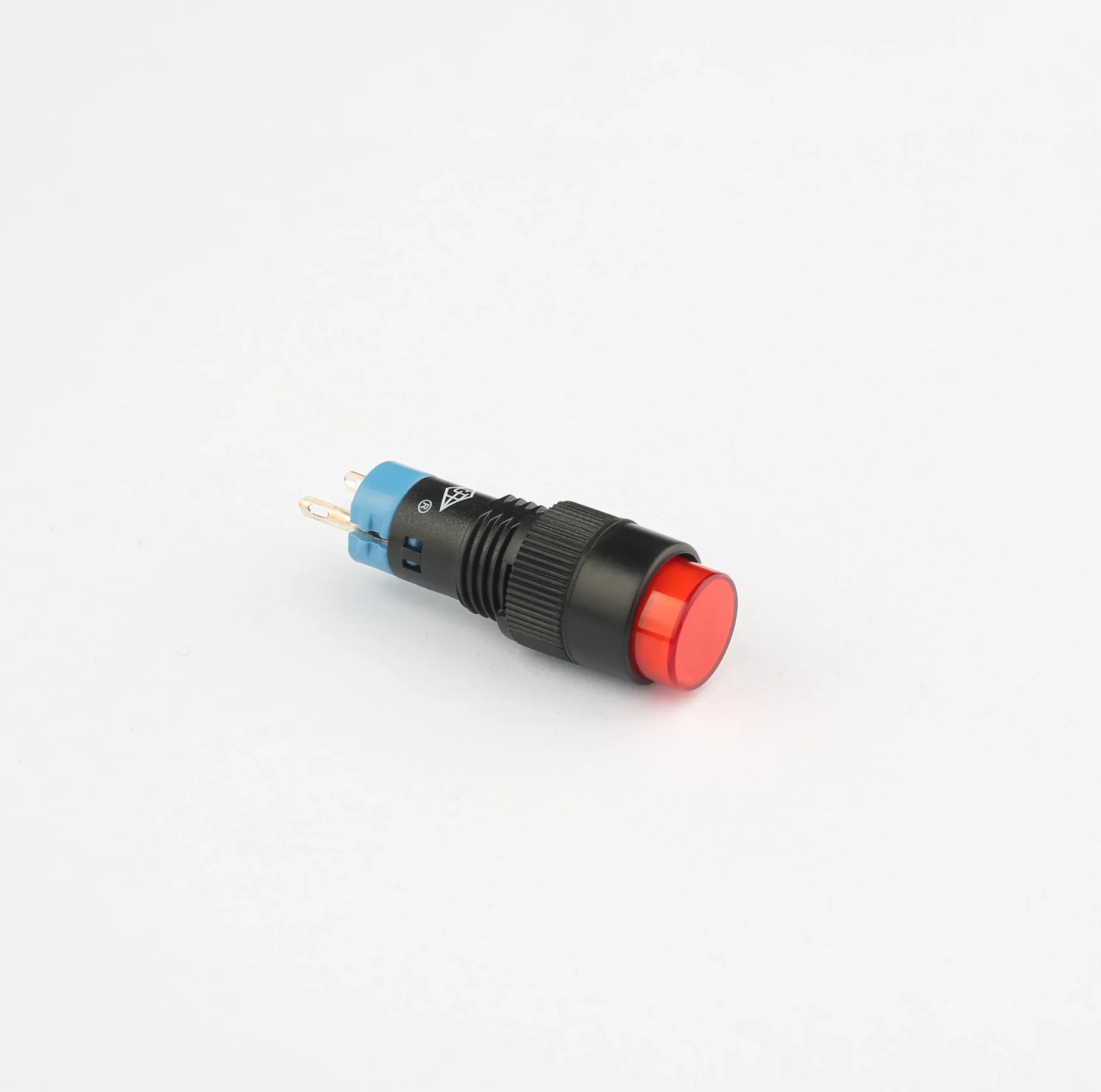

Discover the Yongxing AD10 Series Electronic Push Button Switch, a top-tier solution for domestic equipment needs. As a factory-direct supplier, we offer wholesale pricing on this high-quality switch. With a max current of 3A and max voltage of 250V, it’s built to handle demanding applications. The switch features a round head, pin terminal, and full illuminated LED for easy visibility. Made from durable PA66 material, it ensures long-lasting performance. Its IP40 rating provides basic protection against dust and water. With 1NO1NC switch combination, ≤50mΩ contact resistance, and ≥100mΩ insulation resistance, it guarantees reliable operation. The switch boasts an electrical life of 25,000 times and a mechanical life of 50,000 times, making it a durable choice. Operating in temperatures from -5°C to +75°C, it’s suitable for various environments. The red color and 10mm size make it visually appealing and compact. Our Yongxing AD10 Series switch is perfect for electric, home appliance, and industrial control applications. Choose us, your trusted supplier, for factory-direct quality and wholesale pricing.

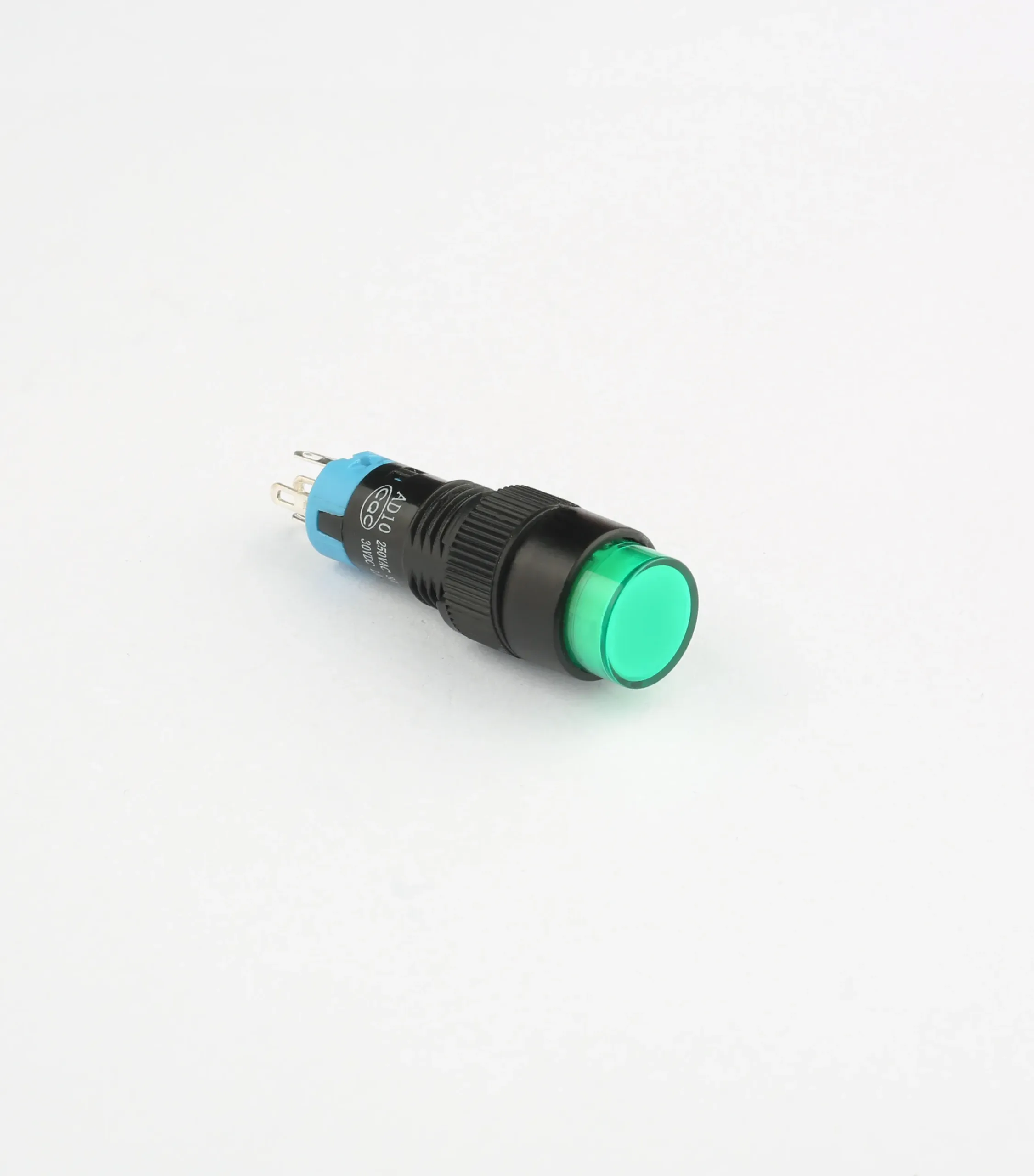

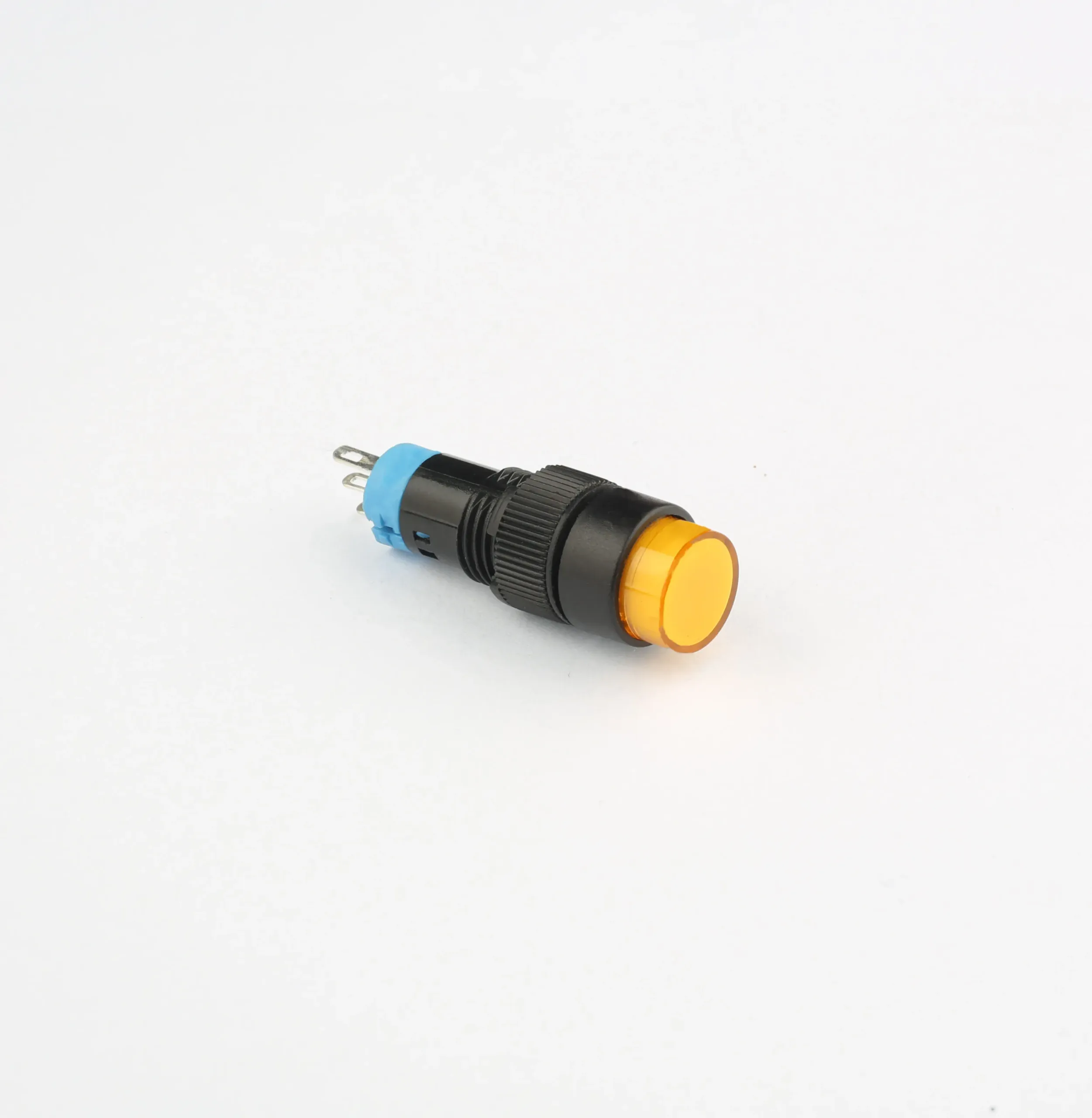

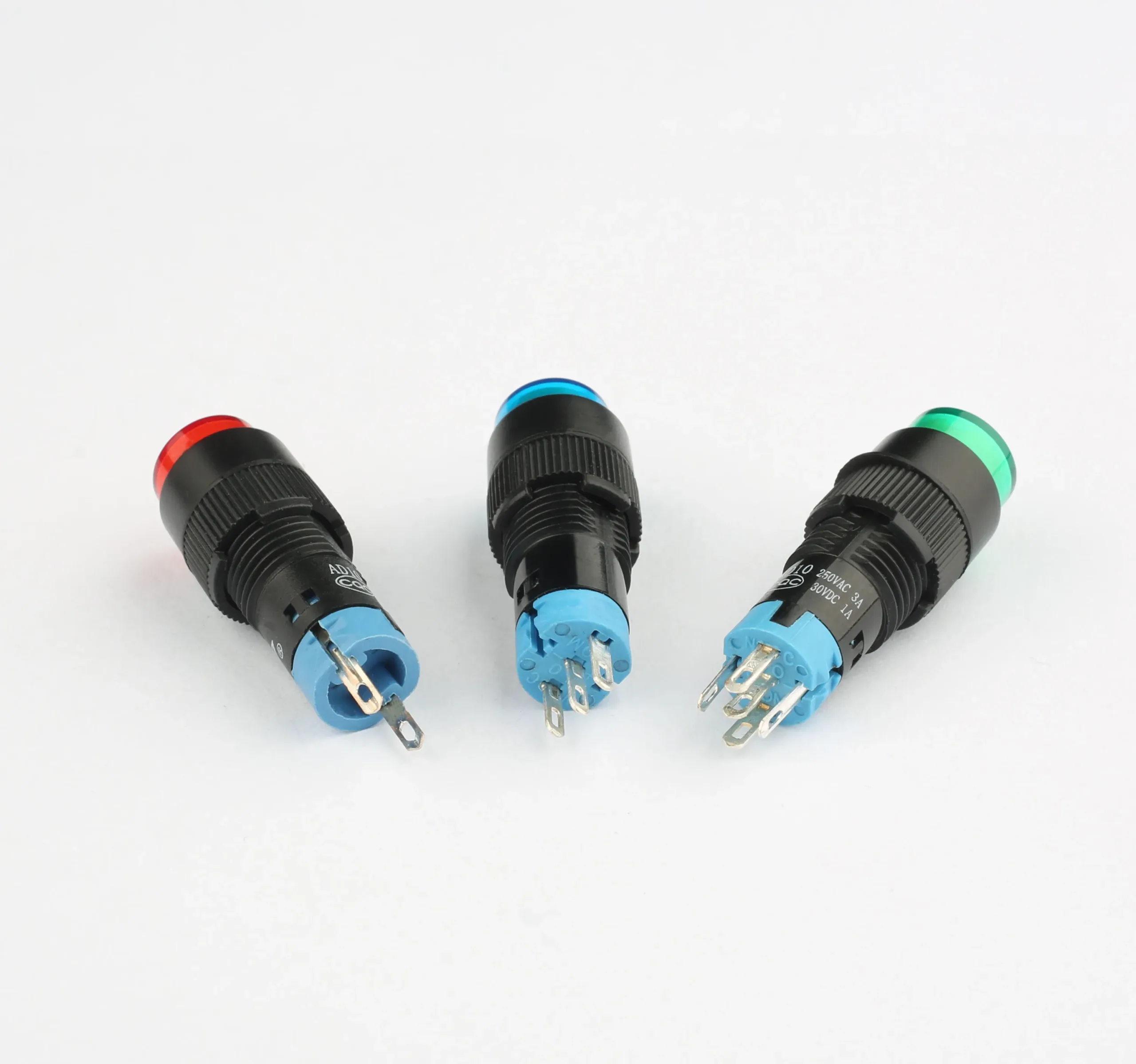

Electronic component product image for SEO optimizationHigh-quality electronic device image for e-commerceElectronic gadget product display imageElectronic accessory product image for SEOElectronic part product image for e-commerce SEOElectronic module product display imageElectronic circuit product image for SEO optimization


Why Choose Yongxing AD10 Series Electronic Push Button Switch?

The Yongxing AD10 Series Electronic Push Button Switch stands out with its durable PA66 material, ensuring long-lasting performance. Its full illuminated LED and round head design make it both functional and visually appealing. With a max current of 3A and max voltage of 250V, it's suitable for a wide range of applications, including electric, home appliance, and industrial control.

What Are the Advantages of Buying from Us?

As a factory-direct supplier, we offer wholesale pricing on the Yongxing AD10 Series switch. This means you get high-quality products at competitive prices. Our switch also boasts an impressive electrical life of 25,000 times and a mechanical life of 50,000 times, ensuring reliability and durability. With an IP40 rating, it provides basic protection against dust and water, making it suitable for various environments.

How Does the Yongxing AD10 Series Switch Benefit Your Business?

Choosing the Yongxing AD10 Series switch for your business means opting for a product that combines quality, performance, and affordability. Its 1NO1NC switch combination and ≤50mΩ contact resistance guarantee reliable operation, reducing downtime and maintenance costs. Additionally, our wholesale pricing allows you to maximize your profit margins while providing your customers with a top-tier product.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

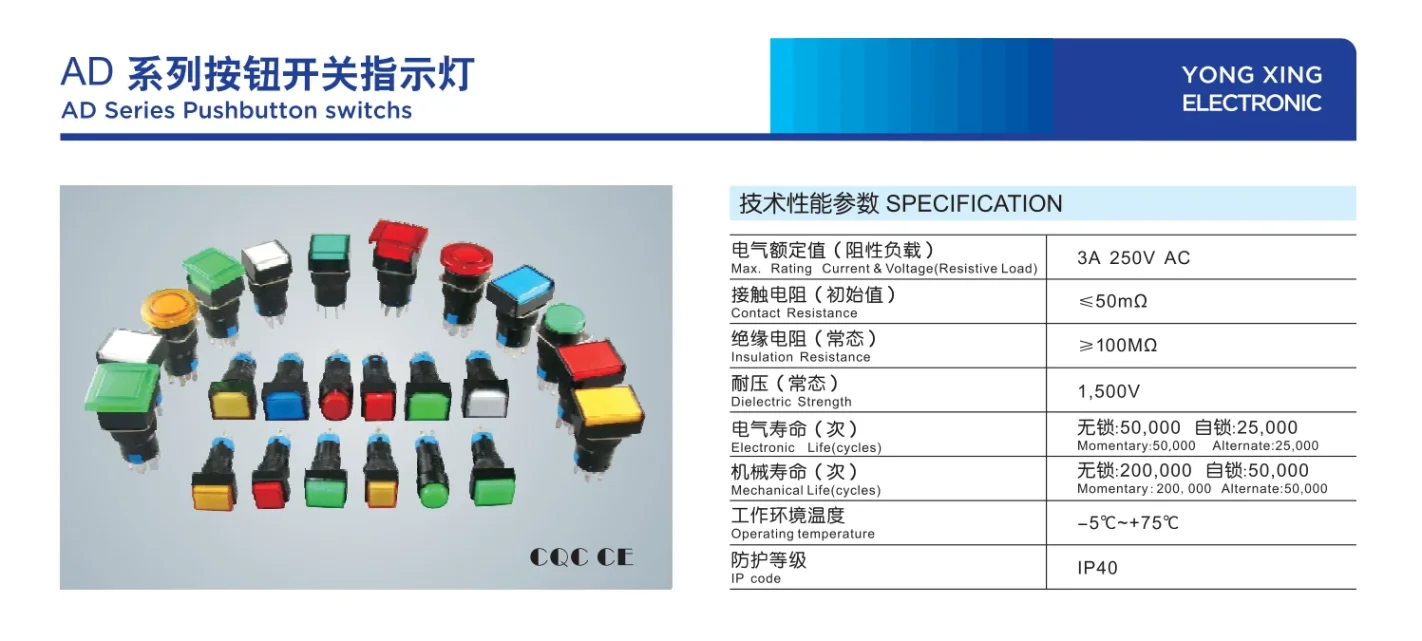

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

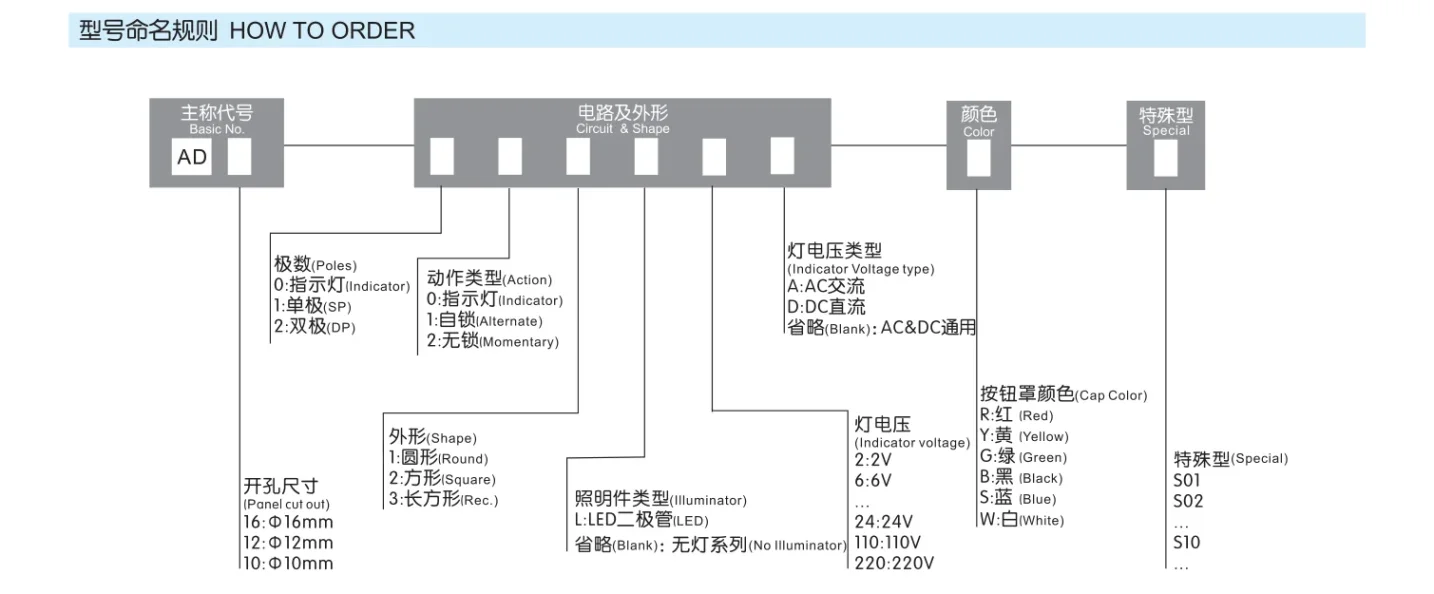

Model Number

AD10-111L6D-R

LED

Yes

Application

Electric, Home Appliance, Industrial Control

Material

PA66

Structure

Electronic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40

Switch Combination

1NO1NC

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life (Alternate)

25000 Times

Mechanical Life (Alternate)

50000 Times

Operating Temperature

-5° T +75°
