Description
|
item
|
value
|
|
|
Place of Origin
|
Shanghai,China
|
|
|
Brand Name
|
SK(Shangkai)
|
|
|
Model Number
|

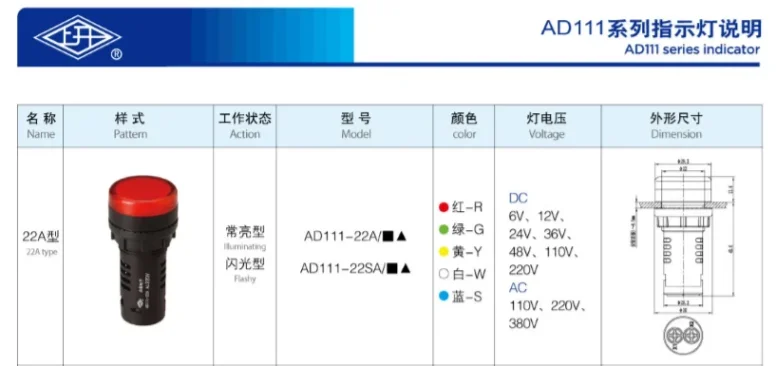

AD111-22A-DC.AC 24V R
|
|
|
LED voltage
|
ac dc 24v
|
|
|

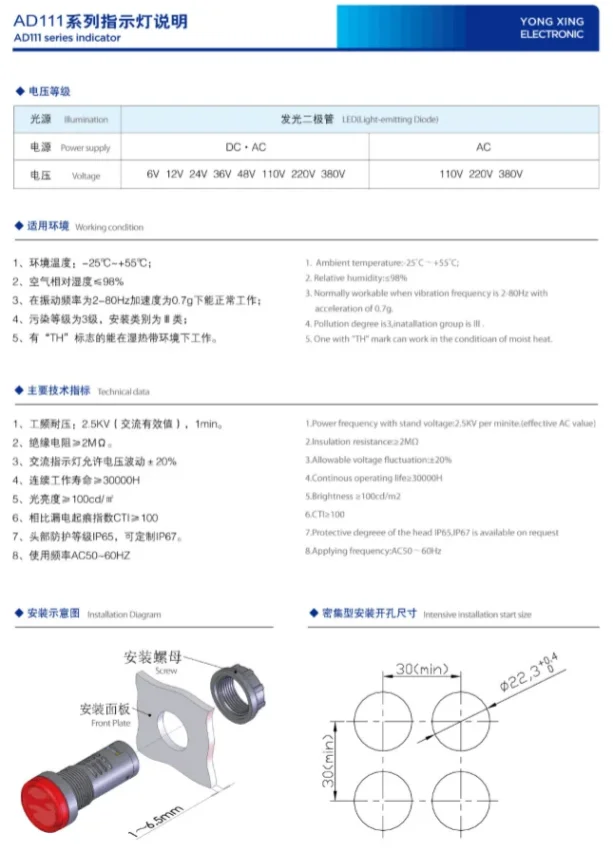

Protective degree of the head
|
IP65, IP67 is available on request
|
|
|
Applying frequency
|
AC 50-60Hz or customized
|
|
|
Brightness
|
≥100cd/m2
|
|
|
Continous operating life
|
≥30000H
|
|
|
Insulation resistance
|
≥2MΩ
|
|
|
Power frequency withstand voltage
|
2.5KV per min (effective AV value)
|
|
|
CTI
|
≥100
|
|
|
Ambient temperature
|
-25℃~+55℃
|
|
|
Relative air humidity
|
≤98%
|
|
|
Pollution degree is 3,inatallation group is Ⅲ. Normally workable when vibration frequency is 2-80 Hz with acceleration of 0.7g
|
||
Why Choose Yongxing AD111-22A LED Indicator Light?

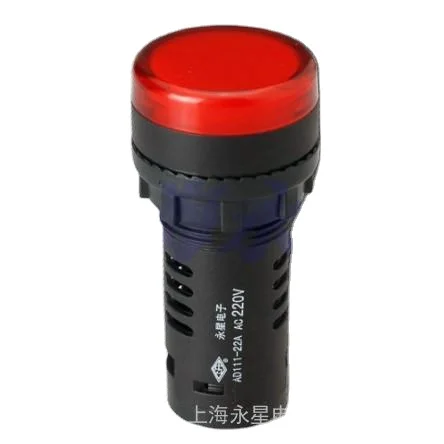

The Yongxing AD111-22A LED Indicator Light stands out for its high brightness, long operating life, and excellent durability. With an IP65 protective degree (IP67 available on request), it's perfect for harsh environments. The 22mm diameter and bright red LED ensure clear visibility, making it ideal for industrial control and panel mounting applications.
What Are the Key Features?
Key features include a continuous operating life of ≥30,000 hours, insulation resistance of ≥2MΩ, and the ability to withstand a power frequency voltage of 2.5KV per minute. It operates efficiently within an ambient temperature range of -25°C to +55°C, with a relative air humidity of ≤98%. The CTI is ≥100, ensuring reliable performance.
How Can I Benefit from Buying Wholesale?
As a factory direct supplier, we offer competitive wholesale prices on the Yongxing AD111-22A LED Indicator Light. Buying in bulk not only saves you money but also ensures a steady supply for your industrial needs. Enjoy excellent customer service and reliable after-sales support when you choose Yongxing.
