Description
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

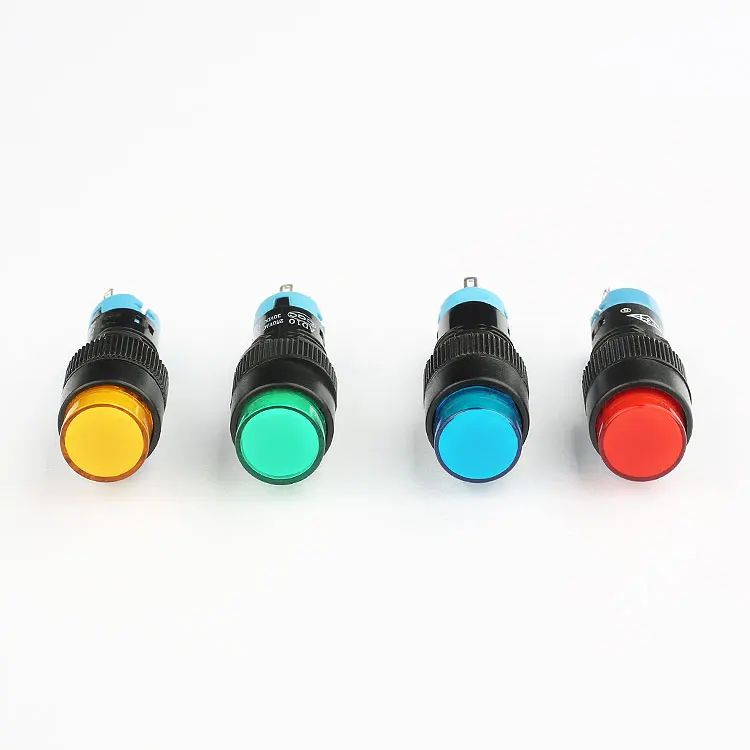

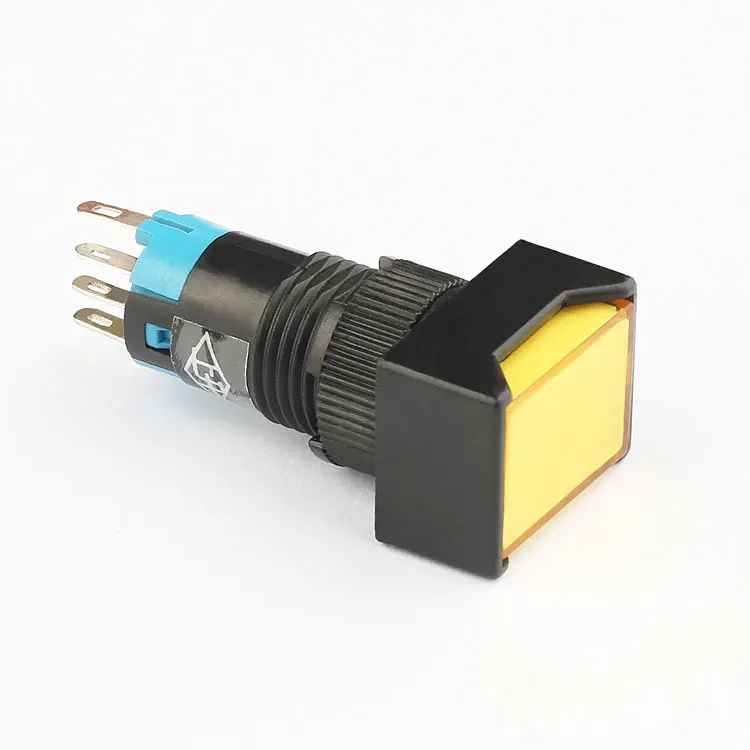

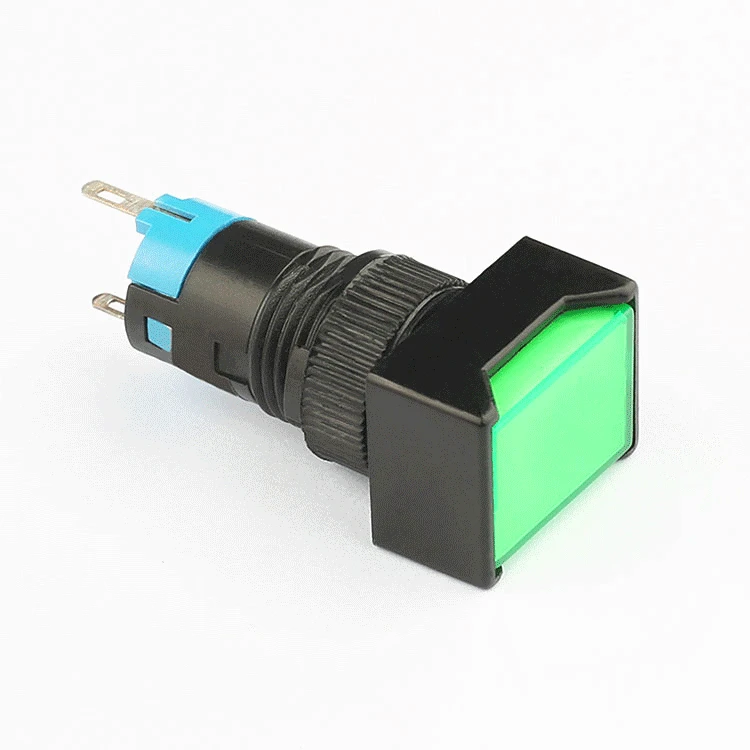

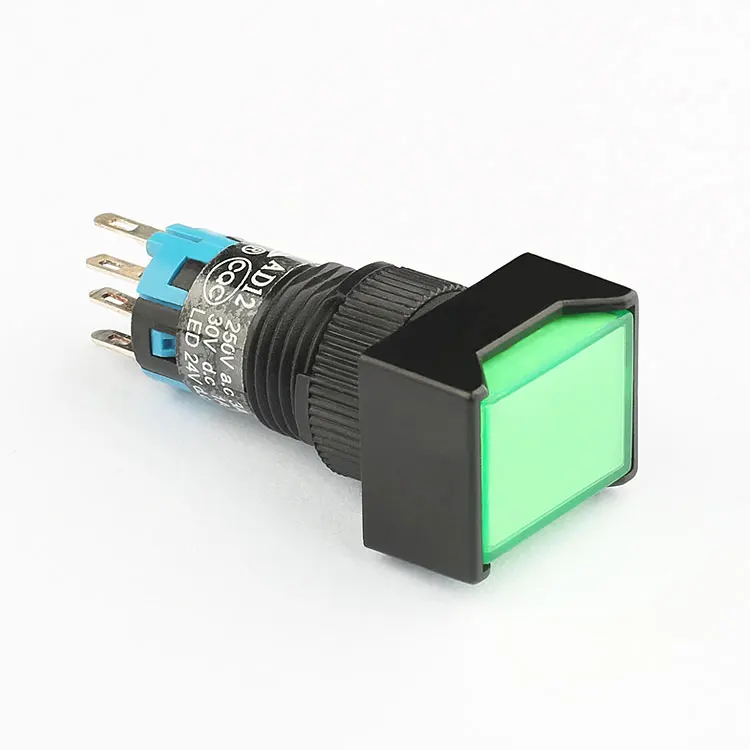

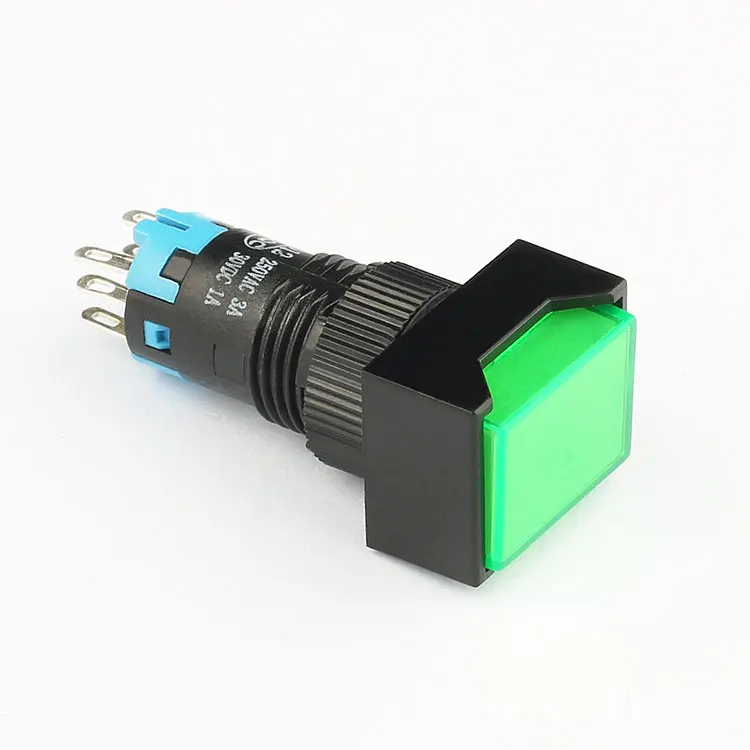

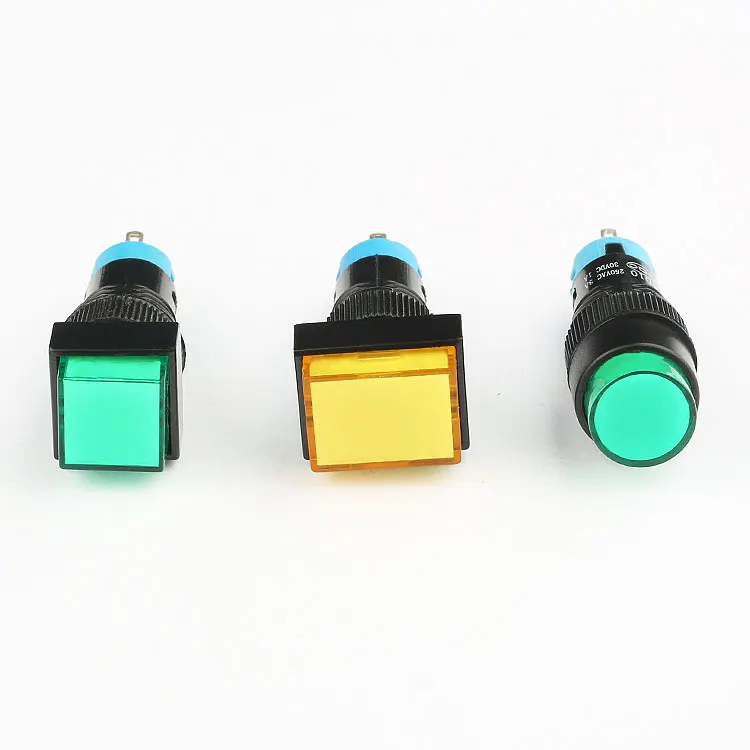

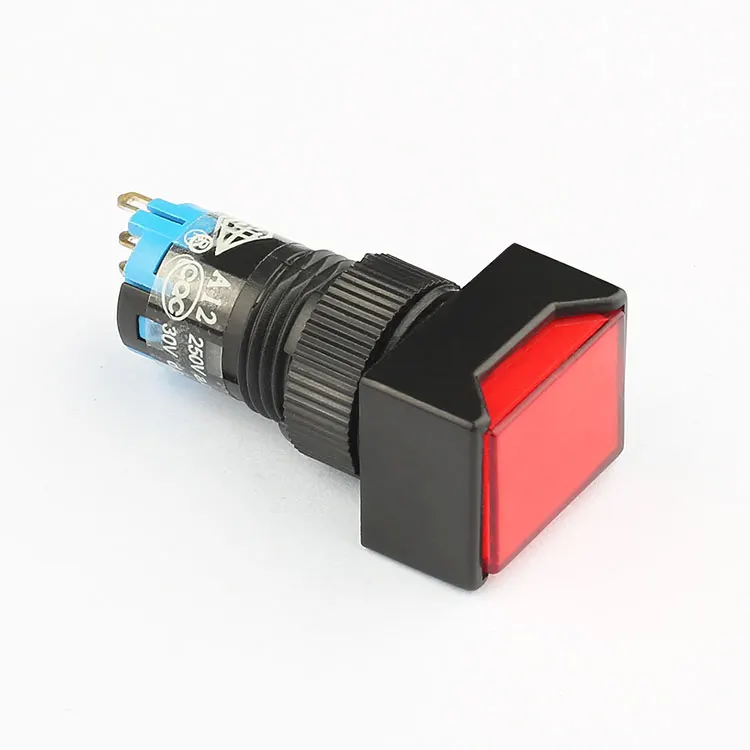

Why Choose Our Yongxing AD12 Push Button Switch?

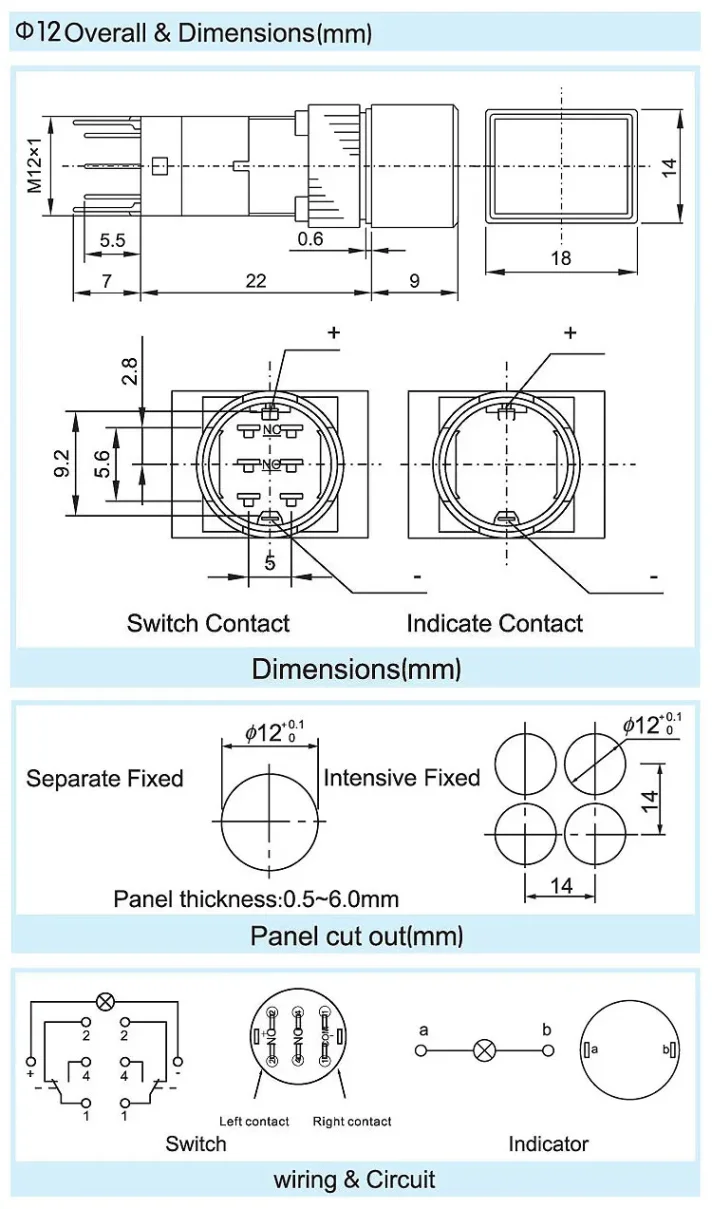

Our Yongxing AD12 Push Button Switch stands out for its durability, reliability, and versatility. With a 12mm panel cutout and multiple color options, it fits seamlessly into various applications. The illuminated indicator light enhances visibility, making it ideal for low-light environments. Its high dielectric strength and contact resistance ensure safe and efficient operation.
What Are the Key Features?
Key features include a maximum rating current of 3A and a voltage of 250V AC, momentary and alternate operation modes, and a long mechanical life of up to 200,000 cycles. Certified by CQC and CE, it meets international safety standards, providing peace of mind for users.
How Can It Benefit Your Projects?
Whether you're working on industrial control, electrical equipment, or home automation projects, our Yongxing AD12 Push Button Switch offers a cost-effective solution. As a factory-direct supplier, we provide competitive pricing and excellent after-sales service, ensuring your projects run smoothly and efficiently.
