Yongxing AD12 Series 3A 250V Push Button Switch | Factory Wholesale

50 - 999  pieces
$0.97

1,000 - 1,999  pieces
$0.96

>= 2,000  pieces
$0.93

0 reviews

Yongxing AD12 Push Button Switch | 3A 250V | Factory Wholesale Supplier

Description

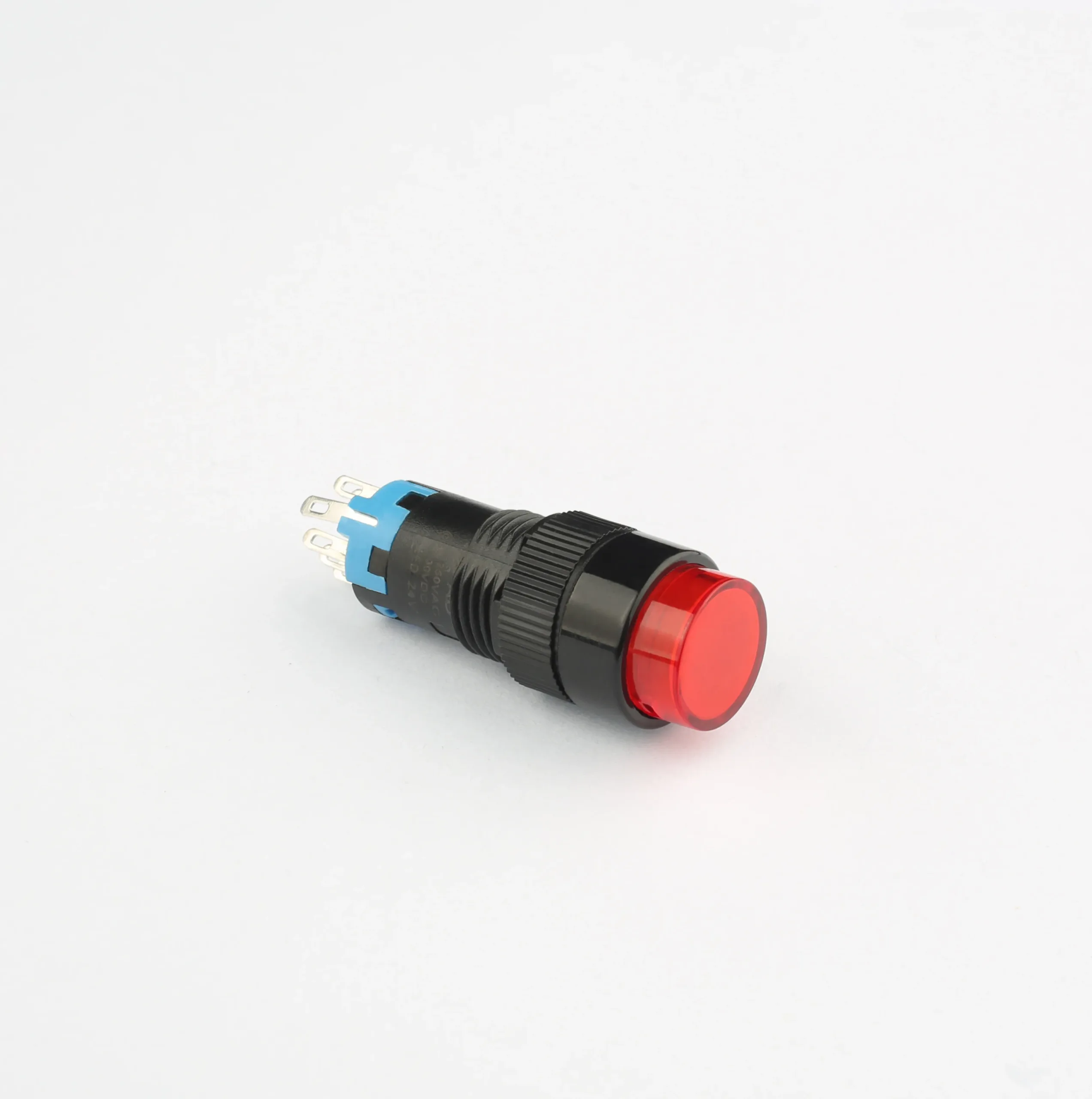

Introducing the Yongxing AD12 Series 3A 250V Electronic Push Button Switch, a premium product designed specifically for the mechanical industry. As a factory supplier, we offer wholesale pricing on this high-quality switch, ensuring you get the best value for your money.

This switch boasts a maximum current of 3A and a maximum voltage of 250V, making it suitable for a wide range of applications including electric, home appliances, and industrial control systems. It features a durable PA66 material construction, ensuring longevity and reliability even in harsh environments.

The AD12 Series switch stands out with its round head design, pin terminal type, and full illuminated LED, providing both functionality and aesthetics. With an IP40 rating, it offers protection against dust and limited water ingress, making it ideal for various industrial settings.

Our switch offers exceptional electrical and mechanical life, with 25,000 alternate electrical cycles and 50,000 alternate mechanical cycles. It also has a low contact resistance of ≤50mΩ and a high insulation resistance of ≥100mΩ, ensuring safe and efficient operation.

Choose Yongxing for your push button switch needs and benefit from our factory-direct pricing, reliable quality, and excellent customer service. We are committed to providing you with the best products at the most competitive prices.

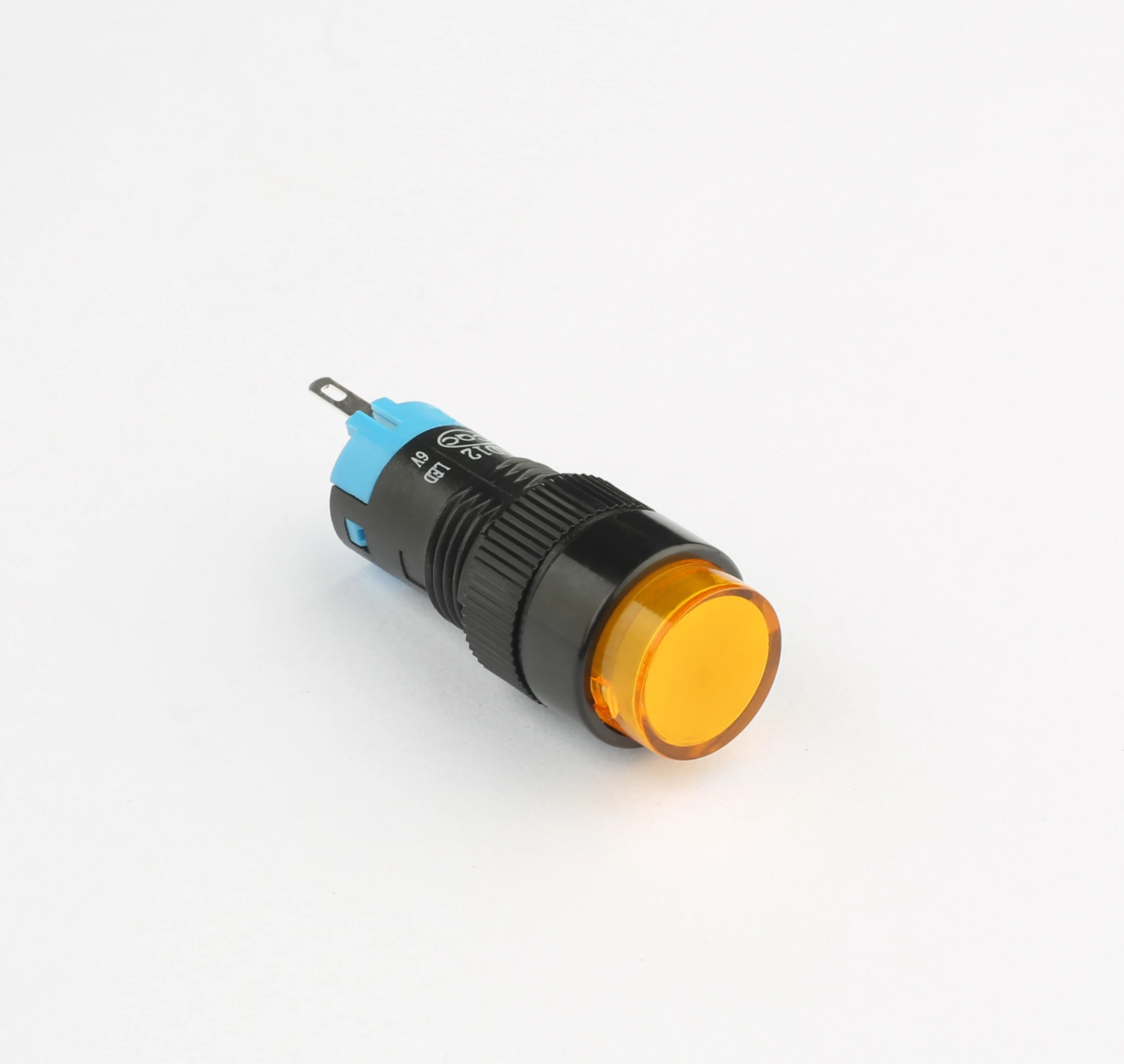

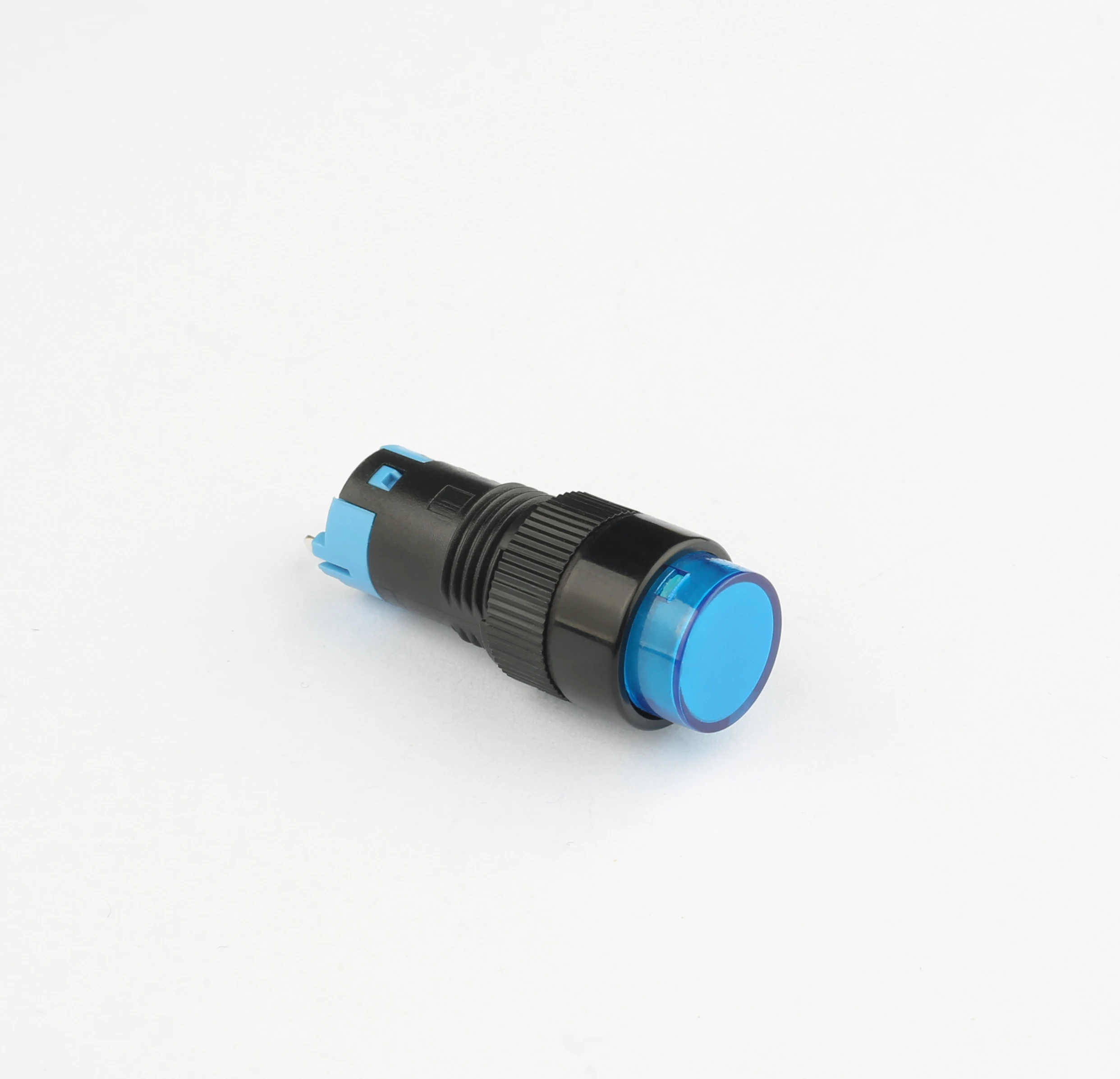

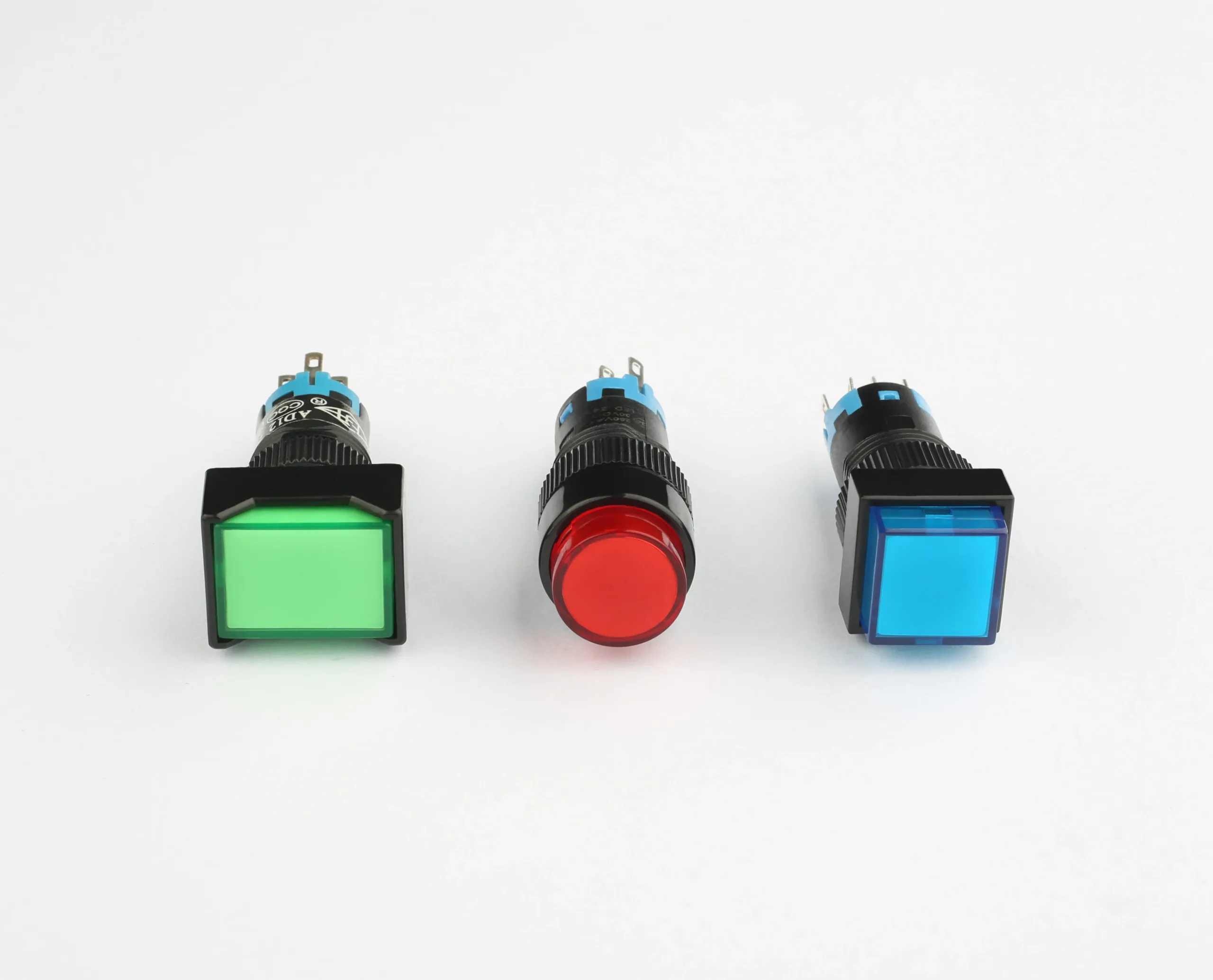

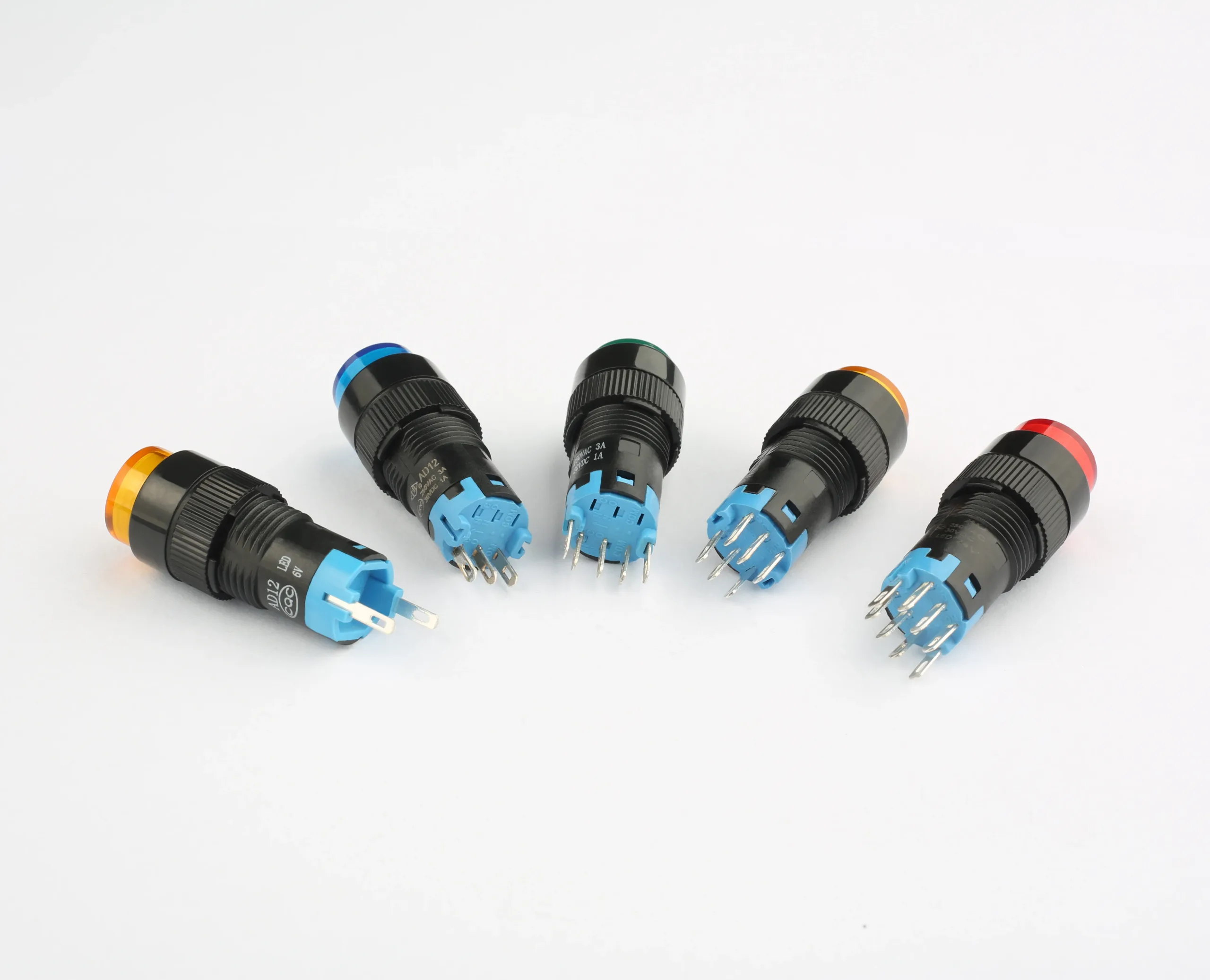

Electronic component high-quality image for displayClear photo of electronic device for e-commerceAttractive pic of electronic gadget for online storeDetailed image of electronic part for product pageVisual of electronic component for e-commerce siteSnapshot of electronic device for product displayPhoto of electronic part for cross-border e-commerce


Why Choose Yongxing AD12 Push Button Switch?

The Yongxing AD12 Push Button Switch offers exceptional durability and reliability, thanks to its PA66 material construction and IP40 rating. It is suitable for a wide range of applications, including electric, home appliances, and industrial control systems.

What Makes This Switch Stand Out?

This switch stands out with its full illuminated LED, providing both functionality and aesthetics. It also has a low contact resistance and high insulation resistance, ensuring safe and efficient operation. Additionally, our factory-direct pricing and excellent customer service make it a great choice for your push button switch needs.

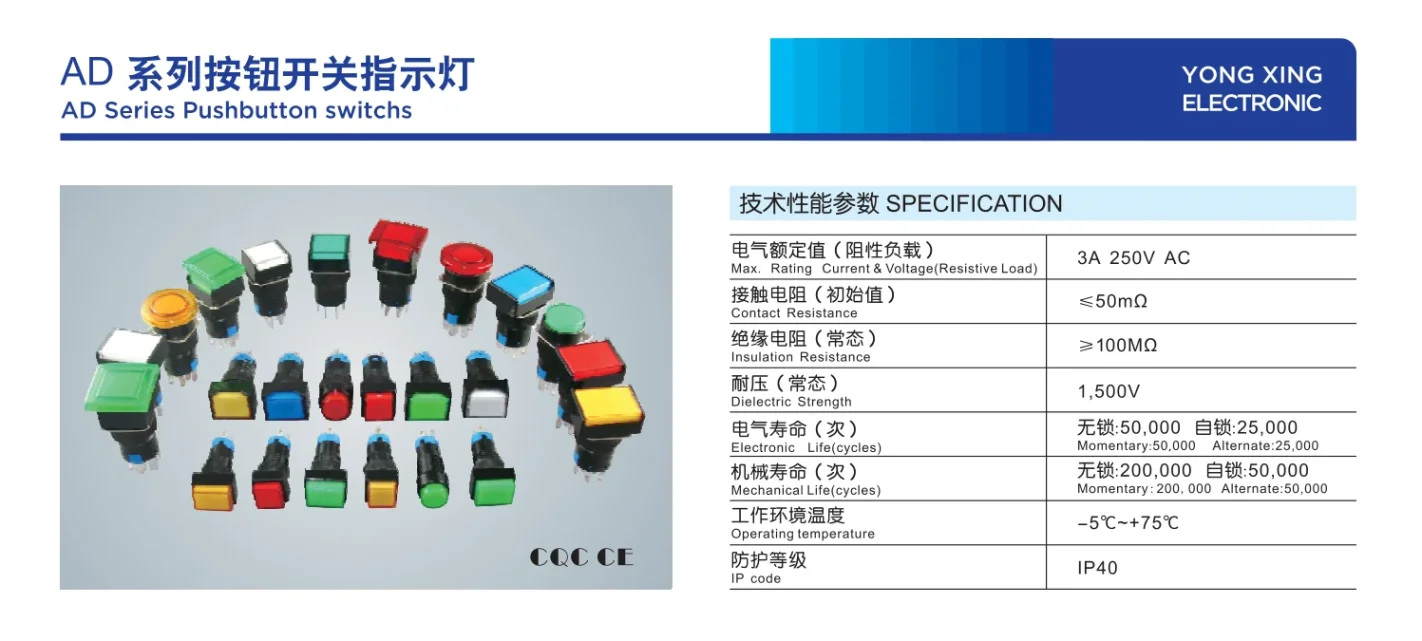

What Are the Key Specifications?

The Yongxing AD12 Push Button Switch has a maximum current of 3A and a maximum voltage of 250V. It features a 12mm size, red color, and 1NO1NC switch combination. With an IP40 rating, it offers protection against dust and limited water ingress.

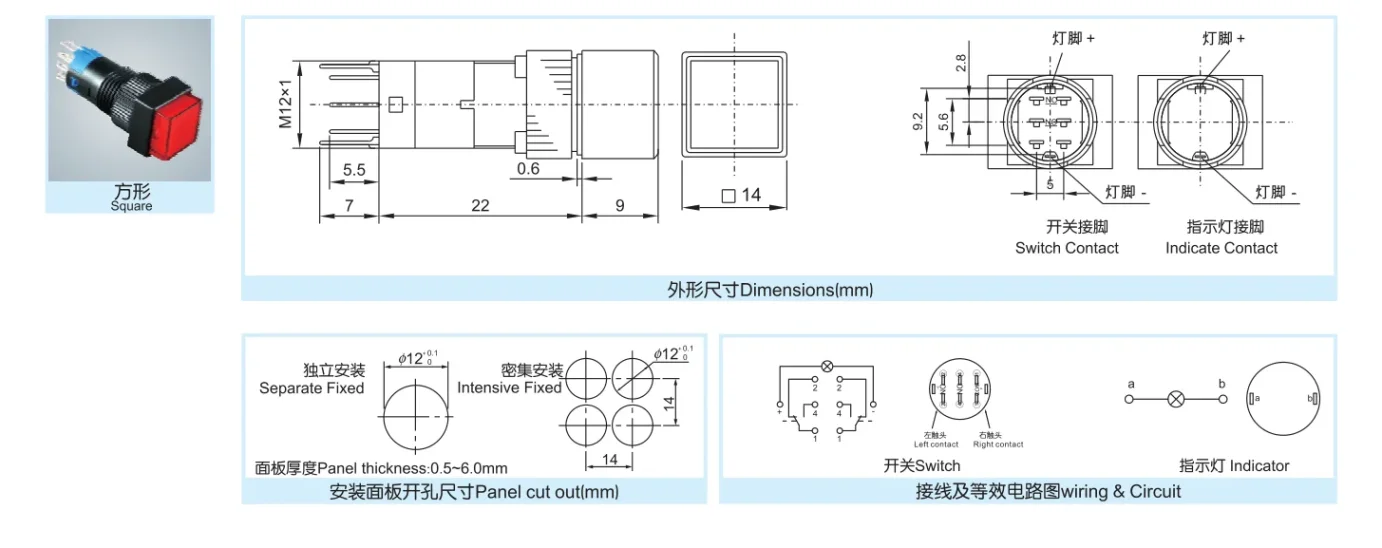

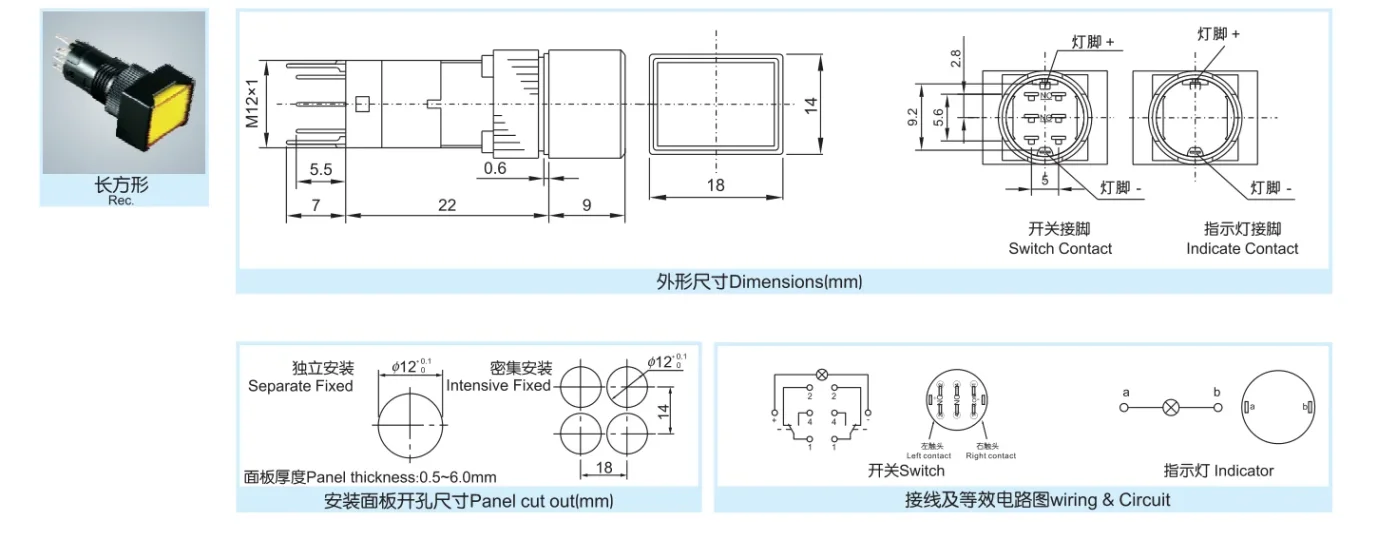

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

AD12-111L6D-R

LED

Yes

Application

Electric, Home Appliance, Industrial Control

Material

PA66

Structure

Electronic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40

Switch Combination

1NO1NC

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life (Alternate)

25000 Times

Mechanical Life (Alternate)

50000 Times

Operating Temperature

-5° T +75°
