Yongxing Factory Direct 16mm Red Emergency Stop Button Switch Supplier

500 - 1,999  pieces
$2.60

2,000 - 4,999  pieces
$2.45

>= 5,000  pieces
$2.30

0 reviews

Factory Direct 16mm Red Emergency Stop Button Switch Supplier, Wholesale Prices.

Description

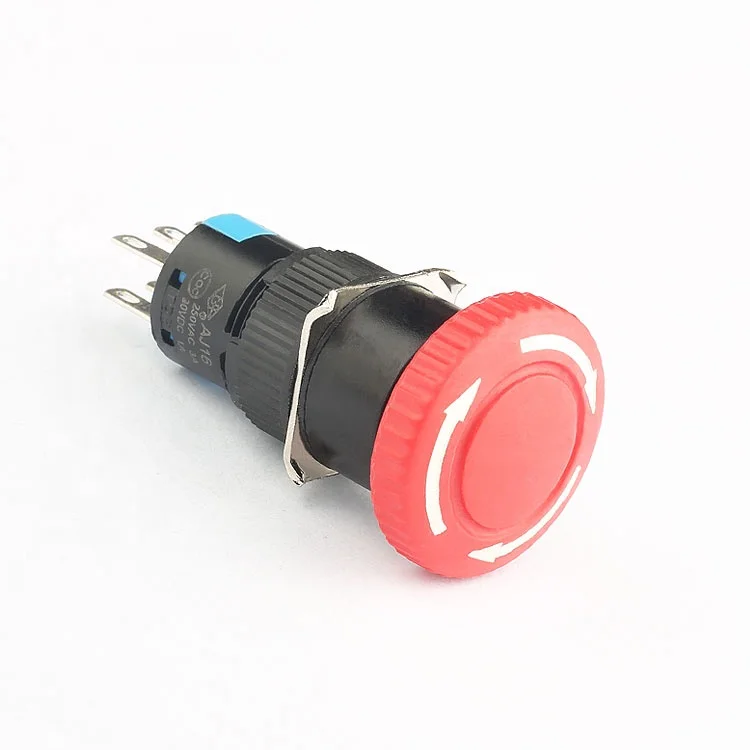

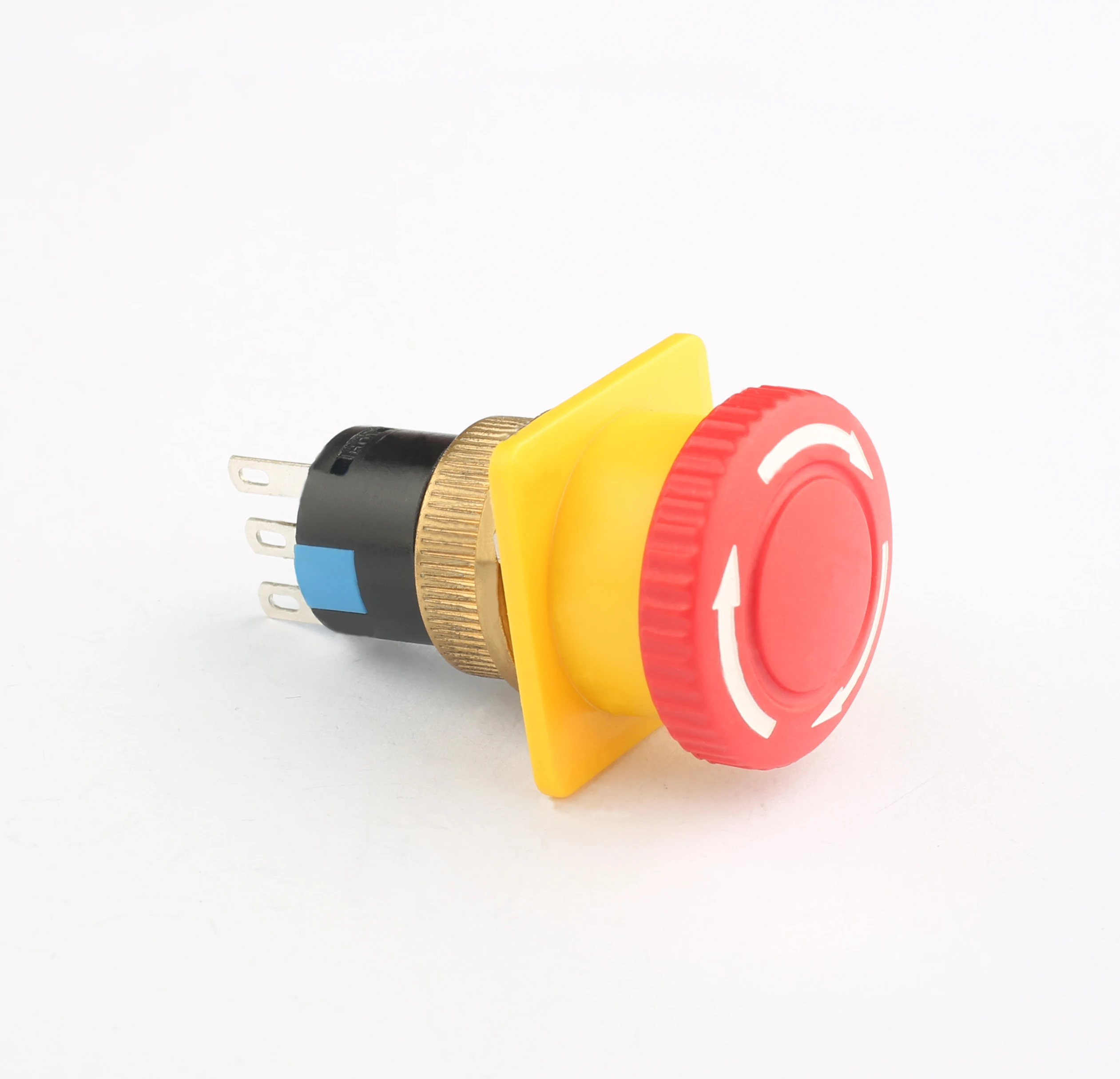

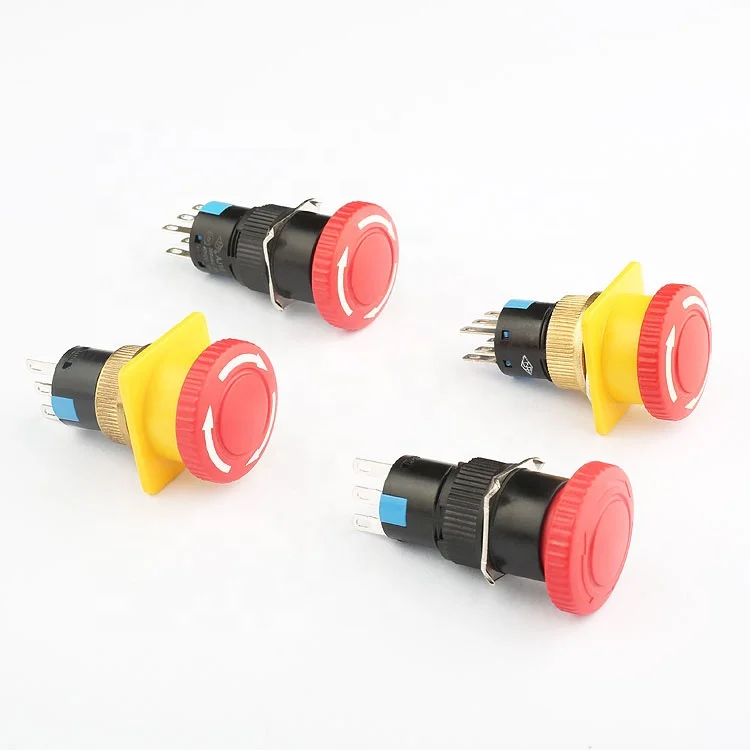

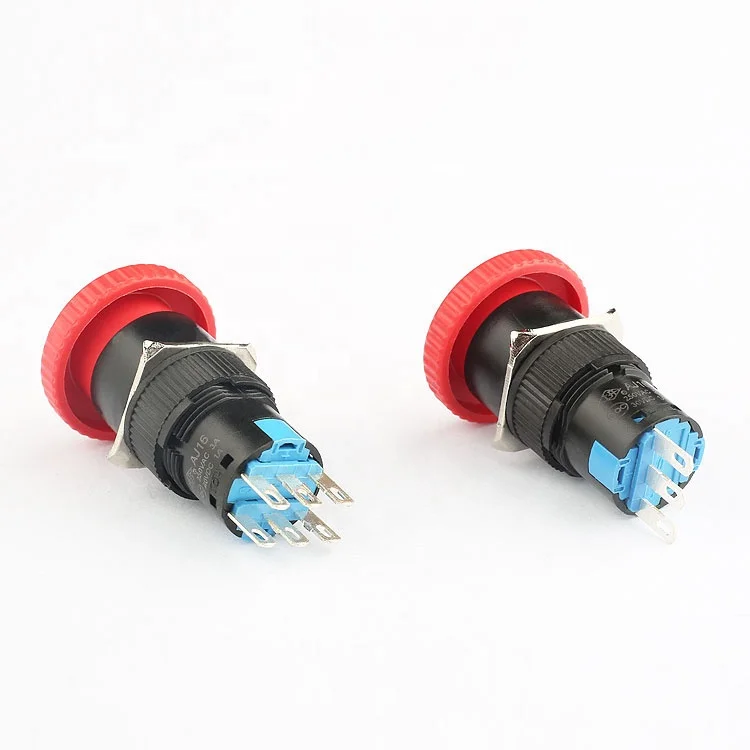

Introducing our Yongxing Factory Direct 16mm Red Emergency Stop Button Switch, a high-quality, reliable safety device designed for various applications. As a direct supplier and factory, we offer competitive wholesale prices and customization options for bulk purchases. This switch features a bright red, round mushroom head for easy visibility and quick operation in emergencies. With a maximum rating of 3A/250V AC, it’s suitable for electric and home appliance applications. Our switch boasts low contact resistance (≤50mΩ), high insulation resistance (≥1000 MΩ), and a dielectric strength of 1500V, ensuring safe and efficient operation. It has a long electronic life of 25,000 cycles and an even longer mechanical life of 50,000 cycles, making it a durable choice for your needs. Operating in temperatures ranging from -5°C to +75°C and with an IP44 protection level, it’s built to withstand various environments. Plus, with CQC and CE certifications, you can trust in its quality and safety. Choose Yongxing for your emergency stop button switch needs and benefit from our factory-direct pricing and excellent customer service.

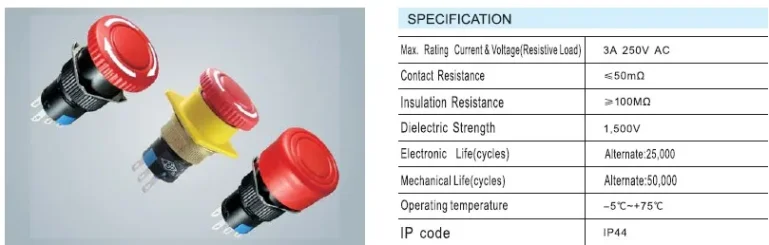

Max.Rating Current & Voltage(Resistive Load) 3A/250V AC
Contact Resistance of emergency stop push button switch ≤50mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Strength of button mushroom 1500V
Electronic Life(cycles) 25000
Mechanical Life(cycles) of push button switch 50000
Operating temperature -5°c~+75°c
IP code IP44

Electronic component device for cross-border e-commerceElectronic gadget product image for online storeElectronic device image for cross-border e-commerceElectronic product visual display for e-commerce


Why Choose Our Emergency Stop Button Switch?

Our Yongxing Factory Direct 16mm Red Emergency Stop Button Switch stands out for its durability, reliability, and safety features. With a long electronic and mechanical life, it ensures consistent performance over time. The bright red, round mushroom head is easy to spot and operate in emergencies, making it a must-have for electric and home appliance applications.

What Are the Key Specifications?

This switch has a maximum rating of 3A/250V AC, low contact resistance (≤50mΩ), high insulation resistance (≥1000 MΩ), and a dielectric strength of 1500V. It operates in temperatures from -5°C to +75°C and has an IP44 protection level, making it suitable for various environments.

What Makes Us Different?

As a factory-direct supplier, we offer competitive wholesale prices and customization options for bulk purchases. Our switch is CQC and CE certified, ensuring its quality and safety. Choose Yongxing for your emergency stop button switch needs and experience the difference in quality and service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

AJ 16

LED

Other

Application

Electric, Home Appliance

Material

plastic

Structure

Electronic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

IP level

IP65

Switch Combination

1NO1NC

Pole

SP, DP

Dielectric Strength

1500V of mushroom button

shape

round of push button switch

size

16mm

life

25,000 cycles

Certification

CQC CE

Protection Level

IP40
