Yongxing Factory Direct 3A 220V Waterproof Rotary Emergency Switch Supplier

500 - 999  pieces
$2.58

1,000 - 1,999  pieces
$2.38

>= 2,000  pieces
$2.08

0 reviews

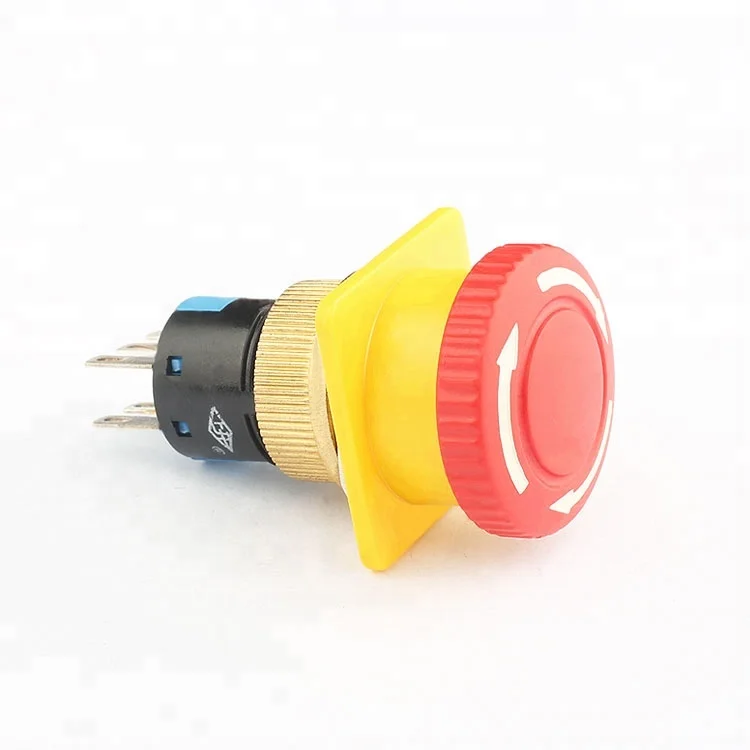

Factory Direct 3A 220V Waterproof Rotary Emergency Switch Supplier

Description

Introducing our Yongxing Factory Direct 3A 220V Waterproof Rotary Emergency Switch, a top-notch product designed for various industrial and equipment applications. As a direct supplier from the factory, we ensure high quality and competitive pricing. This switch boasts a self-locking mechanism, making it ideal for emergency stop situations. It’s waterproof with an IP44 rating, ensuring durability in harsh environments. The switch is made of high-quality plastic, providing excellent insulation and resistance. With a maximum current rating of 3A and a voltage of 250V, it can handle heavy loads with ease. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, ensuring safe and reliable operation. It has an impressive mechanical life of 50,000 cycles and an electrical life of 25,000 cycles. The operating temperature ranges from -5°C to +75°C, making it suitable for a wide range of environments. Our switch is widely used in instruments, industrial control systems, and electric equipment. We offer customization services for bulk orders, meeting your specific requirements. With 12 months of warranty and CQC CE certification, you can trust in the quality and reliability of our product. Choose Yongxing for your rotary emergency switch needs and experience the difference in quality and service.

Max.Rating Current & Voltage(Resistive Load)

3A/250V

Contact Resistance

≤50mΩ

Insulation Resistance

≥100MΩ

Dielectric Strength

1500V

Electronic Life(cycles)

25000

Mechanical Life(cycles)

50000

Operating temperature

-5°c~+75°c

IP code

IP44

Electronic component for cross-border e-commerceElectronic device for cross-border e-commerceElectronic gadget for cross-border e-commerce


Why Choose Our Rotary Emergency Switch?

Our Yongxing Factory Direct 3A 220V Waterproof Rotary Emergency Switch stands out with its self-locking mechanism, ensuring safety in emergency situations. Its waterproof design (IP44) and high-quality plastic material make it durable and reliable in various environments. With a long mechanical life (50,000 cycles) and excellent insulation resistance, it guarantees safe and efficient operation.

What Are the Key Features?

Key features include a 3A/250V rating, ≤50mΩ contact resistance, and ≥100mΩ insulation resistance. It operates within a temperature range of -5°C to +75°C, making it suitable for diverse applications. The switch is widely used in instruments, industrial control systems, and electric equipment, offering versatility and reliability.

What Benefits Do We Offer?

As a direct supplier from the factory, we provide competitive pricing and high-quality products. We offer customization services for bulk orders, meeting your specific needs. With 12 months of warranty and CQC CE certification, you can trust in the quality and reliability of our product. Choose Yongxing for your rotary emergency switch needs and enjoy peace of mind with our excellent service and support.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

AJ16

Application

Instrument, Industrial Control, electric equipment

Material

plastic

Terminal Type

Pin terminal

Rotation Range

90°

Mechanical Life

50000

IP level

IP41

Color

Red

Waterproof

IP44

Size

16mm

Operation type

Self-locking

Electrical Life

25000

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Certification

CQC CE

Warranty

12 Months
