Yongxing Factory Direct Wholesale Microswitch – 3A 250V AC for Home Appliances

500 - 1,999  pieces
$0.40

2,000 - 4,999  pieces
$0.39

>= 5,000  pieces
$0.35

0 reviews

Yongxing Factory Wholesale Microswitch – 3A 250V AC for Home Appliances. Direct Supplier, Customizable!

Description

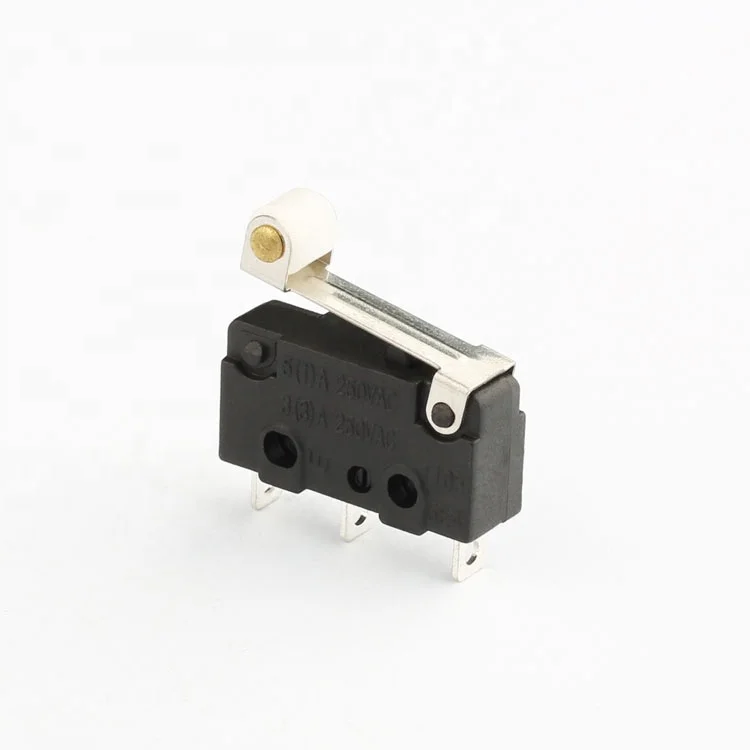

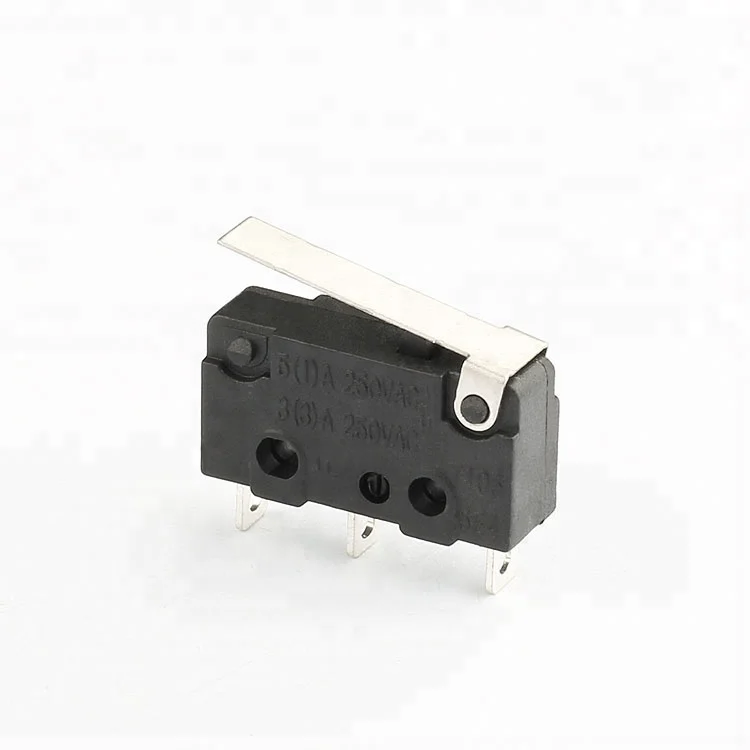

Looking for a reliable microswitch for your home appliances? Look no further! Our Yongxing KW11 series microswitch, available for wholesale directly from our factory, is the perfect choice. With a maximum rating of 3A 250V AC, this microswitch is designed to meet the demands of various household applications.

Our microswitch stands out with its exceptional features: a contact resistance of less than 50mΩ, insulation resistance over 1000mΩ, and a dielectric strength of 1500V. It boasts a mechanical life of 50,000 times and an electrical life of 50,000 cycles, ensuring long-lasting performance. The operating temperature range from -25°C to 125°C makes it suitable for diverse environments.

As a direct supplier and factory, we offer customization options to meet your specific requirements. Our advanced production facilities and team of over 60 senior engineers guarantee top-notch quality. All workshops adhere to 5S and 5M management standards, ensuring efficiency and precision.

Choose our Yongxing microswitch for its reliability, durability, and customization capabilities. Contact us today for wholesale inquiries and experience the difference!

max.rating cnrrent&voltage
5A/3A 250VAC
contact resistance
<50mΩ
insulation resistance
>1000mΩ
dielectrice resistance
1500V
electronic life
50000
operating temperature
-25℃ TO 125℃
Certification Alternative view of electronic component product

Electronic device product close-up photoElectronic gadget product detailed imageAlternative view of electronic component productScaled-up image of electronic product


Why Choose Our Yongxing Microswitch?

Our Yongxing microswitch offers high precision and reliability, making it ideal for home appliances and electrical controls. With a long mechanical and electrical life, it ensures durable performance. Additionally, our factory direct wholesale pricing and customization options make it a cost-effective choice for your specific needs.

What Makes Our Microswitch Stand Out?

Our microswitch stands out with its exceptional specifications, including a 3A 250V AC rating, low contact resistance, and high dielectric strength. It also operates efficiently in a wide temperature range, from -25°C to 125°C. As a direct supplier and factory, we can customize the microswitch to meet your unique requirements, setting us apart from competitors.

How Can We Help You?

Whether you're looking for a standard microswitch or a customized solution, our team is here to assist you. We offer competitive wholesale pricing, fast delivery, and excellent customer service. Contact us today to discuss your needs and find out how our Yongxing microswitch can benefit your business.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

3A

Max. Voltage

250VA

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KW11

Application

households

Material

plastic

Mechanical Life

50000 times

Circuit

SPST

Operating Temperature

T55,T85,T125

IP level

IP40

Contact Resistance

50m Max

Insulation Resistance

100M Min

Electrical life

50000 Cycles

Dielectric strength

1500V

Color

Black
