Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

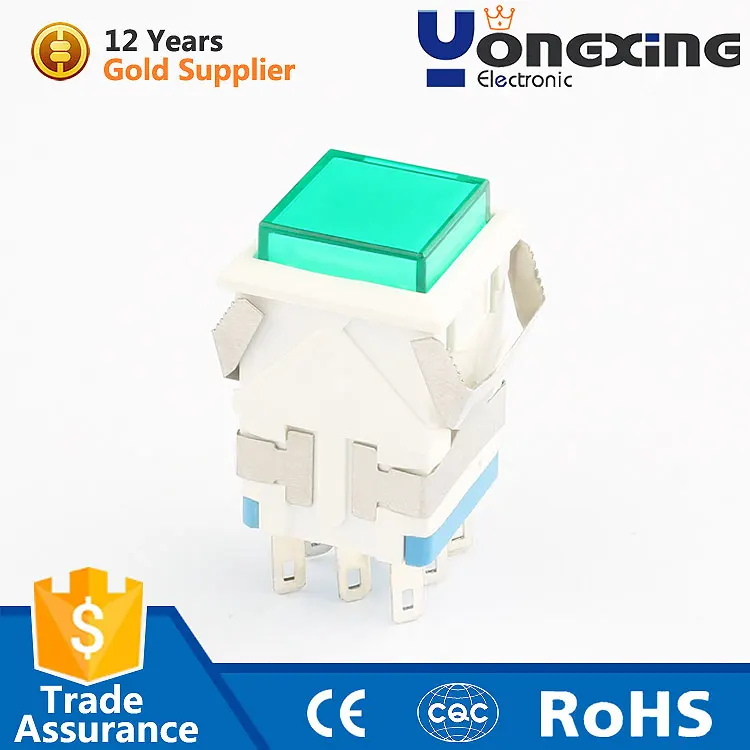

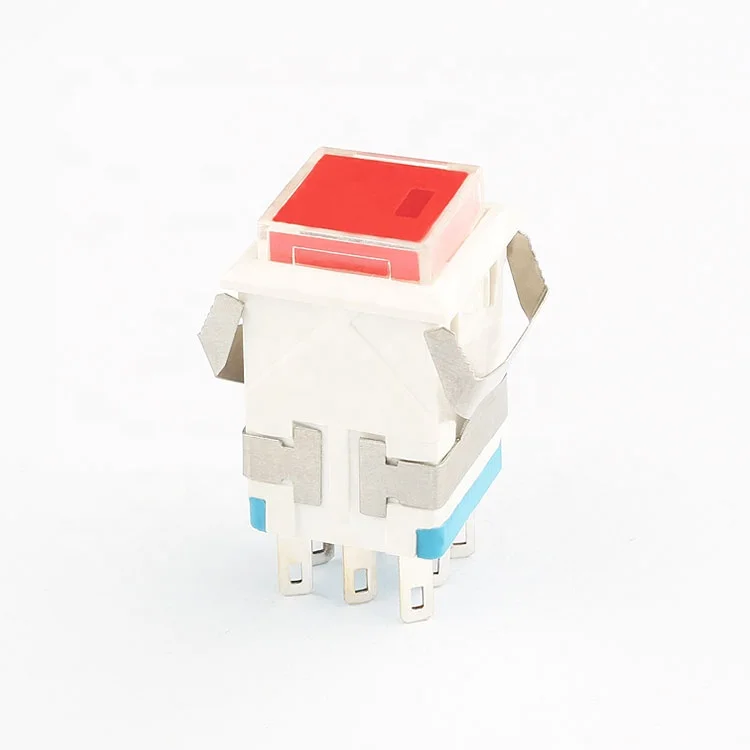

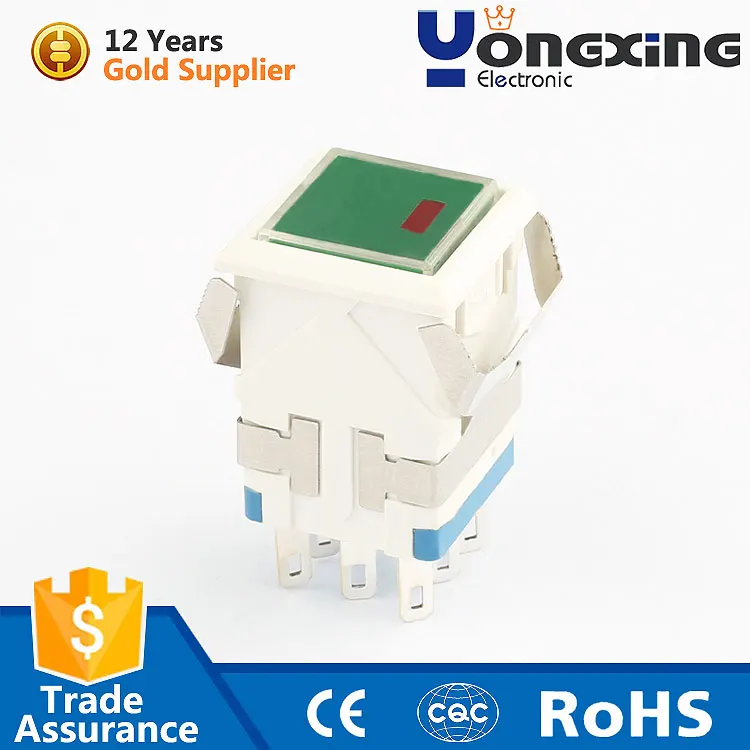

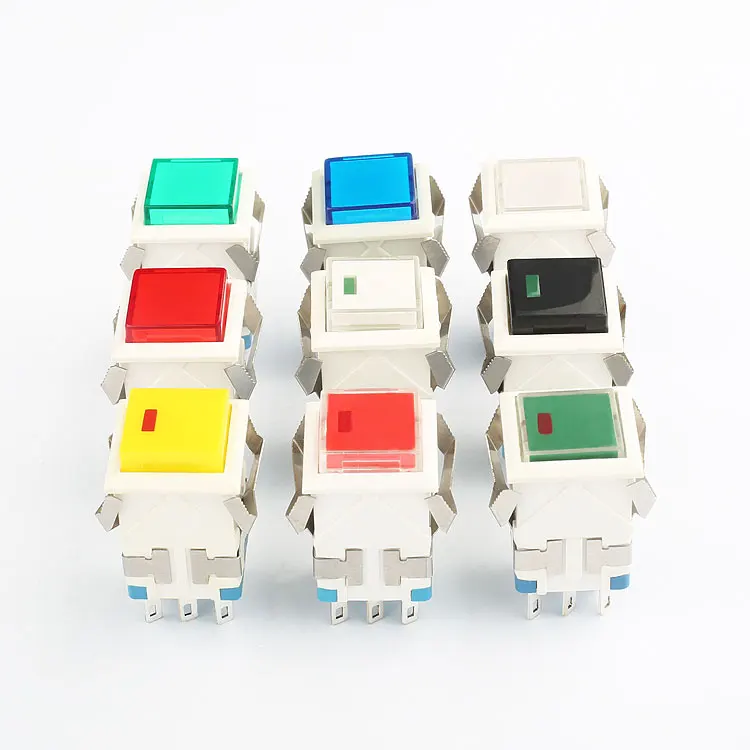

Why Choose Our Yongxing Factory KD2 Push Button Switch?
Our Yongxing Factory KD2 Push Button Switch stands out for its high quality, reliability, and versatility. As a factory supplier, we offer competitive wholesale prices, ensuring you get the best value for your money. The 2NO2NC configuration and 8-pin design provide secure and stable connections, while the illuminated button enhances visibility and user experience. With a long mechanical life and excellent electrical performance, this switch is perfect for a wide range of applications, from industrial equipment to home appliances.
What Are the Key Features of Our Push Button Switch?
Key features include a maximum current rating of 3A and a maximum voltage rating of 250V AC, making it suitable for various electrical applications. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, ensuring reliable electrical performance. The dielectric strength is 1500VAC for 1 minute, providing protection against electrical overloads. With an IP40 protection level, it is suitable for indoor use. The compact size and easy installation make it a preferred choice for many.
What After-Sales Service Do We Offer?
As a factory supplier, we pride ourselves on providing excellent after-sales service. We offer fast delivery, technical support, and a warranty to ensure your satisfaction. Our goal is to build long-term relationships with our customers, providing them with high-quality products and reliable service.
