Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-11-CA6C-B-B-01/VO
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPST ON-OFF 2Pin
|
|
Panel cutout
|
28.4*10.7mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|

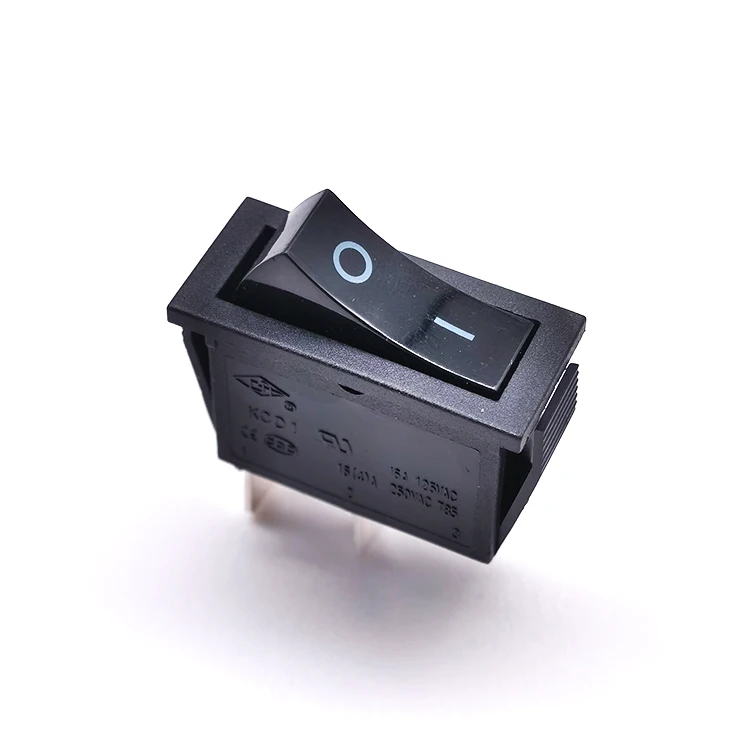

Color
|
Black housing, black actuator
|
|
Marking
|
white I O
|
|
Material
|
PA66
|
Why Choose Our Rocker Switch?
Our Yongxing Factory Wholesale 16A 2-Pin Rocker Switch stands out with its high-quality construction, long mechanical and electronic life, and compliance with international safety standards. The durable PA66 material ensures it can withstand harsh environments, making it ideal for cars, electric equipment, and industrial machinery.
What Are the Key Features?
Key features include a maximum current of 16A, maximum voltage of 250VAC, dielectric strength of 1,500VAC for 1 minute, and contact resistance of ≤50mΩ. The switch also offers a sleek black housing and actuator with white I/O marking, providing a professional appearance.
Why Buy from Us?
As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our switches are certified with CQC, CE, and ROHS, ensuring safety and reliability. Choose Yongxing for your electronic switching needs and experience the difference in quality and service.
