Yongxing Factory Wholesale 16A 250V KCD1 Waterproof Illuminated Rocker Switch

500 - 1,999  pieces
$0.36

2,000 - 4,999  pieces
$0.35

>= 5,000  pieces
$0.33

0 reviews

Yongxing Factory Wholesale Waterproof Rocker Switch – 16A 250V, IP65/IP40, CQC, CE, UL Certified.

Description

Introducing our Yongxing Factory Wholesale 16A 250V KCD1 Waterproof Illuminated Rocker Switch – a top-tier product designed for durability and performance. With a maximum current of 16A and a voltage rating of 250V AC, this switch is perfect for cars, industrial applications, and electric equipment. It features a 3-pin design, IP65/IP40 waterproof rating, and comes with plug-in termination for easy installation. Our switch stands out with its ON-OFF action, mechanical life of 100,000 cycles, and contact resistance ≤50mΩ. Available in a variety of housing colors including red, green, yellow, blue, orange, black, gray, and white, it meets CQC, CE, and UL certifications. As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Choose Yongxing for quality, reliability, and value.

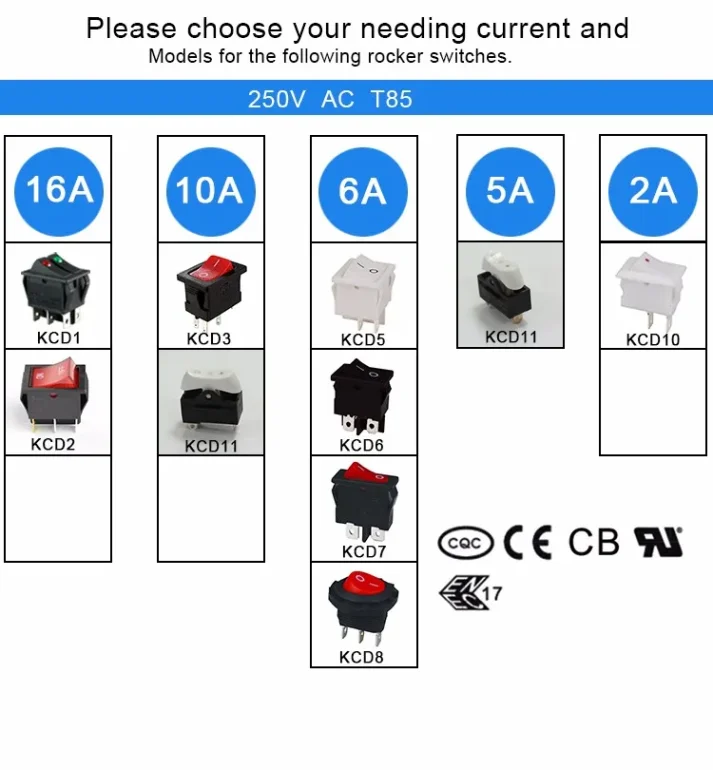

KCD1 KCD2 KCD3 KCD5 KCD6
KCD7 KCD8 KCD10 KCD11

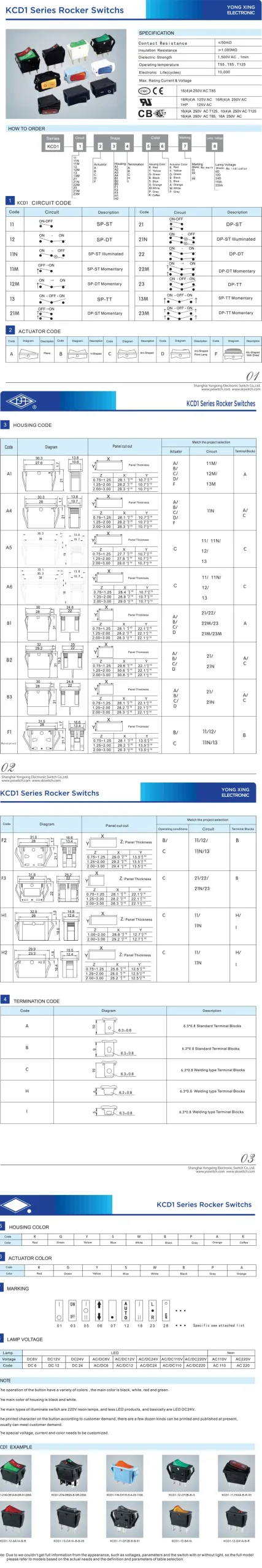

Electronic component product image for cross-border e-commerceHigh-quality electronic device product photo for SEO


Why Choose Our Yongxing Waterproof Rocker Switch?

Our Yongxing Waterproof Rocker Switch stands out with its robust design, offering a maximum current of 16A and a voltage rating of 250V AC, making it ideal for a wide range of applications including cars, industrial machinery, and electric equipment. Its IP65/IP40 waterproof rating ensures durability in harsh environments, while the ON-OFF action and plug-in termination provide ease of use and installation.

What Are the Key Features of Our Switch?

Key features include a 3-pin design, long mechanical life of 100,000 cycles, and low contact resistance (≤50mΩ). The switch is available in multiple housing colors to suit your needs and meets stringent CQC, CE, and UL certifications, ensuring safety and reliability.

Why Buy from Yongxing as a Factory Supplier?

As a factory supplier, we offer competitive wholesale prices, ensuring you get the best value for your money. Our commitment to quality and excellent after-sales service means you can trust Yongxing for all your switch needs. Choose Yongxing for a product that combines performance, durability, and affordability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD1-11N-F

Application

Cars, Industrial, electric equipment

Material

plastic

Pins

3p

Whether the smart

NO

Mechanical Life

100000 Cycles

IP level

ip65, ip40

Switch Action

ON-OFF

Termination Type

Plug-in

Certification

CQC, CE, UL

Maximum current

16A

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

DIELECTRIC STRENGTH

1500V AC,1min

Lamp voltage

6 12 24 110 220V

Housing color

red green yellow blue orange black gray white

Voltage

AC250V/AC125V
