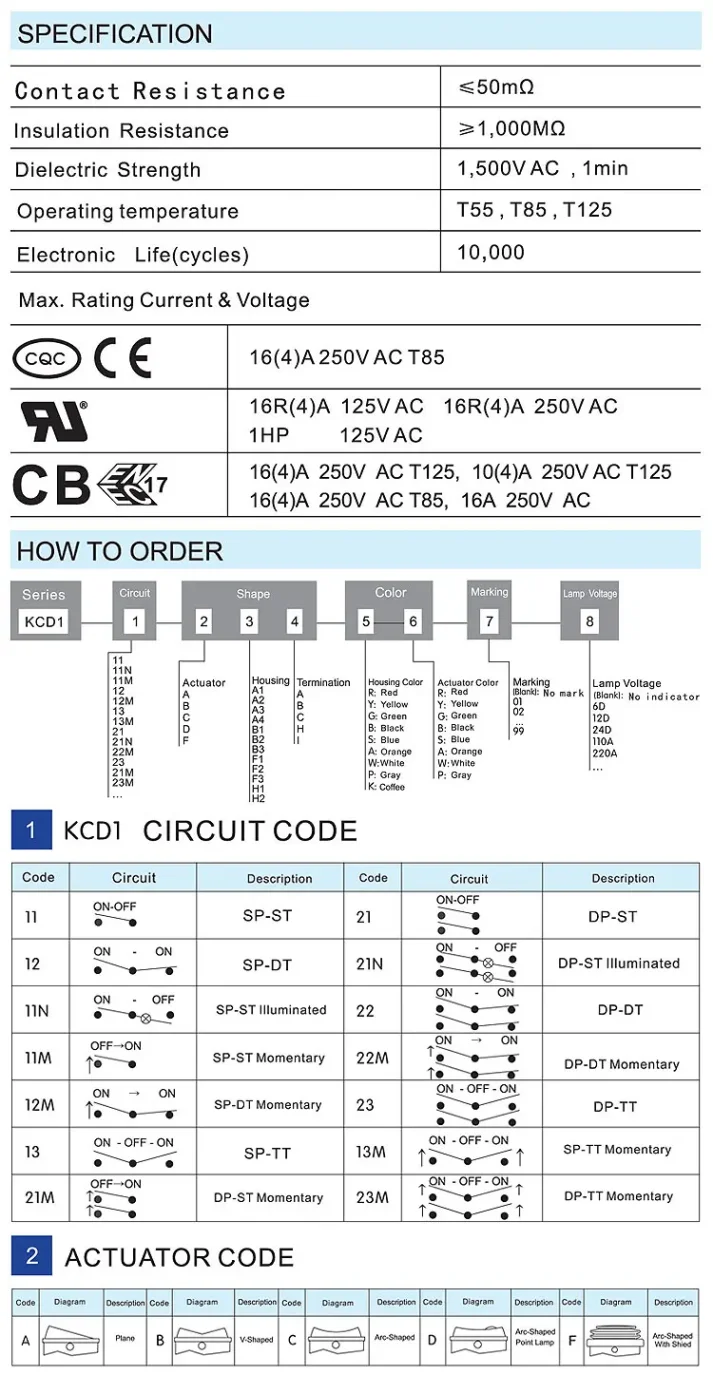

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our Rocker Switch?

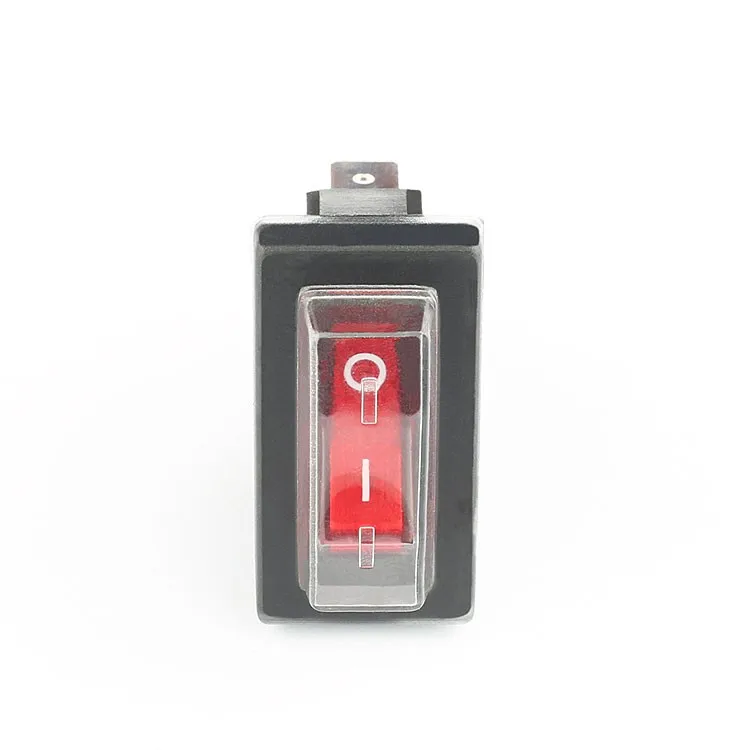

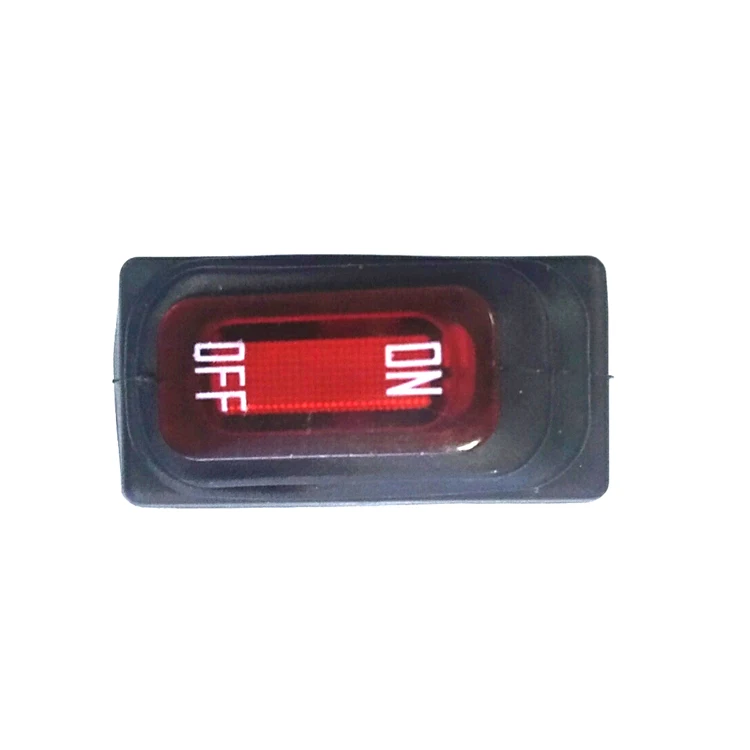

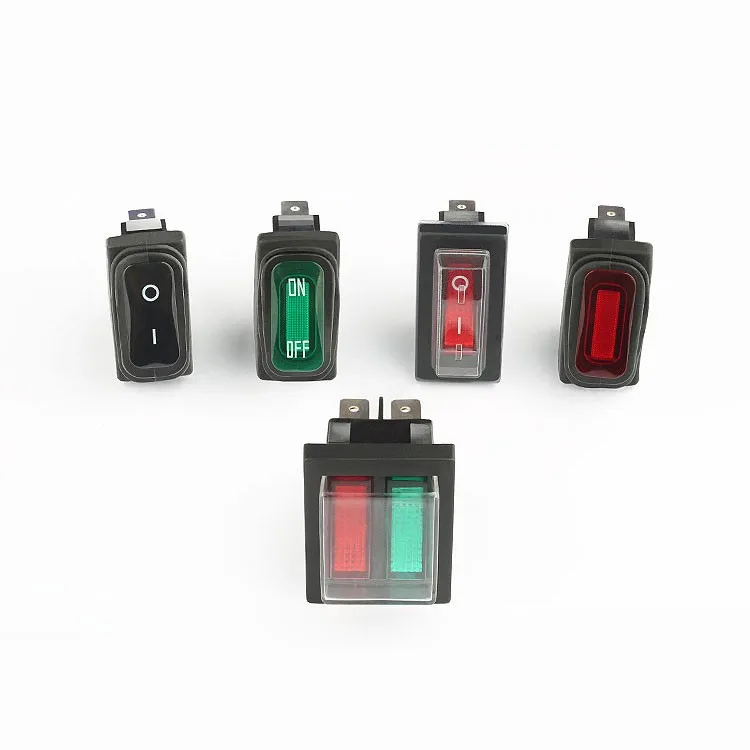

Our Yongxing Factory Wholesale 16A 250VAC Color LED Rocker Switch stands out for its durability, versatility, and high-quality construction. Made from durable plastic with a sleek black housing, it is designed to withstand demanding applications in cars, industrial equipment, and electric appliances. The red and green LED light options provide clear indication of the switch's position, even in low-light conditions.
What Are the Key Features?
This rocker switch boasts a maximum current rating of 16A and a maximum voltage rating of 250V AC, ensuring reliable performance. It has a mechanical life of up to 100,000 cycles and an electronic life of 10,000 cycles, making it a long-lasting choice. The contact resistance is ≤50mΩ, and the dielectric strength is 1500V AC for 1 minute, providing excellent electrical insulation. Additionally, it is IP41 and IP65 rated, offering protection against dust and water ingress.
Why Buy from Us?
As a factory direct supplier, we offer wholesale pricing on our high-quality rocker switches. We pride ourselves on providing excellent customer service and ensuring that our products meet the highest standards. Contact us today to learn more about this versatile and reliable product, and how it can benefit your applications.
