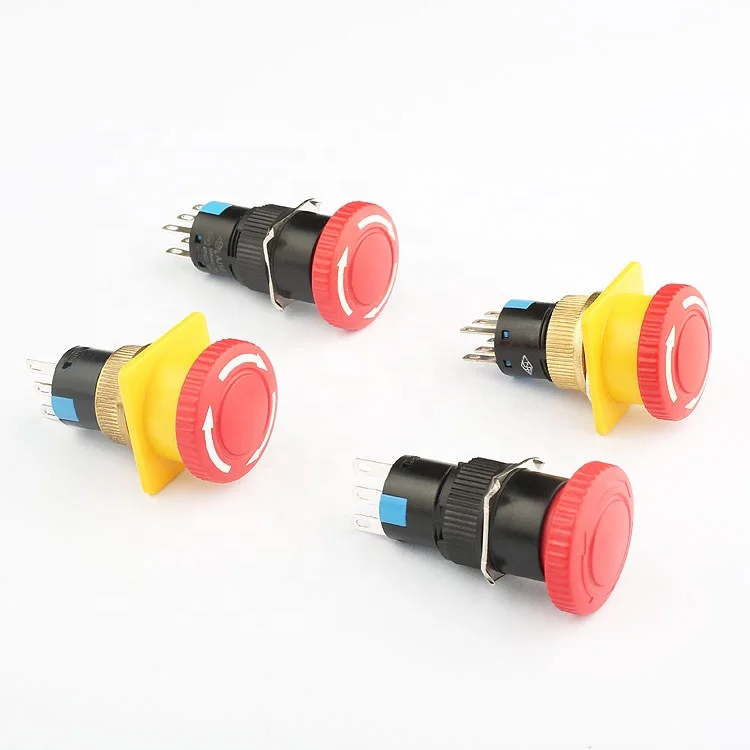

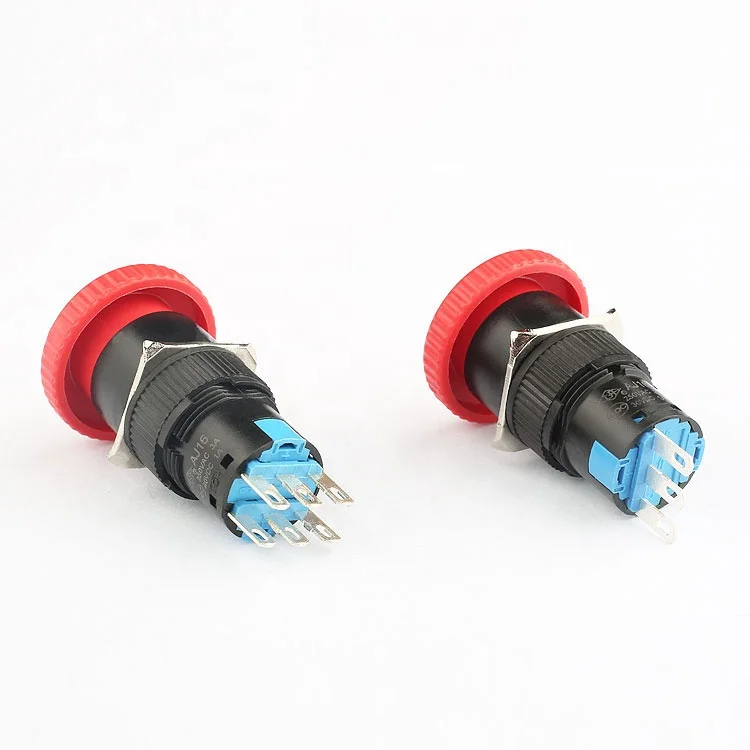

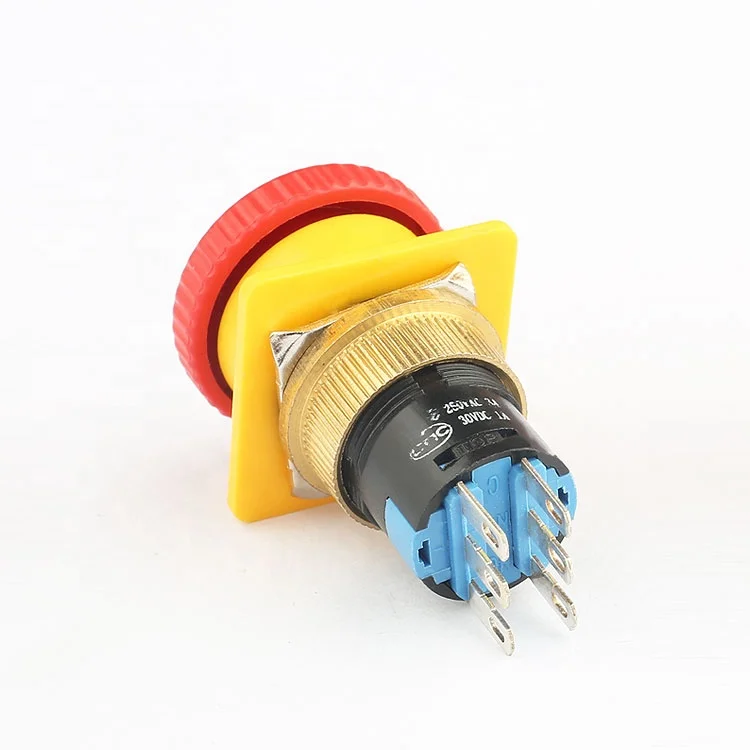

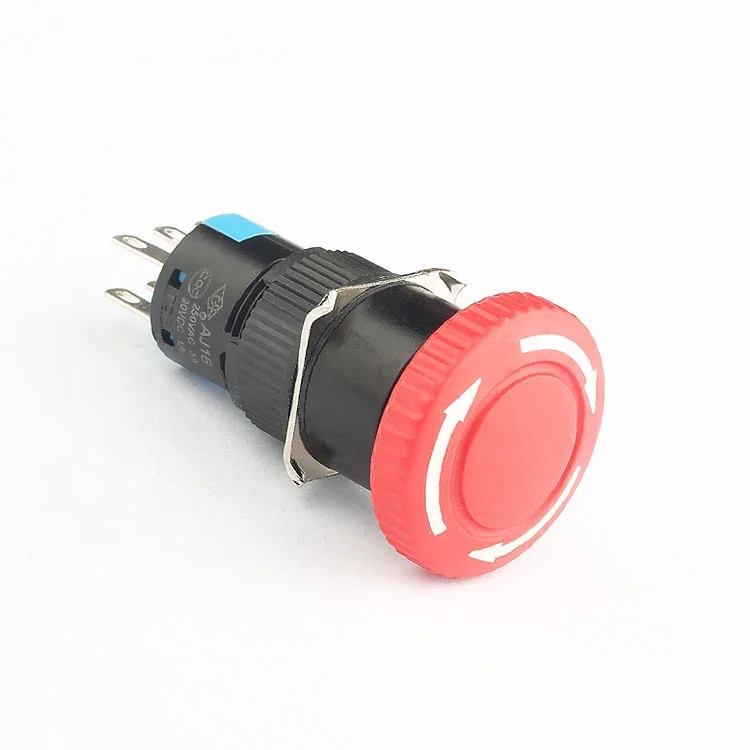

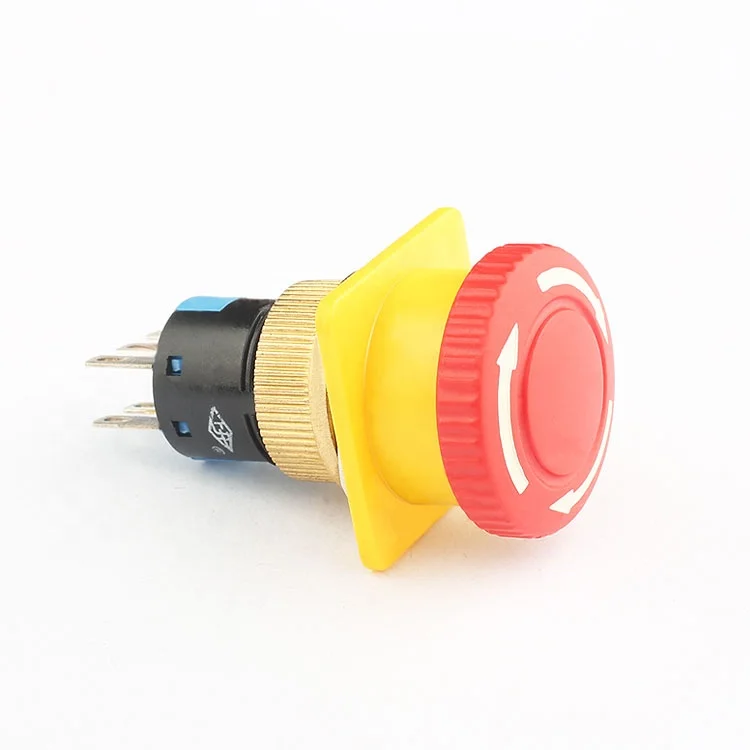

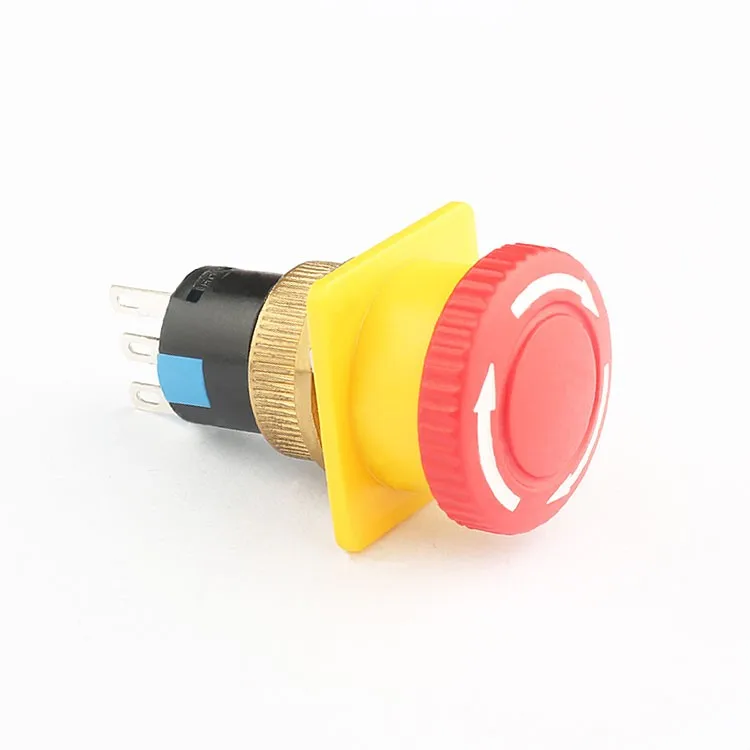

Yongxing 16mm 2 Position 4 Pin Double Pole Self-locking Emergency Stop Rotary Switch
As a leading factory and supplier in Shanghai, China, Yongxing offers high-quality emergency stop rotary switches at wholesale prices. Our AJ16 model switch is designed for industrial control, electric equipment, and circuit control applications. With a 16mm size and red plastic material, this switch is both durable and visually striking.
Key Features:
- Max. Rating: 3A/250V (Resistive Load)
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100mΩ
- Dielectric Strength: 1500V
- Electrical Life: 25,000 cycles
- Mechanical Life: 50,000 cycles
- Operating Temperature: -5°C to +75°C
- IP Level: IP65 (superior to the mentioned IP44 in the original description, providing better dust and water resistance)
- Rotation Range: 90°
- Self-locking Operation: Ensures the switch remains in the desired position
Our switch stands out from competitors with its high IP level, ensuring better protection in harsh environments. Additionally, our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, staffed by over 60 senior engineers. All workshops adhere to 5S and 5M management standards, guaranteeing the highest quality products.
Customization & Support:
We offer customization services for large quantities to meet your specific requirements. With a 12-month warranty and CQC CE certification, you can trust in the reliability and safety of our products. As a factory supplier, we provide competitive wholesale prices and excellent after-sales service.
|
Max.Rating Current & Voltage(Resistive Load) |
3A/250V |
|
Contact Resistance |
≤50mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Dielectric Strength |
1500V |
|
Electronic Life(cycles) |
25000 |
|
Mechanical Life(cycles) |
50000 |
|
Operating temperature |
-5°c~+75°c |
|
IP code |
IP44 |
Why Choose Our Emergency Stop Rotary Switch?
Our Yongxing 16mm 2 Position 4 Pin Double Pole Self-locking Emergency Stop Rotary Switch is designed for durability and reliability in industrial applications. With a high IP65 rating, it offers superior protection against dust and water, making it ideal for harsh environments. The self-locking operation ensures the switch remains in the desired position, enhancing safety and efficiency.
What Makes Our Switch Stand Out?
Unlike many competitors, our switch boasts a longer mechanical life (50,000 cycles) and electrical life (25,000 cycles), reducing the need for frequent replacements. Additionally, our factory's advanced equipment and strict management standards guarantee the highest quality products. We also offer customization services to meet your specific needs.
How Can We Support Your Business?
As a factory supplier, we provide competitive wholesale prices and excellent after-sales service. With a 12-month warranty and CQC CE certification, you can trust in the reliability and safety of our products. Choose Yongxing for your emergency stop rotary switch needs and experience the difference in quality and service.
