Yongxing Factory Wholesale 16mm 3A 250V Square Head Push Button Switch

50 - 999  pieces
$1.34

1,000 - 1,999  pieces
$1.33

>= 2,000  pieces
$1.23

0 reviews

Yongxing Factory Wholesale Push Button Switch – Durable, Reliable, LED Illuminated.

Description

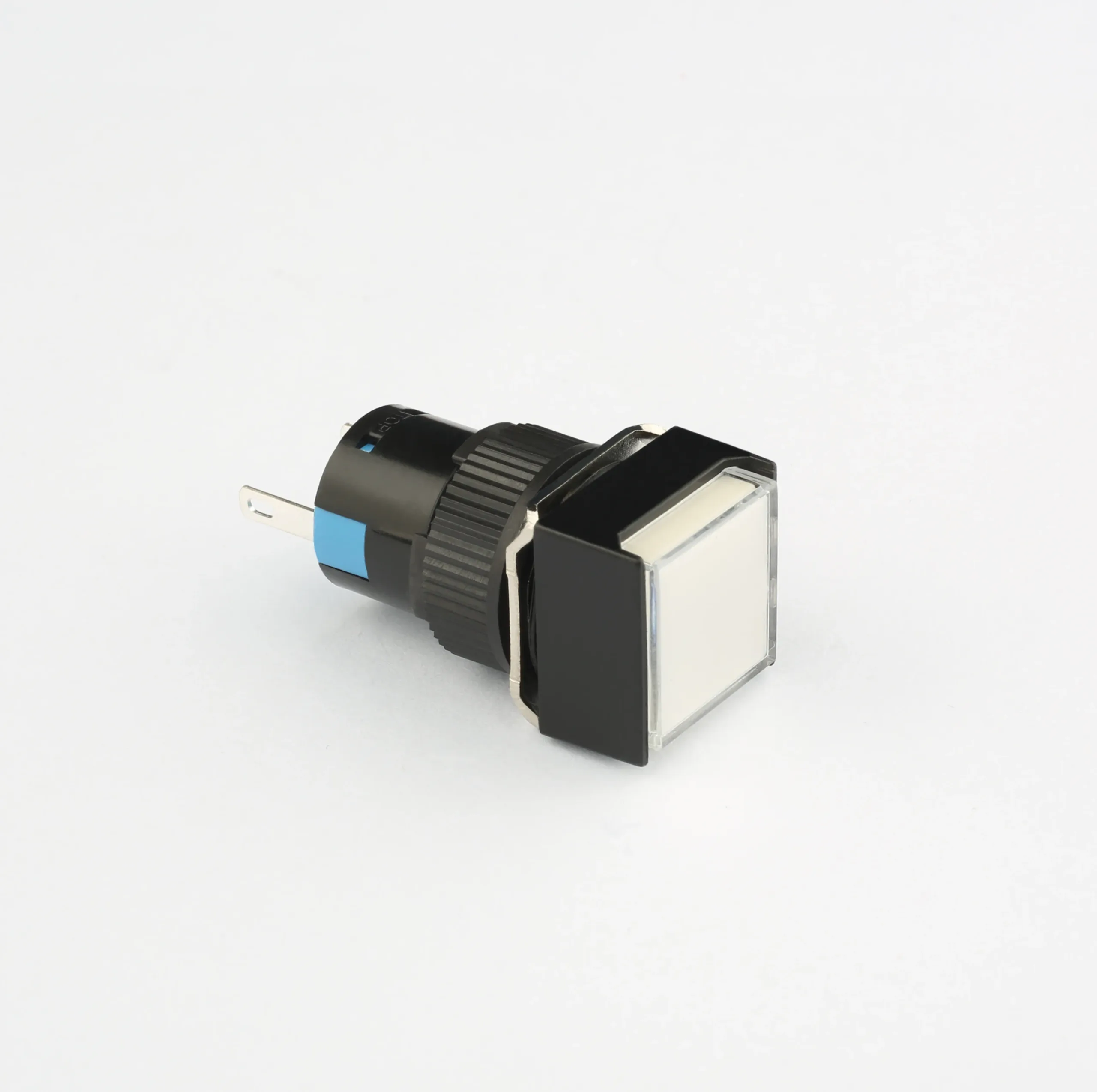

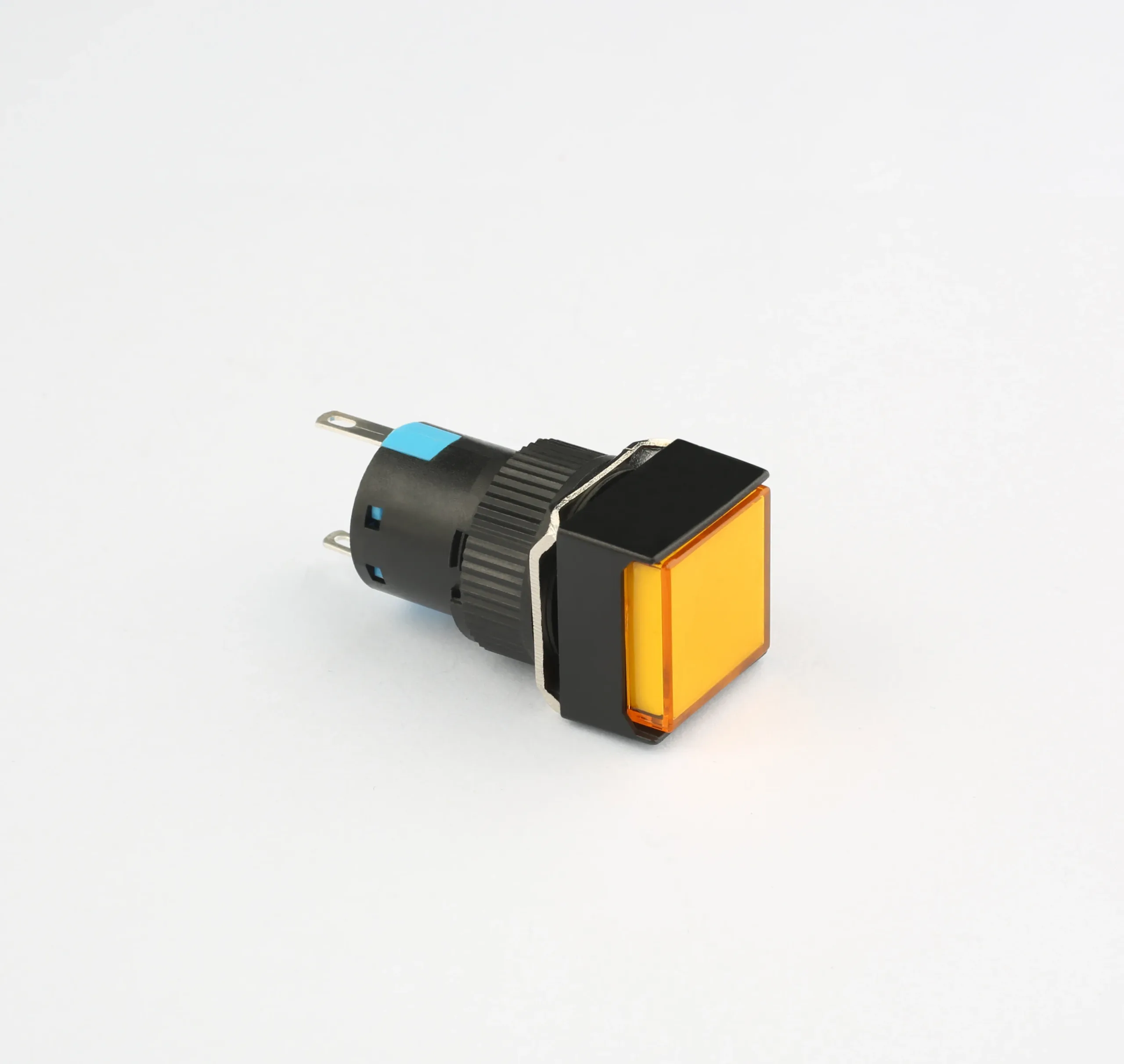

Introducing the Yongxing 16mm 3A 250V Square Head Push Button Switch, a top-tier choice for electronic and industrial control applications. As a direct factory supplier, we offer wholesale pricing on this high-quality switch. It features a square head design, pin terminals, and full illumination with an LED. With a max current of 3A and max voltage of 250V, it’s built to last. The switch is made from durable PA66 material, ensuring reliability in various conditions. It has an IP40 rating, 1NO1NC switch combination, and a long electrical and mechanical life. Our switch stands out with its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ). We also provide excellent after-sales service. Choose Yongxing for your push button switch needs.

Electronic component image for cross-border e-commerceCircuit board accessory for electronic devicesPart of an electronic device for cross-border salesDetail view of an electronic componentImage of an electronic module for e-commercePhoto of an electronic product for cross-border marketImage of an electronic gadget for e-commerceDisplay of an electronic component for online shoppingFeature of an electronic device for cross-border sales


Why Choose Our Push Button Switch?

Our Yongxing push button switch is designed for durability and reliability. With a max current of 3A and max voltage of 250V, it can handle demanding applications. The square head design and pin terminals make it easy to install and use. The full illumination with LED provides clear visibility, even in low-light conditions. As a factory supplier, we offer wholesale pricing, making it a cost-effective choice for your projects.

What Makes Our Switch Stand Out?

Our switch is made from high-quality PA66 material, ensuring long-lasting performance. It has an IP40 rating, protecting it from dust and water splashes. The 1NO1NC switch combination and low contact resistance (≤50mΩ) make it ideal for precise control. With a long electrical and mechanical life, it reduces maintenance costs and downtime.

How Does Our After-Sales Service Benefit You?

We pride ourselves on providing excellent after-sales service. If you encounter any issues with our push button switch, our team is ready to assist you. We offer prompt replacements or repairs, ensuring your projects stay on track. Choose Yongxing for a hassle-free experience and peace of mind.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

AD16-112L6D-W

LED

Yes

Application

Electric, Industrial Control

Material

PA66

Structure

Electronic

Head Type

Square Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40

Switch Combination

1NO1NC

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life (Alternate)

25000 Times

Mechanical Life (Alternate)

50000 Times

Operating Temperature

-5° T +75°
