Description

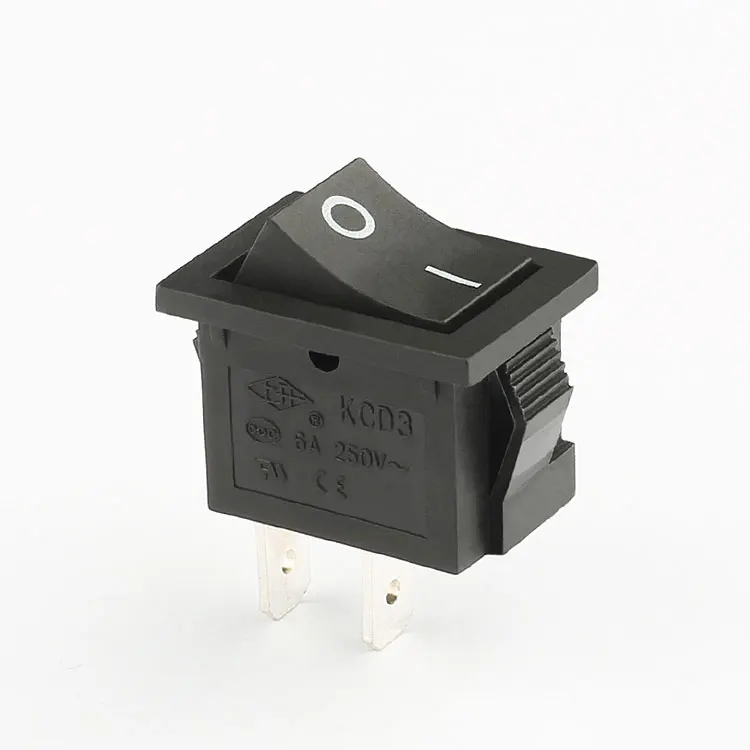

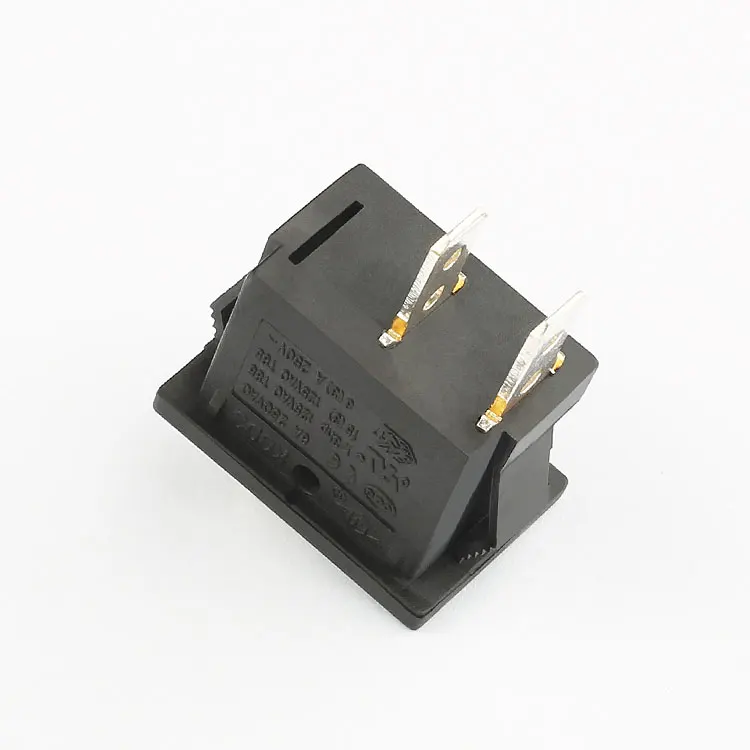

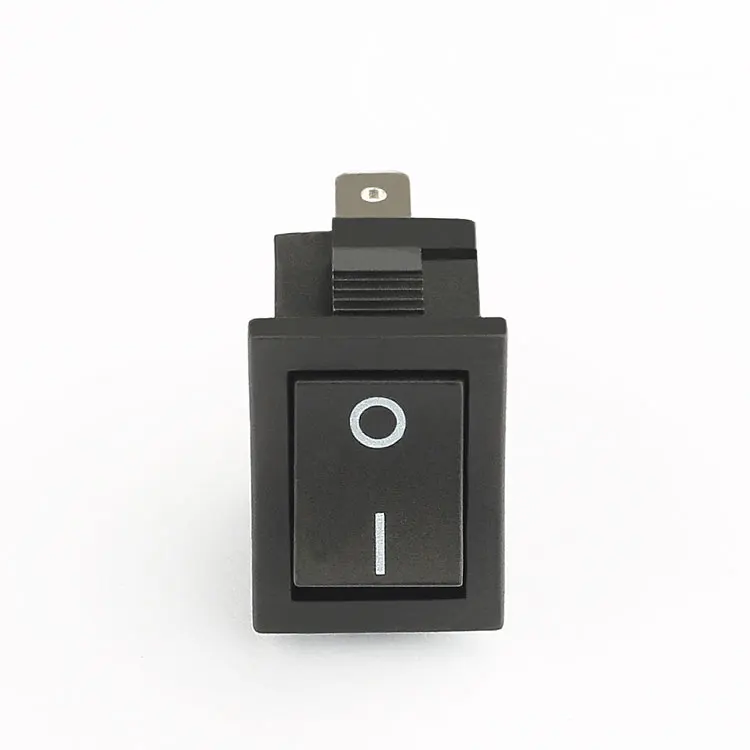

Yongxing Factory Wholesale 2-Pin SPST T85 Rocker Switch
As a leading supplier and factory direct seller, we present the KCD3-11-CB1B rocker switch, a high-quality component designed for durability and performance. This black 2-pin SPST (Single Pole Single Throw) switch is perfect for various applications, offering a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting reliability.
Key Features:
- Specifications: Max. Current: 6A, Max. Voltage: 250V AC, Contact Resistance: ≤50mΩ, Insulation Resistance: ≥1,000MΩ.
- Certifications: CQC, CE, UL, ENEC, CB, ensuring global compliance and safety standards.
- Durable Design: With a dielectric resistance of 1,500V AC for 1 minute, this switch is built to withstand demanding conditions.
- Versatile Use: Ideal for electronic devices, appliances, and industrial equipment, providing reliable on/off control.
- Competitive Edge: Our switch stands out with its high-quality construction, long life cycle, and competitive pricing, making it a preferred choice for wholesalers and retailers.
After-Sales Service: We offer comprehensive support, including warranty services and technical assistance, ensuring customer satisfaction.
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |
Why Choose Our Rocker Switch?
Our rocker switch is designed for durability and reliability, with a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles. It's perfect for electronic devices, appliances, and industrial equipment, offering stable on/off control.
What Makes Our Switch Stand Out?
Our switch is certified by CQC, CE, UL, ENEC, and CB, ensuring global compliance and safety. Its high-quality construction and competitive pricing make it a preferred choice for wholesalers and retailers.
What After-Sales Support Do We Offer?
We provide comprehensive after-sales support, including warranty services and technical assistance, to ensure customer satisfaction and peace of mind.
