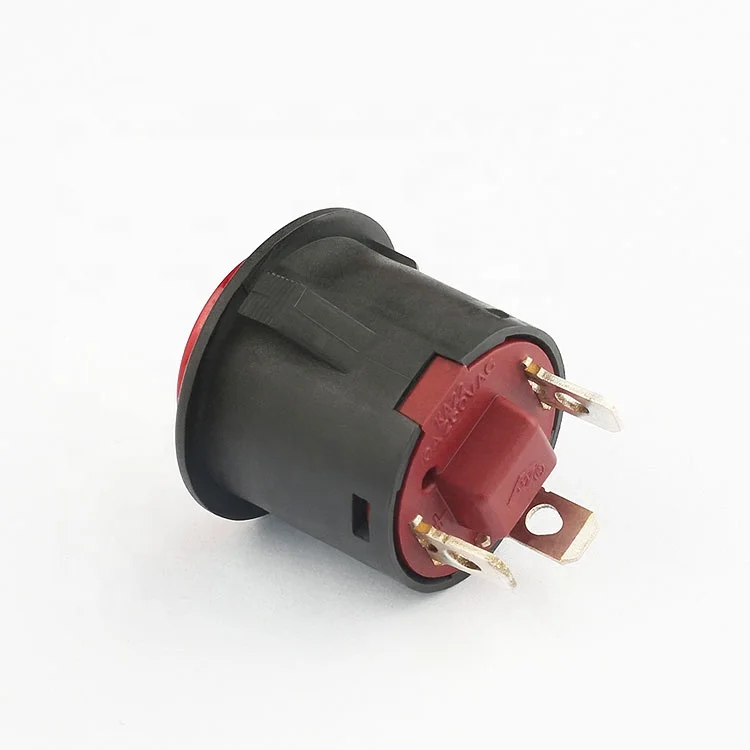

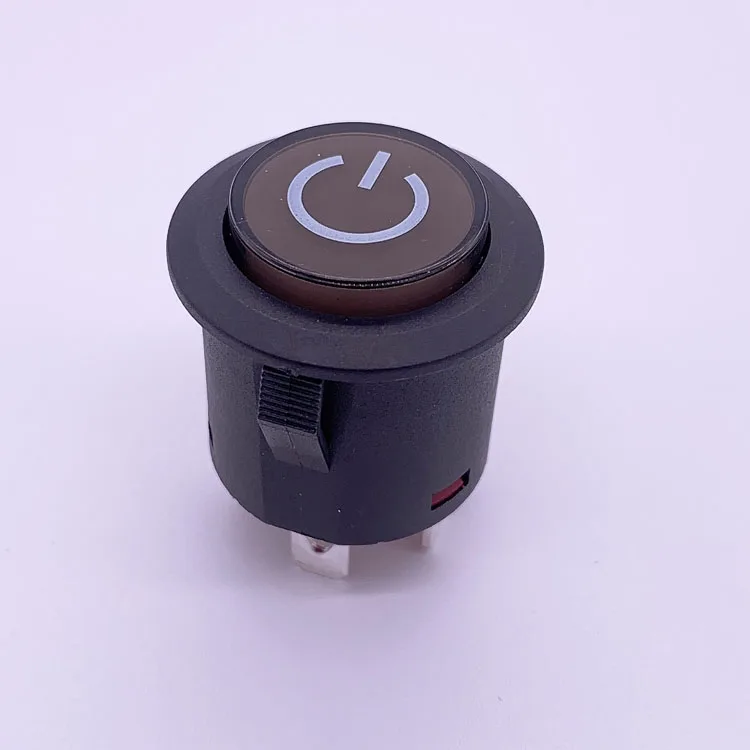

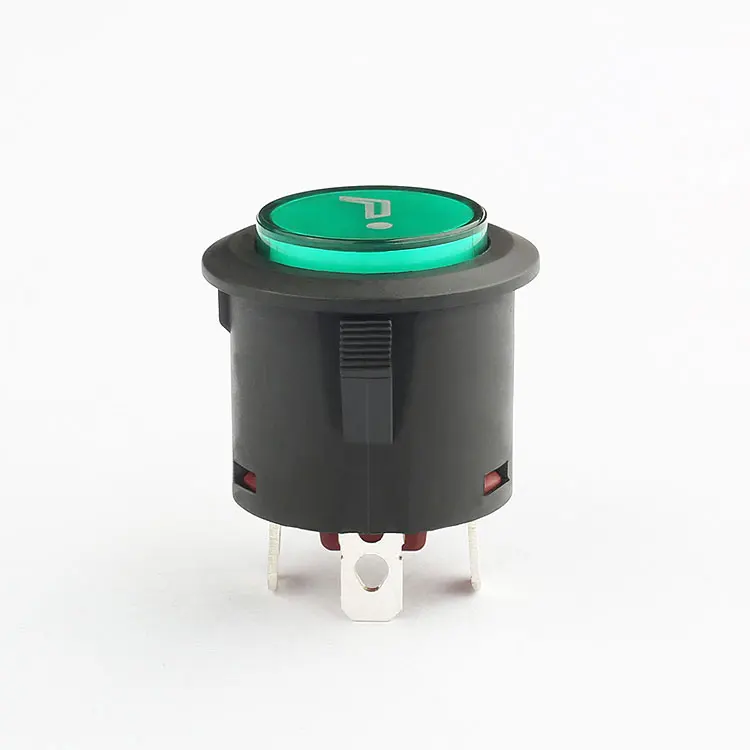

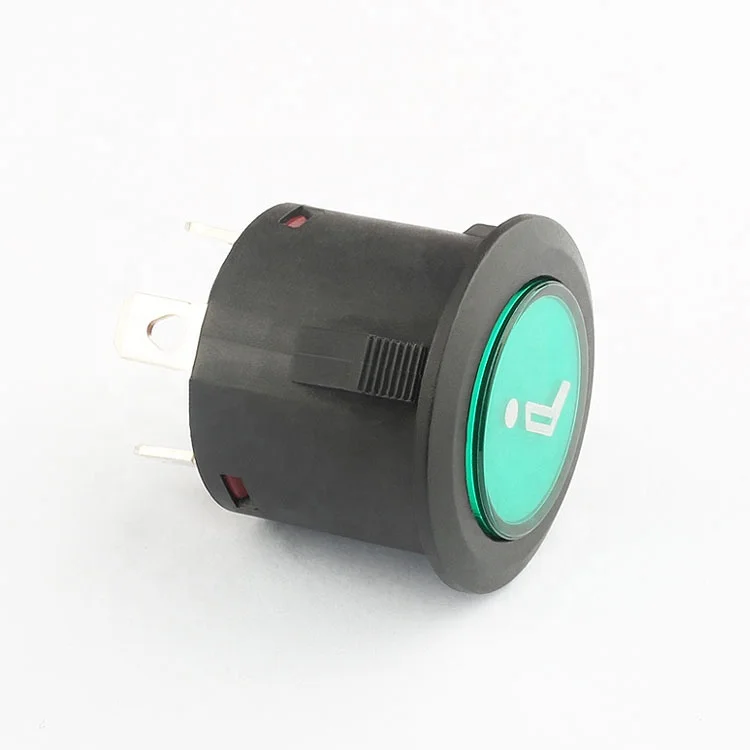

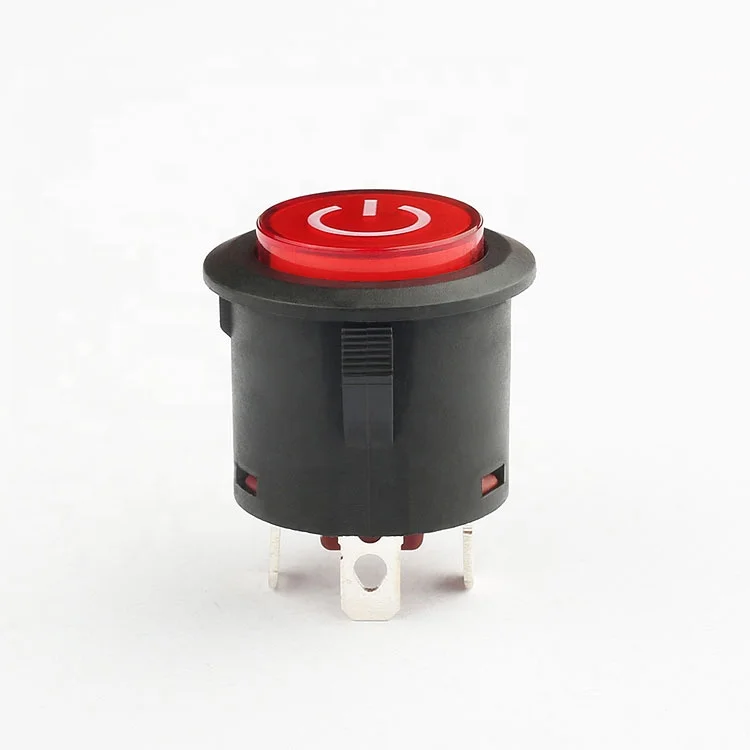

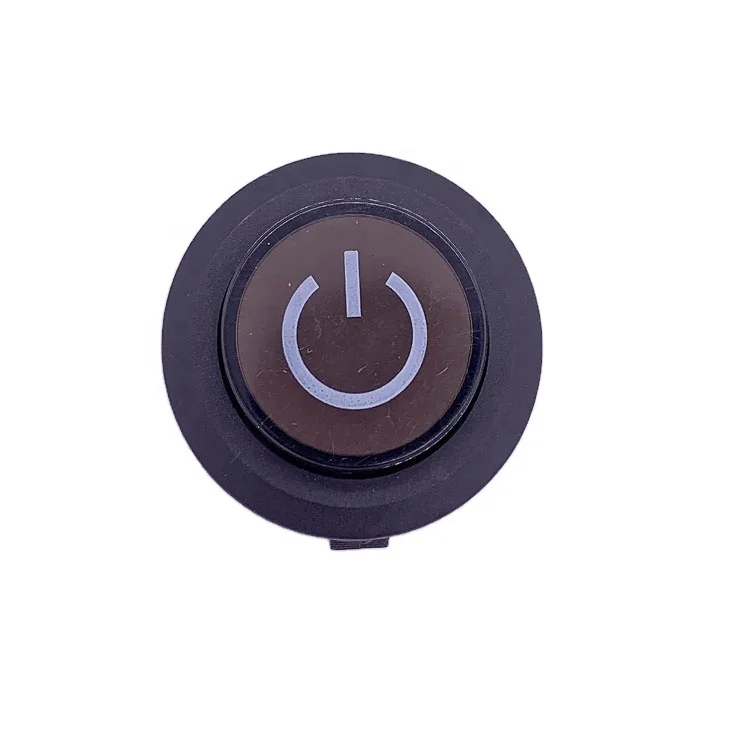

22mm Red 12V Self-locking Push Button Switch – Wholesale from Factory
Introducing our high-quality 22mm red 12V self-locking push button switch, manufactured by Yongxing Factory, a trusted supplier in the industry. This switch is designed to meet the demands of various applications, offering reliable performance and durability.
Product Specifications:
- Model Number: KA22-11L-AAA-BR12D-03
- Mounting Hole Size: 22mm
- Light Voltage: 12V
- Rated Voltage: 12V
- Max. Current: 10A
- Max. Voltage: 250V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100mΩ
- Dielectric Strength: 1,500V
- Operating Temperature: -25°C to +85°C
- IP Code: IP40
- Electrical Life: 10,000 cycles
- Certification: CQC CE
Product Advantages:
Our push button switch stands out from the competition with its bright red LED illumination, making it easy to locate and operate in low-light conditions. The self-locking mechanism ensures that the switch remains in the desired position, providing added convenience and safety. Additionally, our switch is built to last, with a robust construction and high electrical life, reducing the need for frequent replacements.
Usage:
This switch is ideal for a wide range of applications, including industrial machinery, automotive controls, and home appliances. Its compact size and reliable performance make it a versatile choice for any project.
After-sales Service:
As a factory direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our team is dedicated to ensuring your satisfaction and will promptly address any issues or concerns you may have.
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Operating temperature | -25℃~+85℃ |
| IP code | IP40 |
| Rating current | 10A |
Why Choose Our 22mm Red 12V Self-locking Push Button Switch?
Our push button switch offers a combination of reliability, durability, and convenience. The bright red LED illumination makes it easy to operate in low-light conditions, while the self-locking mechanism ensures that the switch remains in the desired position. Additionally, our switch is built to last, with a high electrical life and robust construction.
What Are the Key Specifications of Our Switch?
Our switch features a 22mm mounting hole size, 12V light voltage, 12V rated voltage, 10A max current, and 250V max voltage. It also has a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, dielectric strength of 1,500V, and an operating temperature range of -25°C to +85°C. The IP code is IP40, and it has an electrical life of 10,000 cycles.
What Are the Advantages of Buying from Our Factory?
As a factory direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our team is dedicated to ensuring your satisfaction and will promptly address any issues or concerns you may have. Additionally, buying from our factory means you're getting a high-quality product directly from the source, without any middlemen.
