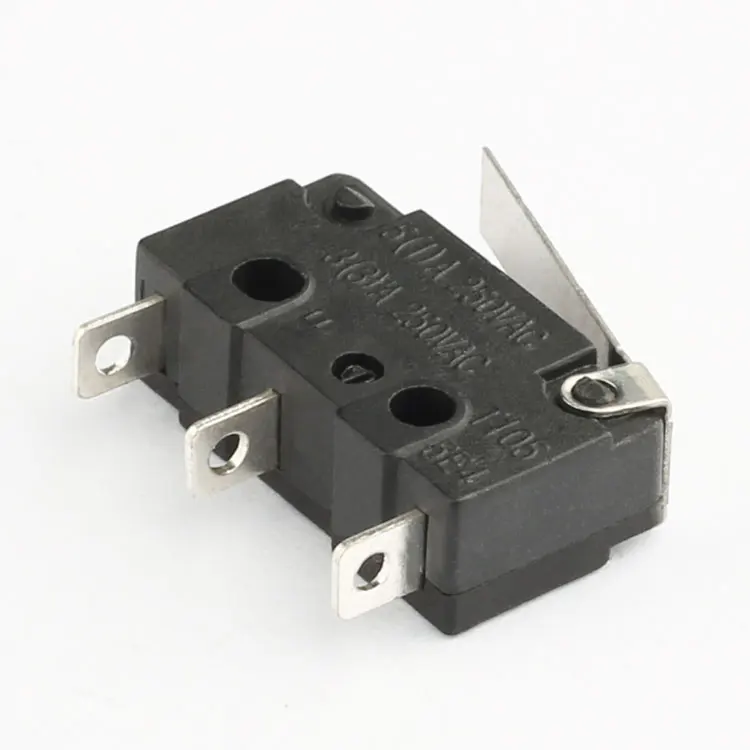

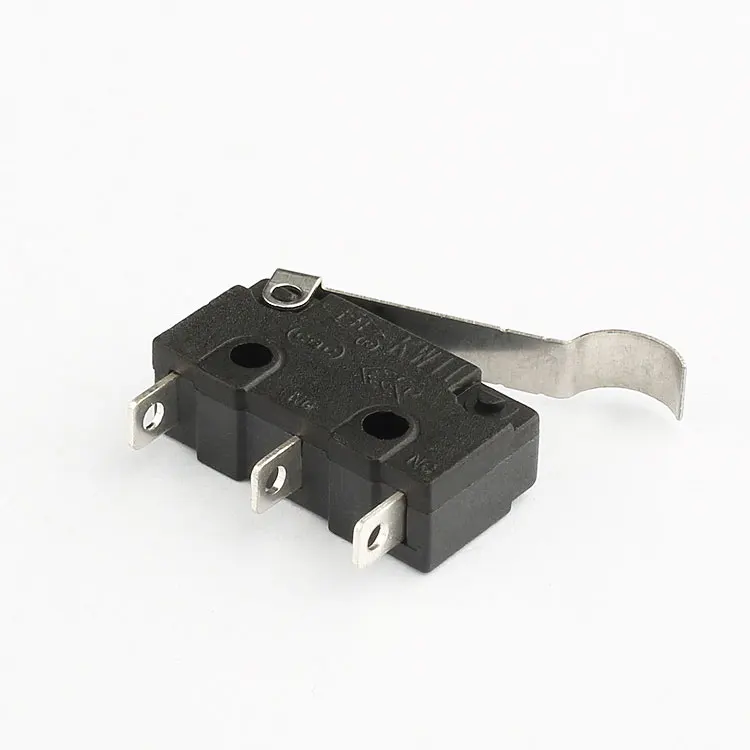

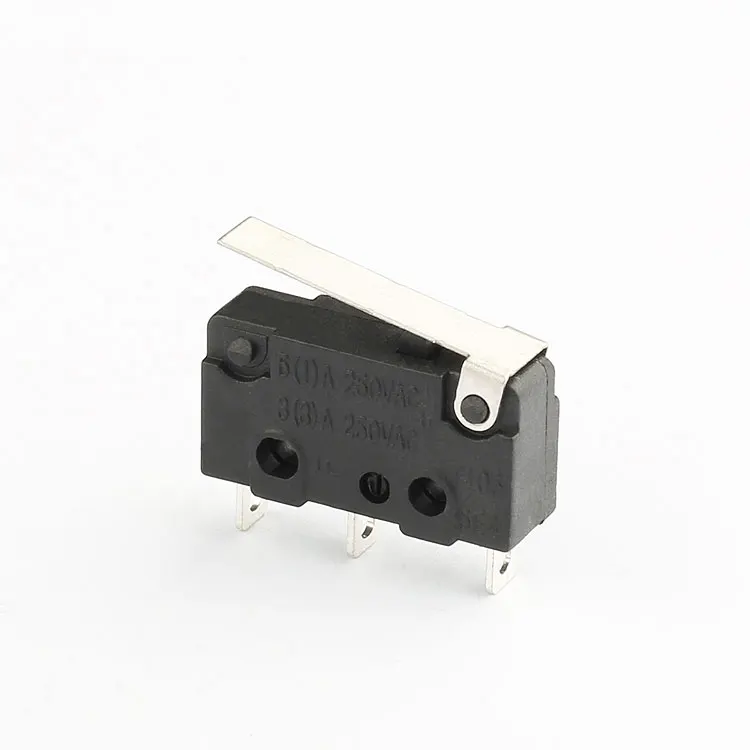

Yongxing 3 Pin Micro Switch – Your Reliable Wholesale Supplier
As a direct factory supplier, Yongxing offers high-quality 3 pin micro switches, perfect for wholesale purchases. Our KW11 model micro switch is designed to meet diverse application needs, especially in households. With a maximum current rating of 3A and a voltage of 250VAC, it ensures reliable performance under various conditions.
Key Features:
- Robust Construction: Made from durable plastic, ensuring longevity and reliability.
- High Electrical Ratings: Handles up to 3A current and 250VAC voltage, with a contact resistance of less than 50mΩ and insulation resistance over 1000mΩ.
- Advanced Specifications: Dielectric strength of 1500V, electronic life of 50,000 cycles, and operates efficiently within a temperature range of -25°C to 125°C.
- Protection Levels: IP40 and IP65 ratings, providing excellent dust and water resistance.
- Customization Options: We can customize the micro switch to meet your specific requirements, given a sufficient order quantity.
At Yongxing, we pride ourselves on our independent plant, injection workshop, and advanced experimental equipment. With over 60 senior engineers and 5S and 5M management standards across all workshops, we ensure top-notch quality and efficiency. Choose Yongxing for your wholesale micro switch needs and experience the difference in quality and service.
|
max.rating cnrrent&voltage
|
5A/3A 250VAC
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>1000mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
50000
|
||
|
operating temperature
|
-25℃ TO 125℃
|
||
| IP code | IP40,IP65 |
Why Choose Yongxing 3 Pin Micro Switch?
Yongxing's 3 pin micro switch stands out for its high reliability and durability. Made from robust plastic, it ensures long-lasting performance even under demanding conditions. With a maximum current rating of 3A and a voltage of 250VAC, it's perfect for a wide range of household applications.
What Are the Key Advantages?
Our micro switch offers advanced specifications, including a dielectric strength of 1500V, an electronic life of 50,000 cycles, and operates efficiently within a wide temperature range. Additionally, it comes with IP40 and IP65 protection levels, providing excellent dust and water resistance.
Can We Customize the Micro Switch?
Yes! At Yongxing, we understand that every customer has unique needs. That's why we offer customization options for our micro switches, given a sufficient order quantity. Choose Yongxing for your wholesale micro switch needs and experience personalized service and top-notch quality.
