Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-11N-FA4A-B-R-03-AC220
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
220VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPST ON-OFF Illuminated 3Pin
|
|

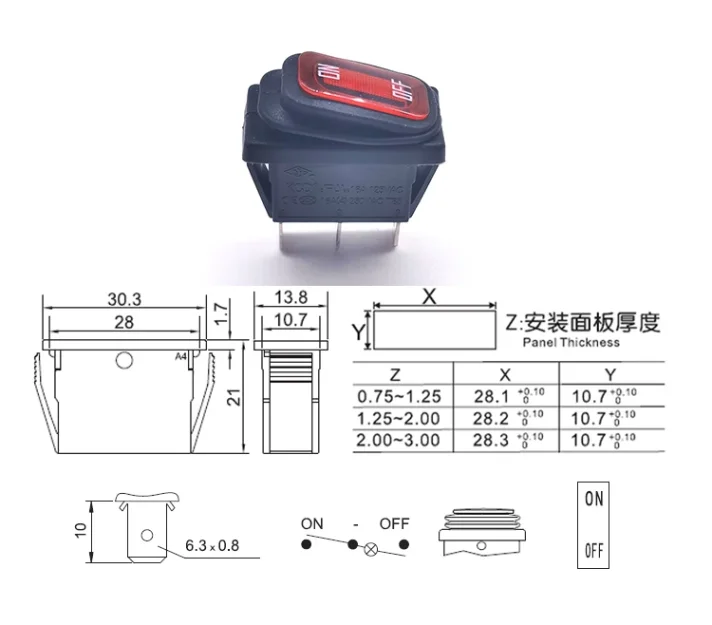

Panel cutout
|
28×11 mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|
Black housing, red waterproof actuator
|
|
Marking
|
white ON OFF
|
|
Material
|
PA66
|
|
Lamp Voltage
|
Red AC220V light
|
Why Choose Our Waterproof Rocker Switch?
Our Yongxing KCD1 Series Waterproof Rocker Switch stands out for its durability and reliability. With a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance in various applications. The IP65 rating provides protection against dust and water, making it ideal for outdoor or harsh environments.
What Are the Key Features?
The switch features a red illuminated light for easy visibility in low-light conditions, a SPST ON-OFF illuminated 3-pin circuit, and a 28x11 mm panel cutout. The black housing with a red waterproof actuator enhances durability and adds a sleek look to your equipment.
Why Buy from Us?
As a factory direct supplier, we offer wholesale pricing on this high-quality switch. With CQC, CE, and ROHS certifications, you can trust in the safety and quality of our product. Choose us for superior quality, competitive pricing, and reliable performance.
