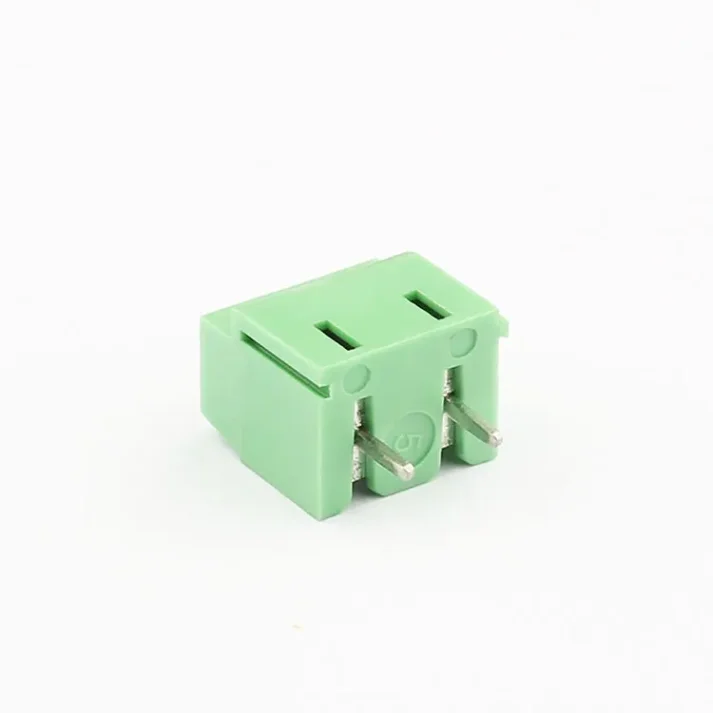

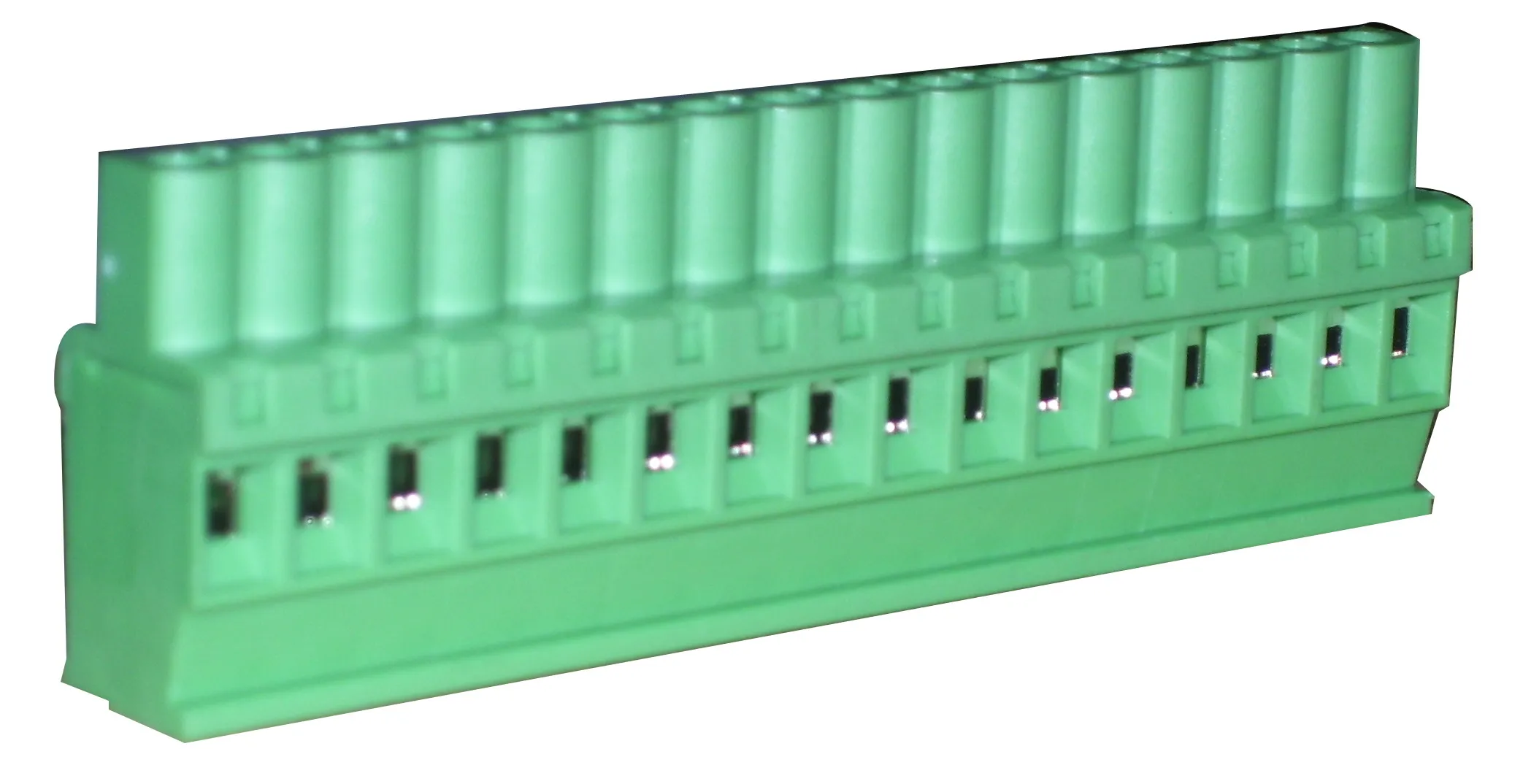

Yongxing Factory Wholesale 5mm Pitch Screw Terminal Block PCB Connector

As a direct factory supplier and wholesaler, Yongxing presents the 5mm Pitch Screw Terminal Block PCB Connector, designed to meet your industrial wire connecting needs. Our connector stands out with its high-quality materials, including a PA66 body, tin-plated copper contacts, and M2.5 steel zinc-plated screws, ensuring durability and reliability. With a rated voltage of 300V and a rated current of 16A, it can handle a wide range of applications. The connector features a 5.0mm pitch, accommodating 26-14AWG conductors, and operates efficiently within a temperature range of -40°C to +150°C. Its low contact resistance (20mΩ) and high insulation resistance (>5000MΩ DC500V) guarantee stable performance. Additionally, it can withstand voltages up to AC2000V for 1 minute, ensuring safety in harsh environments. Our connector is not only CQC and UL certified but also benefits from our 5S management system and over 60 senior engineers, ensuring top-notch quality and customization capabilities. Choose Yongxing for factory-direct pricing and exceptional service.
