Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Operating temperature | -25℃~+125℃ |
| Rating current&voltage | 5A/250VAC |

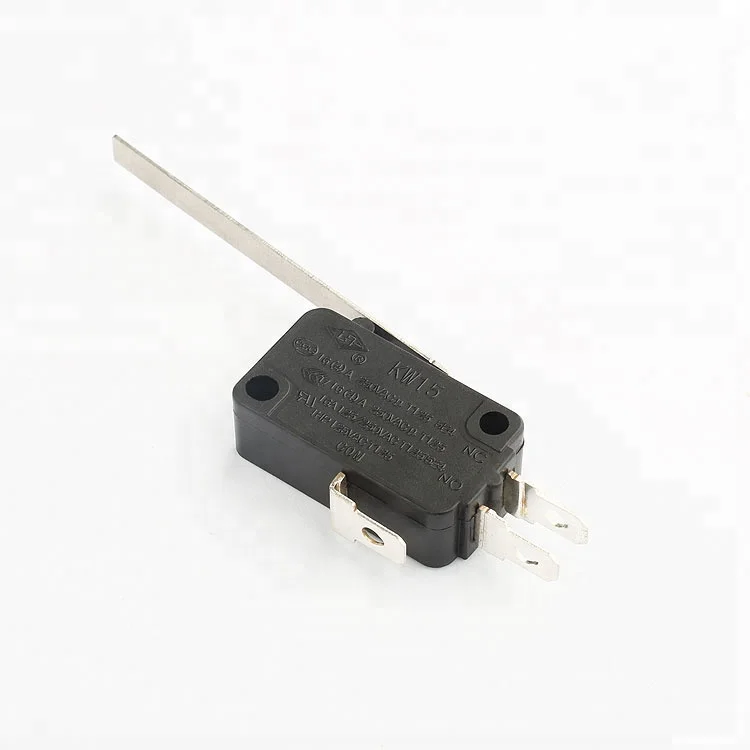

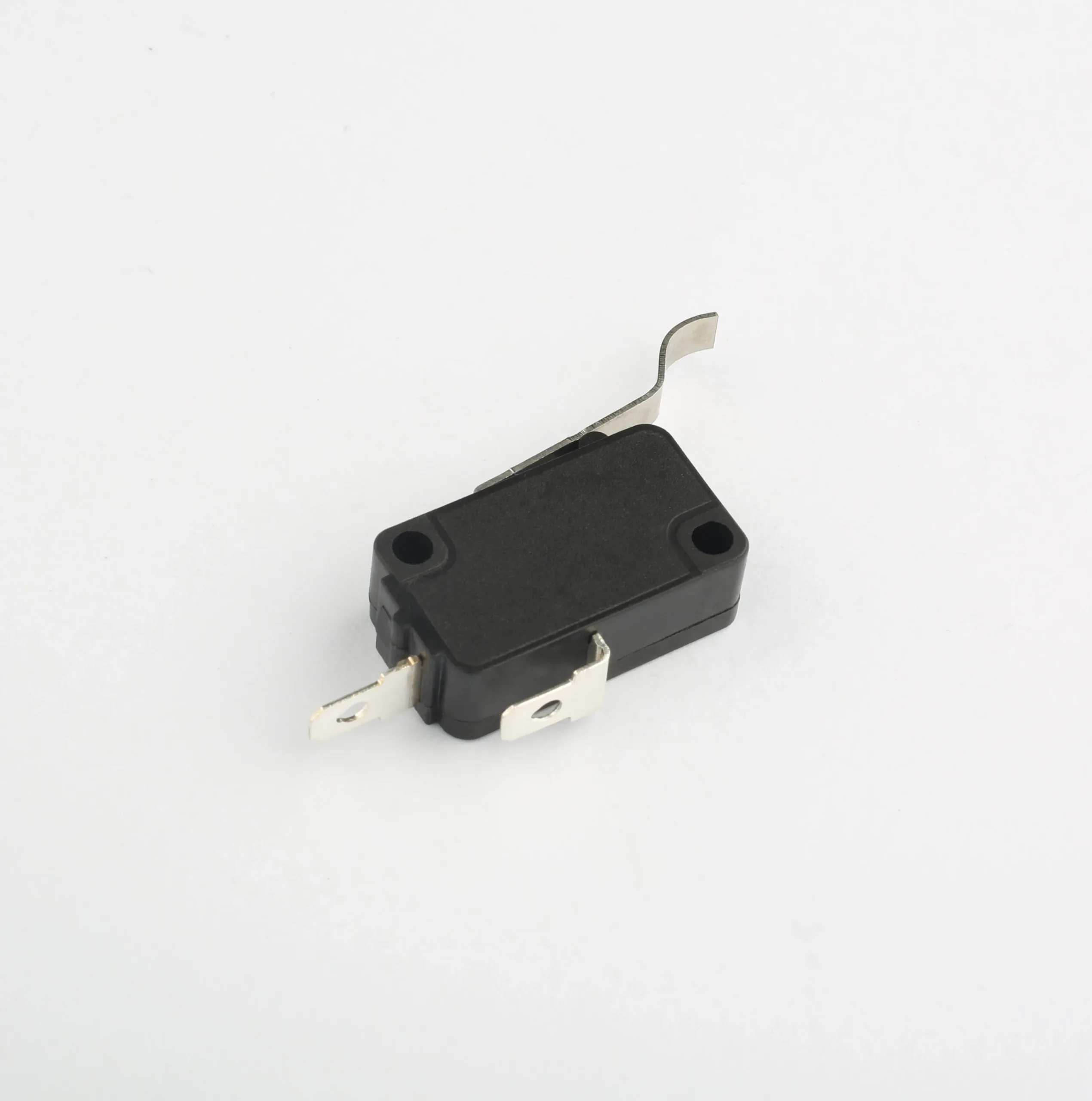

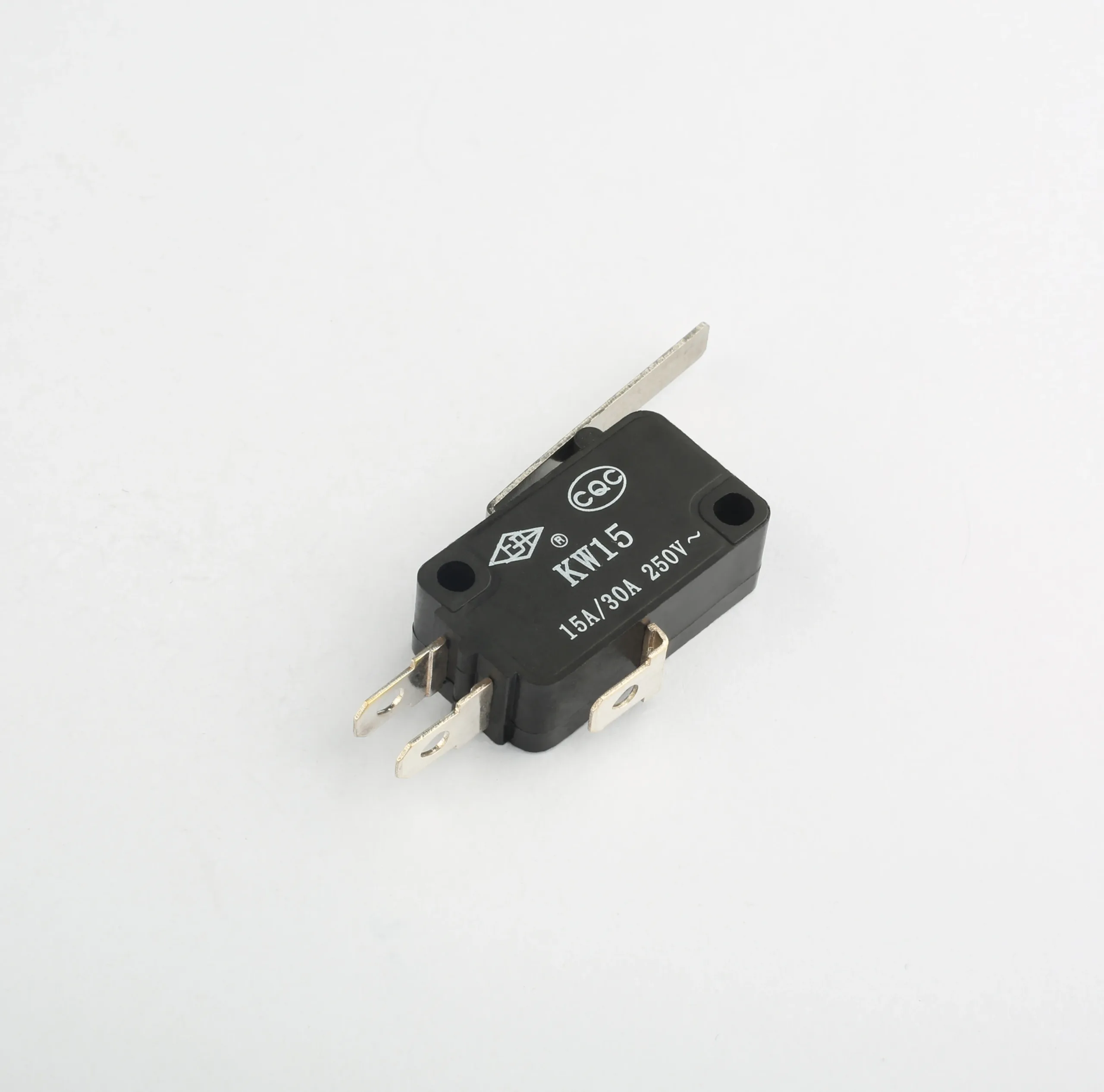

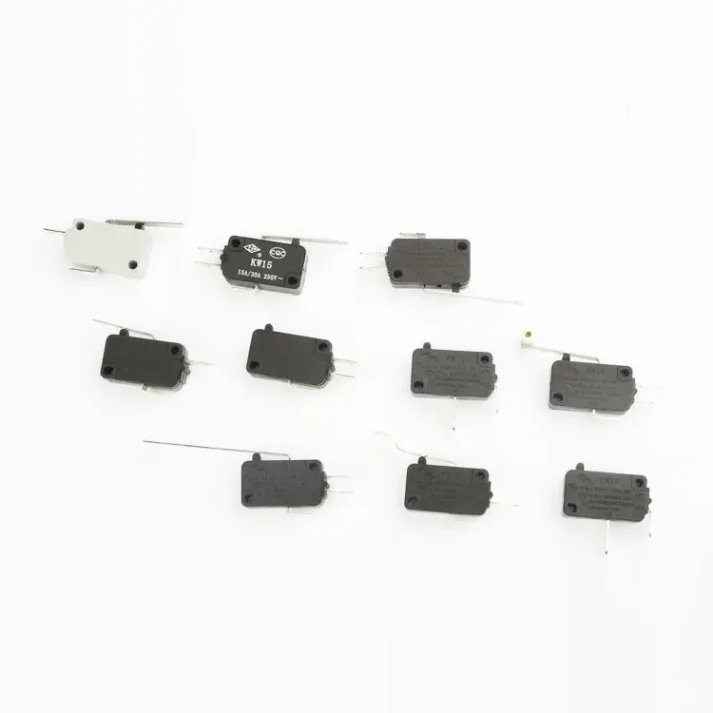

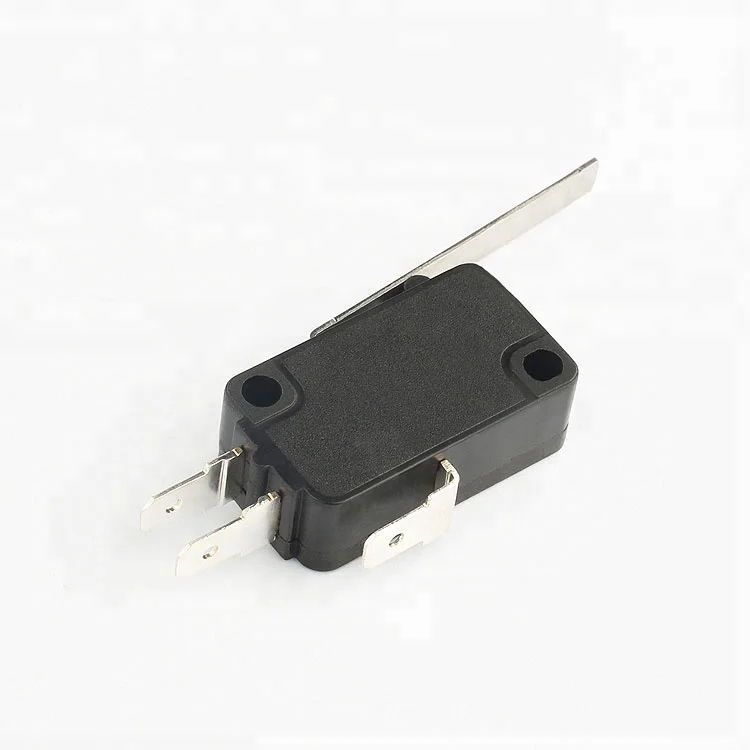

Why Choose Yongxing's Micro Switch?
Yongxing's micro switch stands out for its high quality, durability, and customization options. As a factory supplier, we offer wholesale prices, making it cost-effective for large orders. Our switch is designed for industrial, telecommunication, and electric power applications, ensuring reliable performance in various environments.
What Are the Key Features?
Key features include a 16A 250V rating, SPDT circuit, IP40 protection level, and a mechanical life of 100,000 times. It also has a waterproof design, making it suitable for outdoor or wet conditions. The switch operates efficiently with a contact resistance of ≤50mΩ and insulation resistance of ≥100mΩ.
Can We Customize the Switch?
Yes, we offer customization services for large orders. Our experienced engineers can design a switch that meets your specific requirements, ensuring it perfectly fits your application needs.
