Description
Key Features:
– Max Current: 16A
– Max Voltage: 250VAC
– IP Level: IP65 (Waterproof)
– Pins: 3
– Switch Action: ON-OFF
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥1000MΩ
– Dielectric Strength: 1500VAC 1 Minute
– Operating Temperature: T55, T85, T125
– Electrical Life: 10,000 cycles
– Material: Plastic
– Color: Black
– Certifications: CQC, CE, ROHS

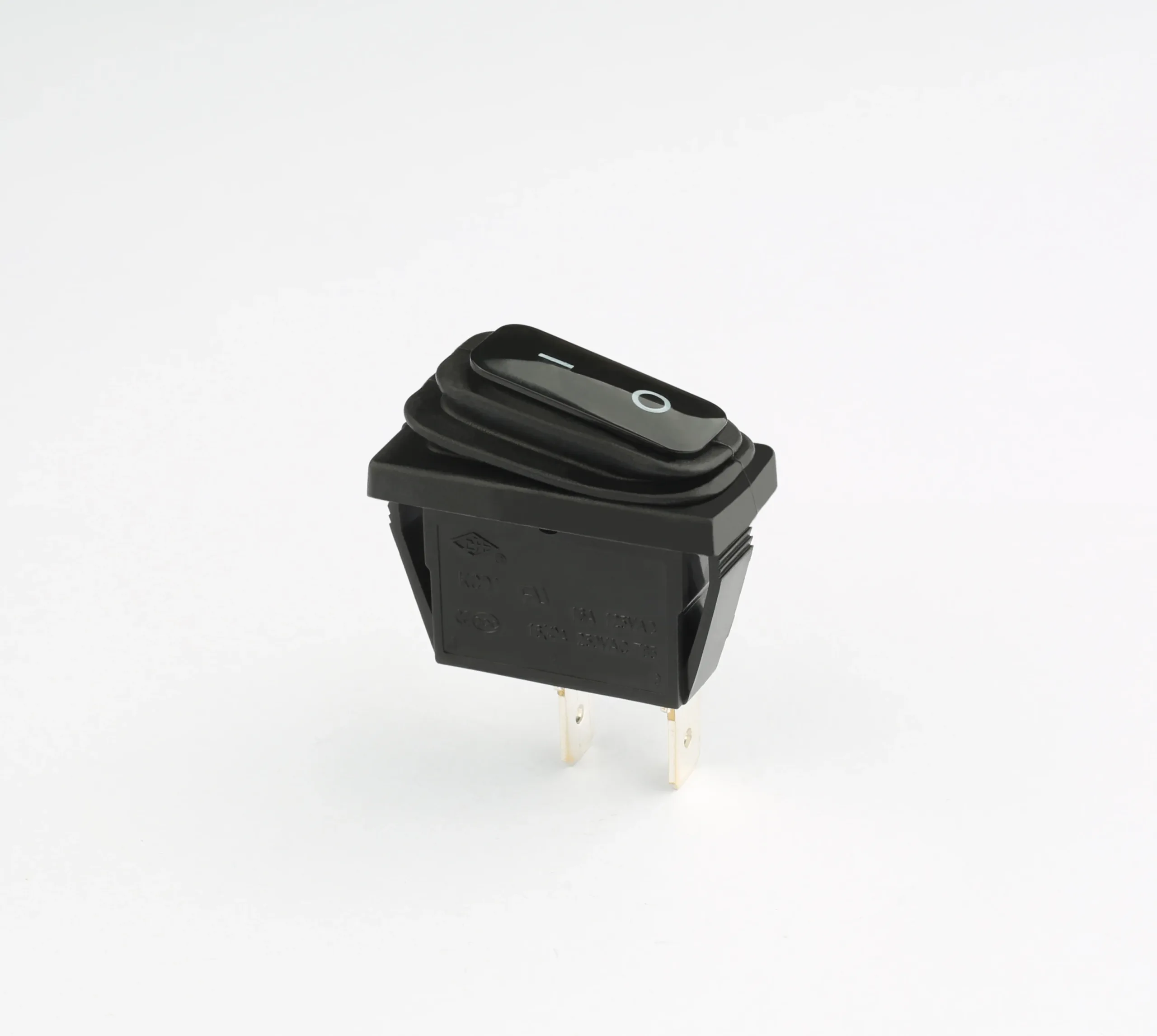

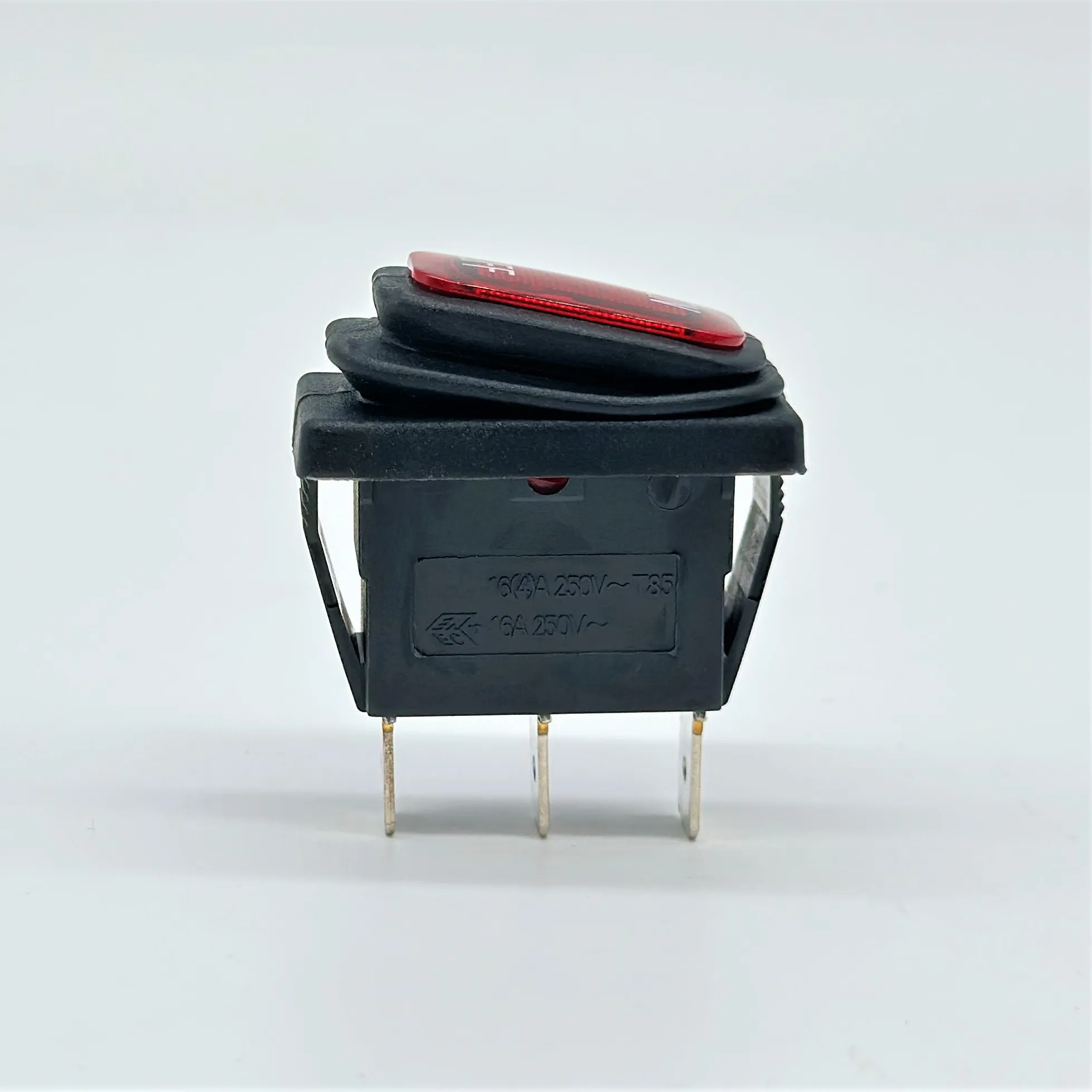

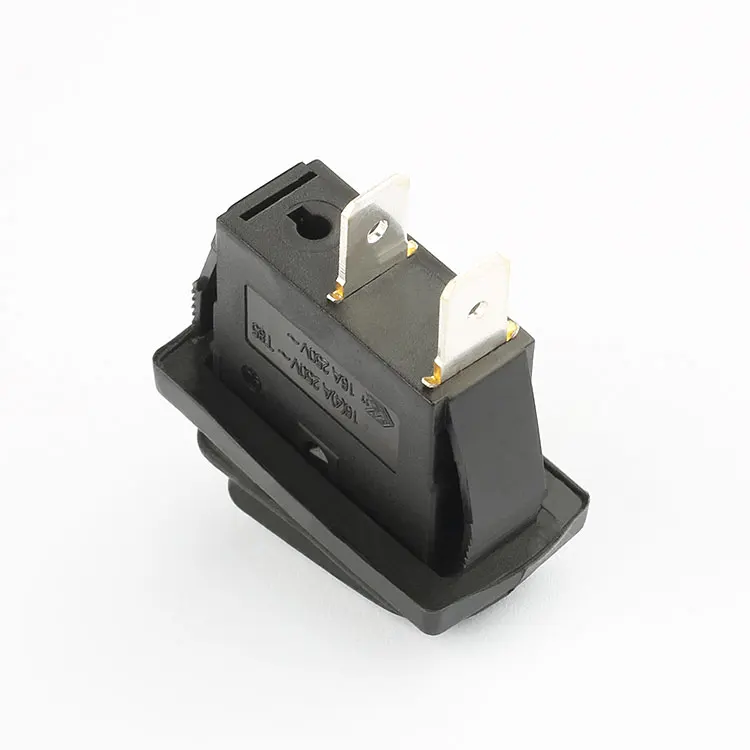

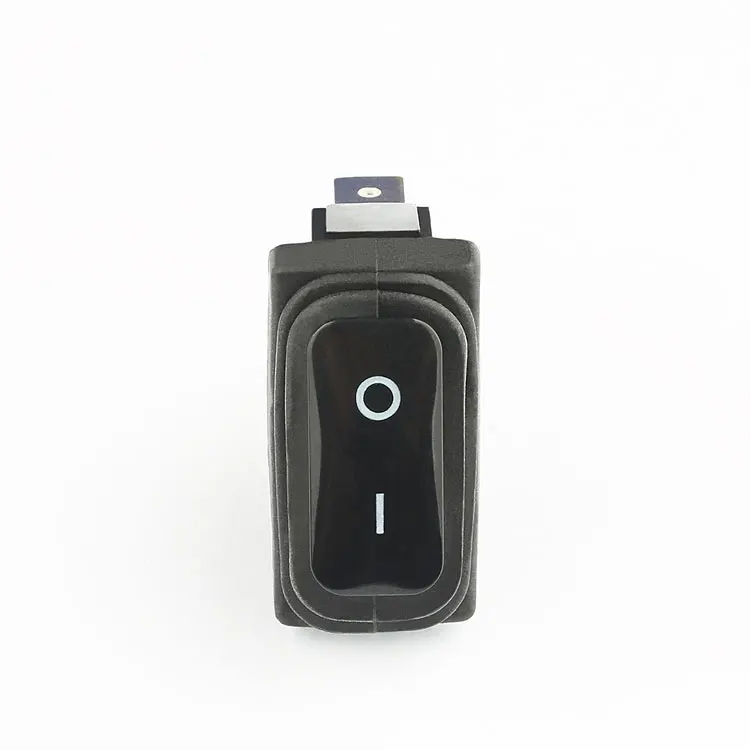

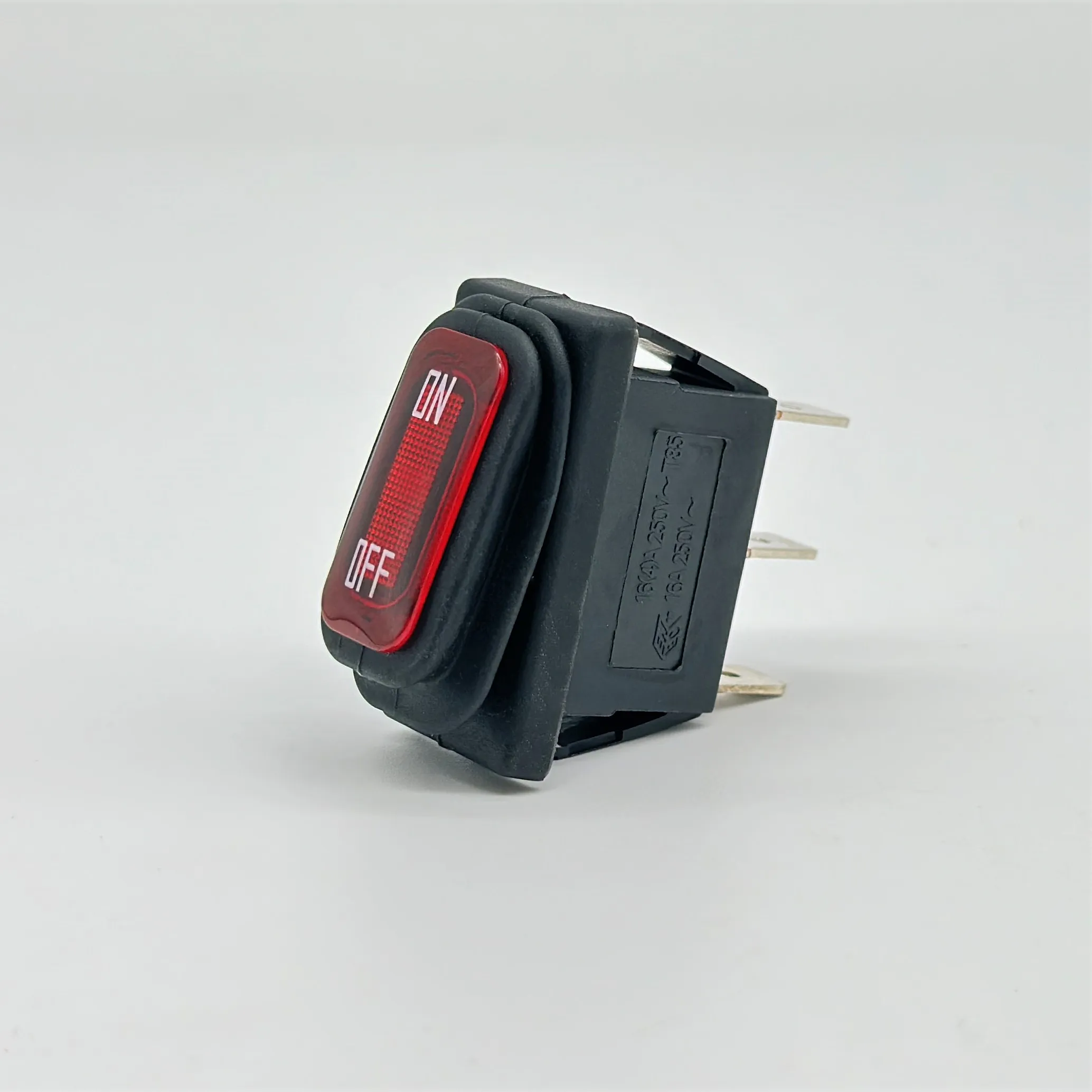

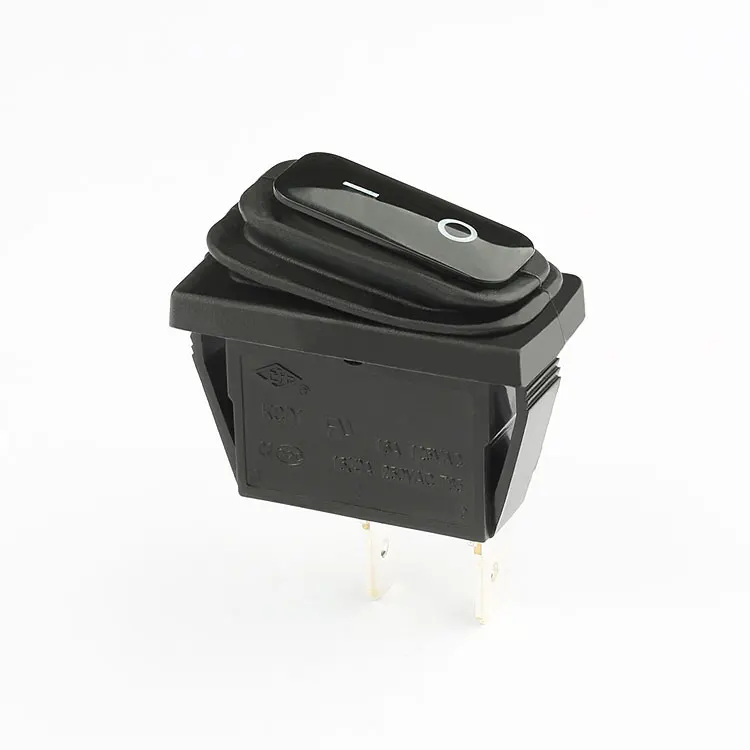

This waterproof rocker switch is perfect for use in cars, industrial equipment, and other electrical applications where durability and reliability are crucial. Its IP65 rating ensures protection against dust and water, making it ideal for outdoor or harsh environments.
We pride ourselves on offering high-quality products at competitive prices, backed by excellent customer service. As a factory direct supplier, we can offer bulk discounts and ensure fast delivery times to meet your needs. Choose Yongxing for your electrical component needs and experience the difference in quality and service.
|
Certification
|
||
|
CQC CE
|
T85 AC 250v 16(4)A
|
|
|
UL
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|

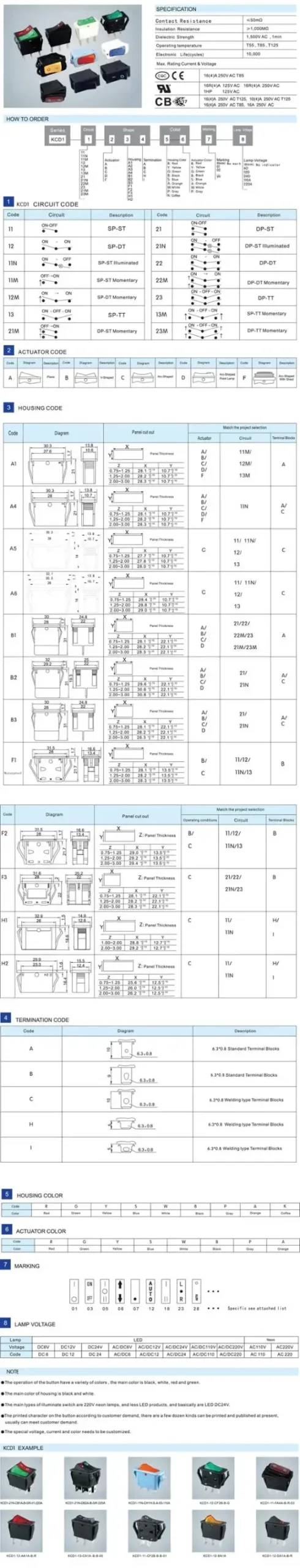

How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||
Why Choose Our Waterproof Rocker Switch?
Our Yongxing Factory Wholesale IP65 16A 250VAC 3-Pin Waterproof Rocker Switch stands out for its high quality, durability, and reliability. With an IP65 rating, it offers superior protection against dust and water, making it ideal for outdoor or harsh environments. Whether you need it for cars, industrial equipment, or other electrical applications, this switch ensures long-lasting performance.
What Are the Key Features?
Key features include a max current of 16A, max voltage of 250VAC, 3 pins, ON-OFF switch action, low contact resistance, high insulation resistance, and a long electrical life of 10,000 cycles. It's also made from durable plastic and comes in black, with certifications including CQC, CE, and ROHS.
Why Buy from Yongxing?
As a factory direct supplier, we offer competitive wholesale prices, bulk discounts, and fast delivery times. Our commitment to quality and customer service ensures you get the best product and support. Choose Yongxing for your electrical component needs and experience the difference.
