Yongxing Factory Wholesale KCD Series 16A 250V Rocker Switch Supplier

100 - 999  pieces
$0.78

1,000 - 2,999  pieces
$0.75

>= 3,000  pieces
$0.68

0 reviews

Yongxing Factory Wholesale Rocker Switch Supplier, 16A 250V, Customizable

Description

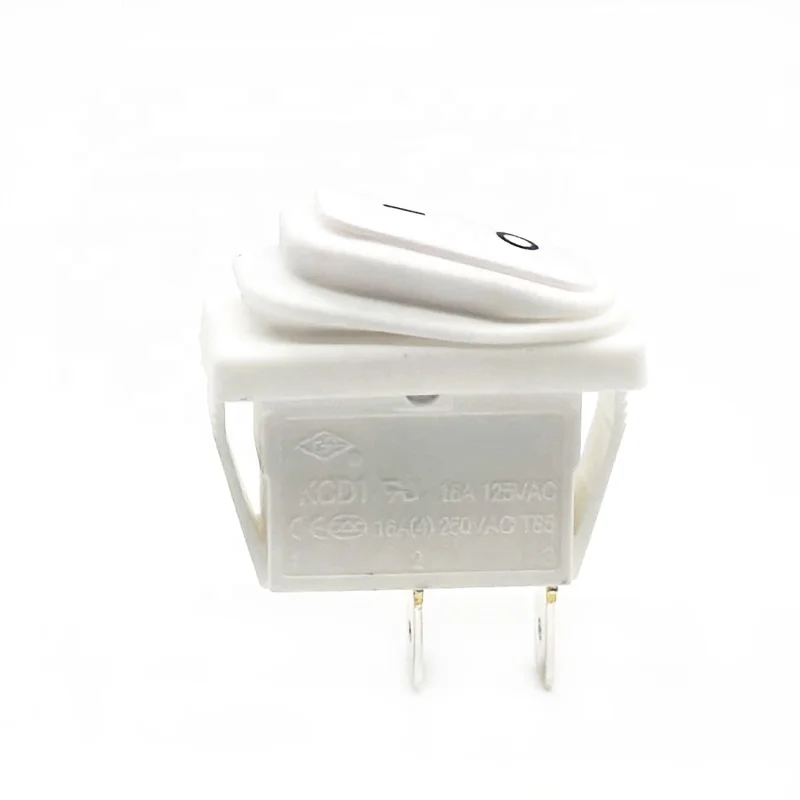

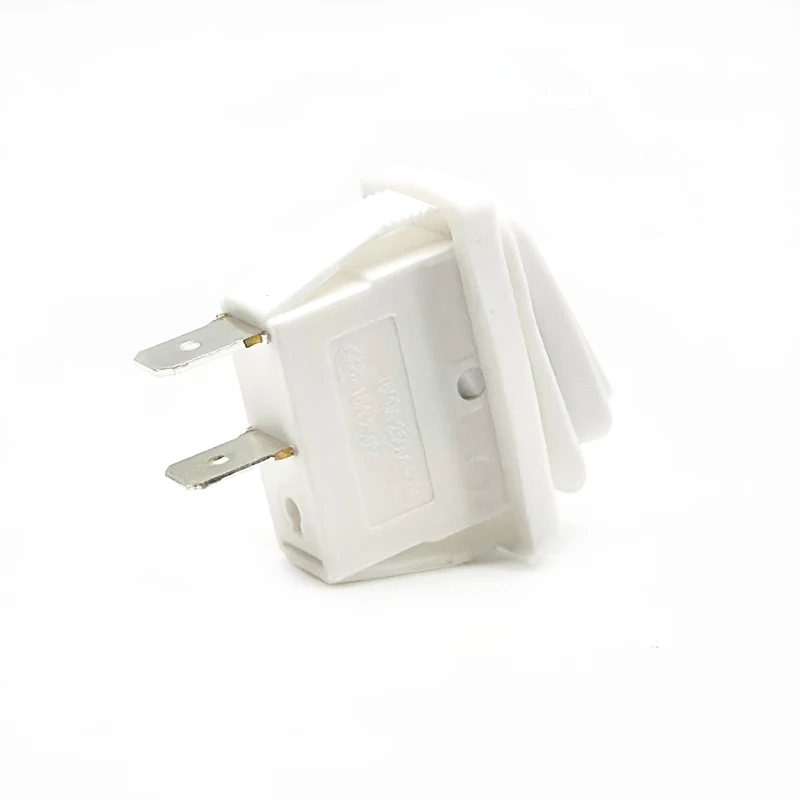

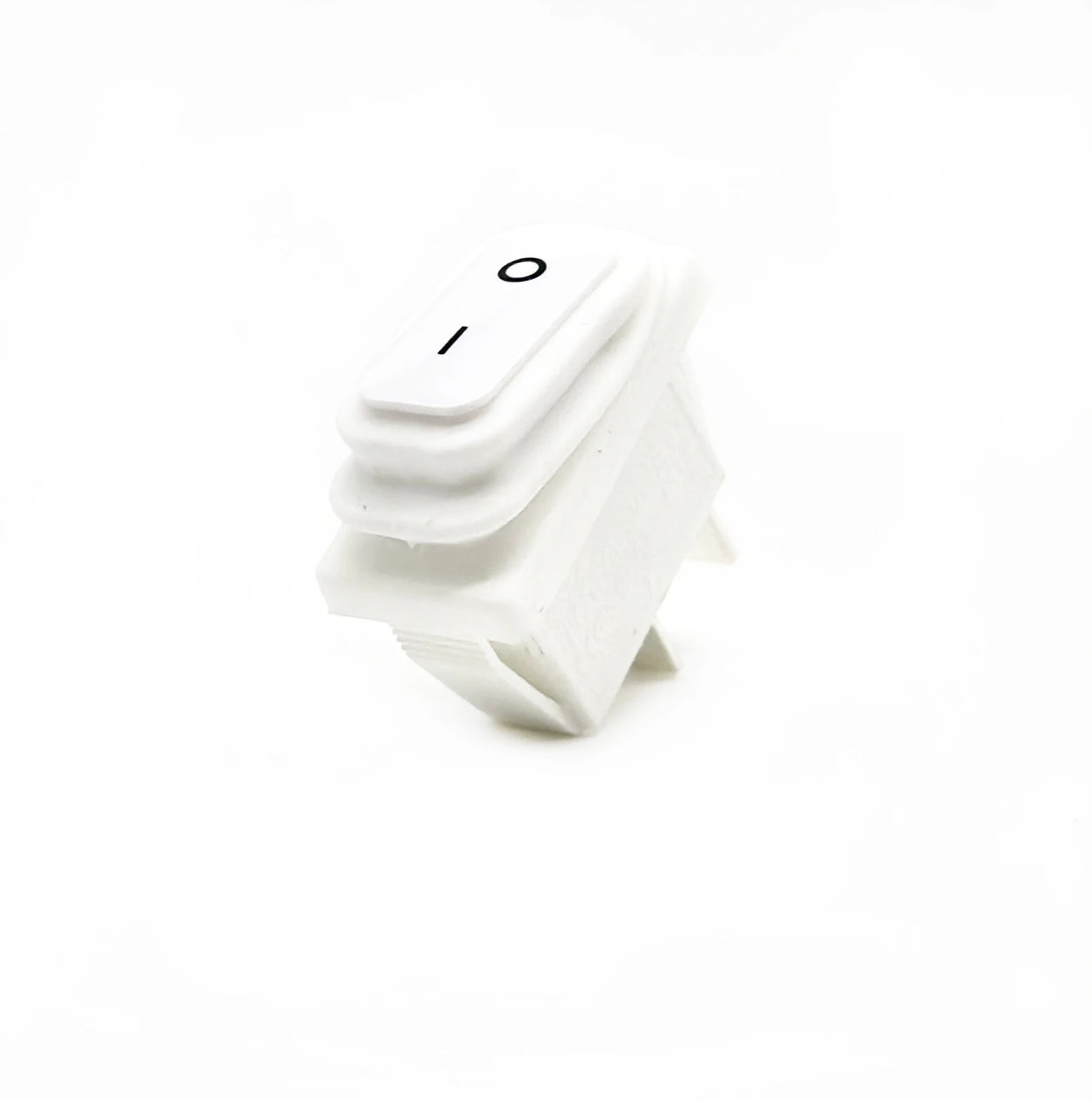

Introducing our Yongxing KCD Series Rocker Switch, a high-quality, illuminated, 2-pin switch designed for heavy-duty applications. With a maximum current of 16A and a maximum voltage of 250V, this switch is perfect for cars, industrial equipment, and electric devices. As a factory direct supplier, we offer wholesale pricing and customization options to meet your specific needs. Our switch boasts a mechanical life of 100,000 cycles, an IP65 rating for dust and water resistance, and comes in red, black, or white colors. The mounting hole size is 28.1×10.7mm, with a 6.3*0.8mm terminal, ensuring easy installation and reliable performance. Our factory, equipped with advanced experimental equipment and over 60 senior engineers, adheres to 5S and 5M management standards, guaranteeing top-notch quality. Choose Yongxing for your rocker switch needs and enjoy the benefits of factory-direct pricing and exceptional customer service.

Electronic component product display imageElectronic device product photoElectronic gadget product image


Why Choose Our Rocker Switch?

Our Yongxing KCD Series Rocker Switch stands out with its high current and voltage ratings, making it ideal for demanding applications. The illuminated design enhances visibility, while the durable plastic construction ensures longevity. As a factory direct supplier, we offer competitive pricing and the flexibility to customize the switch to your specifications.

What Are the Key Features?

Key features include a 100,000 cycle mechanical life, an IP65 rating for dust and water resistance, and easy installation with a 28.1x10.7mm mounting hole. The switch also comes in multiple colors to match your device's aesthetics.

How Can We Help You?

As a wholesale supplier, we are committed to providing exceptional customer service and high-quality products. Whether you need a standard switch or a customized solution, our team of engineers is ready to assist you. Choose Yongxing for your rocker switch needs and experience the difference in quality and service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2

Application

Cars, Industrial, electric equipment

Material

plastic

Pins

2

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

IP65

Switch Action

ON-OFF

Termination Type

pin

Function

SPST ON-OFF illuminated rocker switch

Color

Red Black

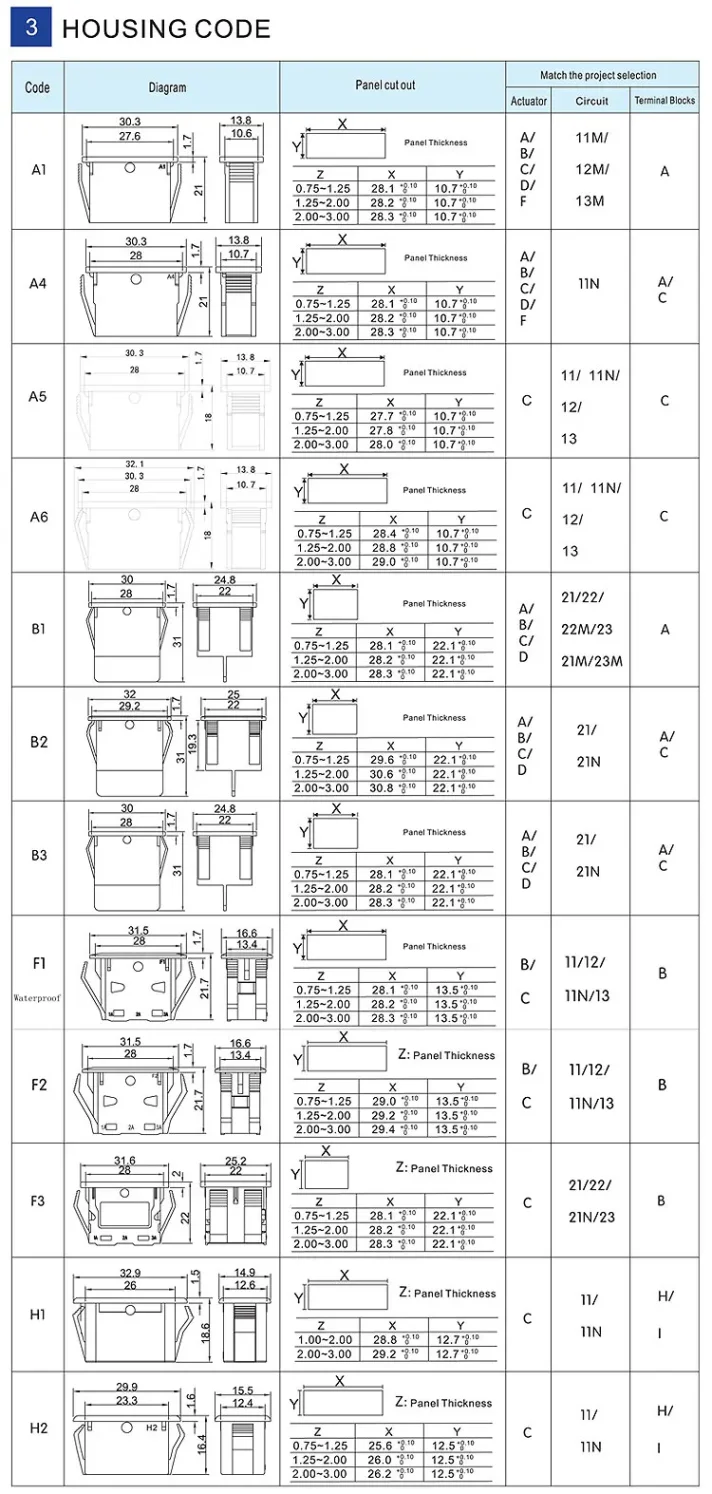

Mounting hole size

28.1×10.7mm

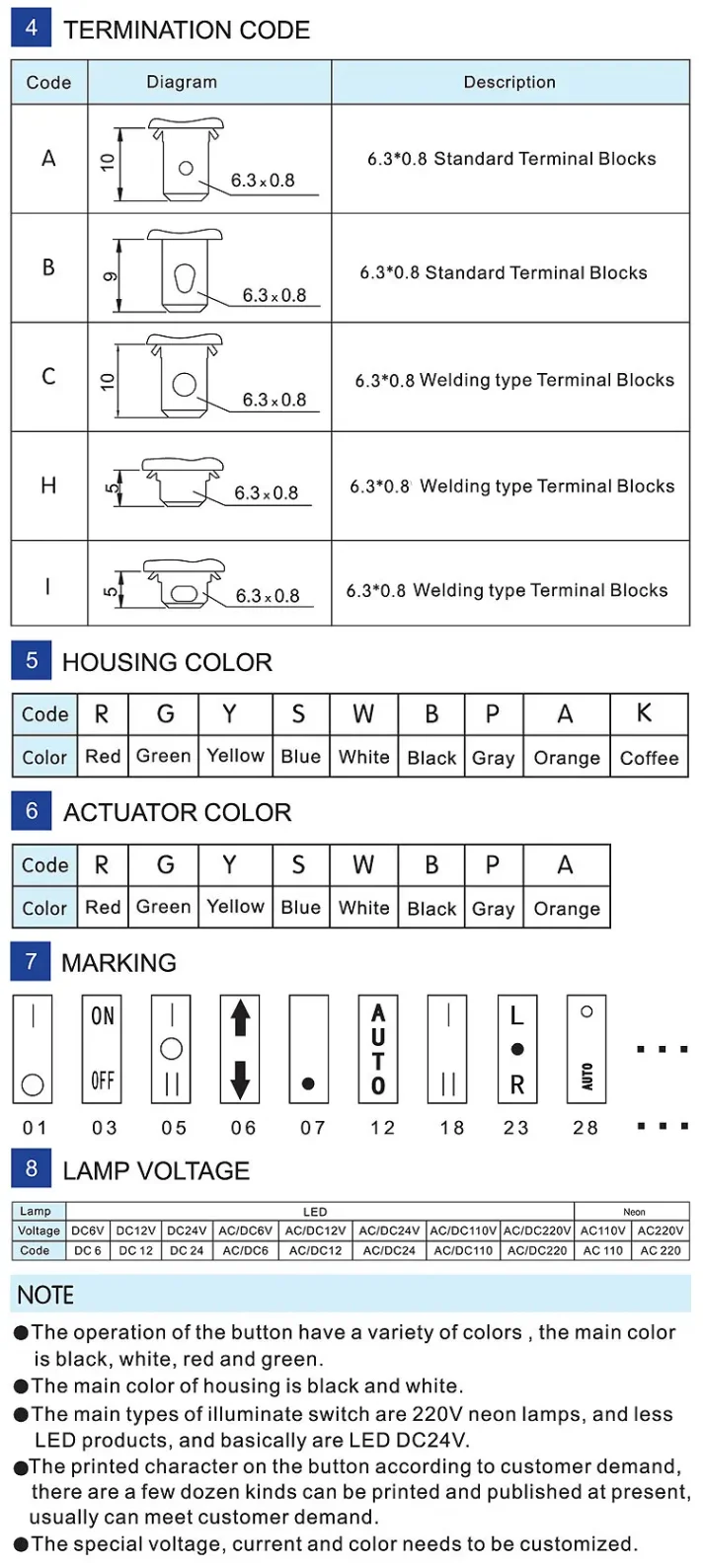

Terminal

6.3*0.8mm

Protection Level

IP40

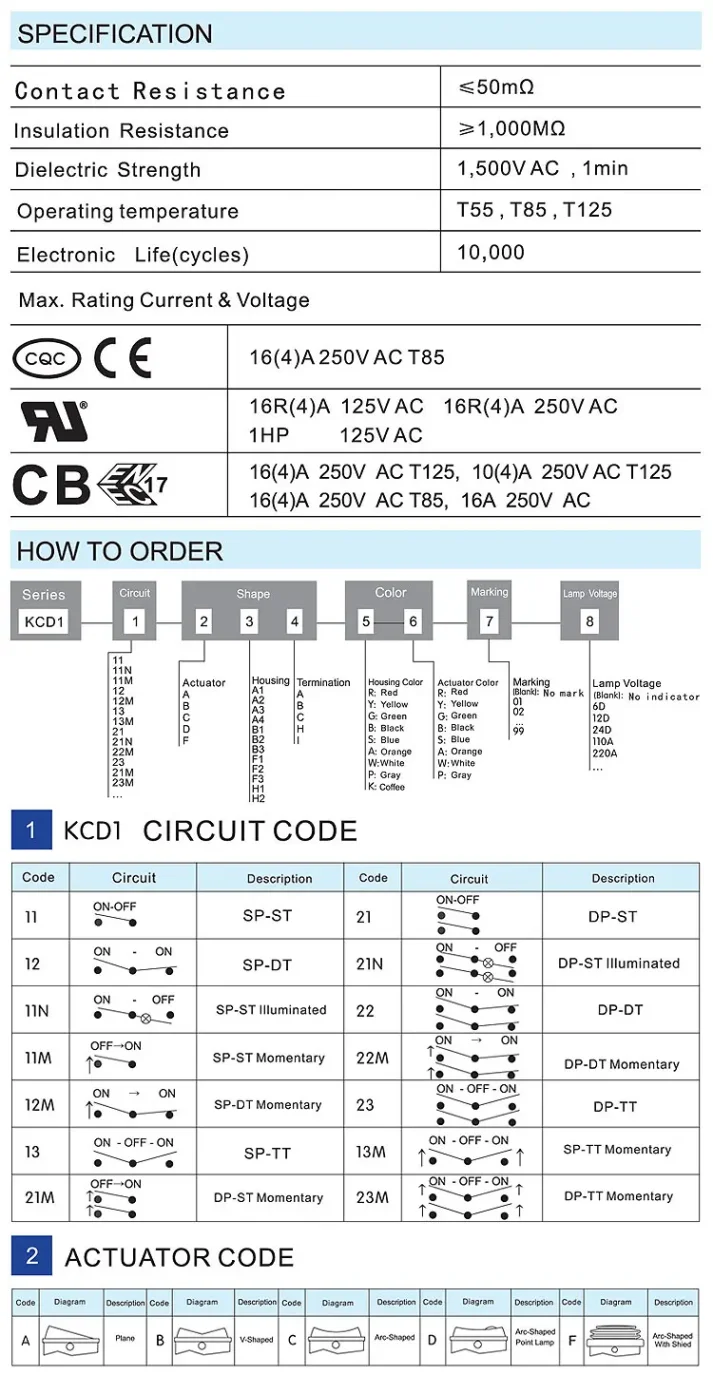

Contact Resistance

50m Max

Insulation Resistance

1000M Min

Dielectric Strength

1500VAC 1 Min
