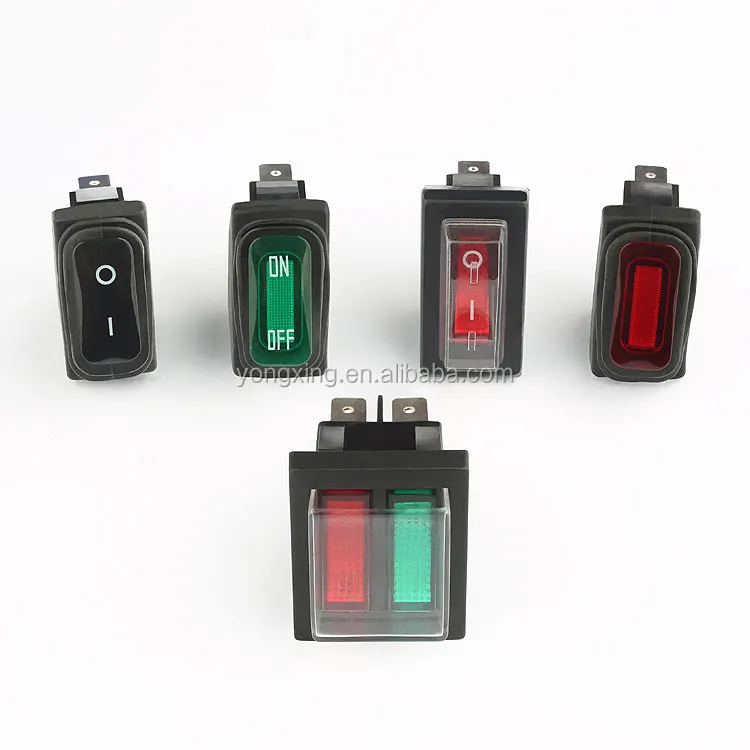

Description

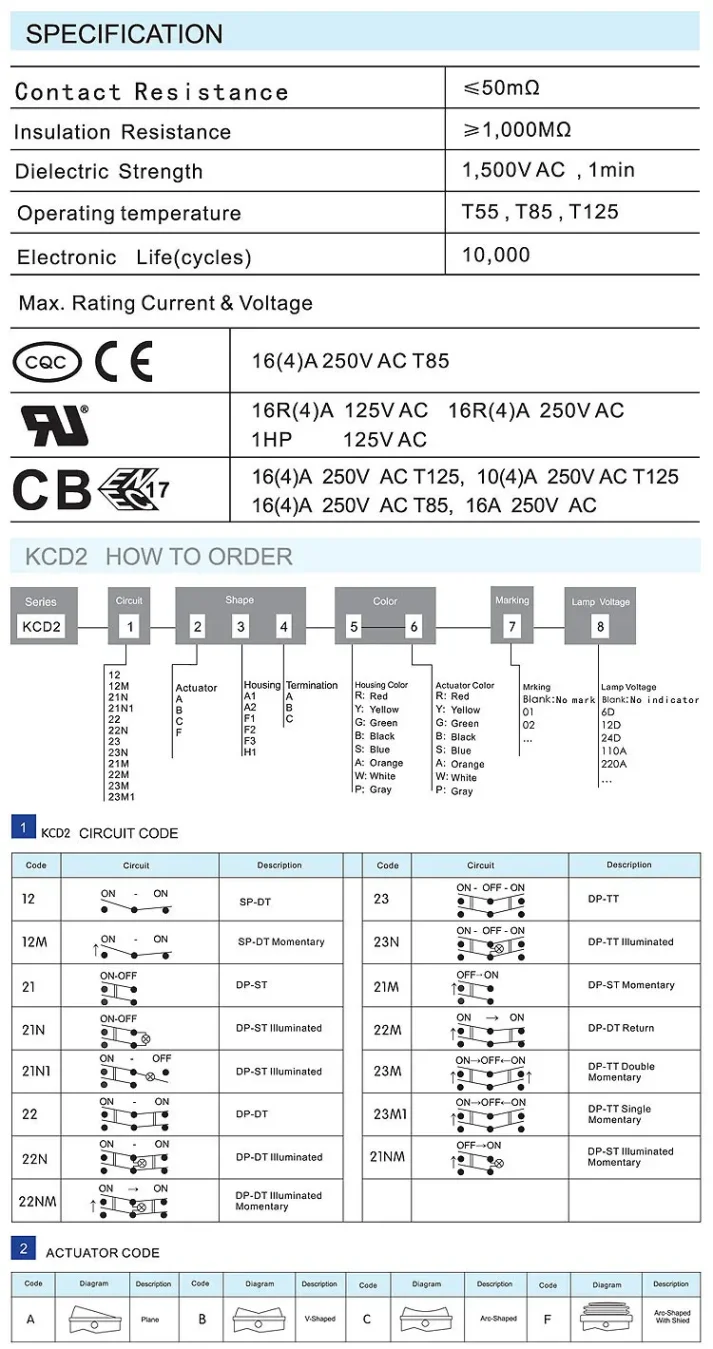

Product Specifications
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Dielectric Strength: 1,500V AC, 1 min
- Electronic Life: 10,000 cycles (momentary rocker switch on/off/on)
- Certifications: CQC, CE, UL, ENEC, CB
- Max. Rating Current & Voltage: Varies by certification (e.g., 16(4)A 250V AC T85 for CQC/CE)
- Place of Origin: Shanghai, China
- Brand Name: Yongxing

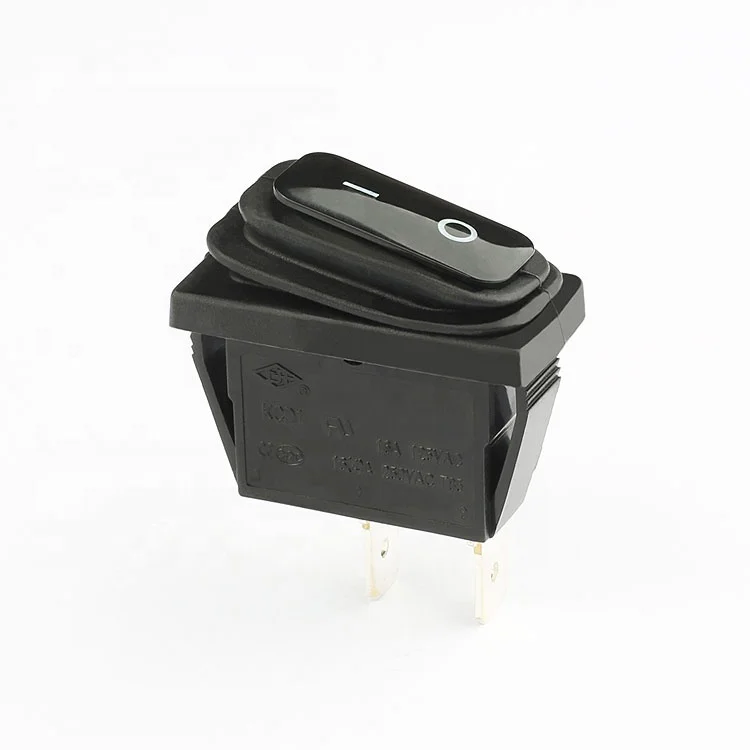

- Model Number: KCD1
- Application: Cars, Industrial, Electric Equipment
- Material: Plastic HF-616

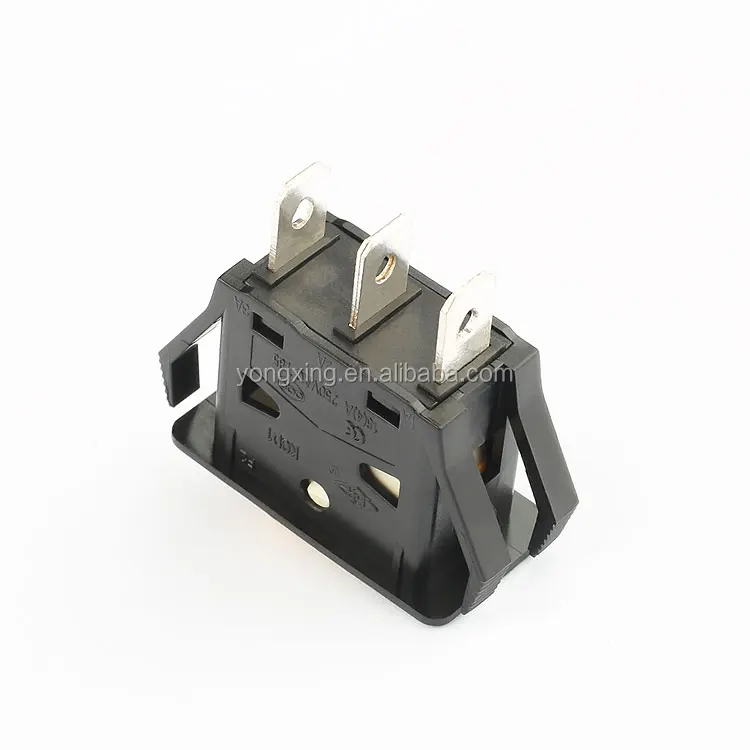

- Pins: 3P
- Mechanical Life: 50,000 Cycles
- IP Level: IP41
- Switch Action: ON-OFF
- Termination Type: Pin

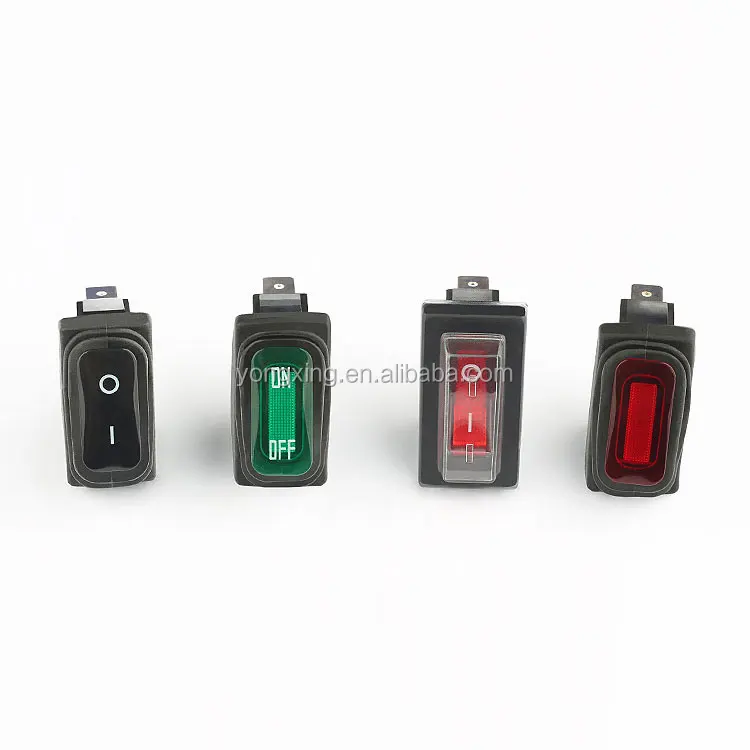

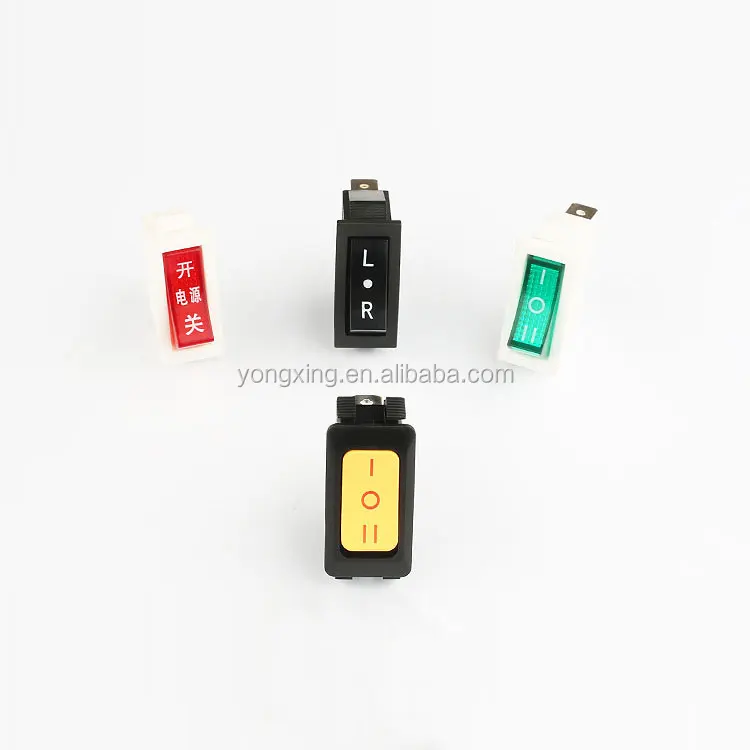

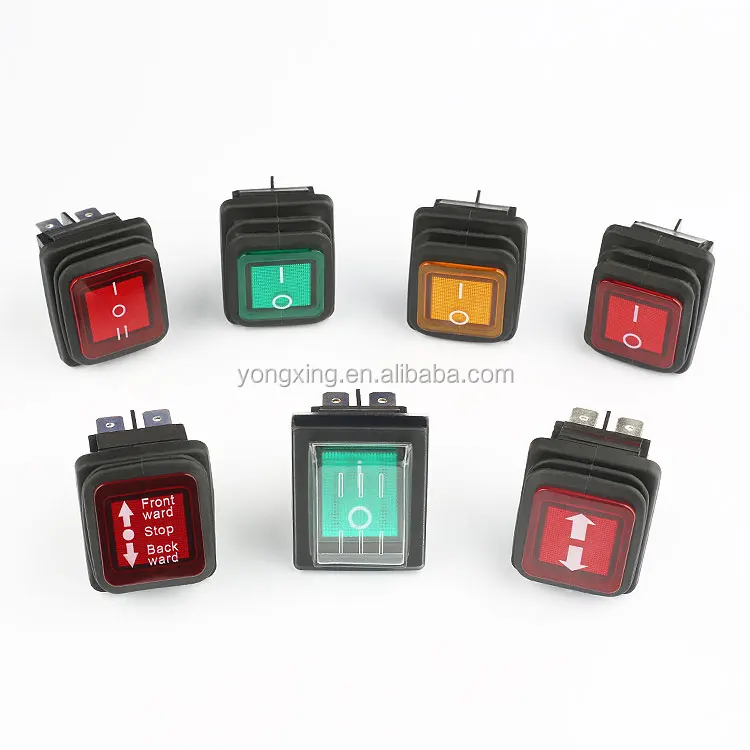

- Colors Available: Red, Yellow, Green, Black, White, Blue, Gray, Orange
- Operating Temperature: T55, T85, T125
Product Advantages
Our KCD Series Rocker Switch stands out with its high dielectric strength, long mechanical life, and multiple certifications, ensuring safety and reliability in various applications. The wide range of colors and operating temperatures makes it versatile for different environments.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction with our product.
Why Choose Us?
As a factory-direct supplier, we offer competitive wholesale pricing without compromising on quality. Our products are trusted by customers worldwide for their durability and performance.
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Key Features of Our Rocker Switch
Our KCD Series Rocker Switch is designed with high dielectric strength and a long mechanical life, making it ideal for various applications including cars, industrial machinery, and electric equipment. The multiple certifications ensure safety and reliability.
Why Choose Our Factory-Direct Product?
As a factory-direct supplier, we offer competitive pricing without compromising on quality. Our products are rigorously tested to meet international standards, ensuring you receive a durable and reliable switch.
How Does Our Switch Stand Out?
Our switch stands out with its wide range of colors, operating temperatures, and comprehensive after-sales service. Whether you need a switch for a harsh industrial environment or a sleek car interior, we have the perfect solution for you.
