Yongxing Factory Wholesale KCD1 16A 250V Illuminated Rocker Switch Supplier

Name: Yongxing Factory Wholesale KCD1 16A 250V Illuminated Rocker Switch Supplier
SKU: 69643
Availability: InStock

Category: KCD1 series Rocker Switch Tags: factory Direct, Rocker Switch, wholesale Supplier

500 - 1,999 pieces
$0.50

2,000 - 4,999 pieces
$0.45

>= 5,000 pieces
$0.40

Rated 0 out of 5

0 reviews

Yongxing Factory Wholesale KCD1 Rocker Switch Supplier, High Quality & Customizable

Description

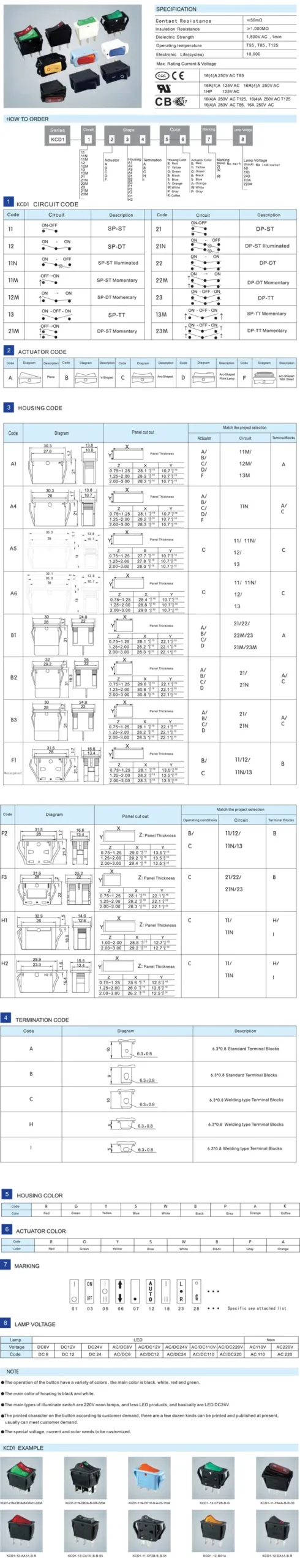

Specification

Description

Looking for a reliable, high-quality rocker switch? Look no further! Yongxing, a direct factory supplier, presents the KCD1 16A 250V illuminated rocker switch, UL, CE, and ENEC certified. This switch is perfect for electric appliances, offering a max current of 16A and a max voltage of 250V. It comes with options for 2P, 3P, or 4P pins, and is available in vibrant colors like red, yellow, green, blue, and white. Our switch stands out with its stainless steel, plastic, and brass construction, ensuring durability and longevity. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it’s built to last. Plus, its IP65 rating means it’s resistant to dust and water, making it suitable for various environments. As a factory with over 60 senior engineers and 5S management in place, we guarantee top-notch quality and customization options to meet your specific needs. Wholesale orders are welcome, and we offer competitive pricing for bulk purchases. Trust Yongxing for all your rocker switch needs!

Why Choose Yongxing's KCD1 Rocker Switch?

Yongxing's KCD1 rocker switch is the perfect choice for electric appliances due to its high current and voltage ratings, ensuring reliable performance. With a stainless steel, plastic, and brass construction, it's built to withstand harsh conditions. Plus, its illuminated head makes it easy to identify in low-light environments.

What Makes Our Switch Stand Out?

Our switch offers a long mechanical and electrical life, reducing the need for frequent replacements. Its IP65 rating ensures dust and water resistance, making it suitable for a wide range of applications. As a factory supplier, we can customize the switch to meet your specific requirements, giving you a competitive edge in the market.

Wholesale Orders Welcome!

At Yongxing, we offer competitive pricing for wholesale orders. Whether you're a distributor, retailer, or manufacturer, we can provide you with the quality rocker switches you need at a price that fits your budget. Contact us today to discuss your bulk purchase needs!

Additional information

Max. Current	16A
Max. Voltage	250V
Place of Origin	Zhejiang, China
Brand Name	Yongxing
Model Number	KCD1
Application	Electric Appliances
Material	Stainless Steel, plastic, Brass
Pins	2P, 3p, 4P
Whether the smart	NO
Mechanical Life	100,000 cycles
IP level	IP65
Switch Action	ON-OFF
Termination Type	Plug-in
Function	SPST ON-OFF
Insulation Resistance	100M
Dielectric Strength	AC 1500V 1 Min
Contact Resistance	50m Max
Electrical Life	10,000 cycles
IP Rating	IP40
Color	Red Yellow Green Blue White
Rating	6A 250VAC/10A 125VAC
