Description
Our switch features a SPST ON-OFF circuit with an illuminated 3Pin design, making it easy to identify the switch position even in low-light conditions. The black housing and red actuator provide a sleek, professional look, while the white ON/OFF marking ensures clear visibility. Made from high-quality PA66 material, this switch offers excellent mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance.
As a factory direct supplier, we offer competitive wholesale prices, making it an ideal choice for bulk purchases. With an IP65 rating, it’s dust-tight and protected against low-pressure water jets, making it suitable for various environments. The 6.3×0.8 mm standard terminal and 28×11 mm panel cutout make installation quick and easy.
Choose Yongxing for your switch needs and enjoy the benefits of a reliable, high-quality product backed by excellent customer service and after-sales support.
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-11N-CA4A-B-R-55-DC2430A-HR
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
DC24V
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85 T125
|
|
Circuit
|
SPST ON-OFF Illuminated 3Pin
|
|

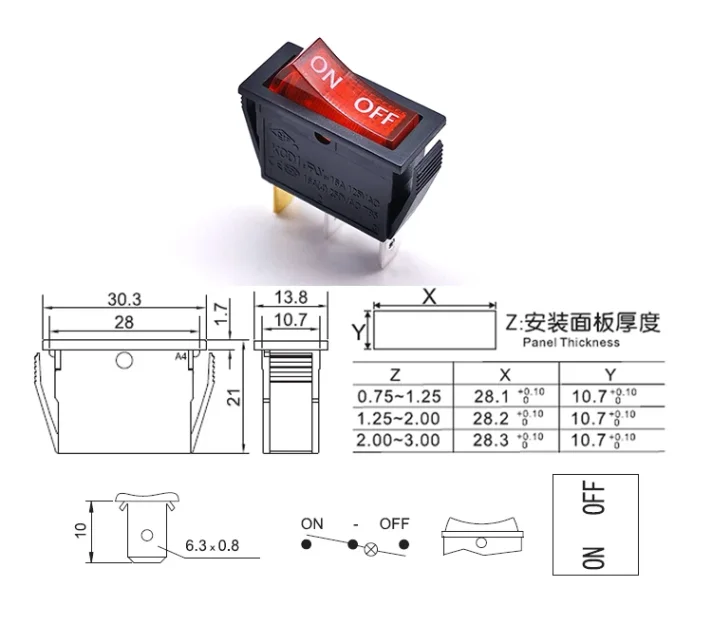

Panel cutout
|
28×11 mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|
Black housing, red actuator
|
|
Marking
|
white ON OFF
|
|
Material
|
PA66
|
|
Lamp Voltage
|
Red DC24V LED light
|
Why Choose Yongxing KCD1 LED Rocker Switch?
Our KCD1 LED Rocker Switch stands out with its high-quality PA66 material, ensuring durability and longevity. The illuminated 3Pin design with a red LED light makes it easy to operate in low-light conditions, while the SPST ON-OFF circuit provides reliable performance.
What Are the Key Features?
Key features include a maximum current of 16A and a maximum voltage of DC24V, making it suitable for a wide range of applications. With UL, CE, and CQC certifications, you can trust in its safety and compliance. The IP65 rating ensures protection against dust and low-pressure water jets.
Why Buy from Yongxing as a Factory Supplier?
As a factory direct supplier, we offer competitive wholesale prices and excellent customer service. Our switches are backed by a long mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring reliable performance over time. Choose Yongxing for quality, value, and peace of mind.
