Yongxing Factory Wholesale KW11 5A 250V Microswitch Supplier

500 - 1,999  pieces
$0.39

2,000 - 4,999  pieces
$0.37

>= 5,000  pieces
$0.35

0 reviews

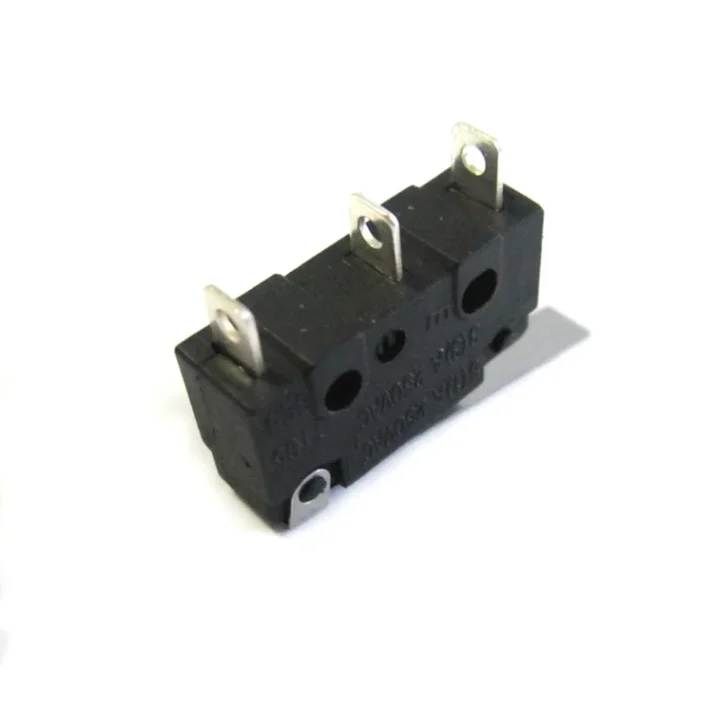

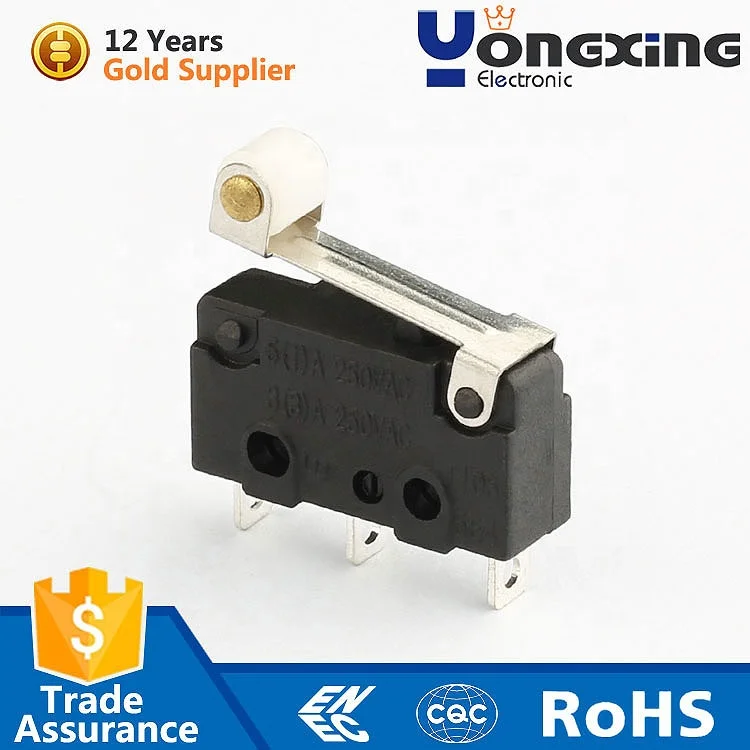

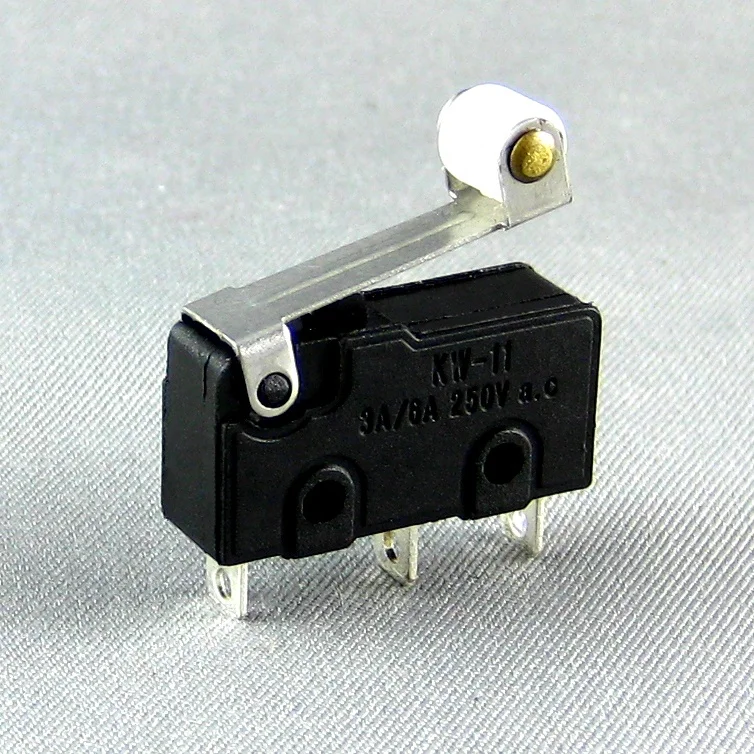

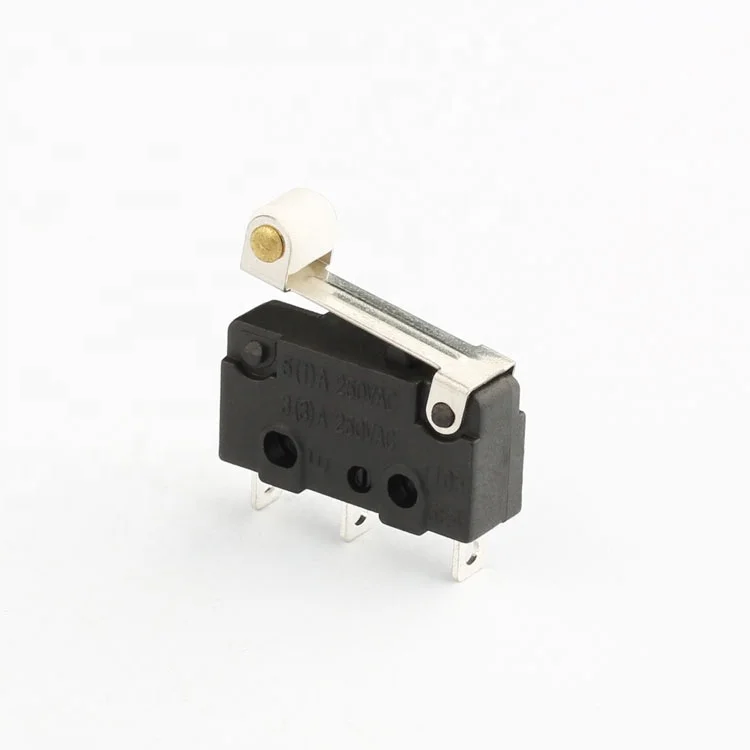

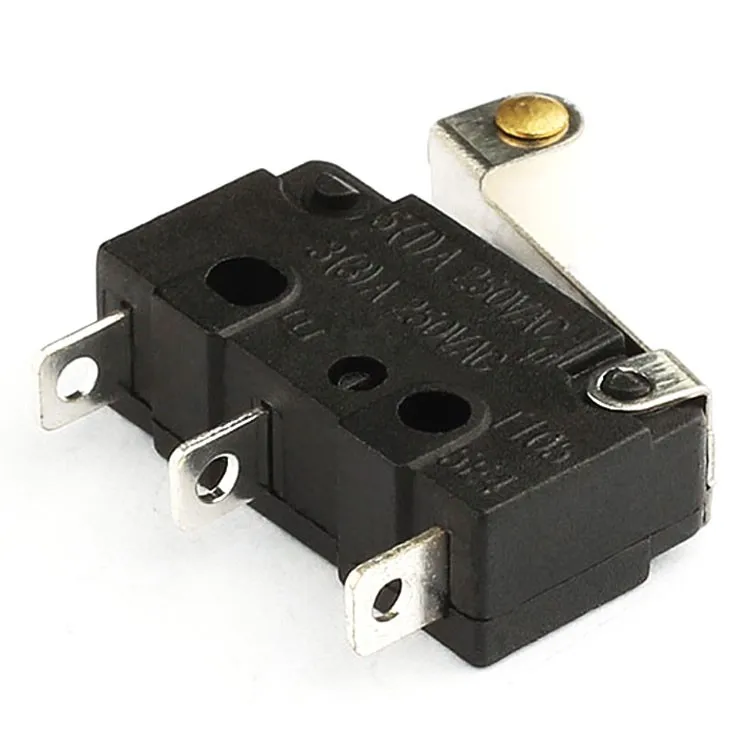

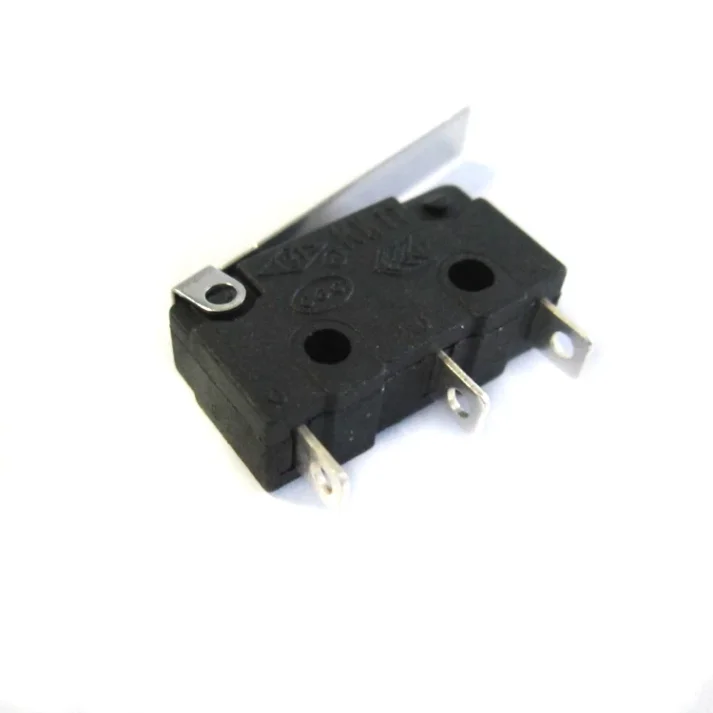

Yongxing Factory Wholesale KW11 Microswitch Supplier, 5A 250V, 3-pin, UL Certified

Description

Looking for a reliable and high-quality microswitch? Look no further than Yongxing’s KW11 5A 250V Microswitch! As a factory and supplier, we offer wholesale pricing on this popular product. Our microswitch features a 3-pin design, roll lever switch, and is UL certified. It is perfect for use in households and other applications. With a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, dielectric strength of 1,500V, and an electronic life of 50,000 cycles, our microswitch outperforms many competitors on the market. Additionally, our operating temperature range of -25°C to +125°C ensures durability in various environments. Our factory is equipped with independent plants, injection molding workshops, and advanced experimental equipment. With over 60 senior engineers and 5S management implemented in all workshops, we guarantee top-notch quality and customization options to meet your specific requirements. Choose Yongxing for your microswitch needs and experience the difference in quality and service.
Contact Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Dielectric Strength 1,500V
Electronic Life 50,000 cycles
Operating temperature -25℃~+125℃
Rating current&voltage 5A/250VAC

Electronic component image for cross-border e-commerceElectronic device image for SEO optimizationElectronic accessory image for e-commerce siteElectronic product image for cross-border salesElectronic gadget image for e-commerce SEO


Why Choose Yongxing's KW11 Microswitch?

Yongxing's KW11 Microswitch stands out with its 5A/250VAC rating, 3-pin design, and UL certification, ensuring reliability and safety. As a factory and supplier, we offer wholesale pricing, making it a cost-effective choice for bulk purchases.

What Are the Key Features of This Microswitch?

Our microswitch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1,500V. With an electronic life of 50,000 cycles and an operating temperature range of -25°C to +125°C, it offers durability and performance in various conditions.

Can Yongxing Customize the Microswitch to My Needs?

Absolutely! With our independent plants, injection molding workshops, and advanced experimental equipment, we can customize the switch to meet your specific requirements. Our team of over 60 senior engineers ensures top-notch quality and customization options.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

5A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KW11-12-A1

Application

households

Material

plastic

Mechanical Life

50000 times

Circuit

SPST

Operating Temperature

25T125

IP level

IP40

Function

SPDT 1NO 1NC

Color

Black

Pins

3 pin

Housing color

Black White Gray

Contact Resistance

50m Max

Insulation Resistance

100M Min

Electrical Life

50000 cycles

Protection Level

IP65 IP40
