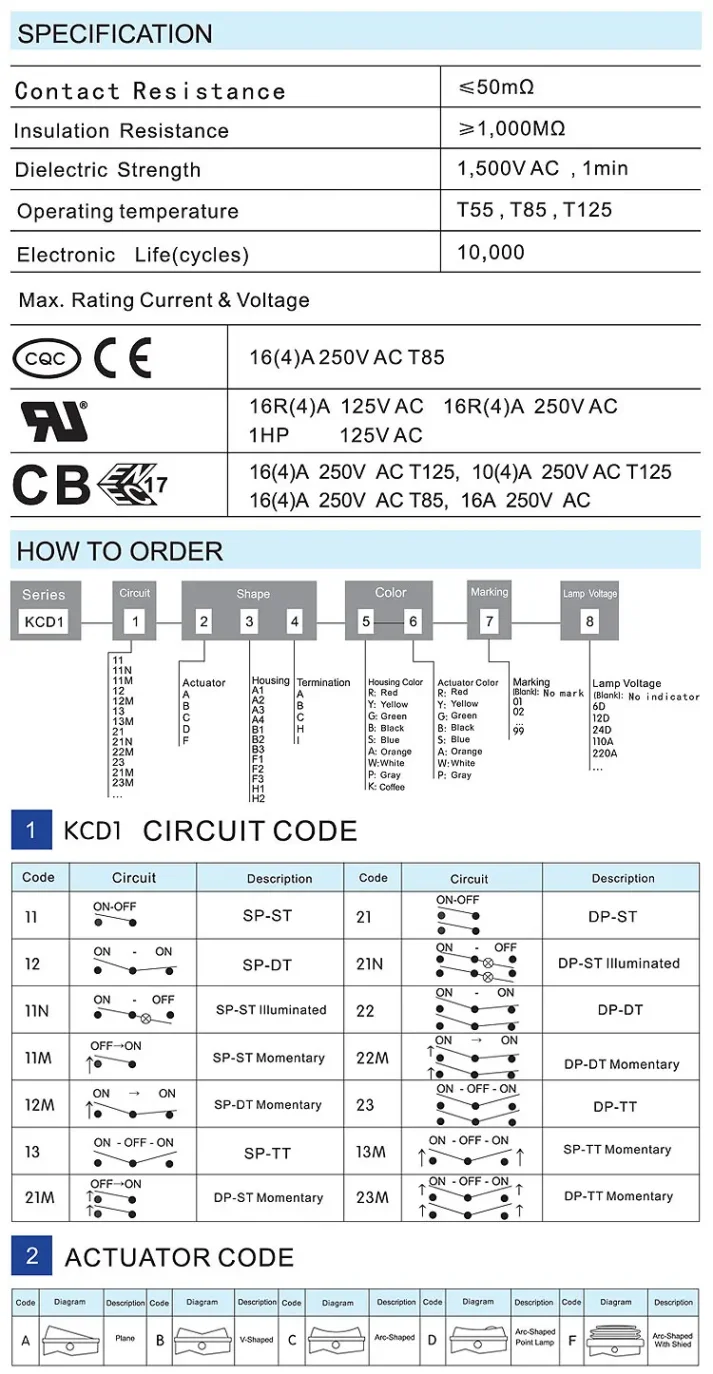

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our Rocker Switch?
Our rocker switch is designed with durability and reliability in mind. With a mechanical life of up to 100,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance in various applications. The plastic housing with an IP65 rating provides excellent waterproof protection, making it suitable for use in harsh environments.
What Are the Key Features?
The switch features a DPDT configuration, allowing for versatile wiring options. It supports 16A 250V AC current and voltage ratings, with UL and CE approvals for safety and compliance. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1000MΩ, ensuring optimal electrical performance. Additionally, the switch is available with 2P or 3P pins and supports plug-in termination for easy installation.
Where Can It Be Used?
Our rocker switch is ideal for use in cars, industrial machinery, and electric equipment. Its robust design and excellent electrical performance make it a reliable choice for various applications. Whether you need a switch for automotive, industrial, or electrical purposes, our rocker switch is the perfect solution.
