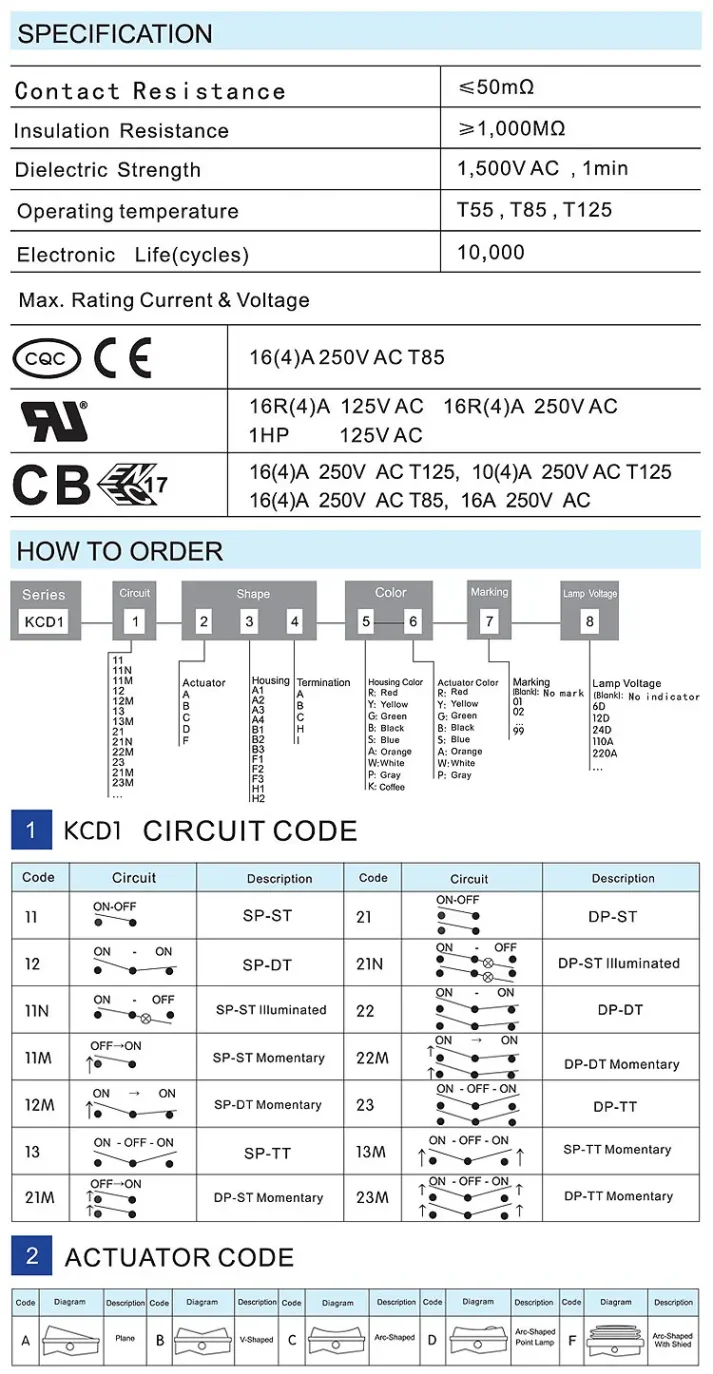

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our Rocker Switch?

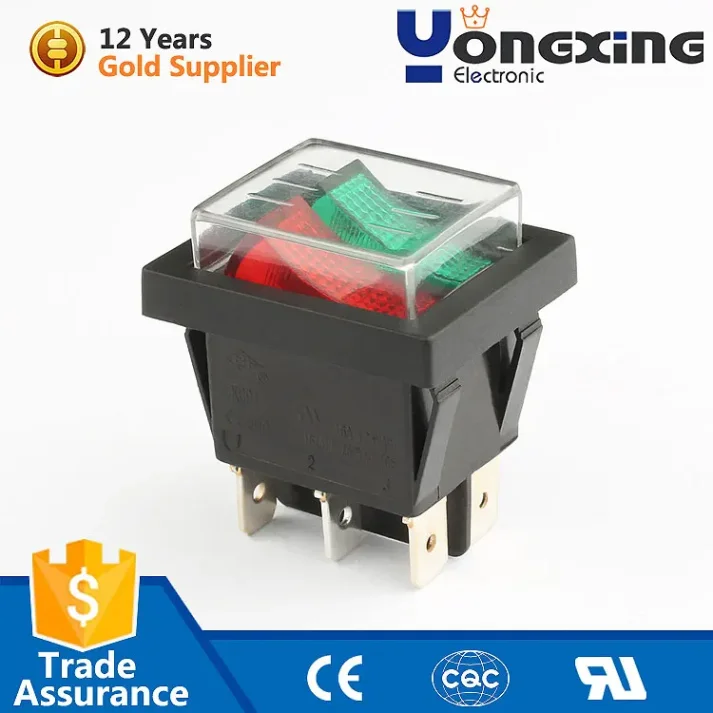

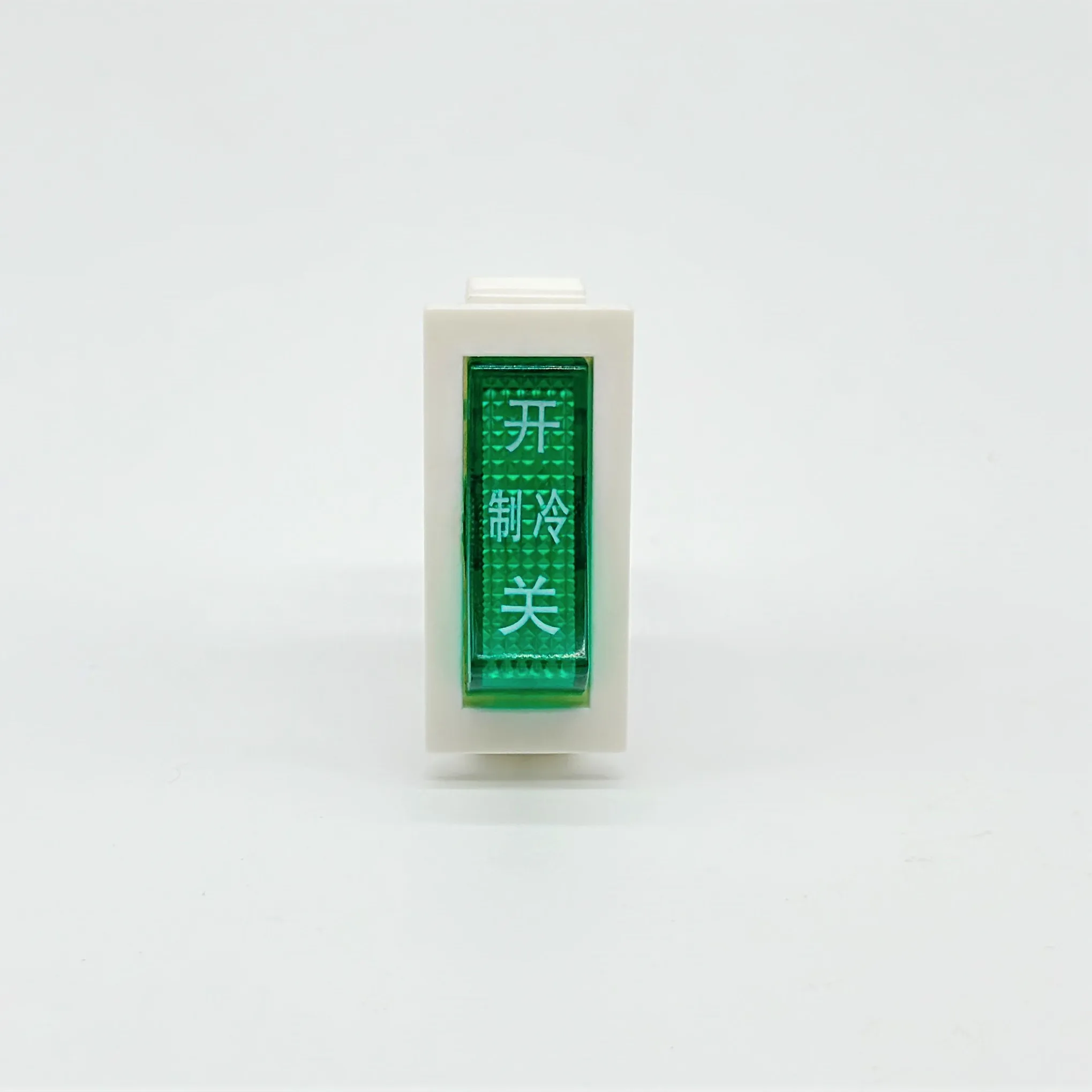

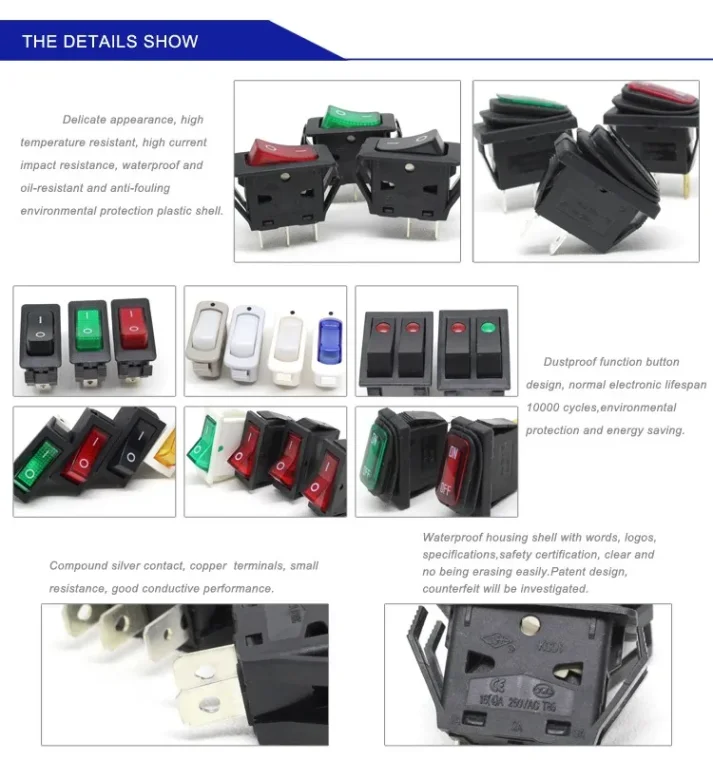

Our Yongxing Factory Wholesale Rocker Switch is engineered for durability and performance. With a mechanical life of up to 100,000 cycles, it ensures long-term reliability in demanding applications. The dual-color LED lights (Red and Green) provide clear visual indication, enhancing user experience.
What Makes Our Switch Stand Out?
Our switch stands out with its robust plastic construction, IP65 rating, and global certifications including CQC, CE, UL, ENEC, and CB. It offers a maximum current rating of 16A and a voltage rating of 250V AC, making it suitable for a wide range of electrical loads.
How Can We Help You?
As a factory supplier, we offer competitive wholesale prices and exceptional customer service. Whether you're looking for a single switch or bulk quantities, we're here to meet your needs. Contact us today to learn more about our Yongxing Factory Wholesale Rocker Switch and how it can benefit your applications.
