Yongxing KBM Series 4A 250V Push Button Switch | Factory Wholesale Supplier

500 - 999  pieces
$0.49

1,000 - 1,999  pieces
$0.48

>= 2,000  pieces
$0.46

0 reviews

Yongxing KBM Push Button Switch | Factory Supplier | Wholesale

Description

Discover our high-quality Yongxing KBM Series 4A 250V Push Button Switch, a reliable choice for various applications. As a factory direct supplier and wholesaler, we offer competitive prices and excellent service. This switch is crafted from durable PA66 material, ensuring it can withstand vibration, humidity, and temperature variations, providing long-term reliable performance. With a maximum current of 4A and a maximum voltage of 250V, it is suitable for electric and home appliance applications. The switch features a flat head, pin terminal, and a combination of 1NO, 1NC, or 1NO1NC, meeting diverse needs. It has a low contact resistance of ≤50mΩ and high insulation resistance of 100MΩ, ensuring safety and efficiency. The dielectric strength of 1500V, electrical life of 10000 times, and mechanical life of 50000 times make it stand out from competitors. Operating within a temperature range of -25°C to +55°C and certified by CQC CE, it guarantees quality and reliability. We offer a 12-month warranty and customization options in white, with a size of 12mm. Choose us for your wholesale needs and enjoy factory-direct pricing.

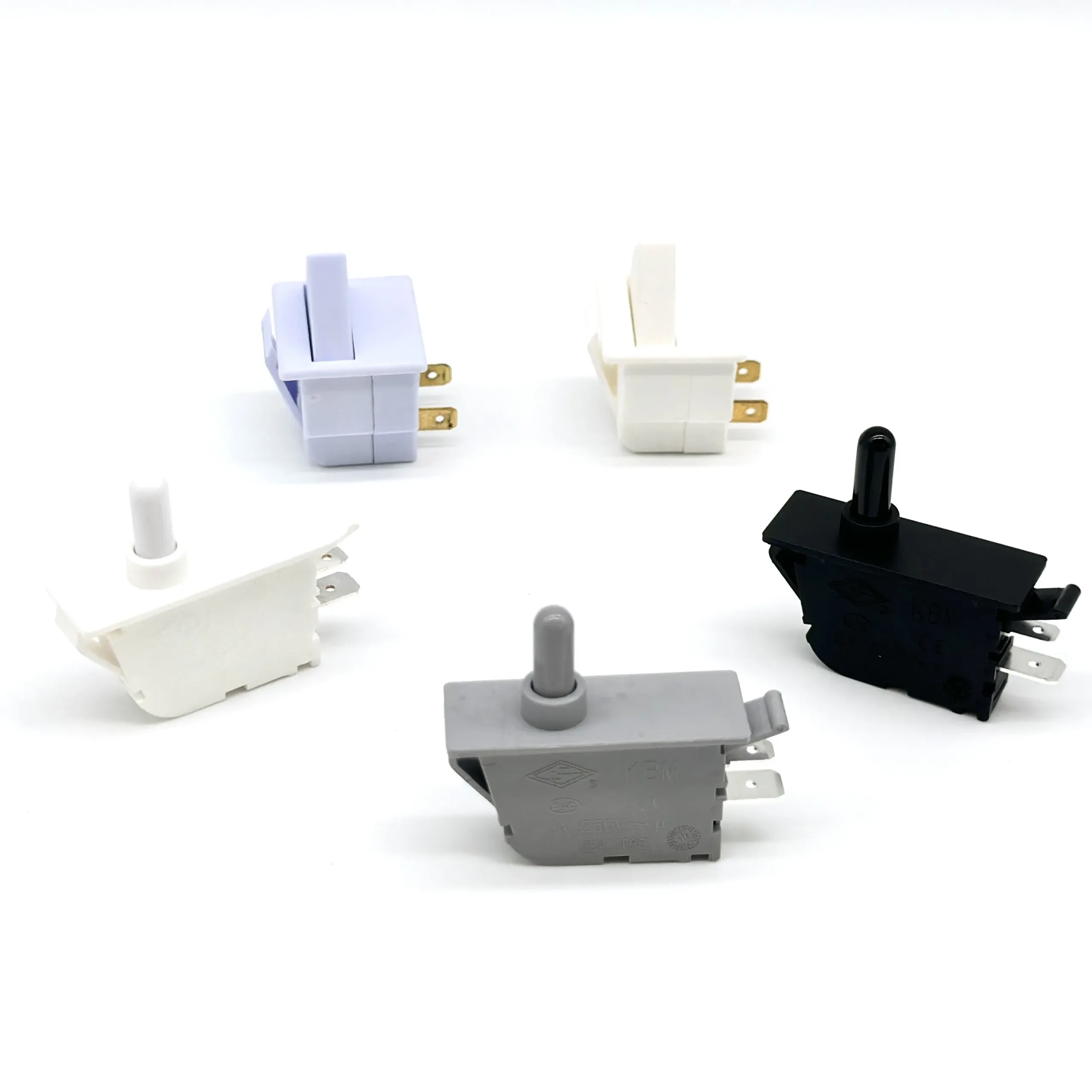

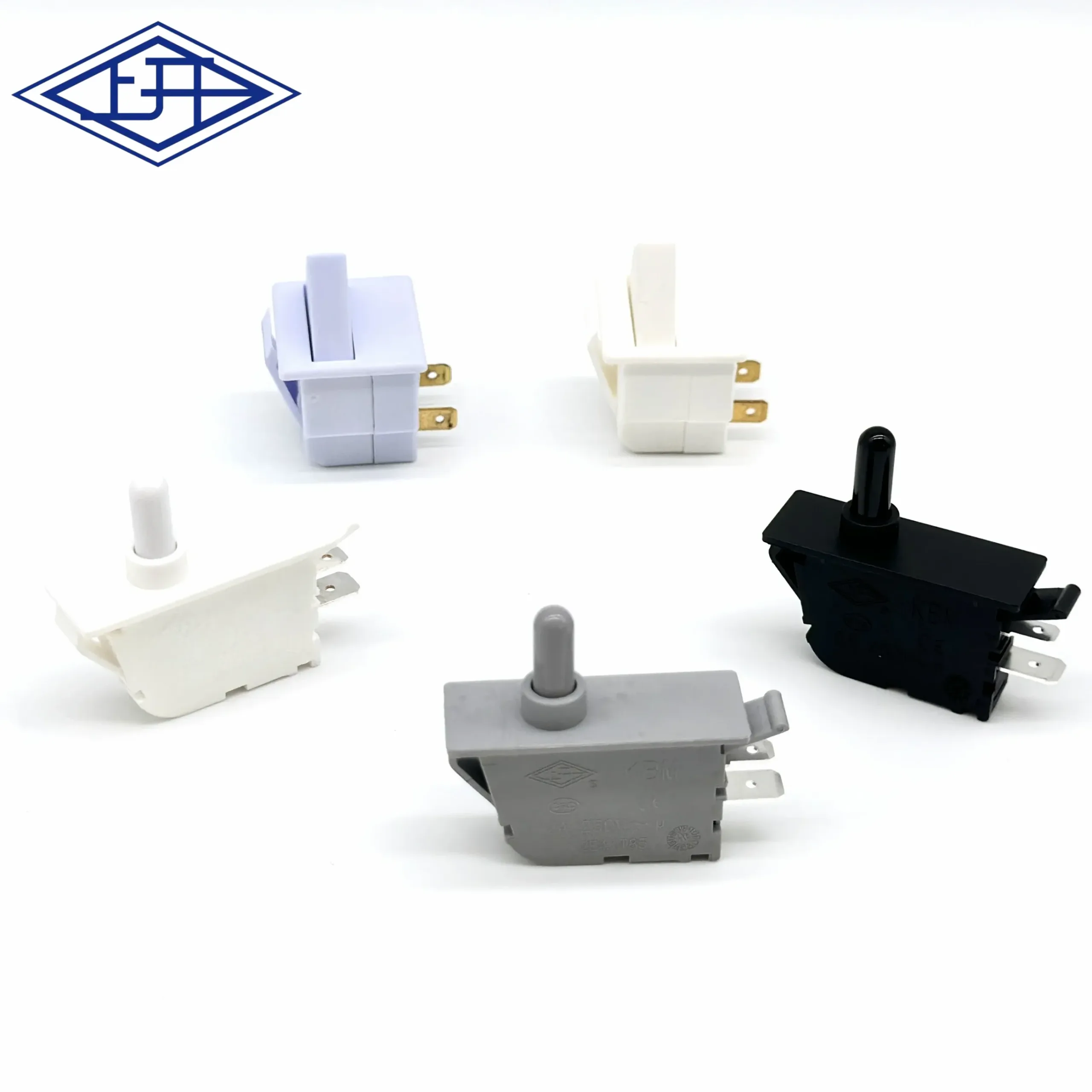

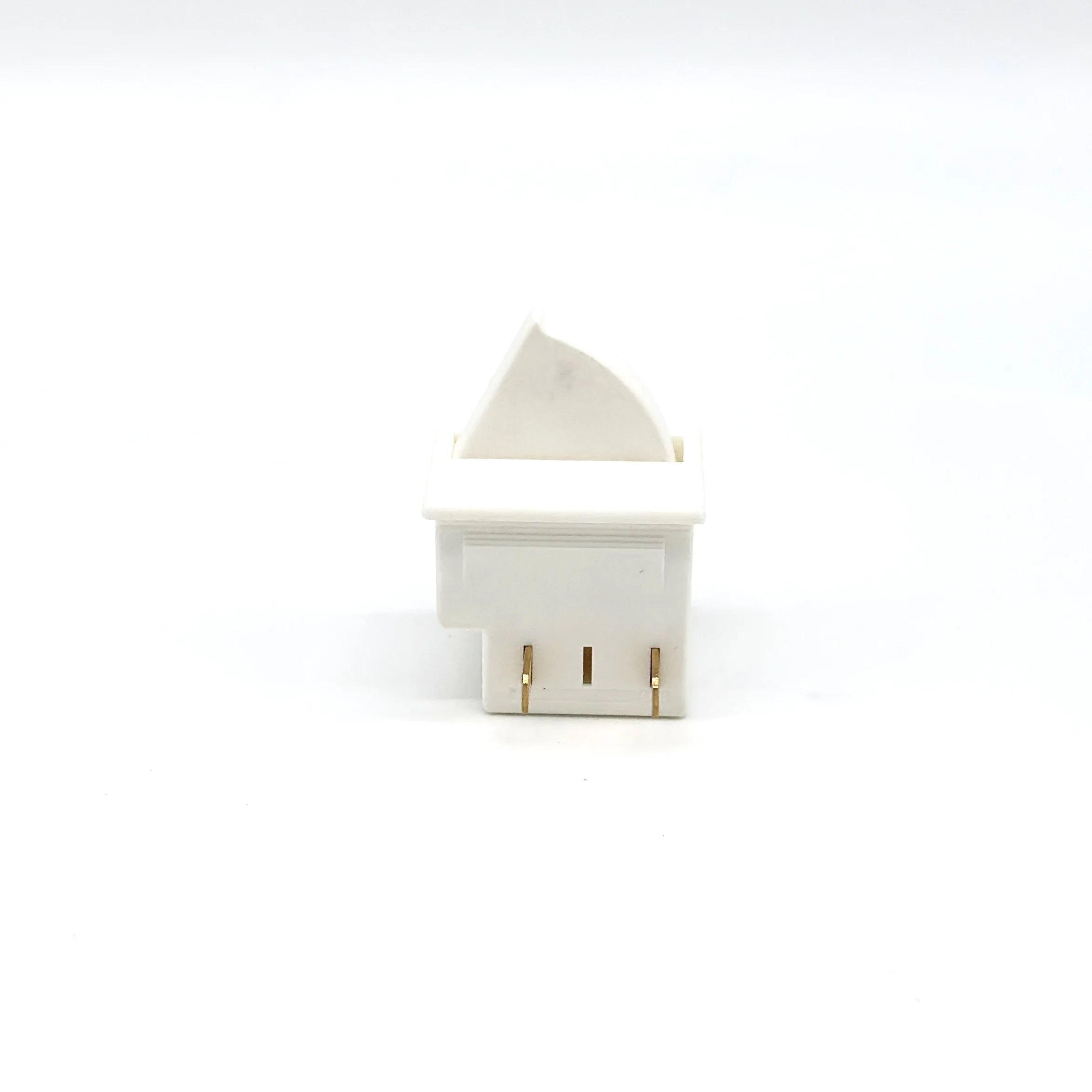

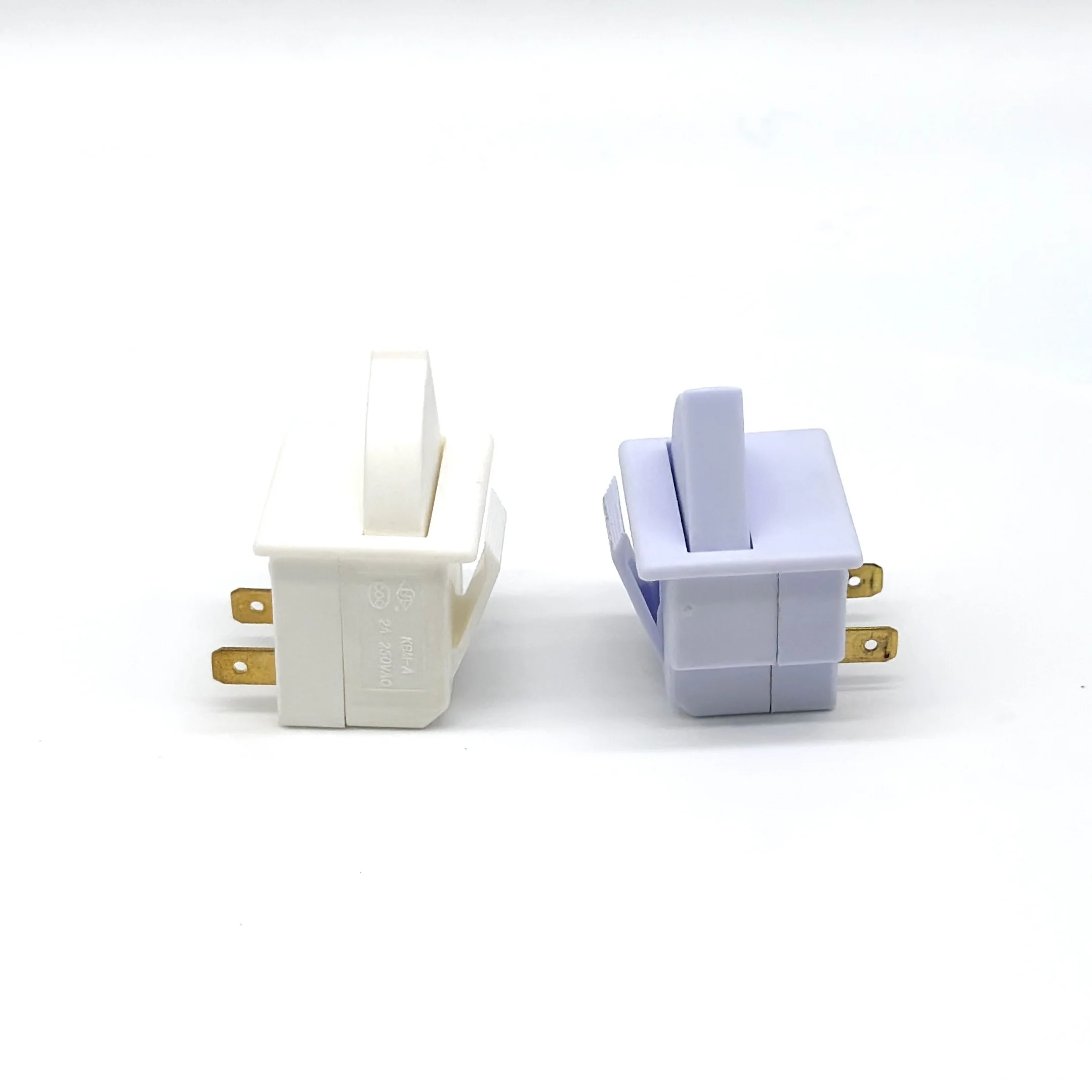

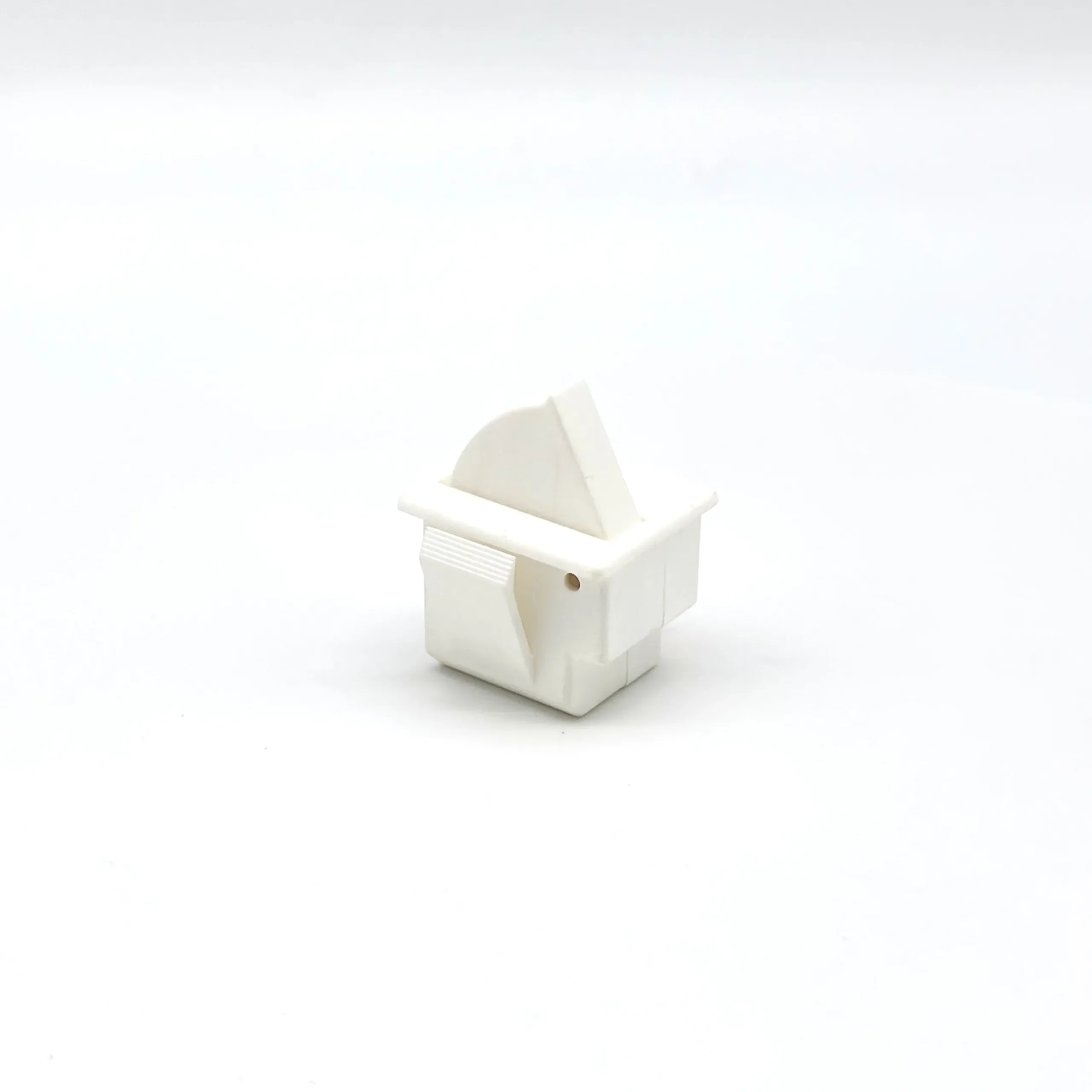

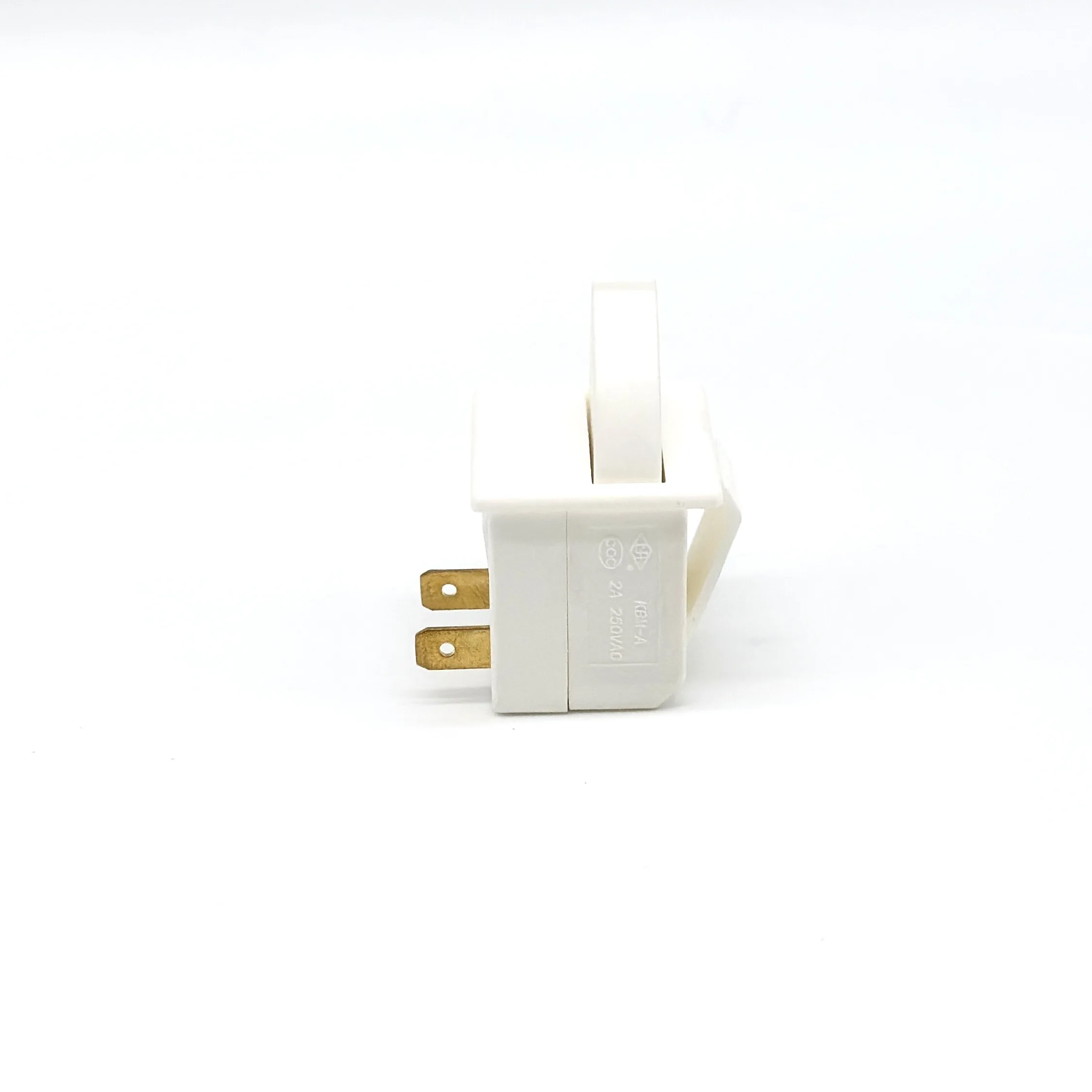

Electronic component product imageHigh-quality electronic device photoVisual of electronic partDisplay of electronic productView of electronic componentSnapshot of electronic device


Why Choose Our Yongxing KBM Series Push Button Switch?

Our Yongxing KBM Series Push Button Switch stands out for its durability and reliability. Made from high-quality PA66 material, it can withstand harsh environmental conditions, ensuring long-term performance. With a maximum current of 4A and a maximum voltage of 250V, it is perfect for a wide range of electric and home appliance applications.

What Are the Key Features of This Switch?

This switch features a flat head, pin terminal, and a combination of 1NO, 1NC, or 1NO1NC, providing flexibility for different needs. It has a low contact resistance and high insulation resistance, ensuring safety and efficiency. The dielectric strength of 1500V, along with a long electrical and mechanical life, makes it a superior choice compared to other switches on the market.

Why Buy from Us as a Factory Supplier?

As a factory direct supplier and wholesaler, we offer competitive prices and excellent customer service. We provide a 12-month warranty and customization options to meet your specific needs. Choose us for your wholesale push button switch needs and enjoy the benefits of factory-direct pricing and reliable quality.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

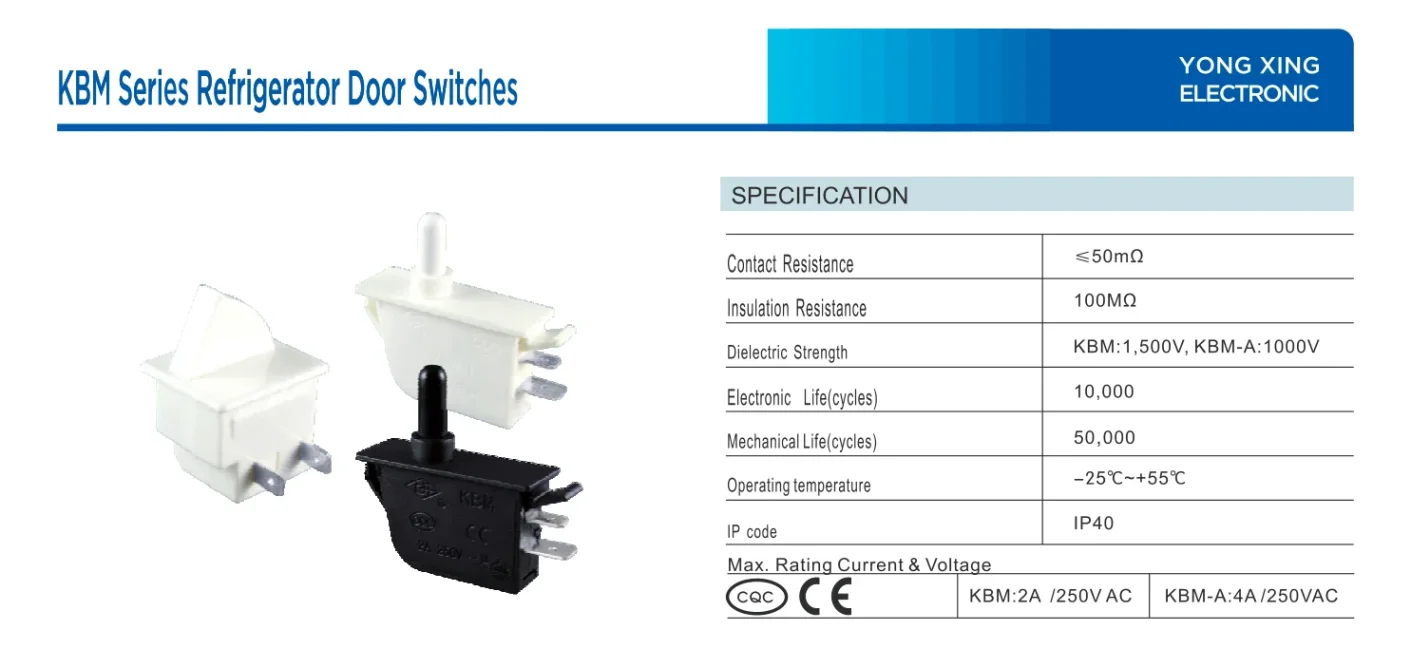

Additional information

Max. Current

4A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KBM-A11-W

LED

NO

Application

Electric, Home Appliance

Material

PA66

Structure

Electronic

Head Type

Flat Head

Terminal Type

Pin terminal

Whether the smart

NO

IP level

IP40

Switch Combination

1NO, 1NC, 1NO1NC

Contact Resistance

≤50mΩ

Insulation resistance

100MΩ

Dielectric Strength

1500V

Electrical Life

10000 Times

Mechanical Life

50000 times

Working Temperature

-25°- +55°

Certification

CQC CE

Warranty

12 Months
