Yongxing KBM Series 4A 250V White Push Button Switch | Factory Wholesale Supplier

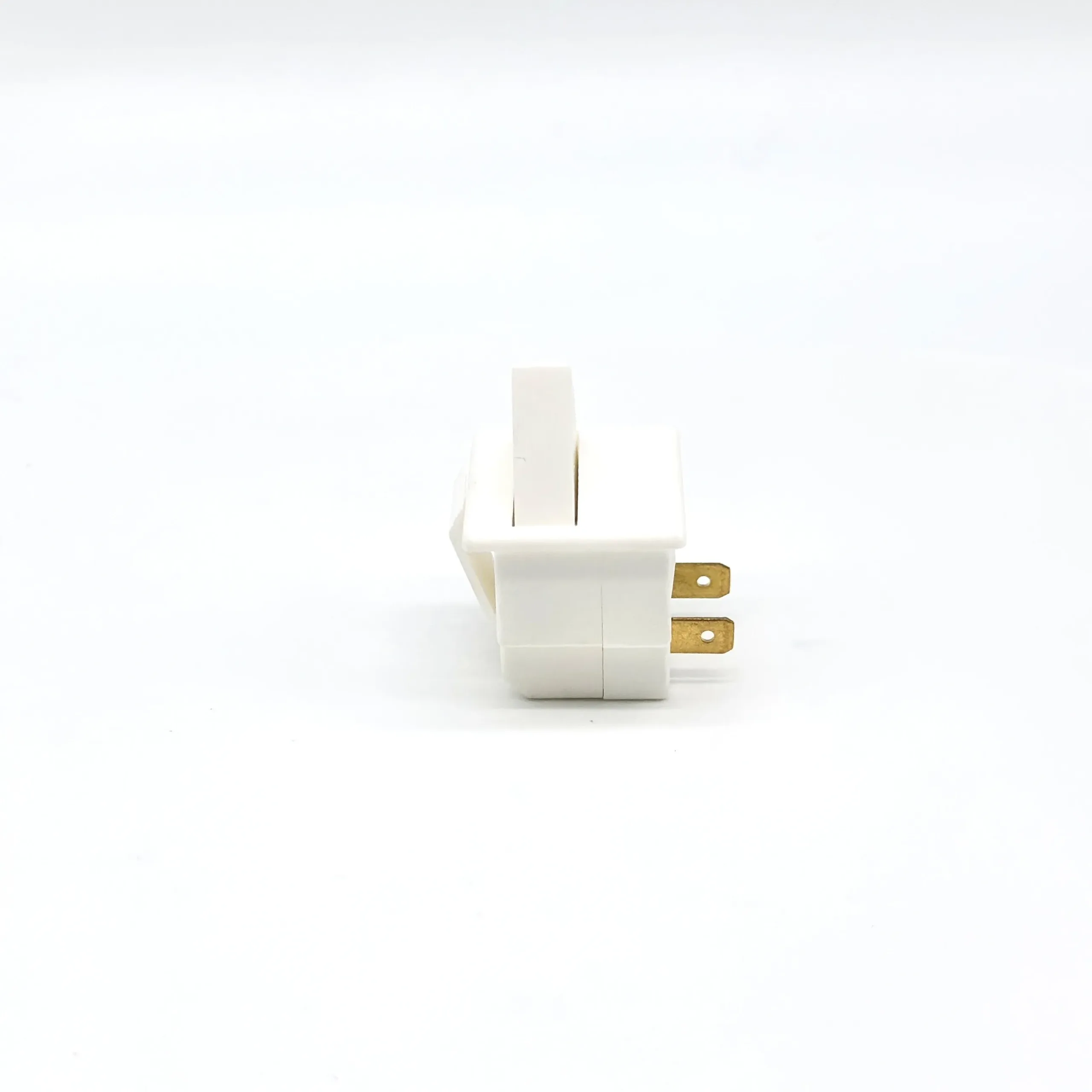

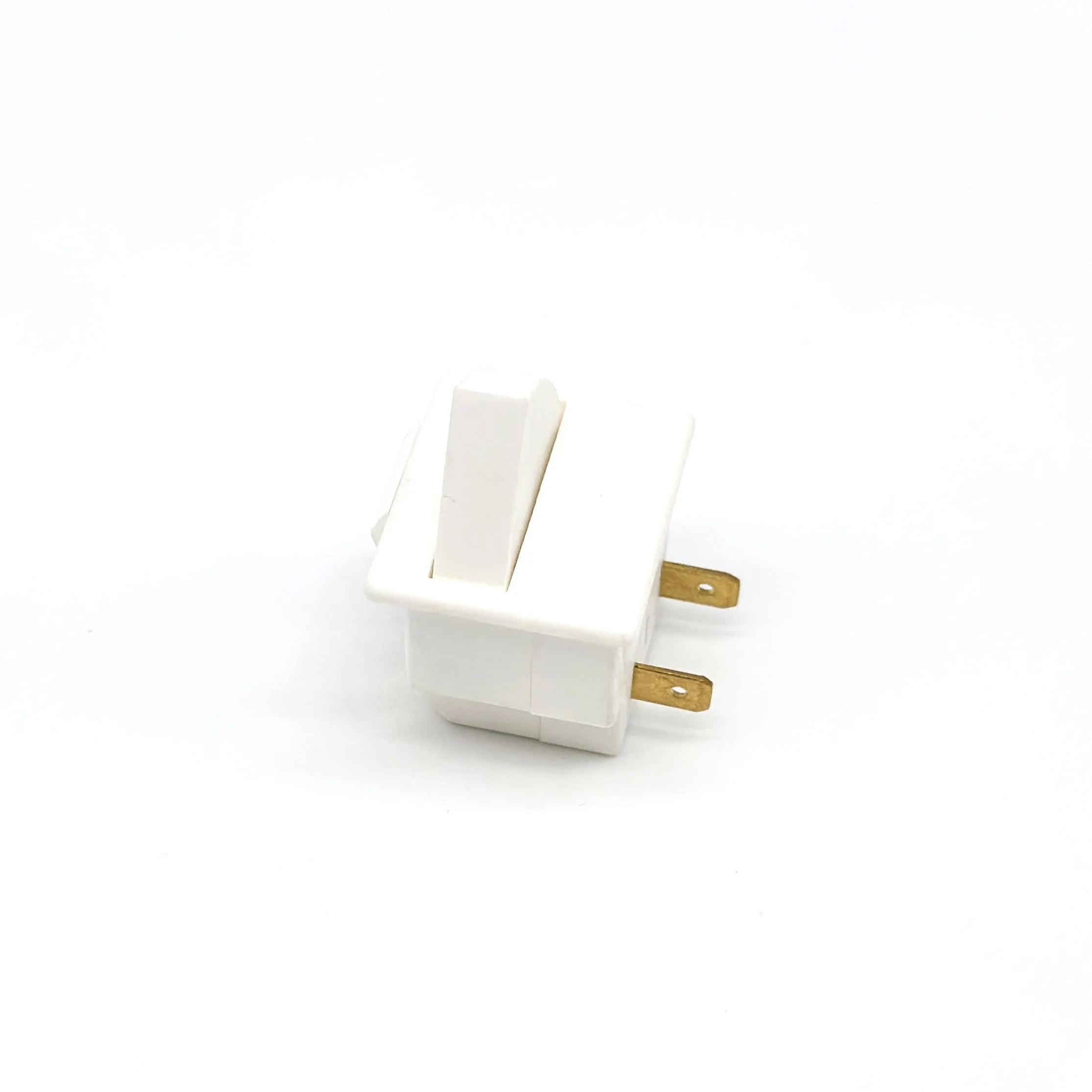

Our Yongxing KBM Series White Push Button Switch is a high-quality, durable solution for various applications. With a maximum current of 4A and a maximum voltage of 250V, this switch is designed to handle demanding electrical environments. Made from PA66 material, it offers excellent resistance to vibration, humidity, and temperature variations, ensuring long-term reliable performance. As a factory direct supplier and wholesaler, we offer competitive prices and flexible bulk purchasing options.

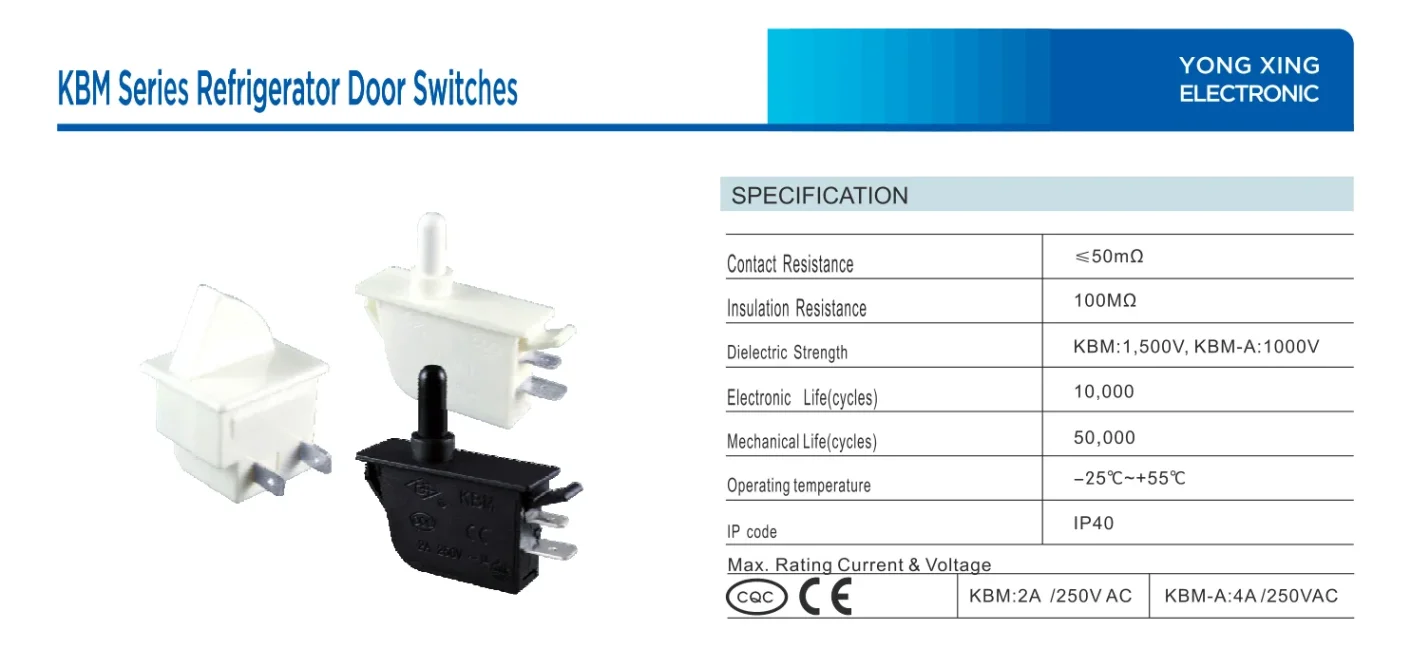

Key Specifications:
– Max. Current: 4A
– Max. Voltage: 250V
– Material: PA66
– Structure: Electronic

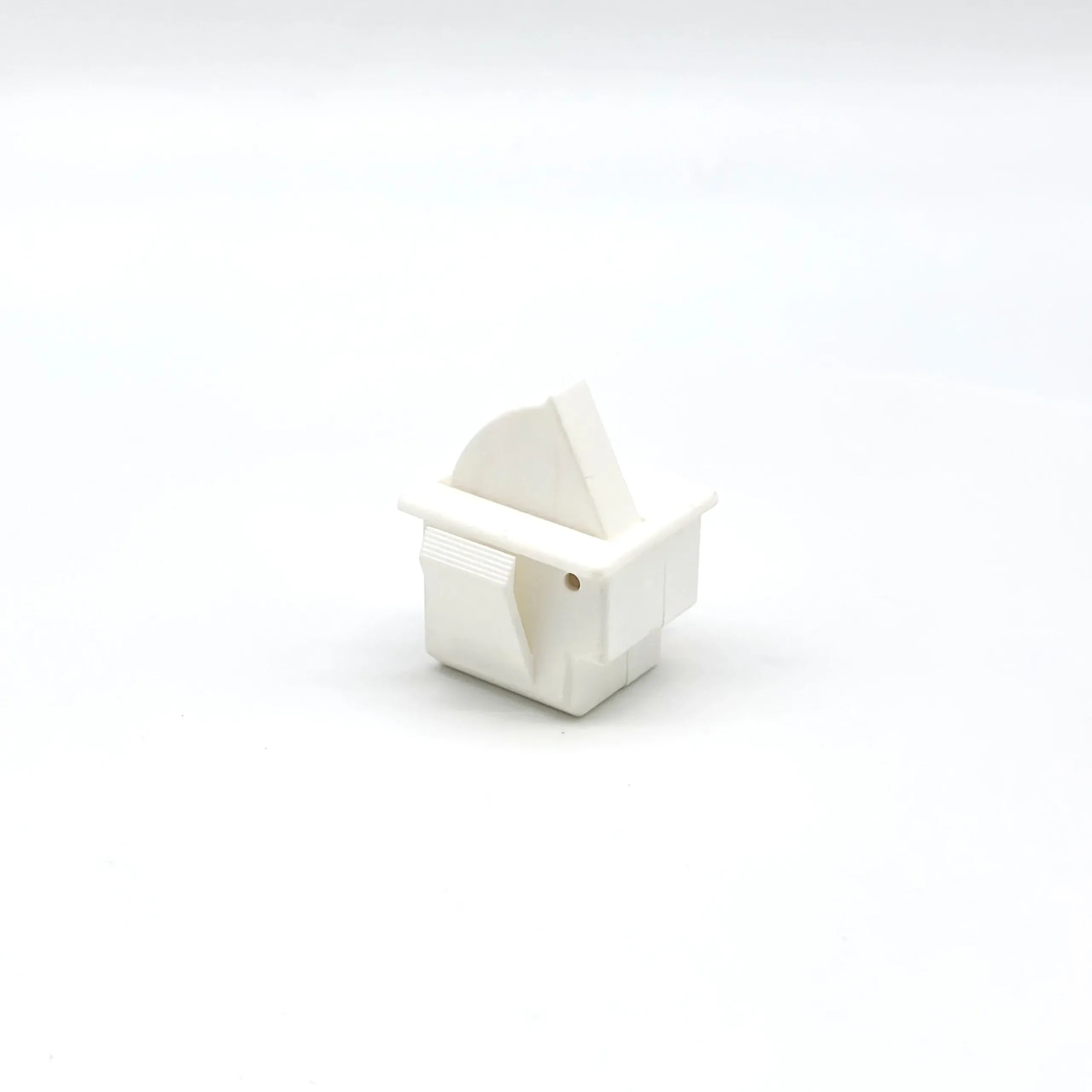

– Head Type: Square Head

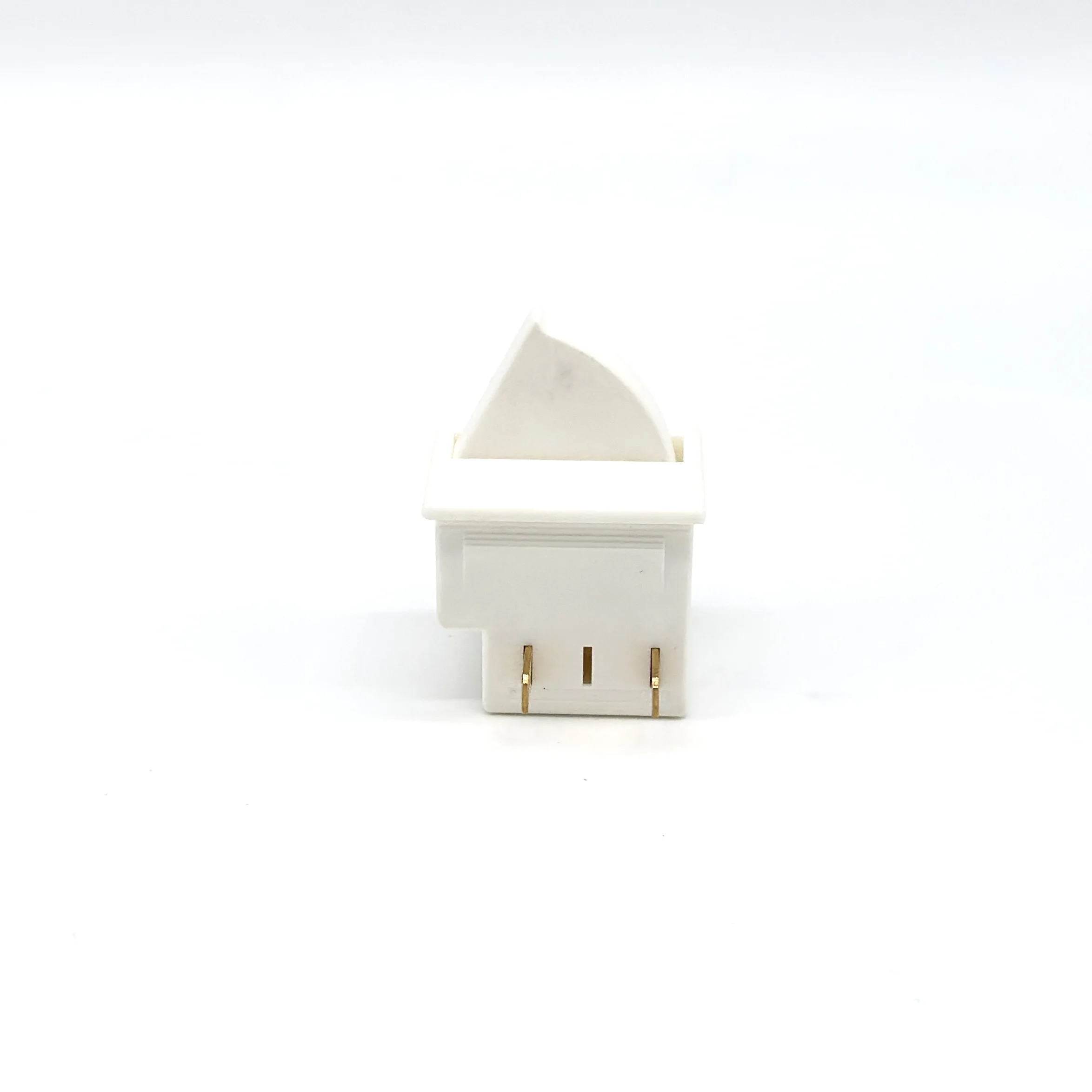

– Terminal Type: Pin terminal
– IP Level: IP40
– Switch Combination: 1NO, 1NC, 1NO1NC
– Contact Resistance: ≤50mΩ
– Insulation Resistance: 100MΩ
– Dielectric Strength: 1500V
– Electrical Life: 10,000 Times
– Mechanical Life: 50,000 Times
– Working Temperature: -25°C to +55°C
– Certification: CQC CE
– Warranty: 12 Months
– Color: White
– Size: 12mm

Applications:
This push button switch is widely used in electric and home appliance applications, including refrigerators, instrumentation, electronics, and medical equipment. Its square head design and pin terminal make it easy to install and integrate into various systems.

Advantages:
– Durable construction for long-lasting use
– High electrical and mechanical life ratings
– Wide working temperature range
– CQC CE certified for safety and reliability
– Factory direct pricing and wholesale availability

Choose our Yongxing KBM Series Push Button Switch for a reliable, cost-effective solution that meets your electrical needs.
